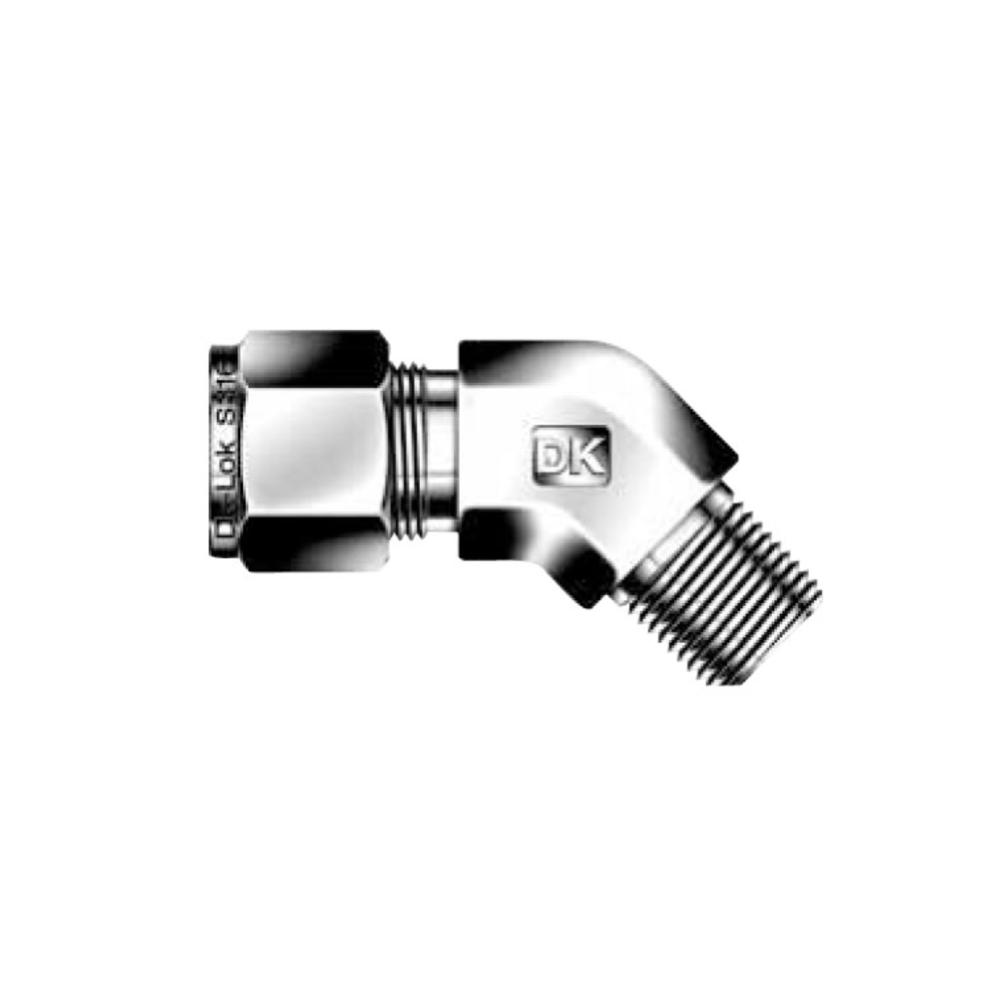

DK-LOK SS316 45 Degree Male Connector DLBM Series
Tube to Male Pipe
Model No.
DLBMX-XN-SS

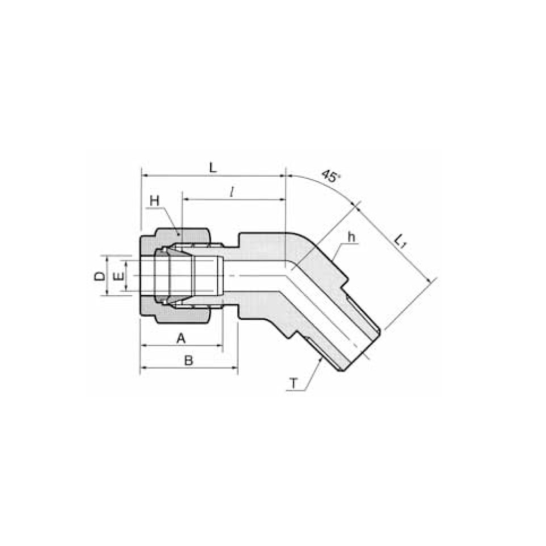

DK-Lok DLBM-N 45 degree male elbows are designed to connect individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

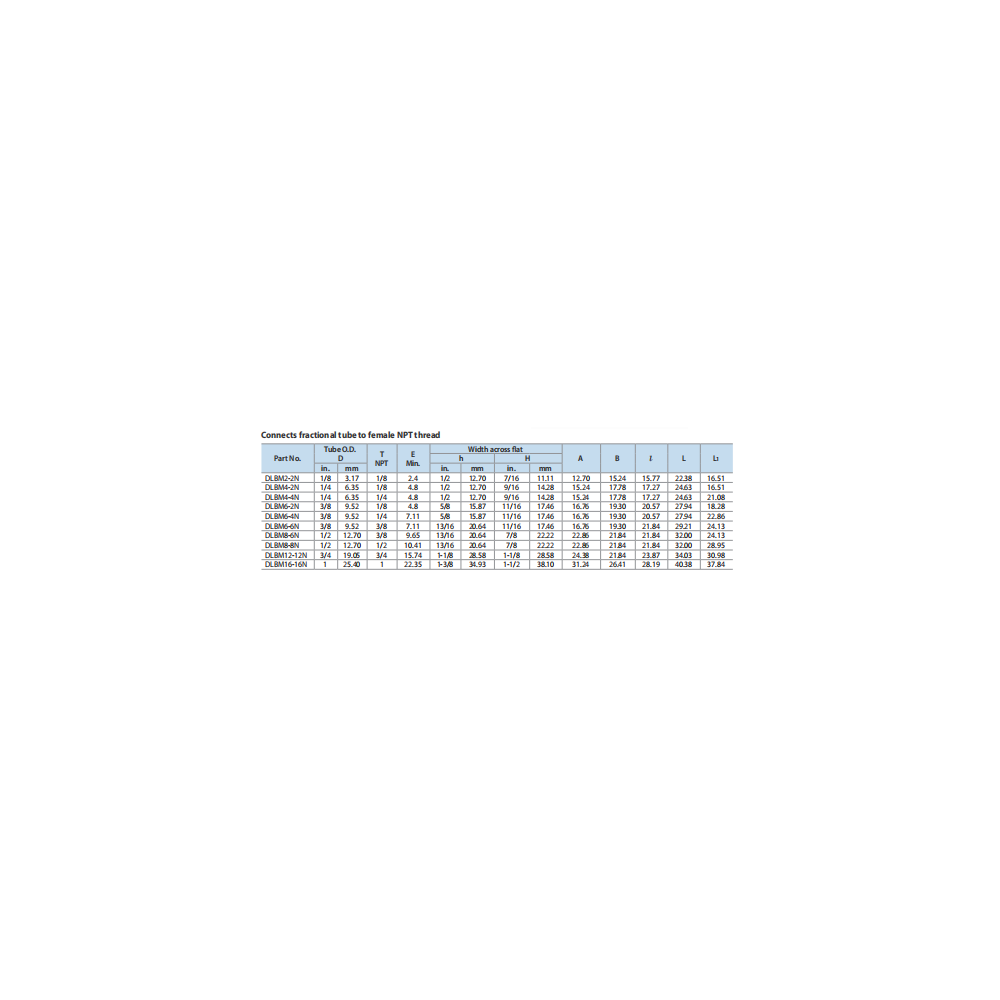

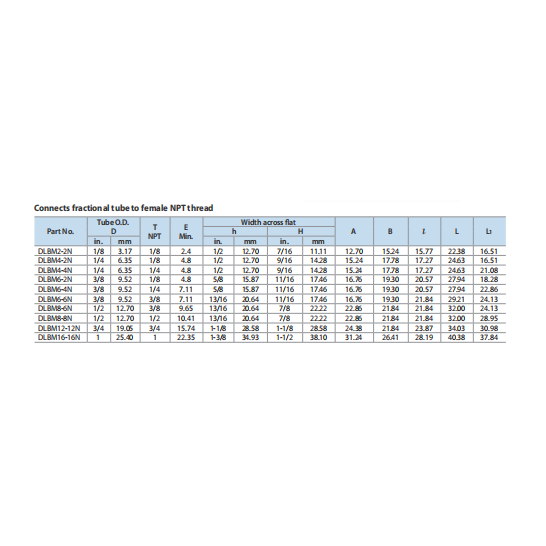

Part No |
Tube O.D. D (inches) |
T NPT |
|
DLBM2-2N |
1/8 |
1/8 |
|
DLBM4-2N |
1/4 |
1/8 |
|
DLBM4-4N |
1/4 |
1/4 |
|
DLBM6-2N |
3/8 |
1/8 |
|
DLBM6-4N |
3/8 |
1/4 |
|
DLBM6-6N |
3/8 |
3/8 |
|
DLBM8-6N |
1/2 |
3/8 |
|
DLBM8-8N |
1/2 |
1/2 |
|
DLBM12-12N |
3/4 |
3/4 |
|
DLBM16-16N |
1 |
1 |
