Brand:
DK-LOK SS316 Low Pressure Relief Valves 12mm x 12mm Tube
Model No.
V63-D-12M-S
V63-D-12M-S
Data sheet
- Valve Series
- V63 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Dk-Lok
- Size Inlet x Outlet
- 12mm Dk-Lok x 12mm Dk-Lok
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 10
- CE Certified
- None
- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.6

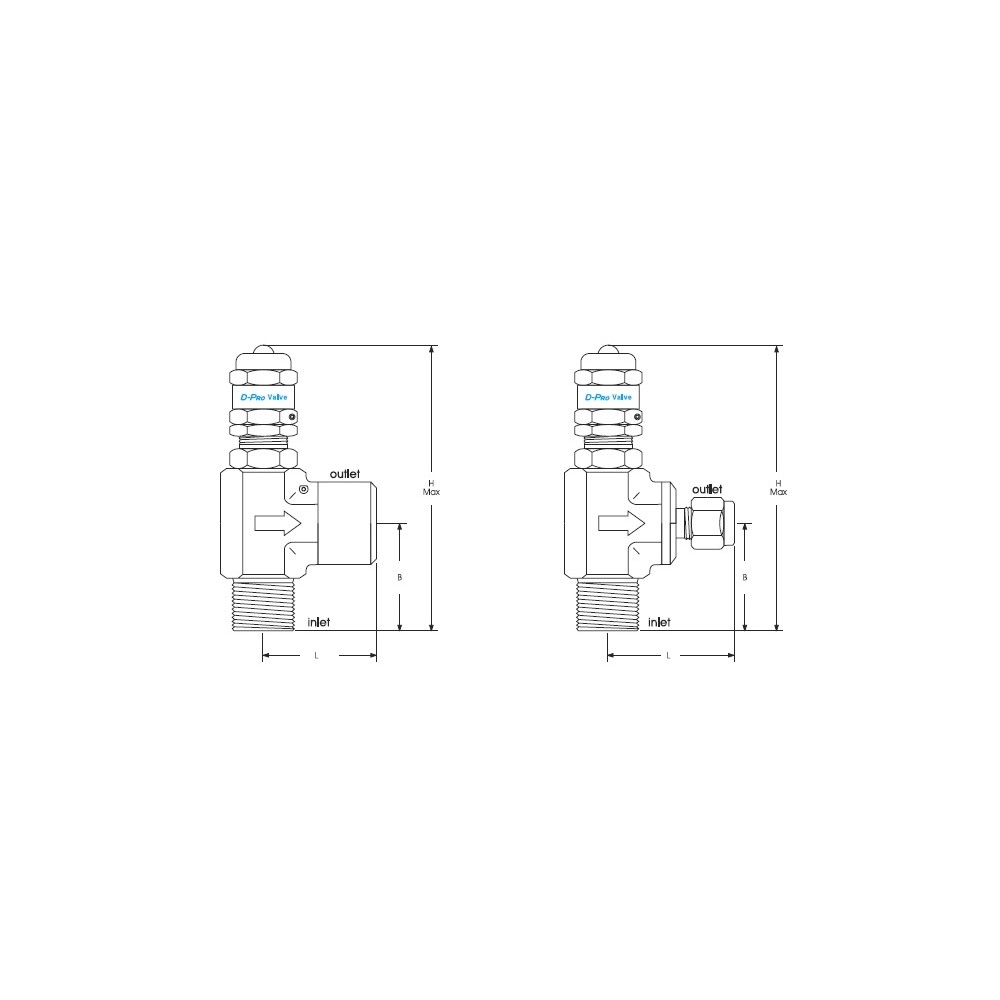

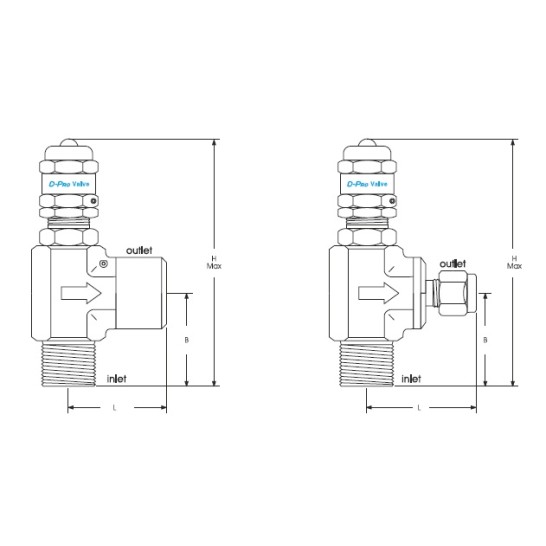

- Dimension (H)
- 105.0 mm
- Dimension (B)
- 44.0 mm
- Dimension (L)
- 42.0 mm
