Brand:
DK-LOK SS316 Low Pressure Relief Valves 1/2" x 1/2" Tube
Model No.
V63-D-8T-S
V63-D-8T-S
Data sheet
- Valve Series
- V63 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Dk-Lok
- Size Inlet x Outlet
- 1/2" Dk-Lok x 1/2" Dk-Lok
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 10
- CE Certified
- None

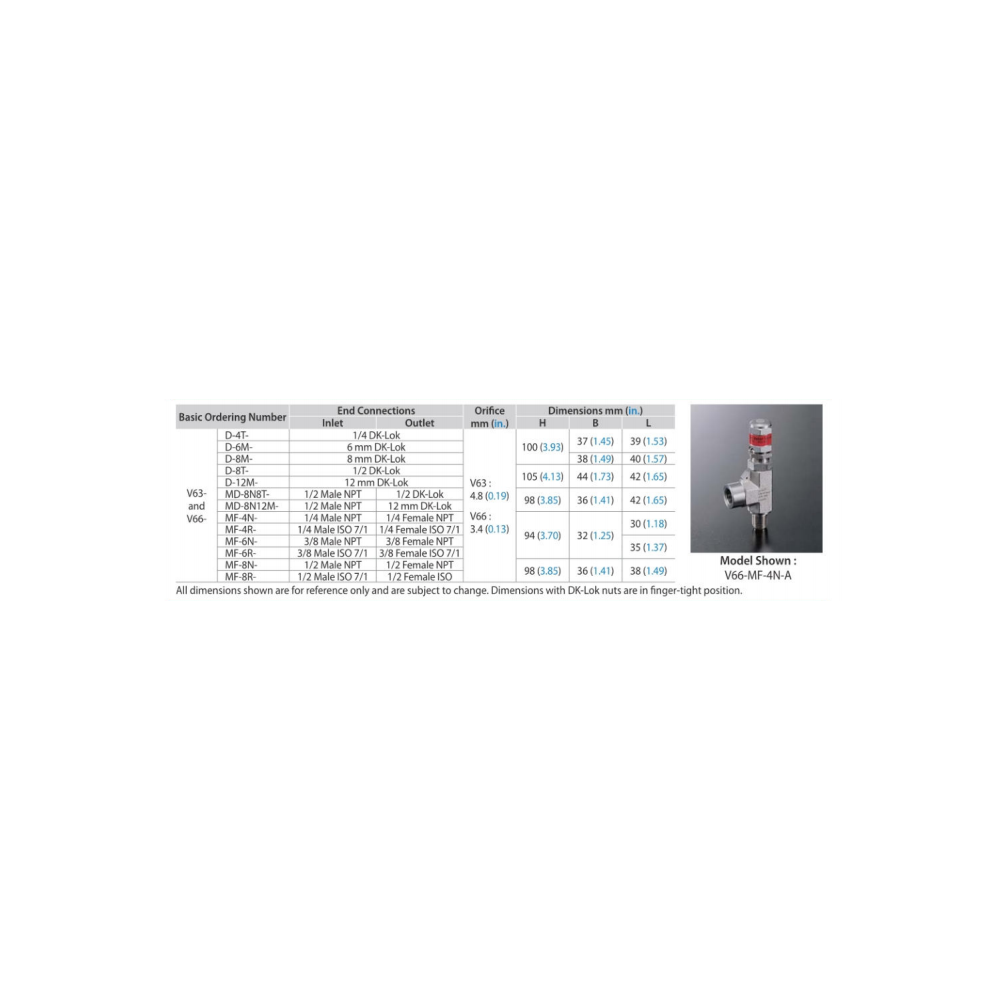

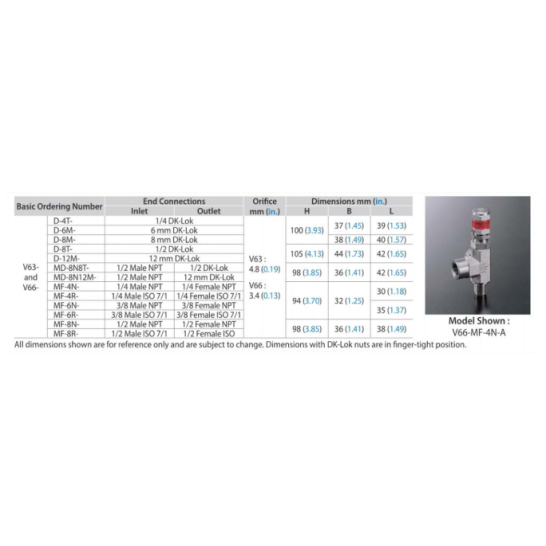

- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.6

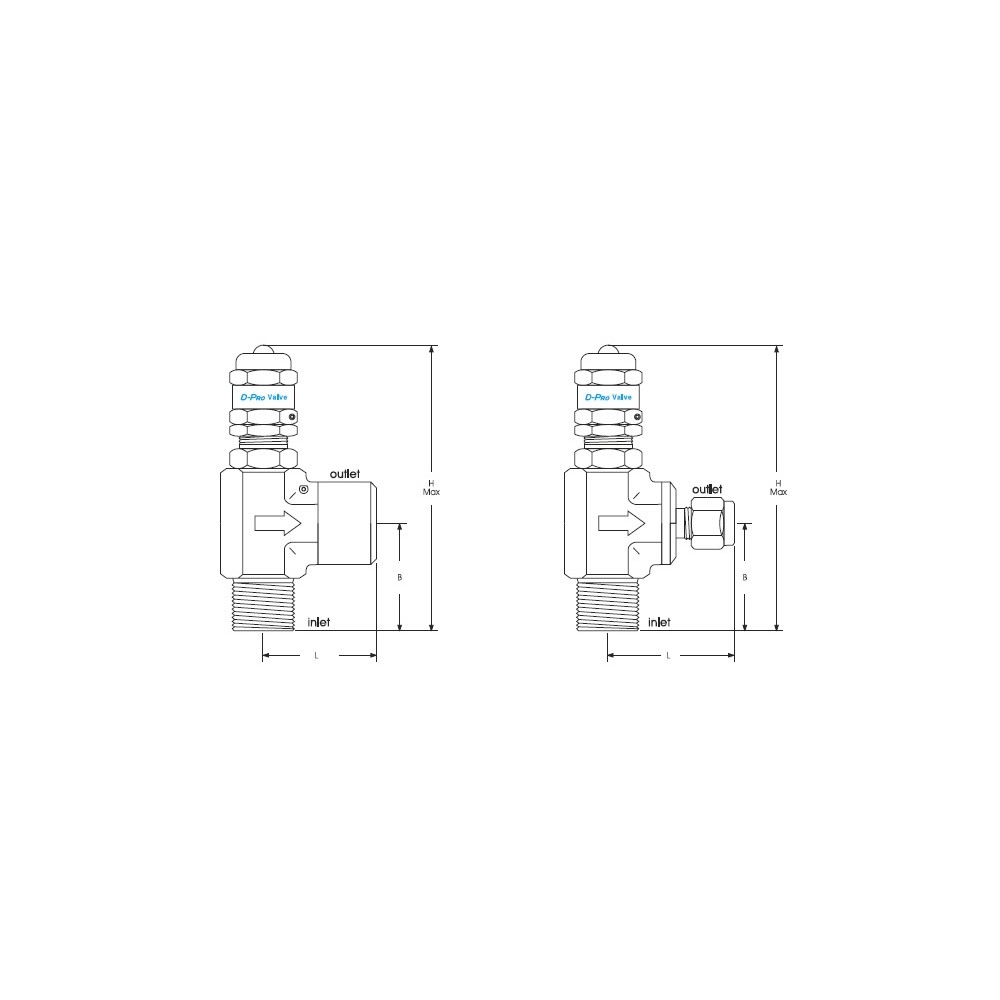

- Dimension (H)
- 105.0 mm
- Dimension (B)
- 44.0 mm
- Dimension (L)
- 42.0 mm
- Cracking Pressure (bar)
- 8.26
