Brand:

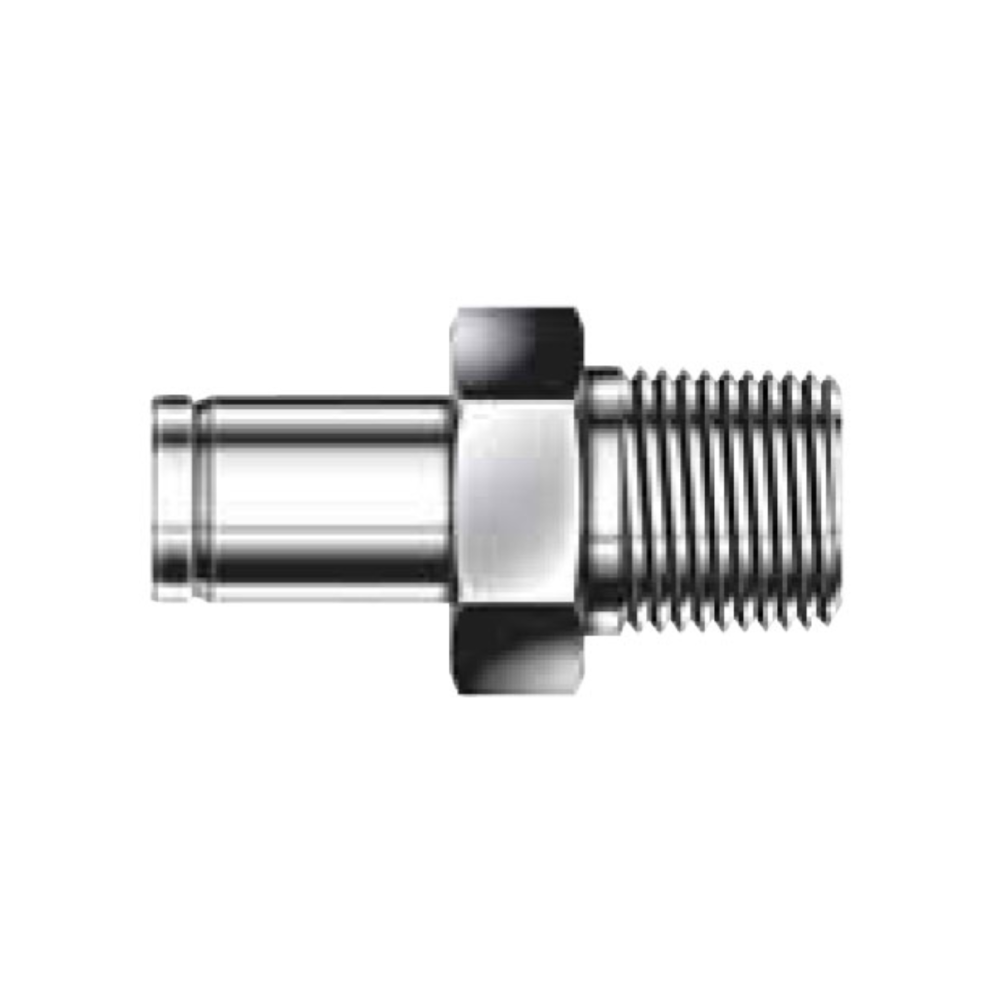

DK-LOK SS316 Male Adapter DAM-N Series
Tube Stub Connector
Model No.
DAMX-XN-SS
DK-Lok DAM-N adapter tube fittings provide a connection to a female American Standard Pipe Thread port leaving a tube stub connection typically to address alignment issues.
|

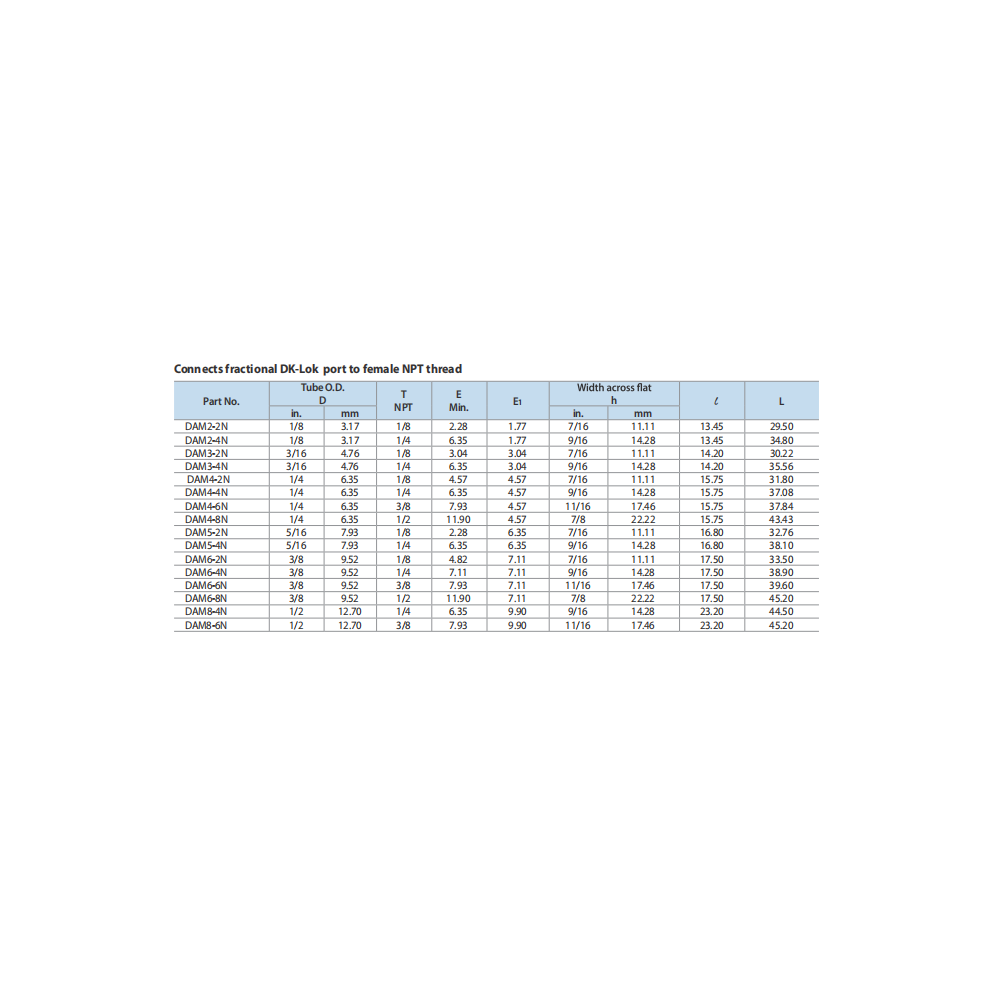

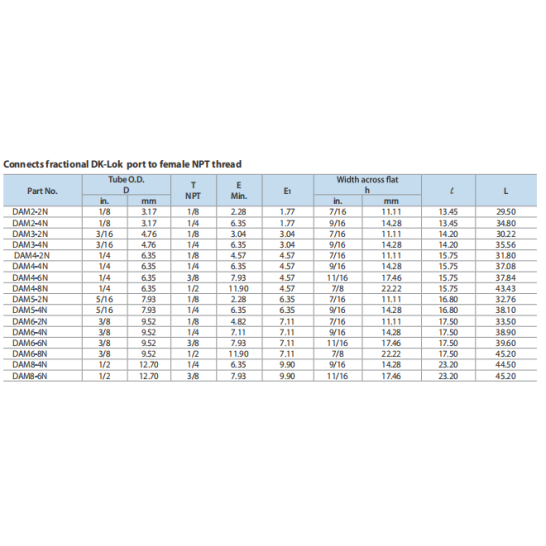

Part No
|
Tube O.D.
D (inches)
|
T
NPT
|
|
DAM2-2N |
1/8 |
1/8 |
|
DAM2-4N |
1/8 |
1/4 |
|
DAM3-2N |
3/16 |
1/8 |
|
DAM3-4N |
3/16 |
1/4 |
|
DAM4-2N |
1/4 |
1/8 |
|
DAM4-4N |
1/4 |
1/4 |
|
DAM4-6N |
1/4 |
3/8 |
|
DAM4-8N |
1/4 |
1/2 |
|
DAM5-2N |
5/16 |
1/8 |
|
DAM5-4N |
5/16 |
1/4 |
|
DAM6-2N |
3/8 |
1/8 |
|
DAM6-4N |
3/8 |
1/4 |
|
DAM6-6N |
3/8 |
3/8 |
|
DAM6-8N |
3/8 |
1/2 |
|
DAM8-4N |
1/2 |
1/4 |
|
DAM8-6N |
1/2 |
3/8 |
