Brand:

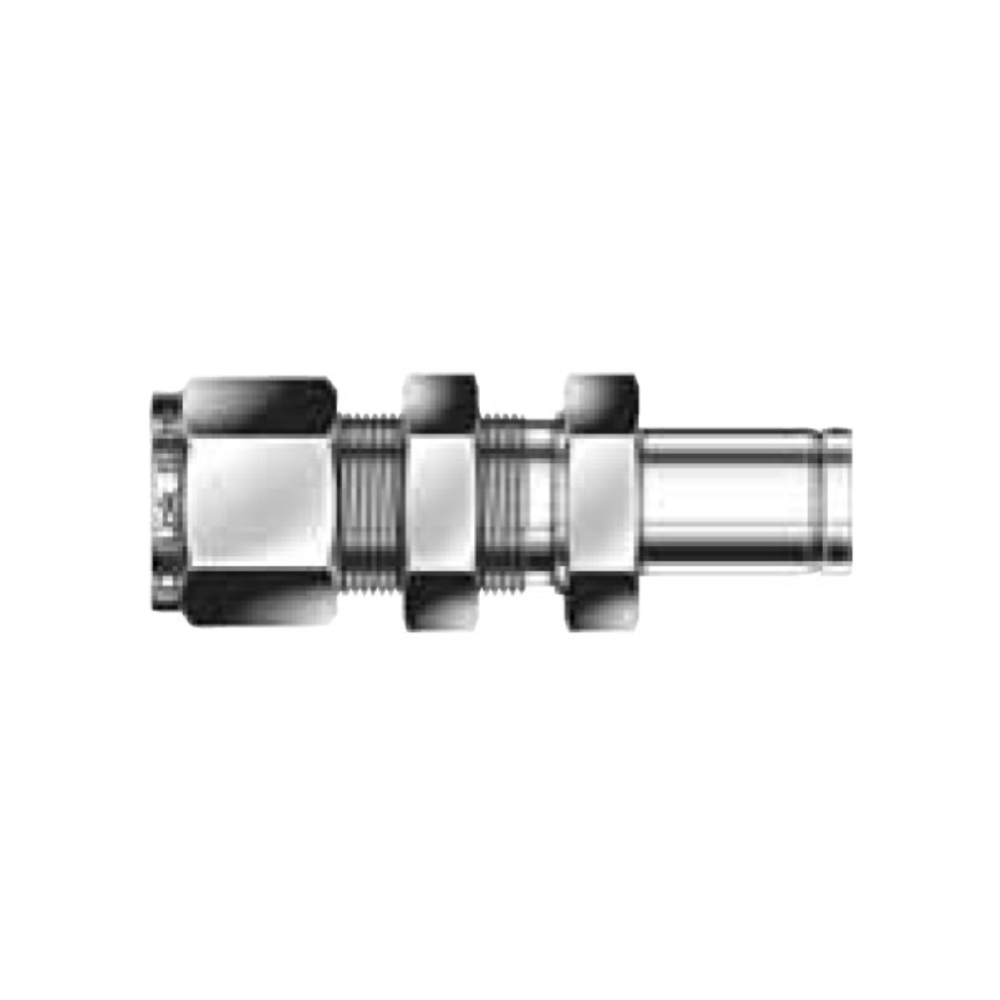

DK-LOK BRASS Bulkhead Adapter DAB Series
Tube Stub Connector
Model No.
DABX-X-B
DK-Lok bulkhead adapter tube fittings incorporate a tube stub end that allows a designer/fabricator the ability to install the bulkhead adapter in to a panel leaving the tube stub end on one side of the panel in both the single and double ferrule designs.

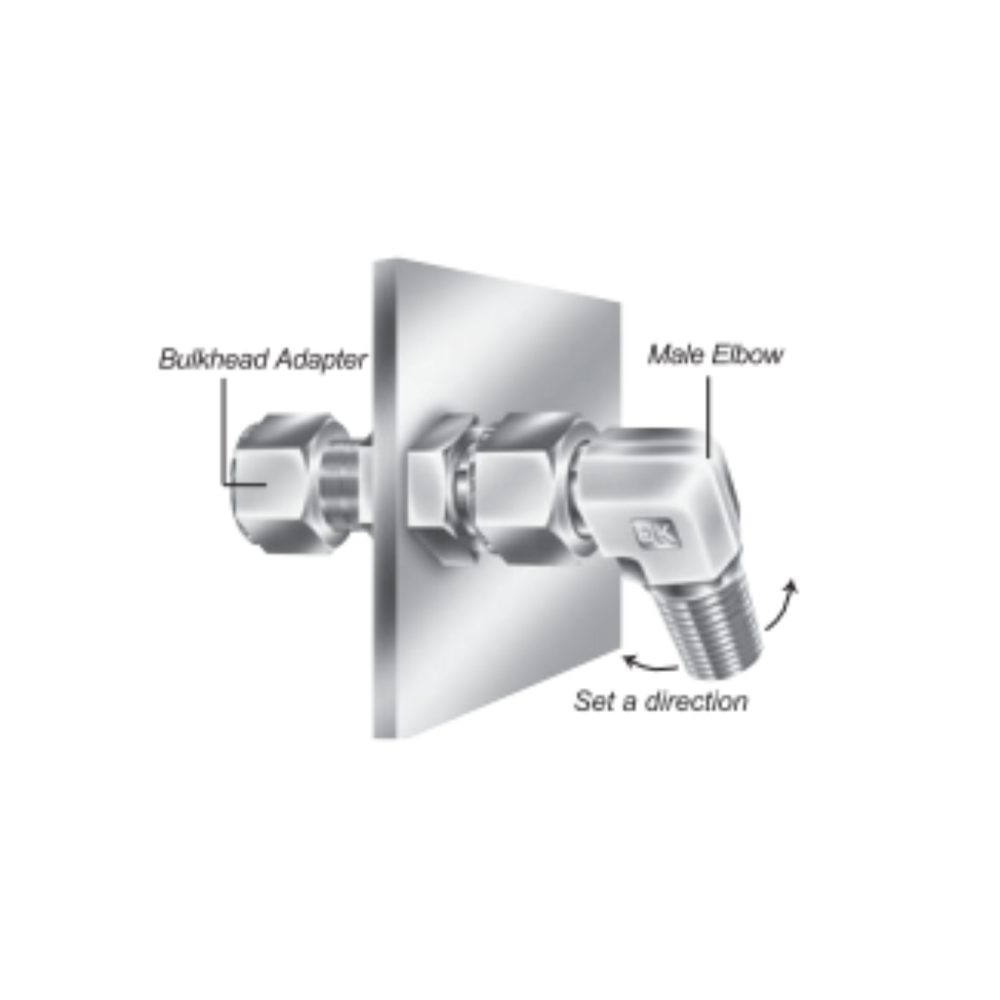

The bulkhead adapter is useful to help set a direction through panel construction.
|

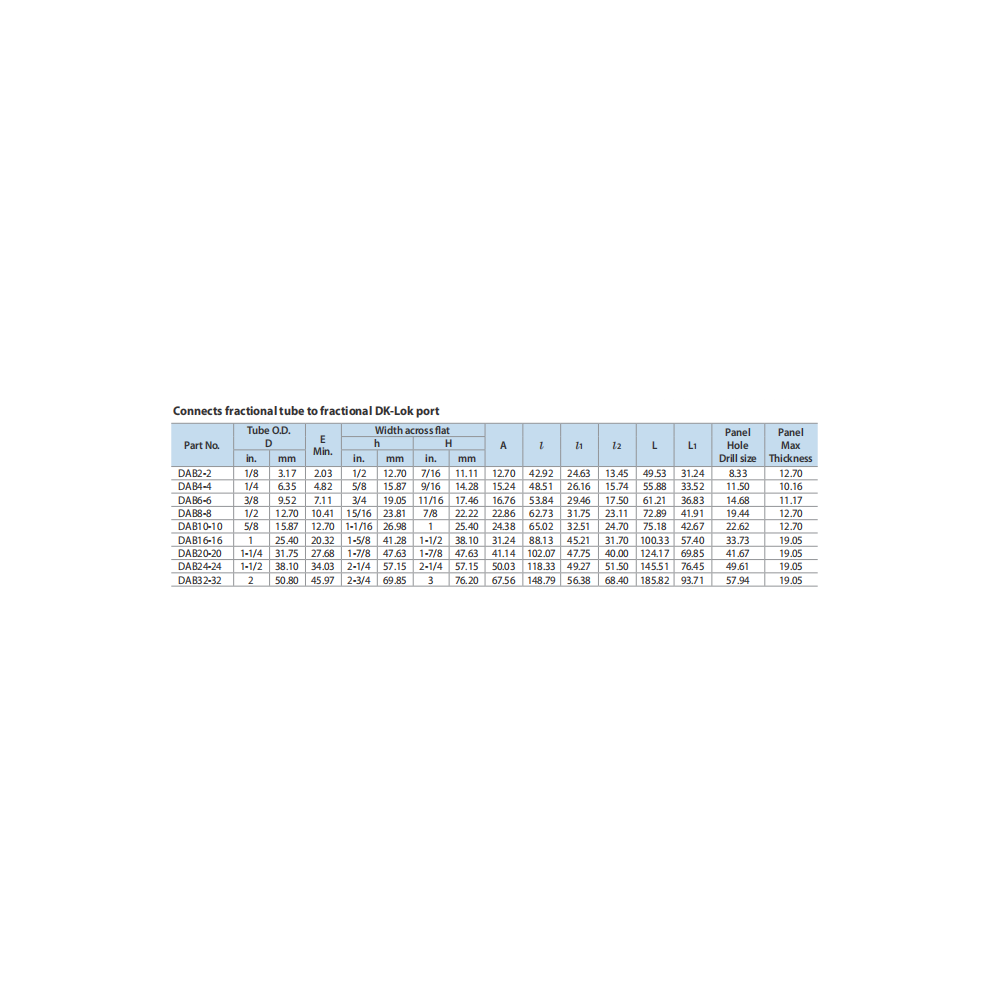

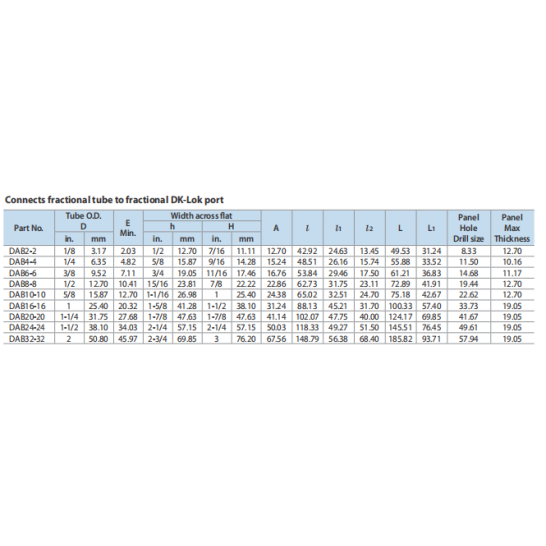

Part No
|
Tube O.D.
D (inches)
|
|
DAB2-2 |
1/8 |
|
DAB4-4 |
1/4 |
|
DAB6-6 |
3/8 |
|
DAB8-8 |
1/2 |
|
DAB10-10 |
5/8 |
|
DAB16-16 |
1 |
|
DAB20-20 |
1-1/4 |
|
DAB24-24 |
1-1/2 |
|
DAB32-32 |
2 |
