Brand:

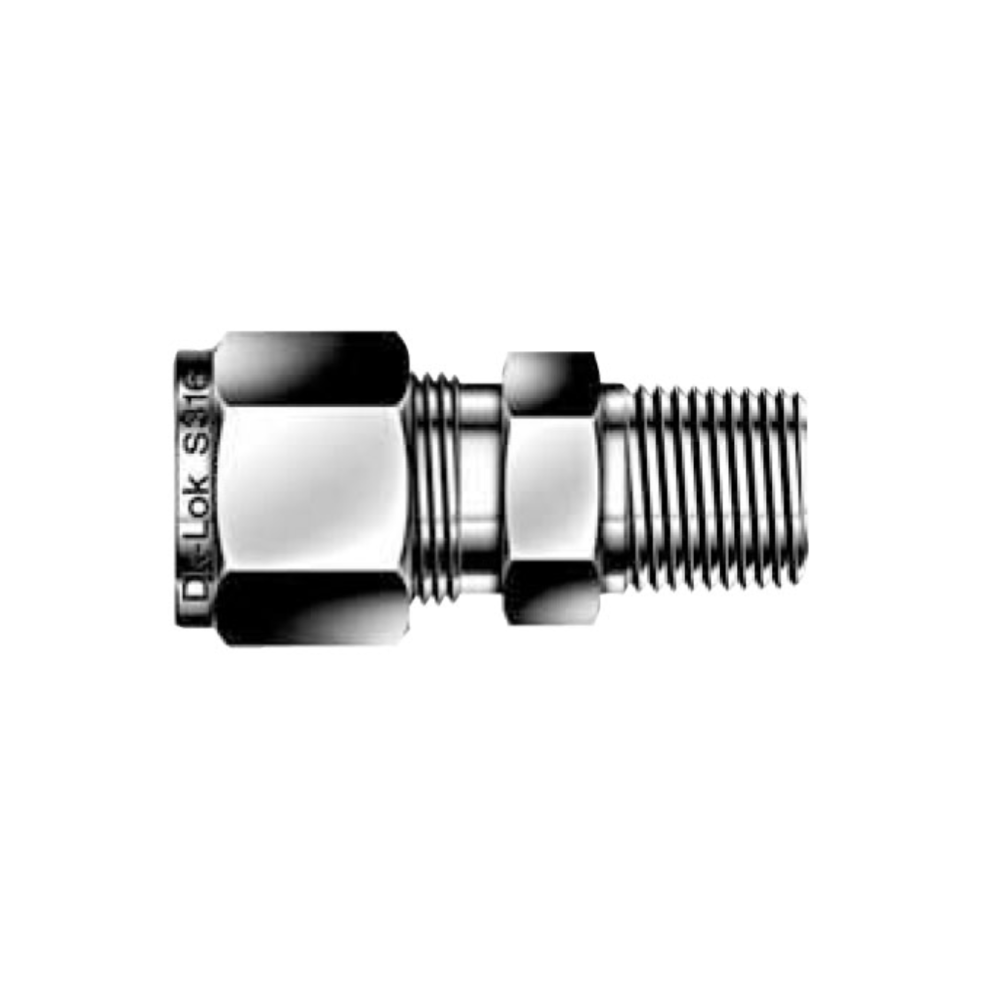

DK-LOK SS316 Male Connector DMC-R Series
Tube to Male Pipe
Model No.
DMCX-XR-SS
DK-Lok DMC-R male connectors are designed to connect individual fractional or metric tube lines to a female British Standard Pipe Tapered thread (BSPT) port in both single ferrule and double ferrule designs.
|

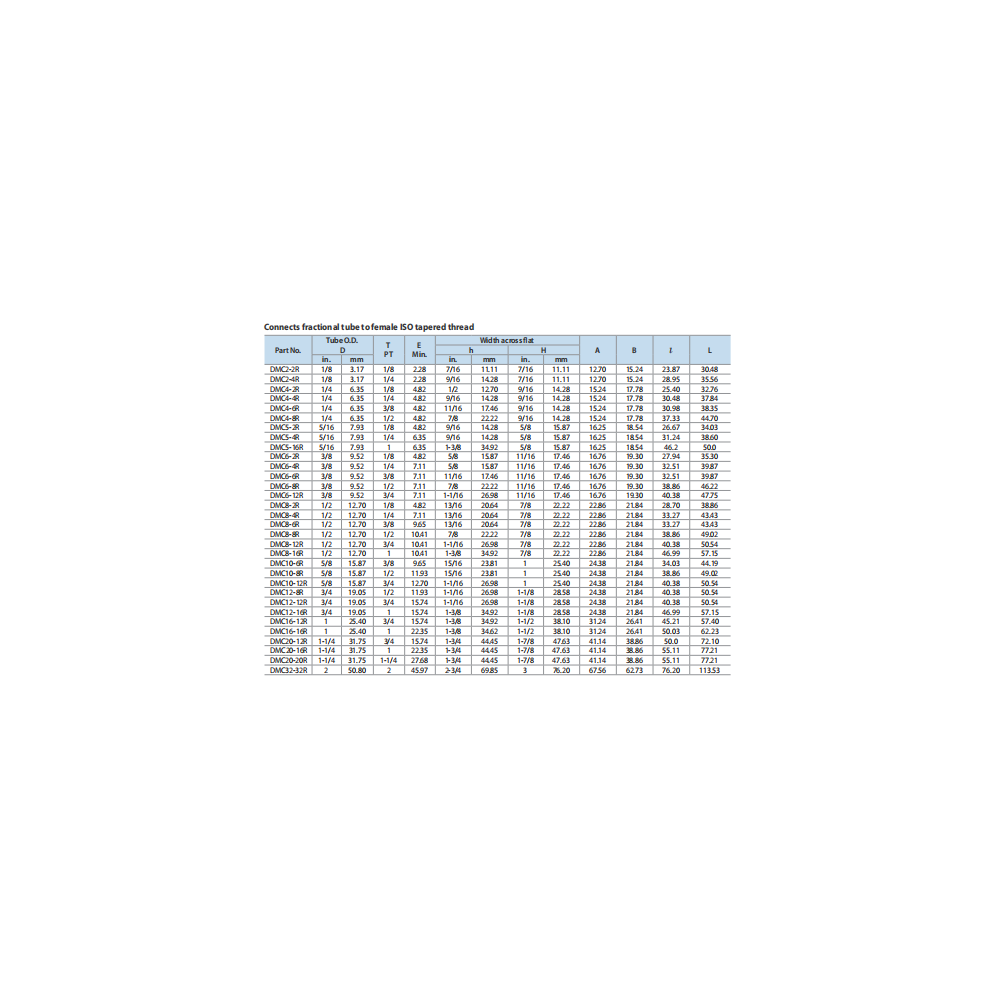

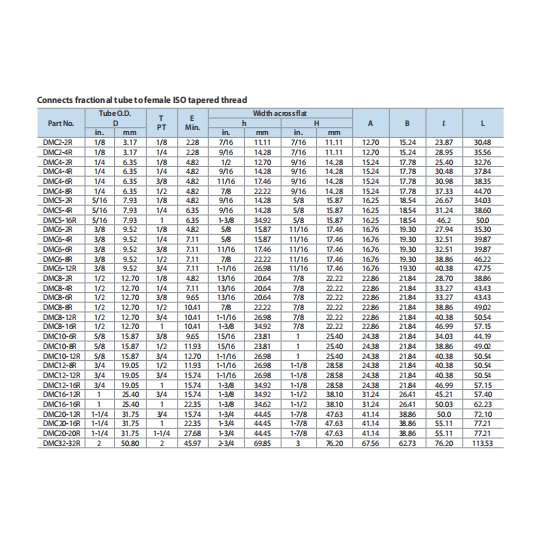

Part No |
Tube O.D D (inches) |
T PT |
|
DMC2-2R |
1/8 |
1/8 |
|
DMC2-4R |
1/8 |
1/4 |
|
DMC4-2R |
1/4 |
1/8 |
|
DMC4-4R |
1/4 |
1/4 |
|
DMC4-6R |
1/4 |
3/8 |
|
DMC4-8R |
1/4 |
1/2 |
|
DMC5-2R |
5/16 |
1/8 |
|
DMC5-4R |
5/16 |
1/4 |
|
DMC5-16R |
5/16 |
1 |
|
DMC6-2R |
3/8 |
1/8 |
|
DMC6-4R |
3/8 |
1/4 |
|
DMC6-6R |
3/8 |
3/8 |
|
DMC6-8R |
3/8 |
1/2 |
|
DMC6-12R |
3/8 |
3/4 |
|
DMC8-2R |
1/2 |
1/8 |
|
DMC8-4R |
1/2 |
1/4 |
|
DMC8-6R |
1/2 |
3/8 |
|
DMC8-8R |
1/2 |
1/2 |
|
DMC8-12R |
1/2 |
3/4 |
|
DMC8-16R |
1/2 |
1 |
|
DMC10-6R |
5/8 |
3/8 |
|
DMC10-8R |
5/8 |
1/2 |
|
DMC10-12R |
5/8 |
3/4 |
|
DMC12-8R |
3/4 |
1/2 |
|
DMC12-12R |
3/4 |
3/4 |
|
DMC12-16R |
3/4 |
1 |
|
DMC16-12R |
1 |
3/4 |
|
DMC16-16R |
1 |
1 |
|
DMC20-12R |
1-1/4 |
3/4 |
|
DMC20-16R |
1-1/4 |
1 |
|
DMC20-20R |
1-1/4 |
1-1/4 |
|
DMC32-32R |
2 |
2 |
