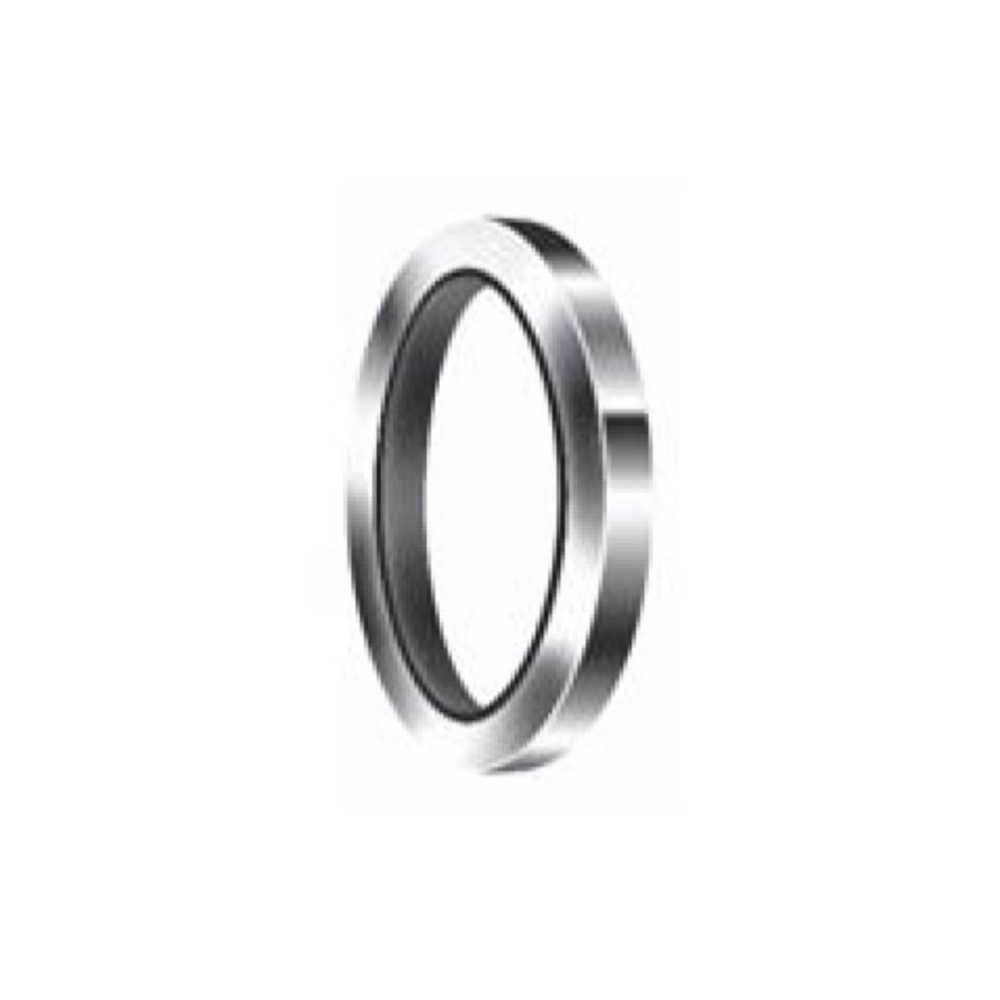

DK-LOK RUBBER BONDED STEEL Gasket (Dowty Seal) DGB Series
Spare Parts
Model No.
DGB-X-C
A self-centering taper is constructed at male thread end. This taper centers a bonded gasket to seal up on the face of the female threaded component.
DGB: NBR inner ring bonded to carbon steel outer ring.
DGV: FKM inner ring bonded to stainless steel outer ring.
|

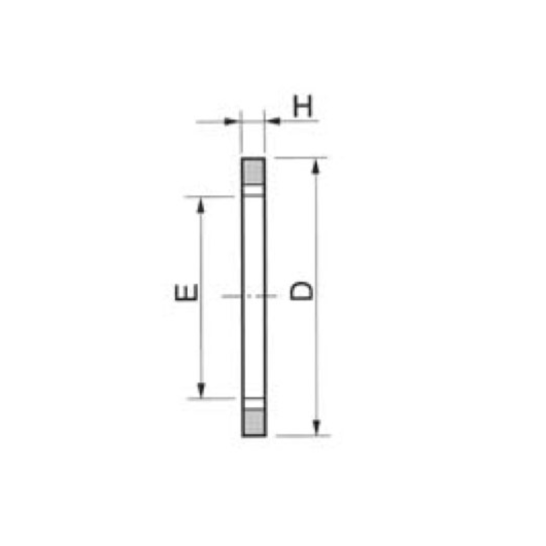

Part Number
|
H (mm)
|
D (mm)
|
|
DGB-2-C |
2.0 |
16 |
|
DGB-4-C |
2.0 |
20.6 |
|
DGB-6-C |
2.0 |
23.9 |
|
DGB-8-C |
2.5 |
28.7 |
|
DGB-12-C |
2.5 |
35.1 |
|
DGB-16-C |
2.5 |
42.9 |
|
DGB-20-C |
2.5 |
51.05 |
|
DGB-24-C |
2.5 |
59.18 |
