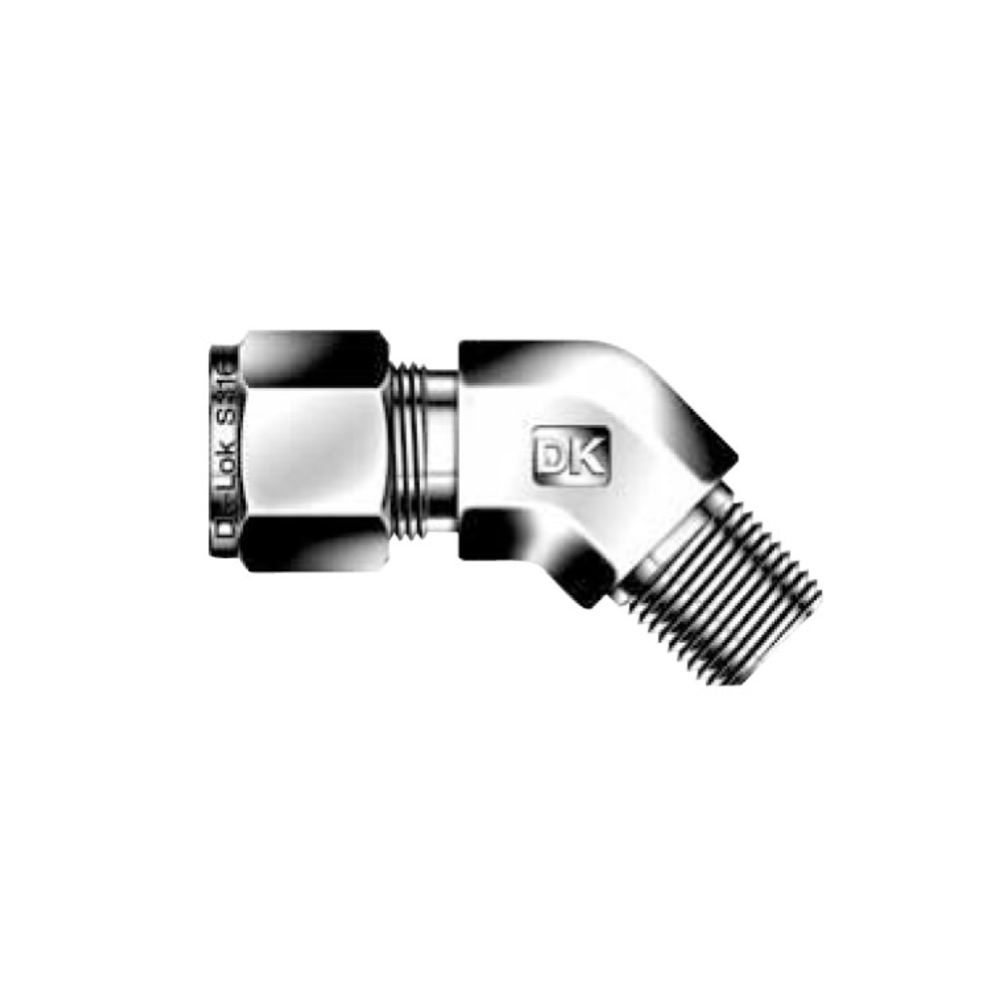

DK-LOK BRASS 45 Degree Male Connector DLBM Metric Series
Tube to Male Pipe
Model No.
DLBMXM-XN-B
DK-Lok DLBM-N 45 degree male elbows are designed to connect individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

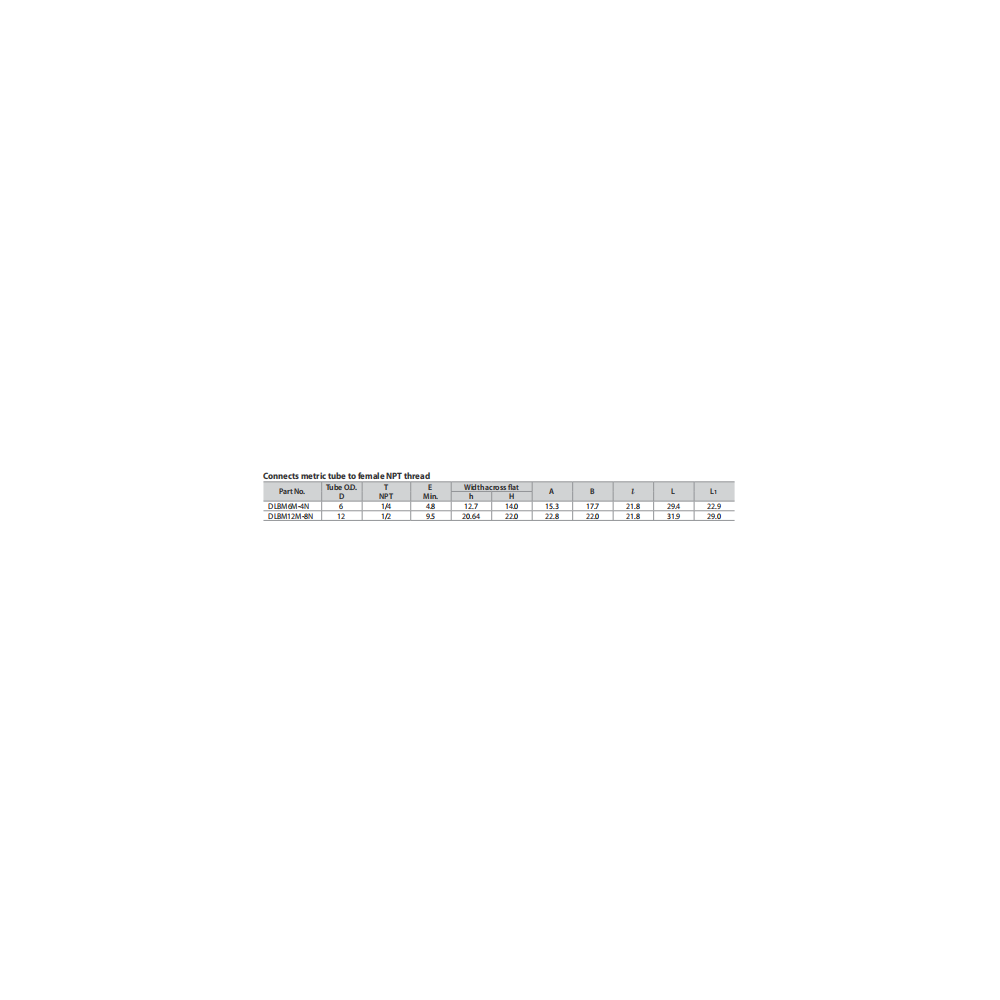

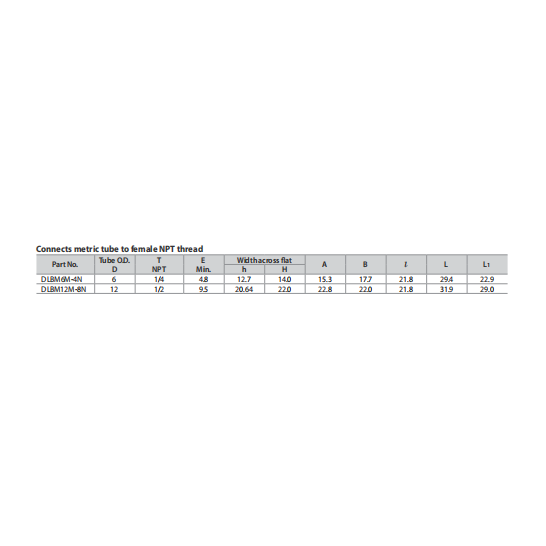

Part No |
Tube O.D. D (mm) |
T NPT |
|
DLBM6M-4N |
6 |
1/4 |
|
DLBM12M-8N |
12 |
1/2 |
