Brand:
DK-LOK SS316 Low Pressure Relief Valves 8mm x 8mm Tube
Model No.
V63-D-8M-S
V63-D-8M-S
Data sheet
- Valve Series
- V63 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Dk-Lok
- Size Inlet x Outlet
- 8mm Dk-Lok x 8mm Dk-Lok
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 10
- CE Certified
- None

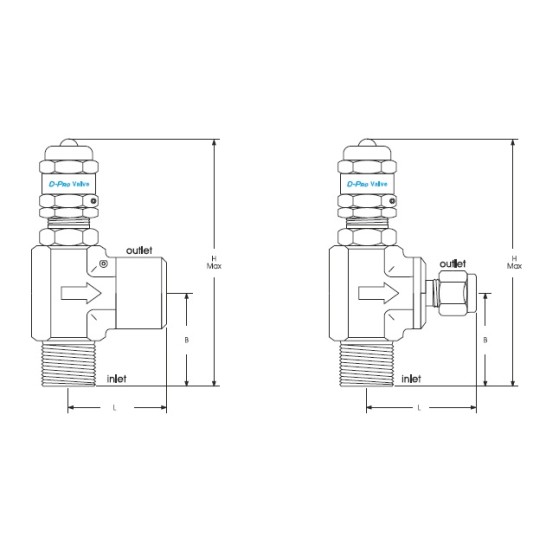

- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.6
- Dimension (H)
- 100.0 mm
- Dimension (B)
- 38.0 mm
- Dimension (L)
- 40.0 mm
- Cracking Pressure (bar)
- 8.26
