Brand:

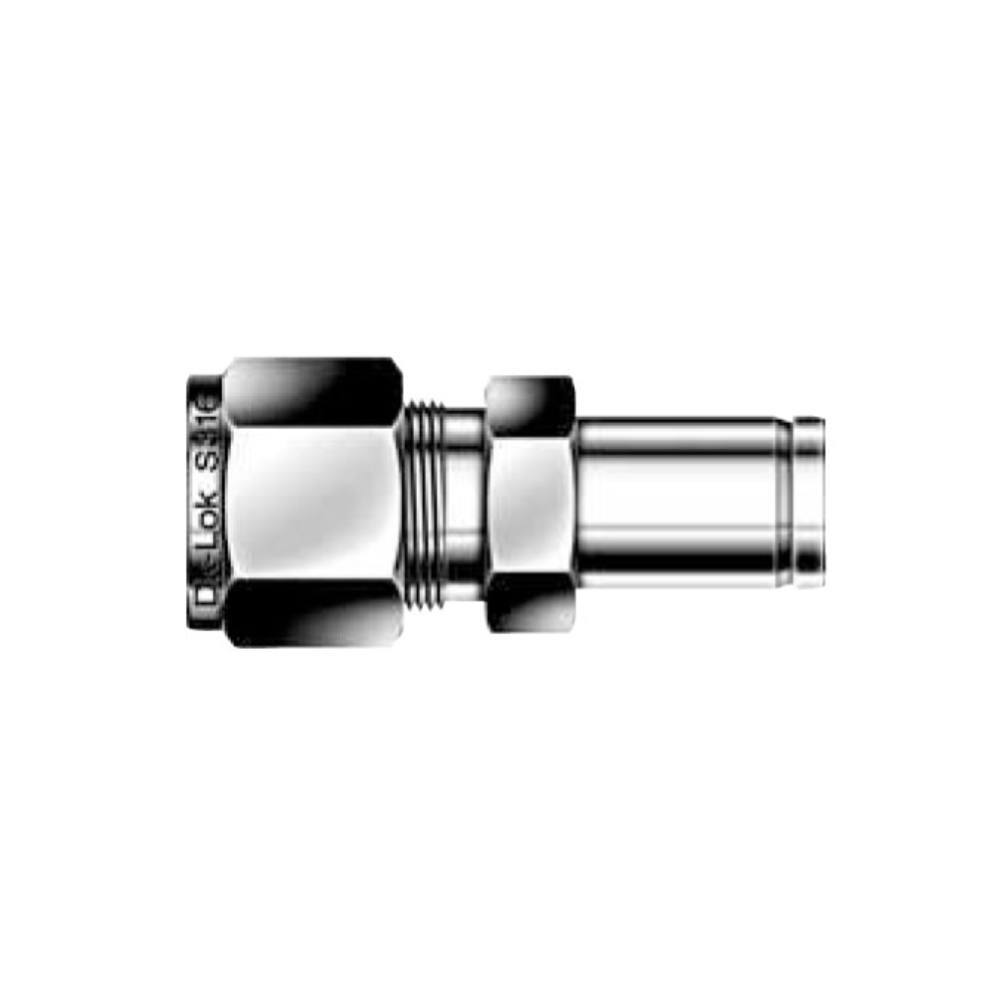

DK-LOK SS316 Reducer DR Metric to Metric Series
Tube Stub Connector
Model No.
DRXM-XM-SS
DK-Lok reducer tube fittings incorporate a tube stub end that allows a designer/fabricator the ability to upsize or downsize a tube connection within a tube system in both the single and double ferrule designs.
|

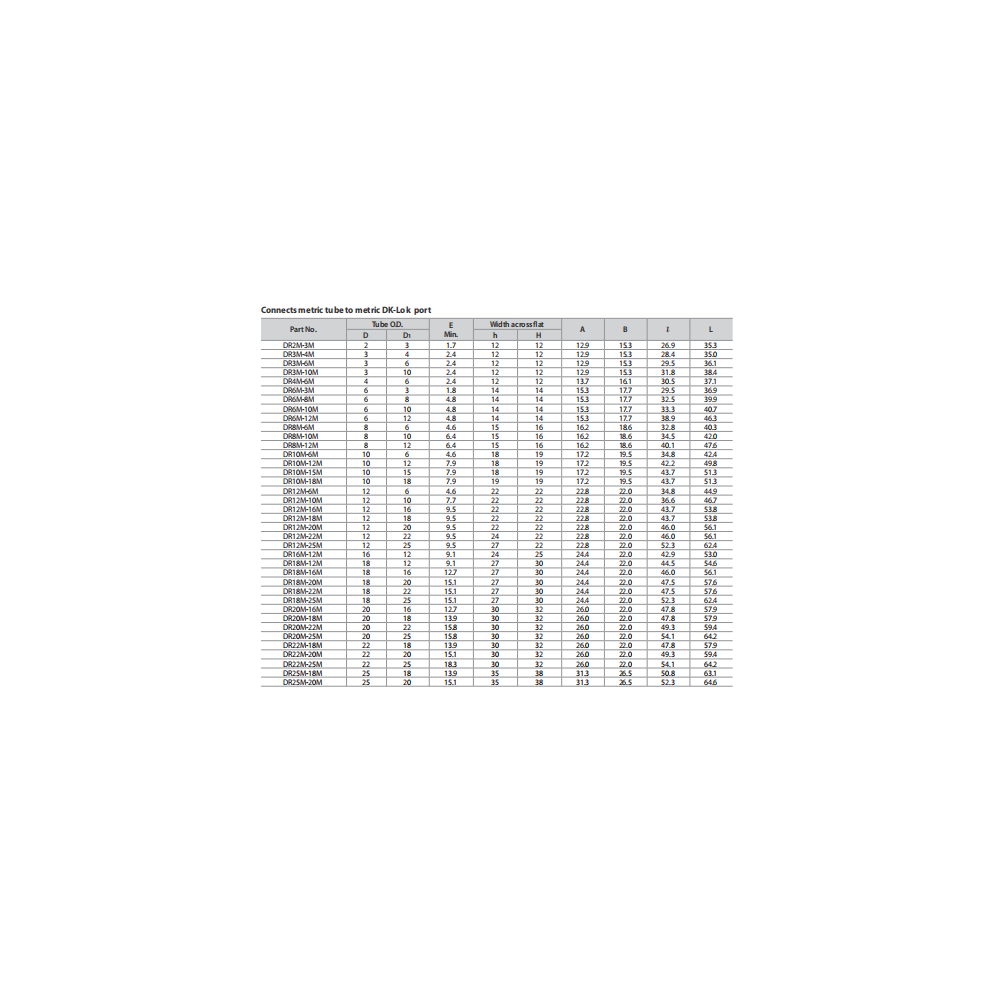

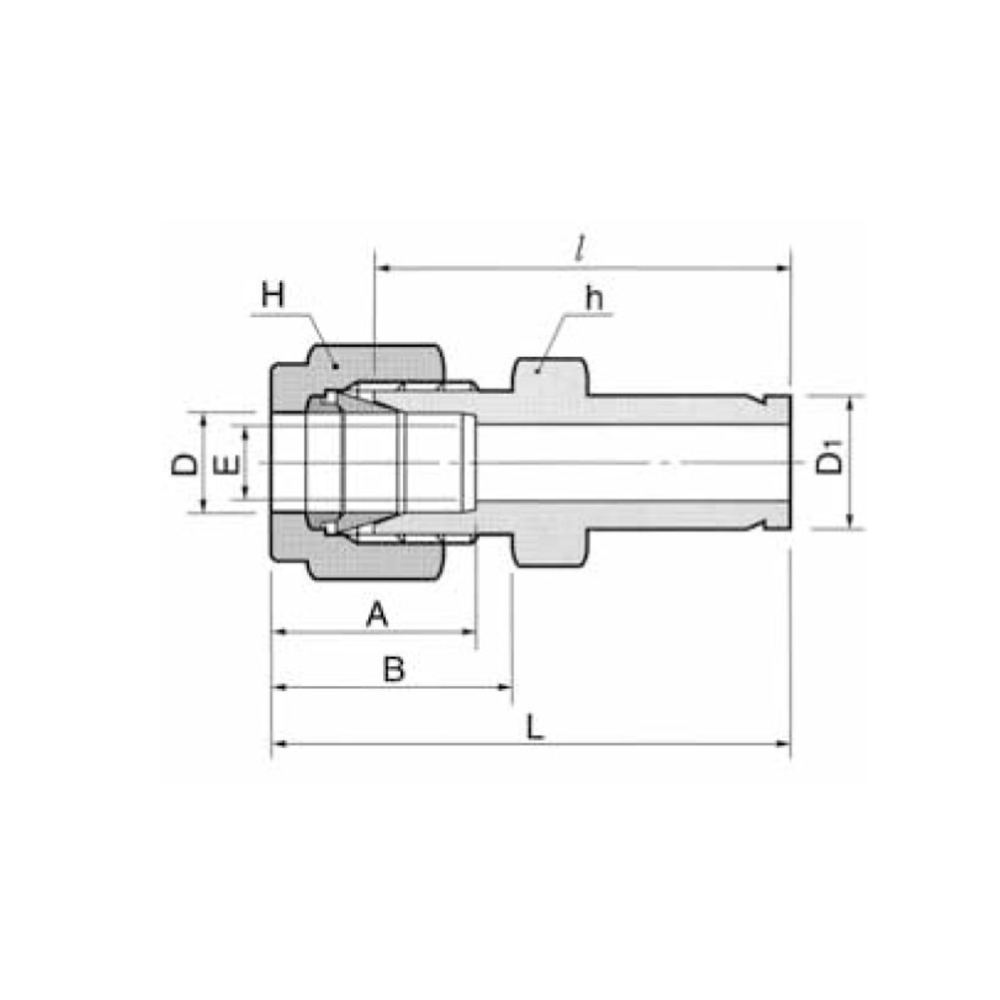

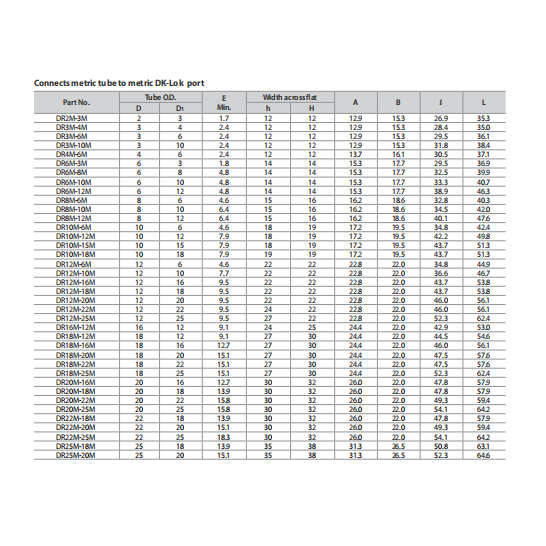

Part No
|
Tube O.D.
|
|
|
|
D (mm)
|
D1 (mm)
|
|
DR2M-3M |
2 |
3 |
|
DR3M-4M |
3 |
4 |
|
DR3M-6M |
3 |
6 |
|
DR3M-10M |
3 |
10 |
|
DR4M-6M |
4 |
6 |
|
DR6M-3M |
6 |
3 |
|
DR6M-8M |
6 |
8 |
|
DR6M-10M |
6 |
10 |
|
DR6M-12M |
6 |
12 |
|
DR8M-6M |
8 |
6 |
|
DR8M-10M |
8 |
10 |
|
DR8M-12M |
8 |
12 |
|
DR10M-6M |
10 |
6 |
|
DR10M-12M |
10 |
12 |
|
DR10M-15M |
16 |
12 |
|
DR10M-18M |
18 |
10 |
|
DR12M-6M |
18 |
12 |
|
DR12M-10M |
12 |
10 |
|
DR12M-16M |
12 |
16 |
|
DR12M-18M |
12 |
18 |
|
DR12M-20M |
12 |
20 |
|
DR12M-22M |
12 |
22 |
|
DR12M-25M |
12 |
25 |
|
DR16M-12M |
16 |
12 |
|
DR18M-12M |
18 |
12 |
|
DR18M-16M |
18 |
16 |
|
DR18M-20M |
18 |
20 |
|
DR18M-22M |
18 |
22 |
|
DR18M-25M |
18 |
25 |
|
DR20M-16M |
20 |
16 |
|
DR20M-18M |
20 |
18 |
|
DR20M-22M |
20 |
22 |
|
DR20M-25M |
20 |
25 |
|
DR22M-18M |
22 |
18 |
|
DR22M-20M |
22 |
20 |
|
DR22M-25M |
22 |
25 |
|
DR25M-18M |
25 |
18 |
|
DR25M-20M |
25 |
20 |
