Brand:

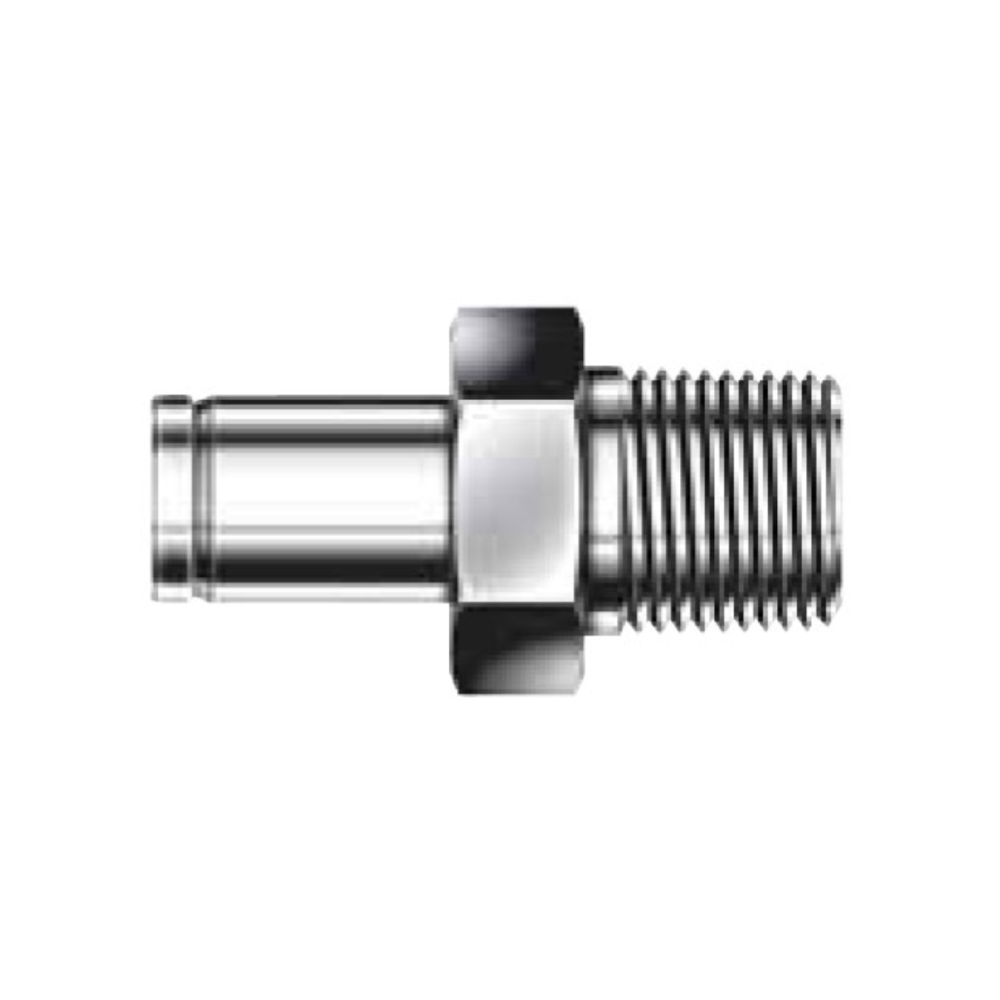

DK-LOK BRASS Male Adapter DAM-R Metric Series
Tube Stub Connector
Model No.
DAMXM-XR-B
DK-Lok DAM-R adapter tube fittings provide a connection to a female British Standard Pipe Tapered port leaving a tube stub connection typically to address alignment issues.
|

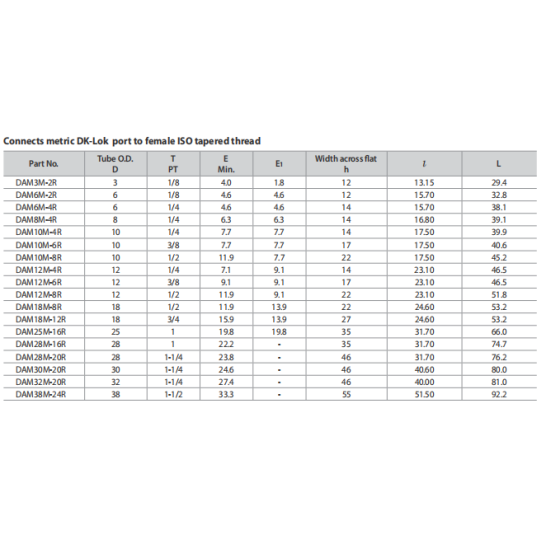

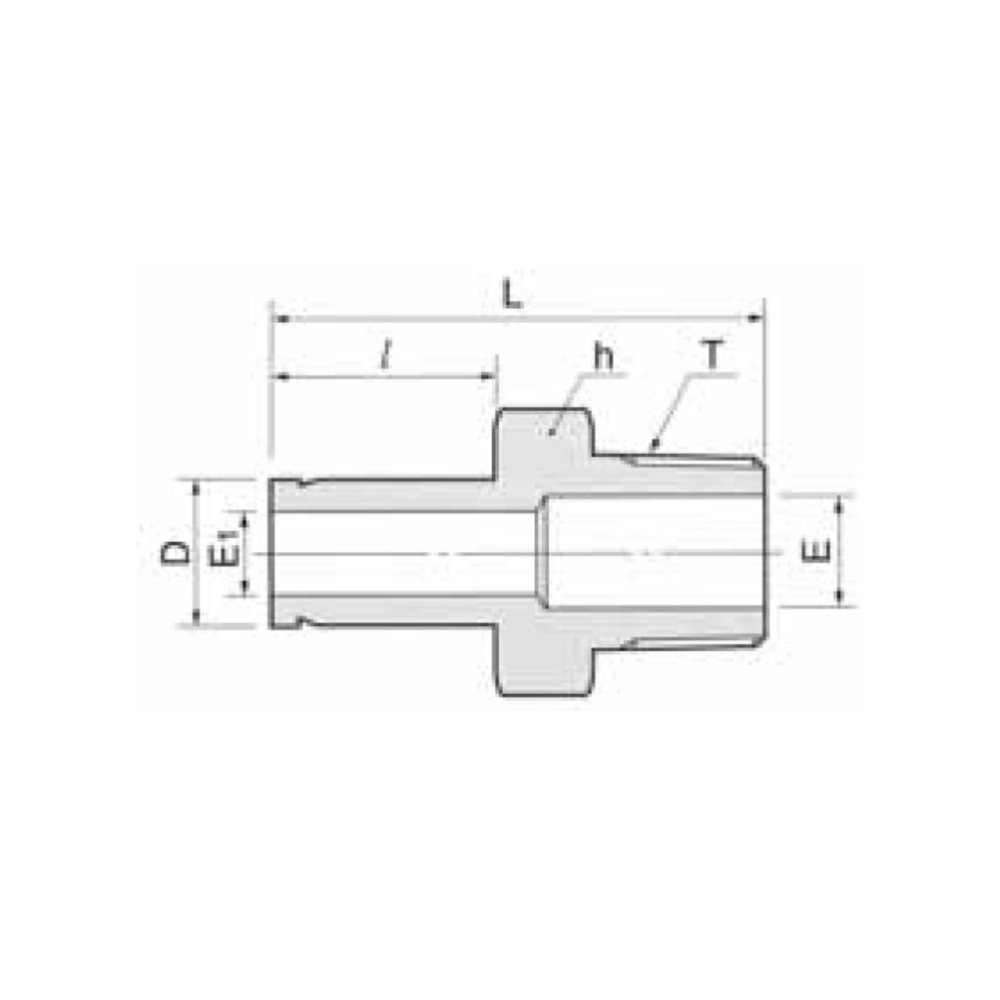

Part No
|
Tube O.D.
D (mm)
|
T
PT
|
|
DAM3M-2R |
3 |
1/8 |
|
DAM6M-2R |
6 |
1/8 |
|
DAM6M-4R |
6 |
1/4 |
|
DAM8M-4R |
8 |
1/4 |
|
DAM10M-4R |
10 |
1/4 |
|
DAM10M-6R |
10 |
3/8 |
|
DAM10M-8R |
10 |
1/2 |
|
DAM12M-4R |
12 |
1/4 |
|
DAM12M-6R |
12 |
3/8 |
|
DAM12M-8R |
12 |
1/2 |
|
DAM18M-8R |
18 |
1/2 |
|
DAM18M-12R |
18 |
3/4 |
|
DAM25M-16R |
25 |
1 |
|
DAM28M-16R |
28 |
1 |
|
DAM28M-20R |
28 |
1-1/4 |
|
DAM30M-20R |
30 |
1-1/4 |
|
DAM32M-20R |
32 |
1-1/4 |
|
DAM38M-24R |
38 |
1-1/2 |
