Brand:

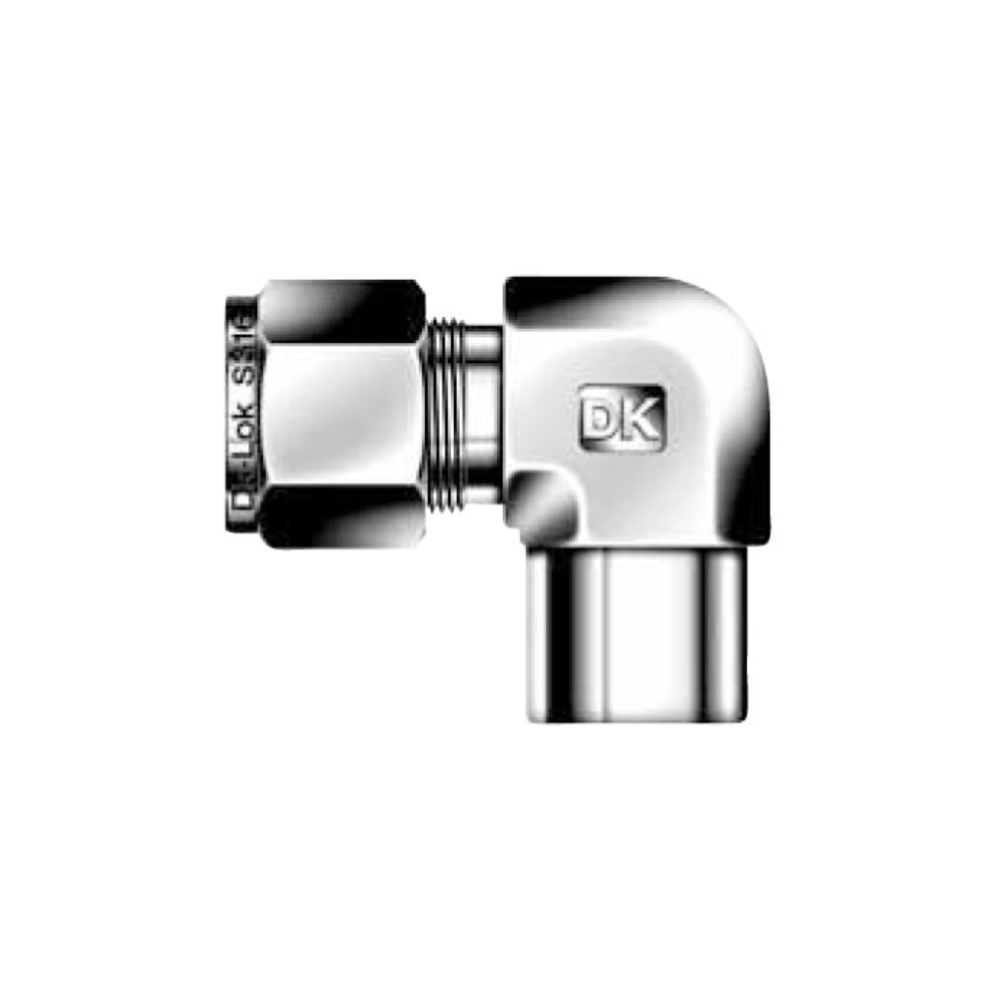

DK-LOK BRASS Female Elbow DLF-N Metric Series
Tube to Female Pipe
Model No.
DLFXM-XN-B
DK-Lok DLF-N female elbow connectors are designed to connect individual fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

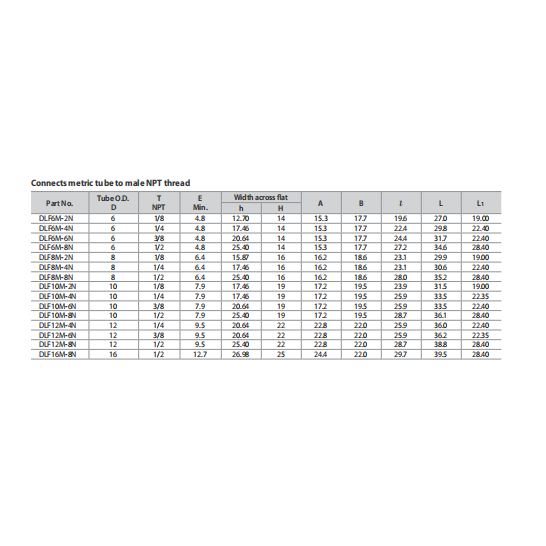

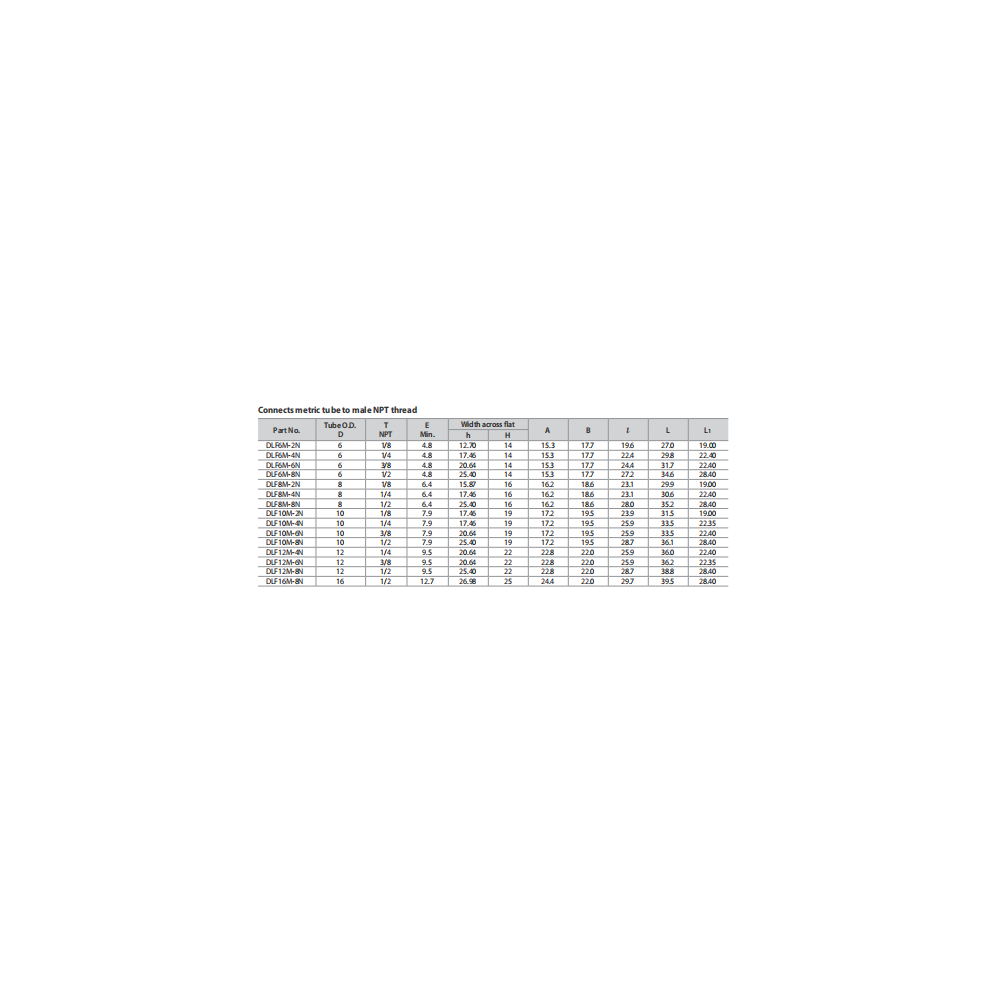

Part No
|
Tube O.D.
D (mm)
|
T
NPT
|
|
DLF6M-2N |
6 |
1/8 |
|
DLF6M-4N |
6 |
1/4 |
|
DLF6M-6N |
6 |
3/8 |
|
DLF6M-8N |
6 |
1/2 |
|
DLF8M-2N |
8 |
1/8 |
|
DLF8M-4N |
8 |
1/4 |
|
DLF8M-8N |
8 |
1/2 |
|
DLF10M-2N |
10 |
1/8 |
|
DLF10M-4N |
10 |
1/4 |
|
DLF10M-6N |
10 |
3/8 |
|
DLF10M-8N |
10 |
1/2 |
|
DLF12M-4N |
12 |
1/4 |
|
DLF12M-6N |
12 |
3/8 |
|
DLF12M-8N |
12 |
1/2 |
|
DLF16M-8N |
16 |
1/2 |
