Brand:

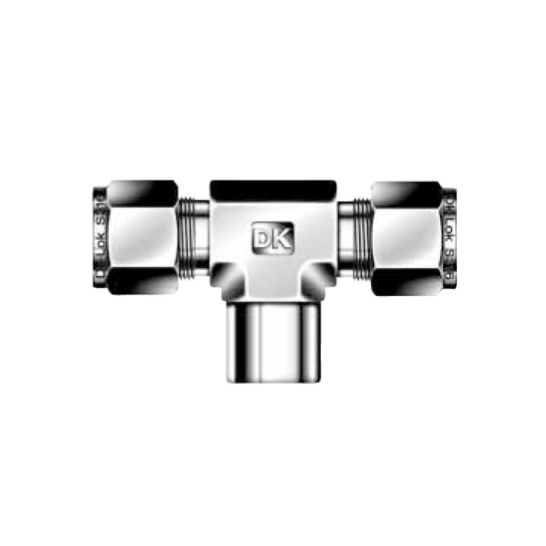

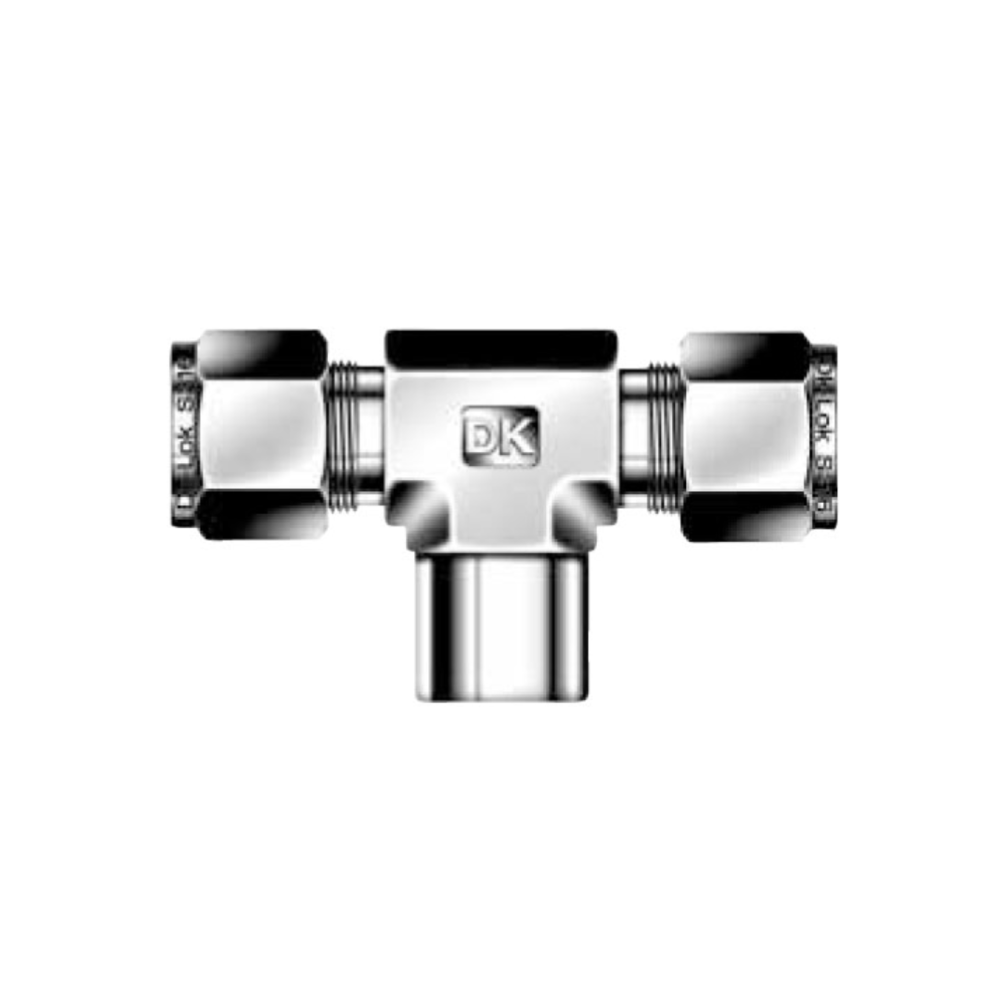

DK-LOK BRASS Female Branch Tee DTBF-N Metric Series
Tube to Female Pipe
Model No.
DTBFXM-XN-B
DK-Lok DTFF-N female branch tees are designed to connect two fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

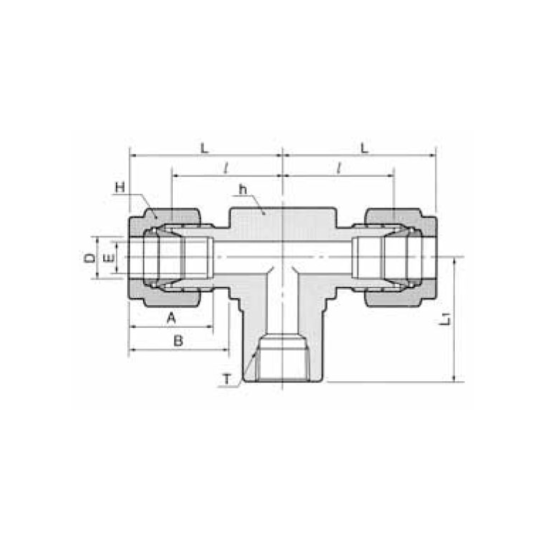

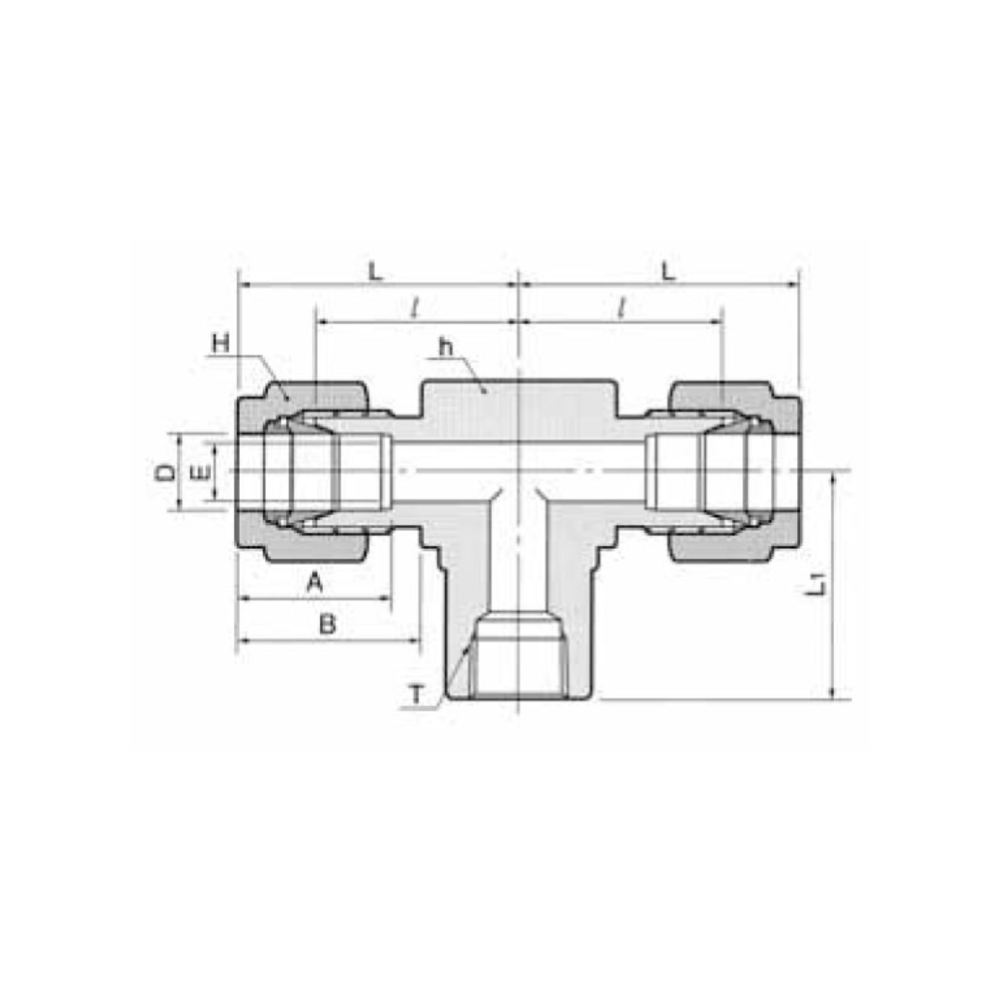

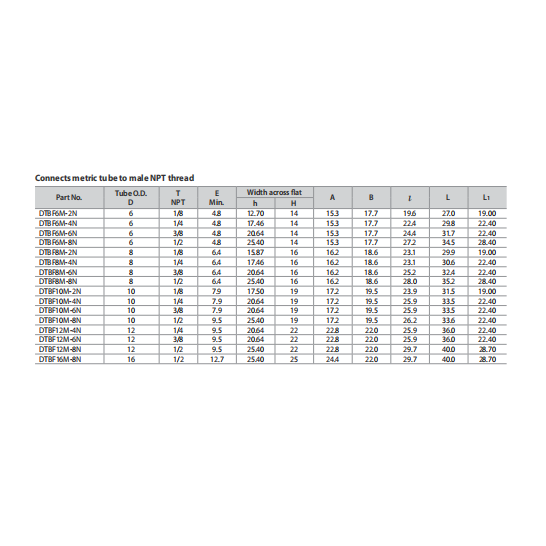

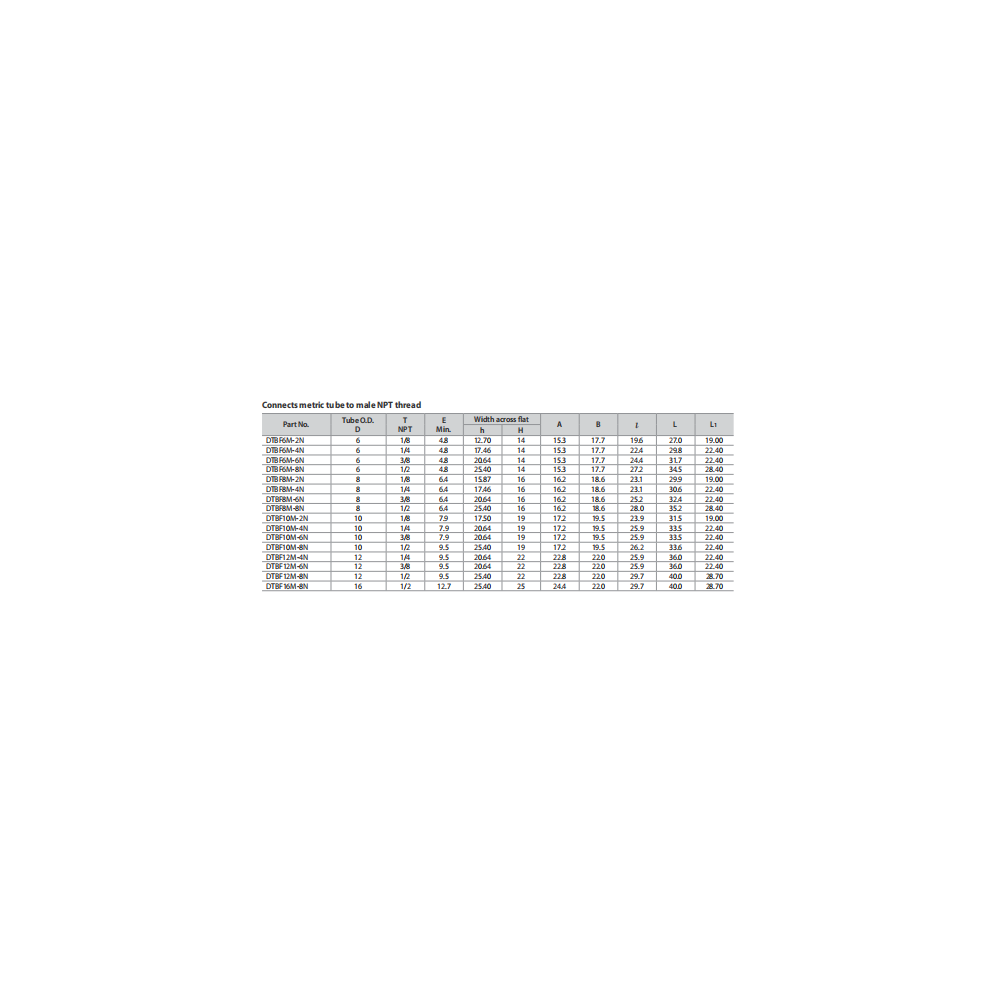

Part No
|
Tube O.D.
D (mm)
|
T
NPT
|
|
DTBF6M-2N |
6 |
1/8 |
|
DTBF6M-4N |
6 |
1/4 |
|
DTBF6M-6N |
6 |
3/8 |
|
DTBF6M-8N |
6 |
1/2 |
|
DTBF8M-2N |
8 |
1/8 |
|
DTBF8M-4N |
8 |
1/4 |
|
DTBF8M-6N |
8 |
3/8 |
|
DTBF8M-8N |
8 |
1/2 |
|
DTBF10M-2N |
10 |
1/8 |
|
DTBF10M-4N |
10 |
1/4 |
|
DTBF10M-6N |
10 |
3/8 |
|
DTBF10M-8N |
10 |
1/2 |
|
DTBF12M-4N |
12 |
1/4 |
|
DTBF12M-6N |
12 |
3/8 |
|
DTBF12M-8N |
12 |
1/2 |
|
DTBF16M-8N |
16 |
1/2 |
