Brand:

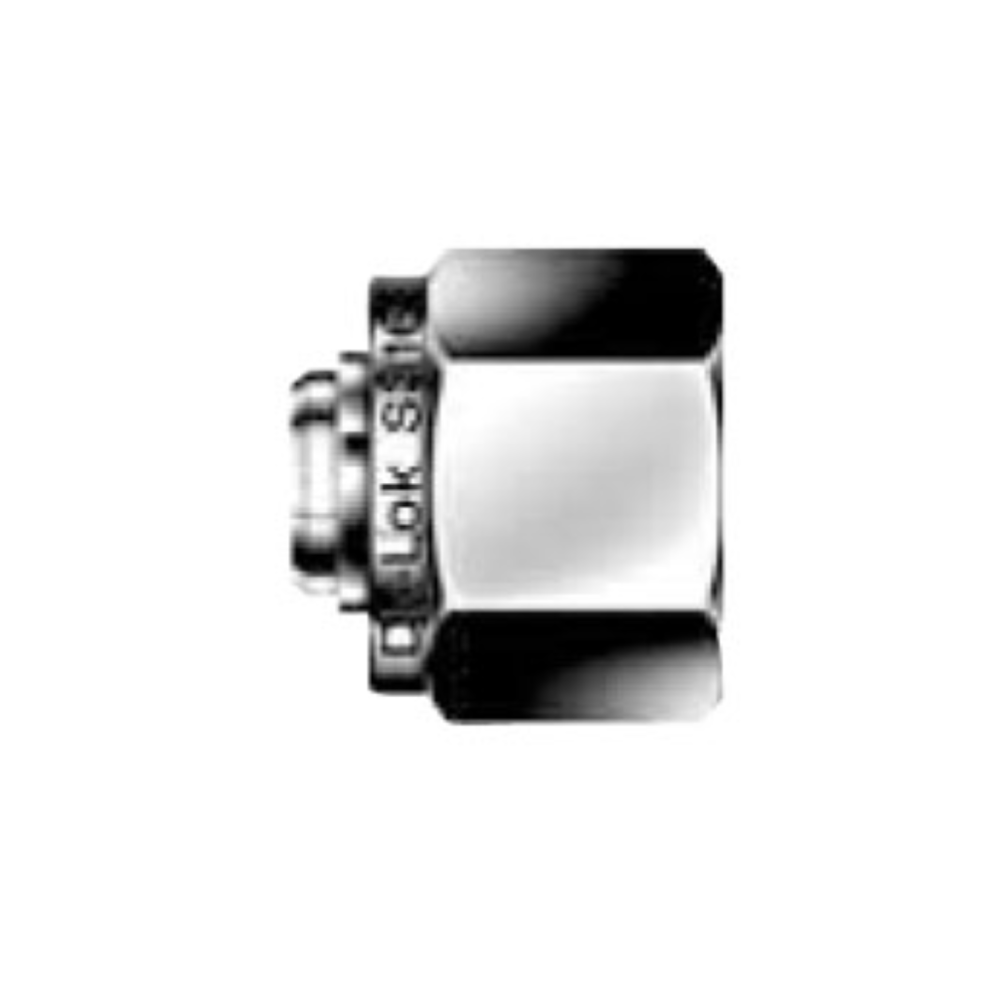

DK-LOK SS316 Plugs DP Series
Plug, Cap, Insert
Model No.
DP-X-SS
Plugs are used to seal an un-used tube connection port. Caps are used to seal the ends of tubes to terminate flow in both single ferrule and double ferrule designs. Inserts are used to provide support to soft pliable tube materials in order for the single or double ferrule connection to grip and seal.
|

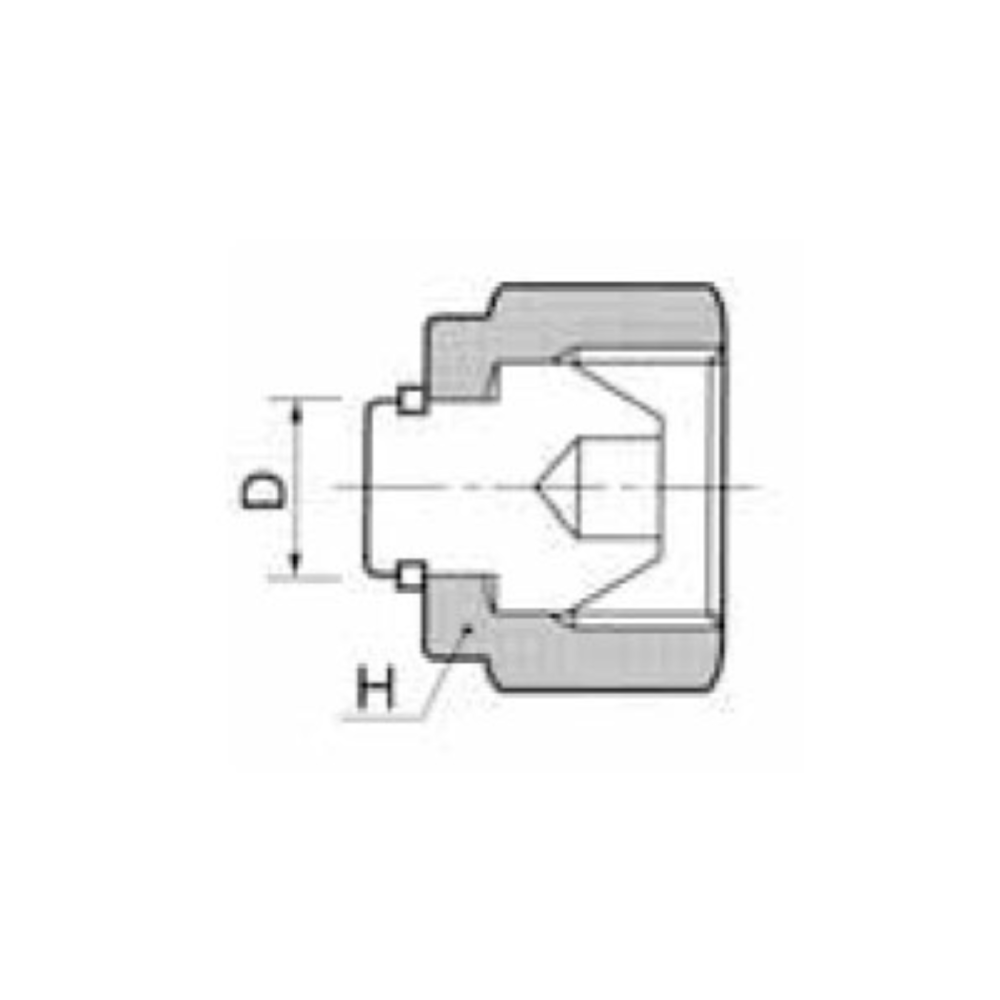

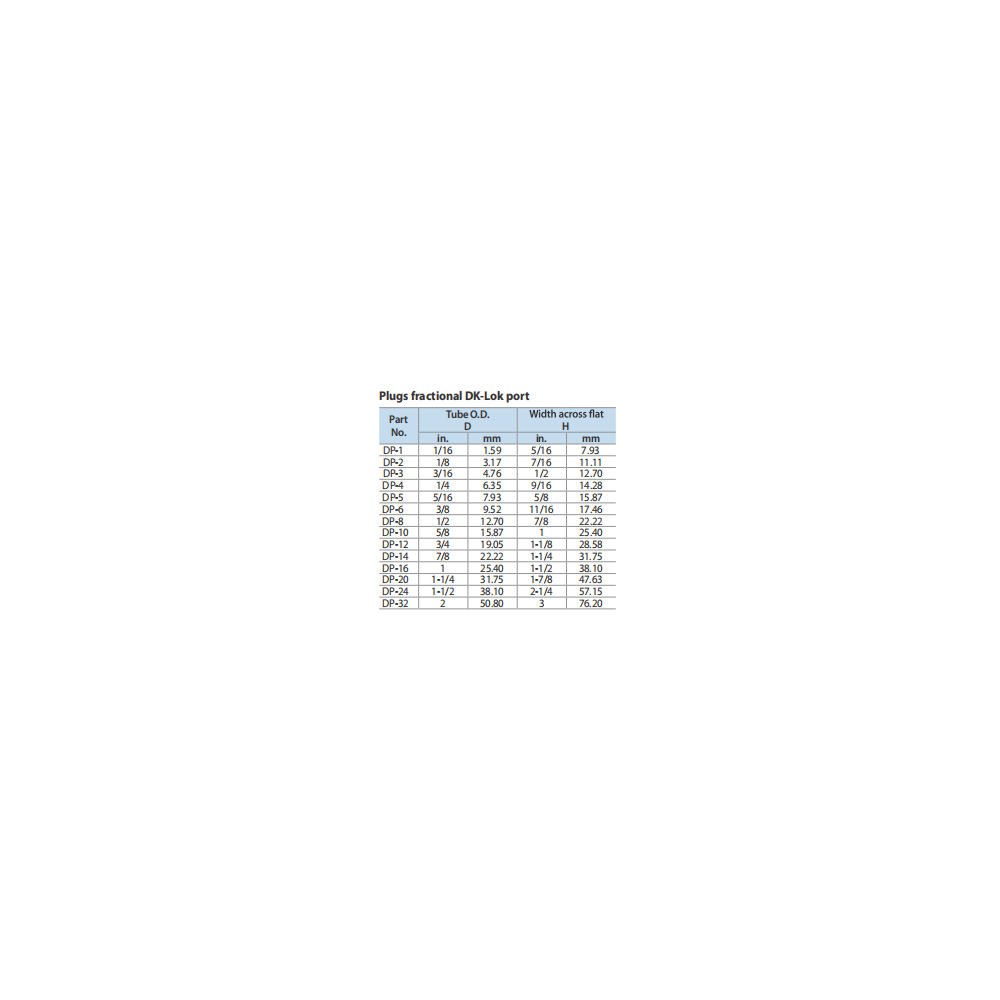

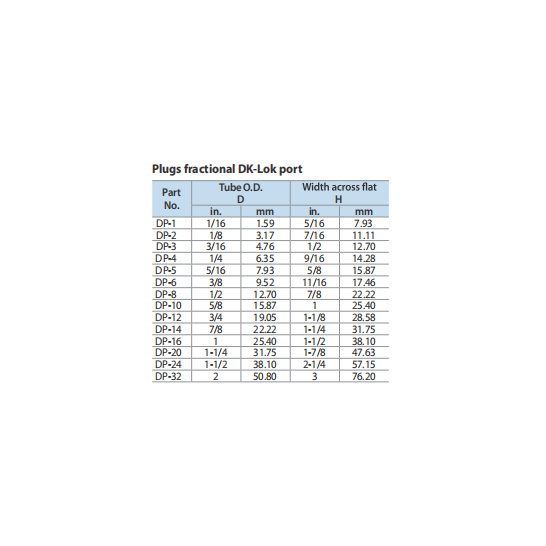

Part No
|
Tube O.D.
D (inches)
|
Width Across Flat
H
|
|
DP-1 |
1/16 |
5/16 |
|
DP-2 |
1/8 |
7/16 |
|
DP-3 |
3/16 |
1/2 |
|
DP-4 |
1/4 |
9/16 |
|
DP-5 |
5/16 |
5/8 |
|
DP-6 |
3/8 |
11/16 |
|
DP-8 |
1/2 |
7/8 |
|
DP-10 |
5/8 |
1 |
|
DP-12 |
3/4 |
1-1/8 |
|
DP-14 |
7/8 |
1-1/4 |
|
DP-16 |
1 |
1-1/2 |
|
DP-20 |
1-1/4 |
1-7/8 |
|
DP-24 |
1-1/2 |
2-1/4 |
|
DP-32 |
2 |
3 |
