DK-LOK
Compact Check Valves
Brand:

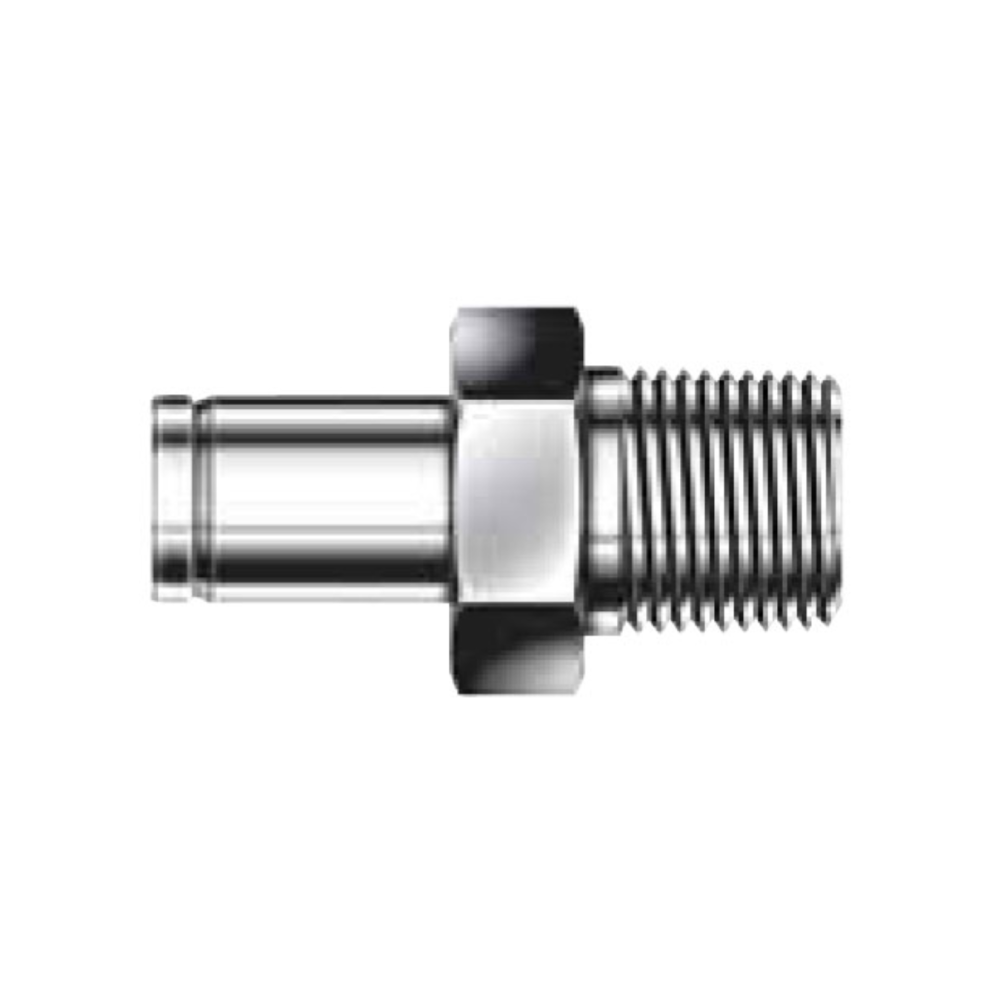

DK-LOK BRASS Male Adapter DAM-N Metric Series
Tube Stub Connector
Model No.
DAMXM-XN-B

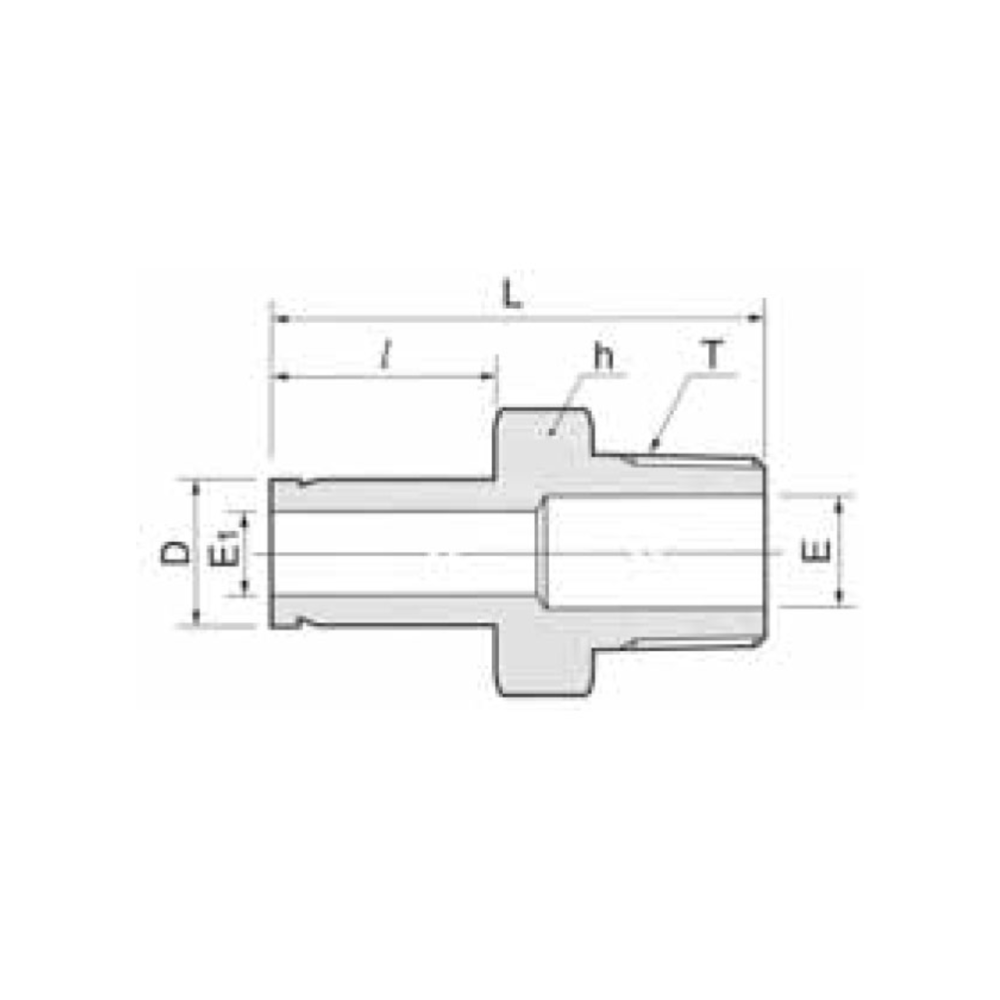

DK-Lok DAM-N adapter tube fittings provide a connection to a female American Standard Pipe Thread port leaving a tube stub connection typically to address alignment issues.
|

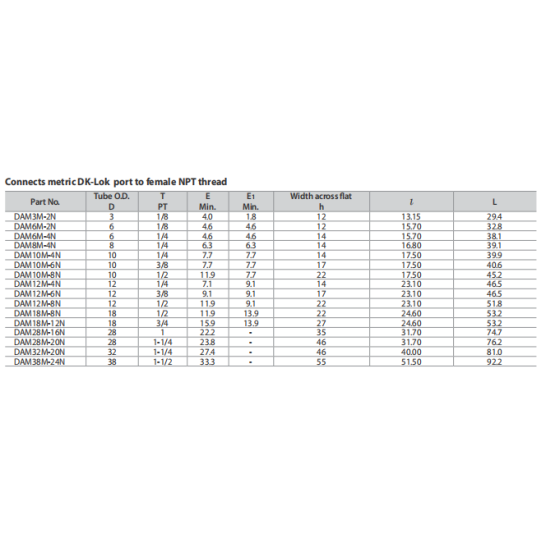

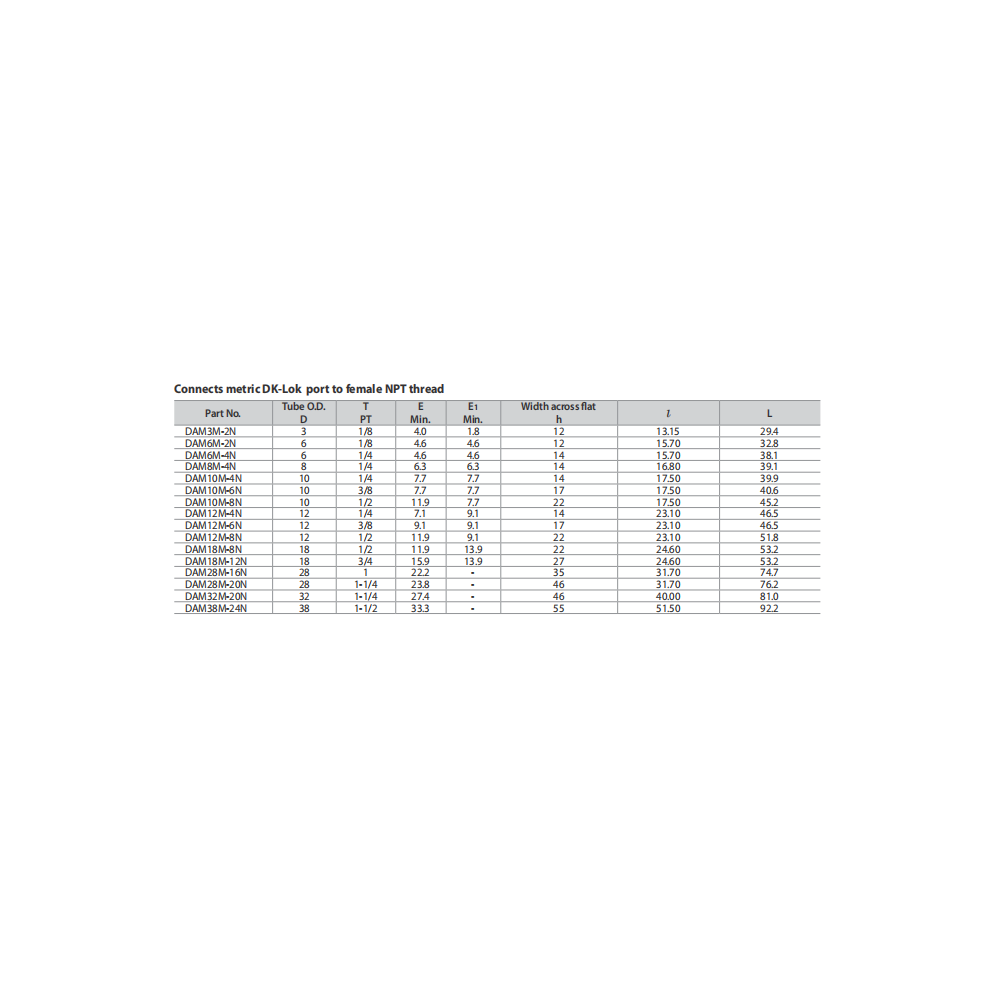

Part No
|
Tube O.D.
D (mm)
|
T
PT
|
|
DAM3M-2N |
3 |
1/8 |
|
DAM6M-2N |
6 |
1/8 |
|
DAM6M-4N |
6 |
1/4 |
|
DAM8M-4N |
8 |
1/4 |
|
DAM10M-4N |
10 |
1/4 |
|
DAM10M-6N |
10 |
3/8 |
|
DAM10M-8N |
10 |
1/2 |
|
DAM12M-4N |
12 |
1/4 |
|
DAM12M-6N |
12 |
3/8 |
|
DAM12M-8N |
12 |
1/2 |
|
DAM18M-8N |
18 |
1/2 |
|
DAM18M-12N |
18 |
3/4 |
|
DAM28M-16N |
28 |
1 |
|
DAM28M-20N |
28 |
1-1/4 |
|
DAM32M-20N |
32 |
1-1/4 |
|
DAM38M-24N |
38 |
1-1/2 |
