Brand:
DK-LOK BRASS 2-Way Ball Valve (1 1/2" Female NPT) V81G Series
Model No.
V81G-F-24N-B
V81 series ball valve offers a safe and reliable performance for a wide range of onshore and offshore applications: water, oil, gas, petrochemical and general duty applications.
- Compact barstock construction for high integrity
- Blow-out proof design with internally loaded stem
- Floating Ball design providing seat wear compensation
- Micro-finished ball ensures a leak-tight shut-off on pressure
- Standard lever handle, optional butterfly and dielectric handle.

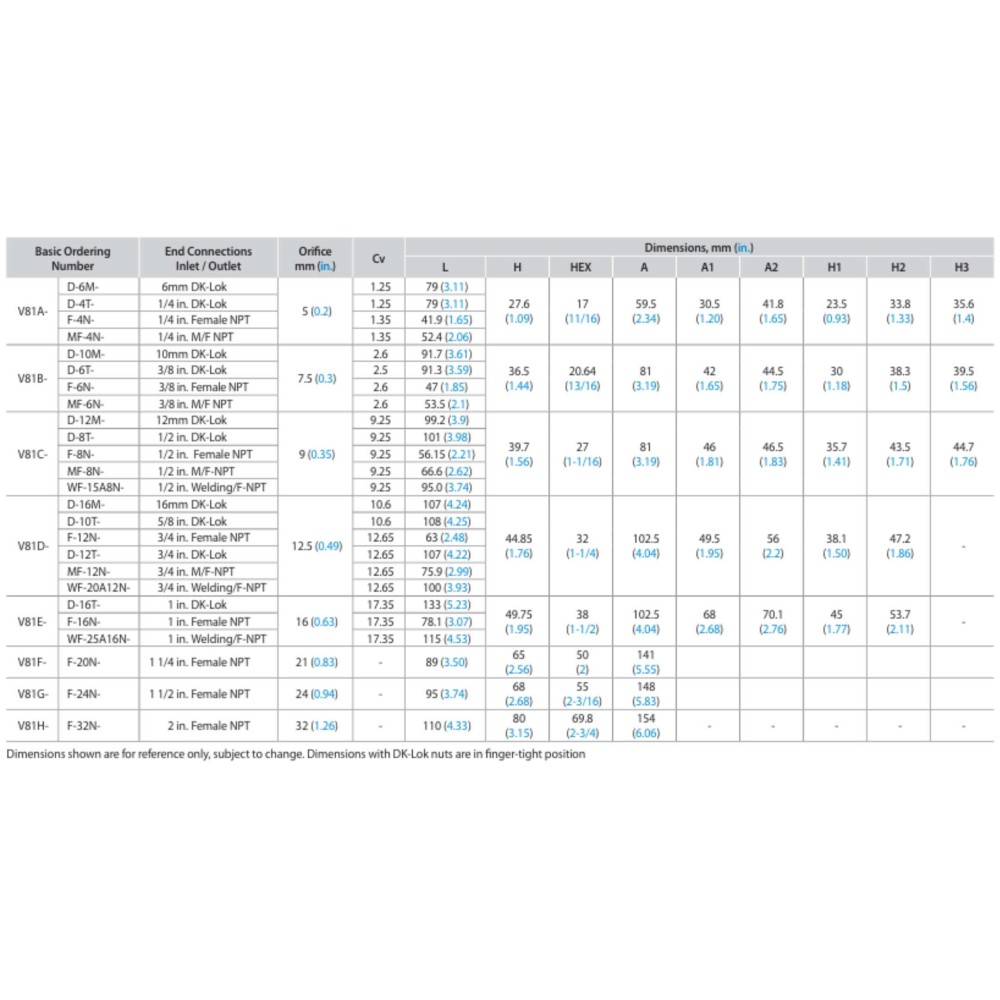

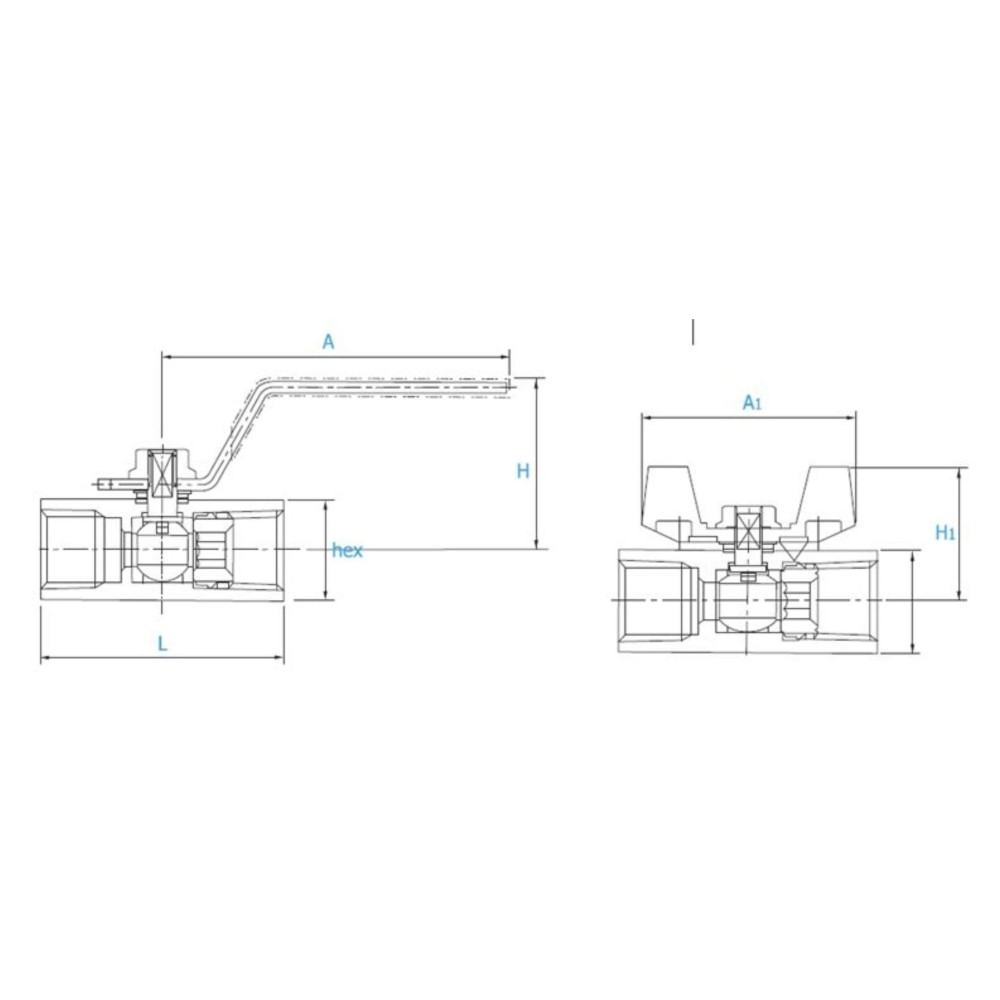

Dimensions (mm):
| L | H | HEX | A | A1 | A2 | H1 | H2 | H3 |
| 95 | 68 | 55 | 148 | - | - | - | - | - |
