Brand:

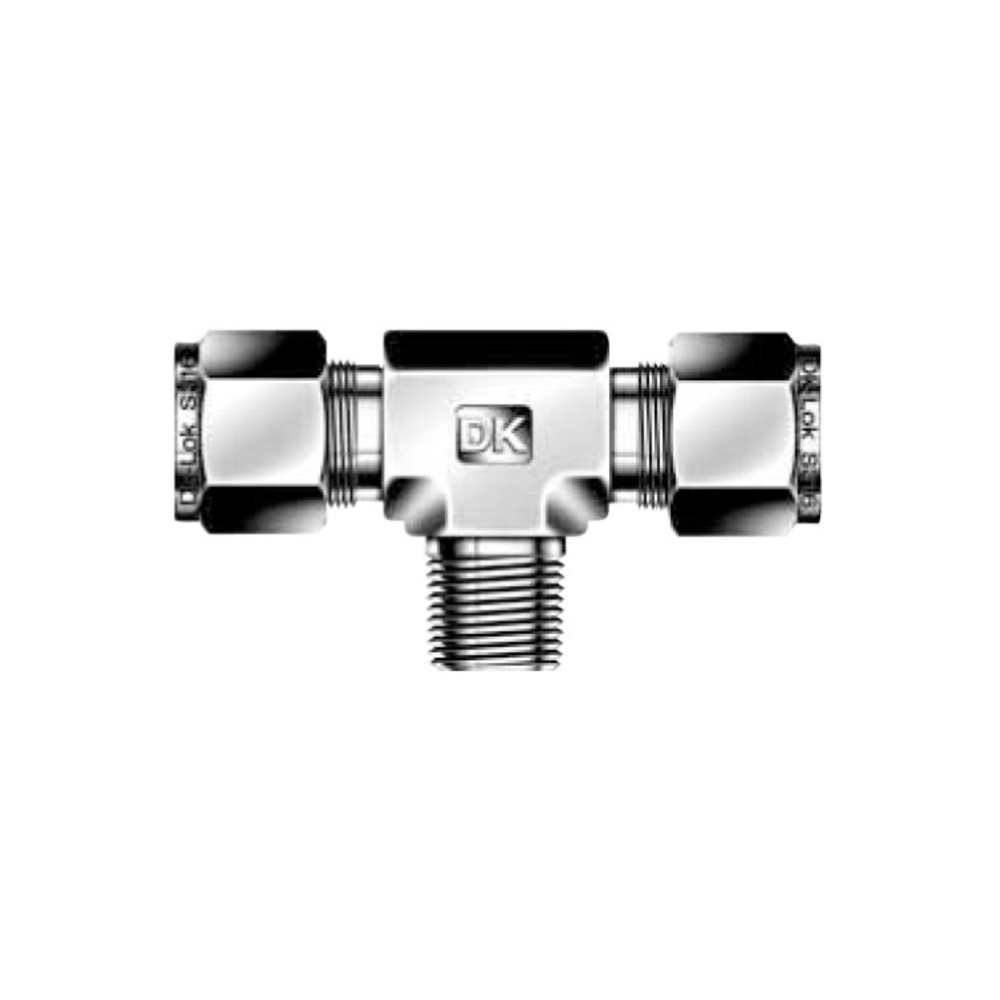

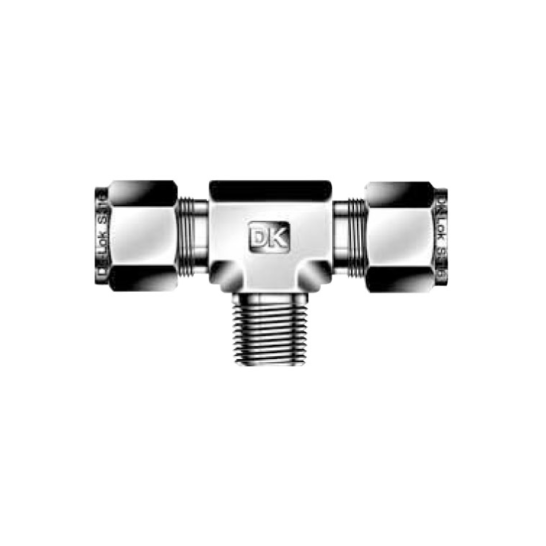

DK-LOK SS316 Male Branch Tee DTBM-N Series
Tube to Male Pipe
Model No.
DTBMX-XN-SS
DK-Lok DTBM-N male branch tees are designed to connect two individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

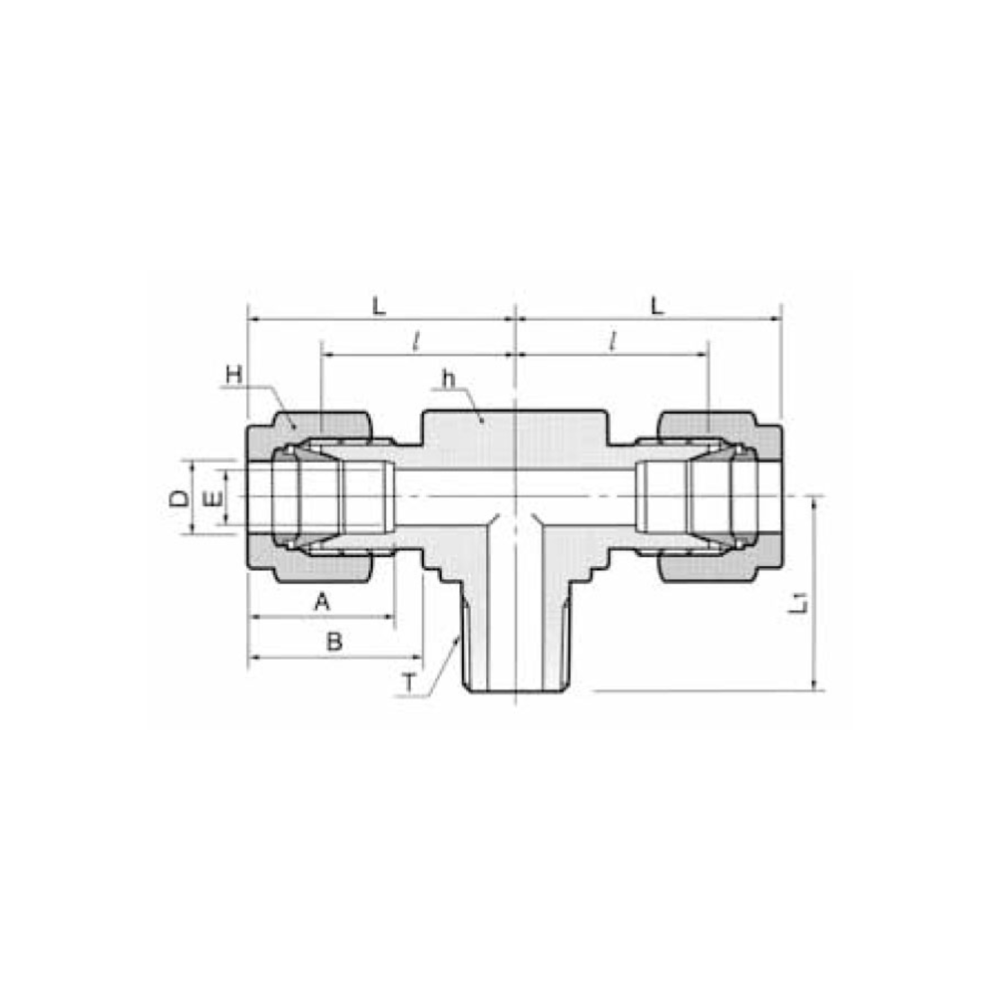

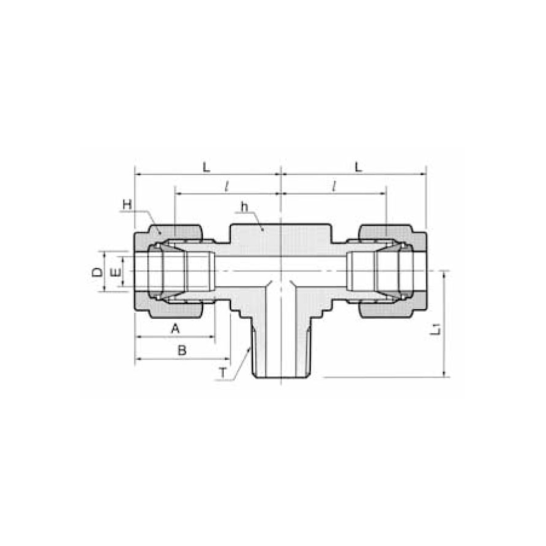

Part No |
Tube O.D. D (inches) |
T NPT |
|
DTBM1-1N |
1/16 |
1/16 |
|
DTBM1-2N |
1/16 |
1/8 |
|
DTBM2-2N |
1/8 |
1/8 |
|
DTBM2-4N |
1/8 |
1/4 |
|
DTBM3-2N |
3/16 |
1/8 |
|
DTBM3-4N |
3/16 |
1/4 |
|
DTBM4-1N |
1/4 |
1/16 |
|
DTBM4-2N |
1/4 |
1/8 |
|
DTBM4-4N |
1/4 |
1/4 |
|
DTBM4-6N |
1/4 |
3/8 |
|
DTBM4-8N |
1/4 |
1/2 |
|
DTBM5-2N |
5/16 |
1/8 |
|
DTBM5-4N |
5/16 |
1/4 |
|
DTBM5-6N |
5/16 |
3/8 |
|
DTBM6-4N |
3/8 |
1/4 |
|
DTBM6-6N |
3/8 |
3/8 |
|
DTBM6-8N |
3/8 |
1/2 |
|
DTBM6-12N |
3/8 |
3/4 |
|
DTBM8-4N |
1/2 |
1/4 |
|
DTBM8-6N |
1/2 |
3/8 |
|
DTBM8-8N |
1/2 |
1/2 |
|
DTBM8-12N |
1/2 |
3/4 |
|
DTBM10-6N |
5/8 |
3/8 |
|
DTBM10-8N |
5/8 |
1/2 |
|
DTBM10-12N |
5/8 |
3/4 |
|
DTBM12-8N |
3/4 |
1/2 |
|
DTBM12-12N |
3/4 |
3/4 |
|
DTBM14-12N |
7/8 |
3/4 |
|
DTBM16-12N |
1 |
3/4 |
|
DTBM16-16N |
1 |
1 |
|
DTBM20-20N |
1-1/4 |
1-1/4 |
|
DTBM24-24N |
1-1/2 |
1-1/2 |
|
DTBM32-32N |
2 |
2 |
