DK-LOK
Fixed cracking pressure valves
Brand:

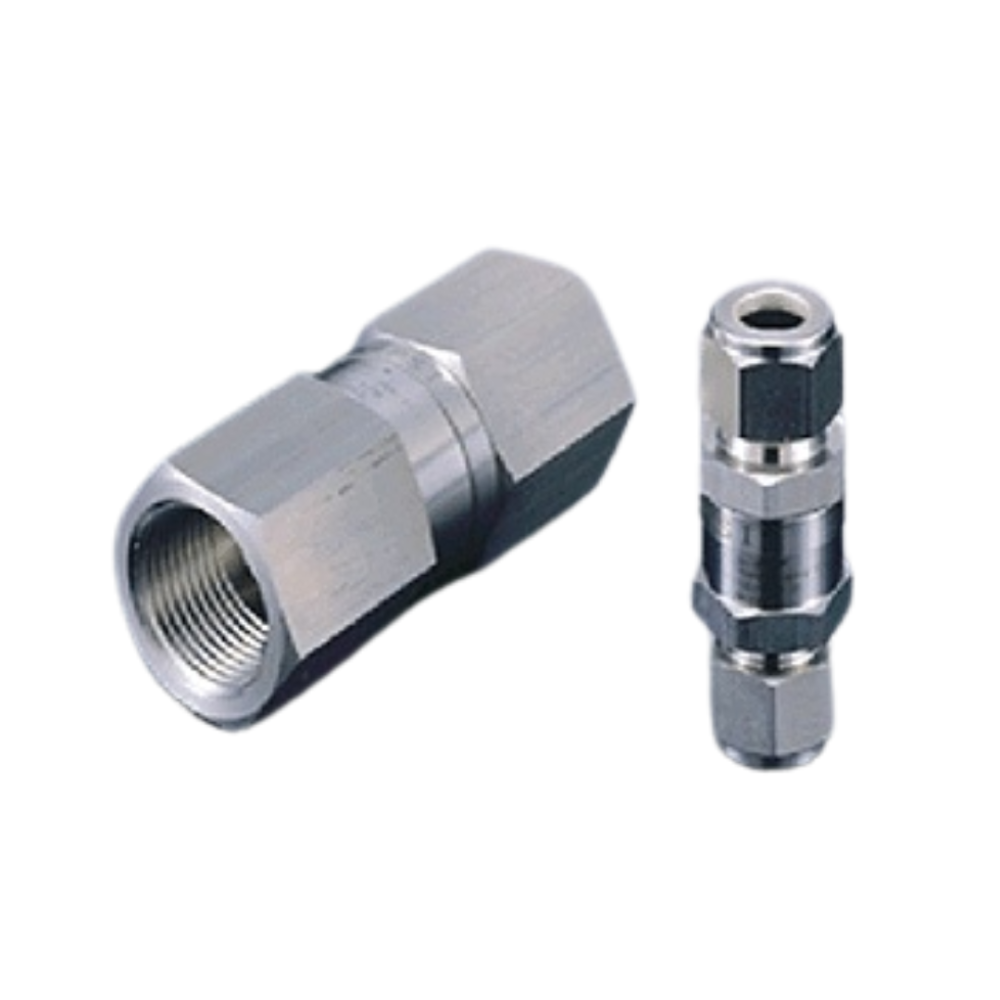

DK-LOK SS316 High Pressure Check Valve (12MM Tube Fitting 1PSI) VH36B Series
Compact Check Valves
Model No.
VH36B-D-12M-1-SS
Features
- Fixed and adjustable cracking pressure.
- Reliable DK-LOK Tube Fitting, NPT and ISO pipe end connections.
- Stainless and Brass material construction.
- High pressure 6,000 psig (413 bar)
- Seal blow-out proof design with the bonded seal on poppet.
| Size | CV | L (in.) | L1(in.) | H(in.) | h(in.) | Pressure Rating psig(bar) |
| 12MM DK-LOK | 1.8 | 75.2(2.96) | 31.2(1.23) | 22 | 1 | 6000(413) |
