Brand:

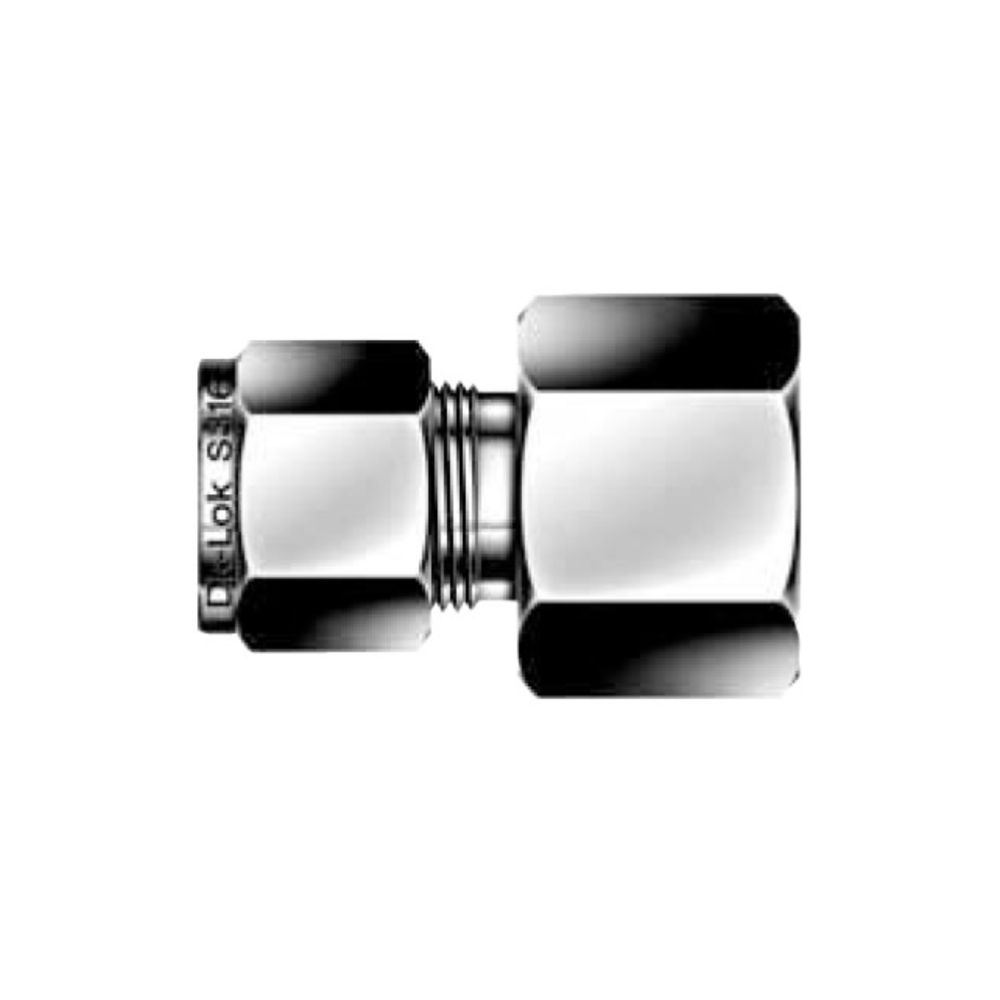

DK-LOK BRASS Gauge Connector (Previously DCG) DCF-GG Metric Series
Tube to Female Pipe
Model No.
DCFXM-XGG-B

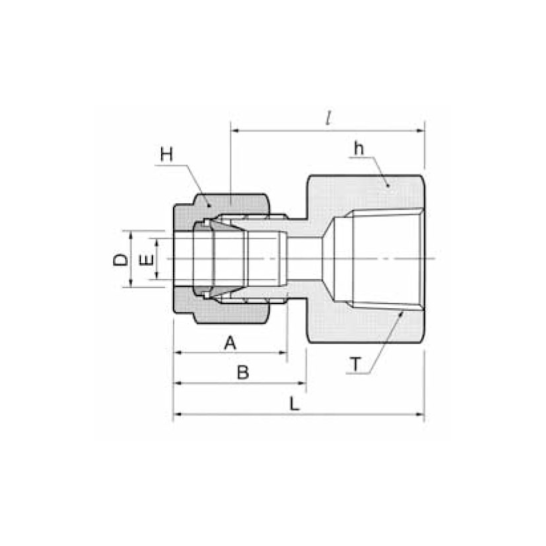

DK-Lok DCF-GG female connectors are designed to connect individual fractional or metric tube lines to a male British Standard Pipe Thread (BSPP) in both single ferrule and double ferrule designs.
|

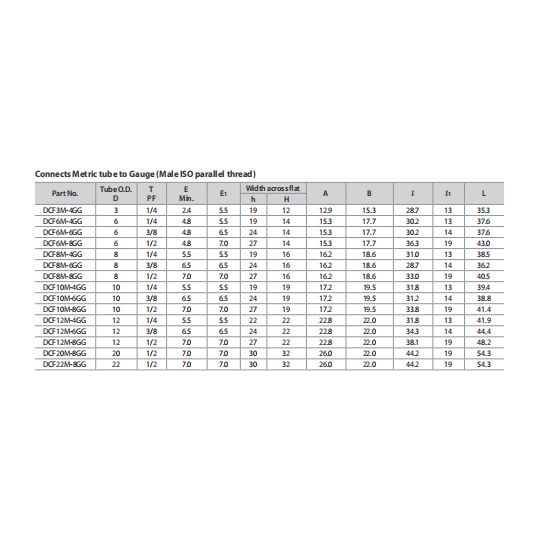

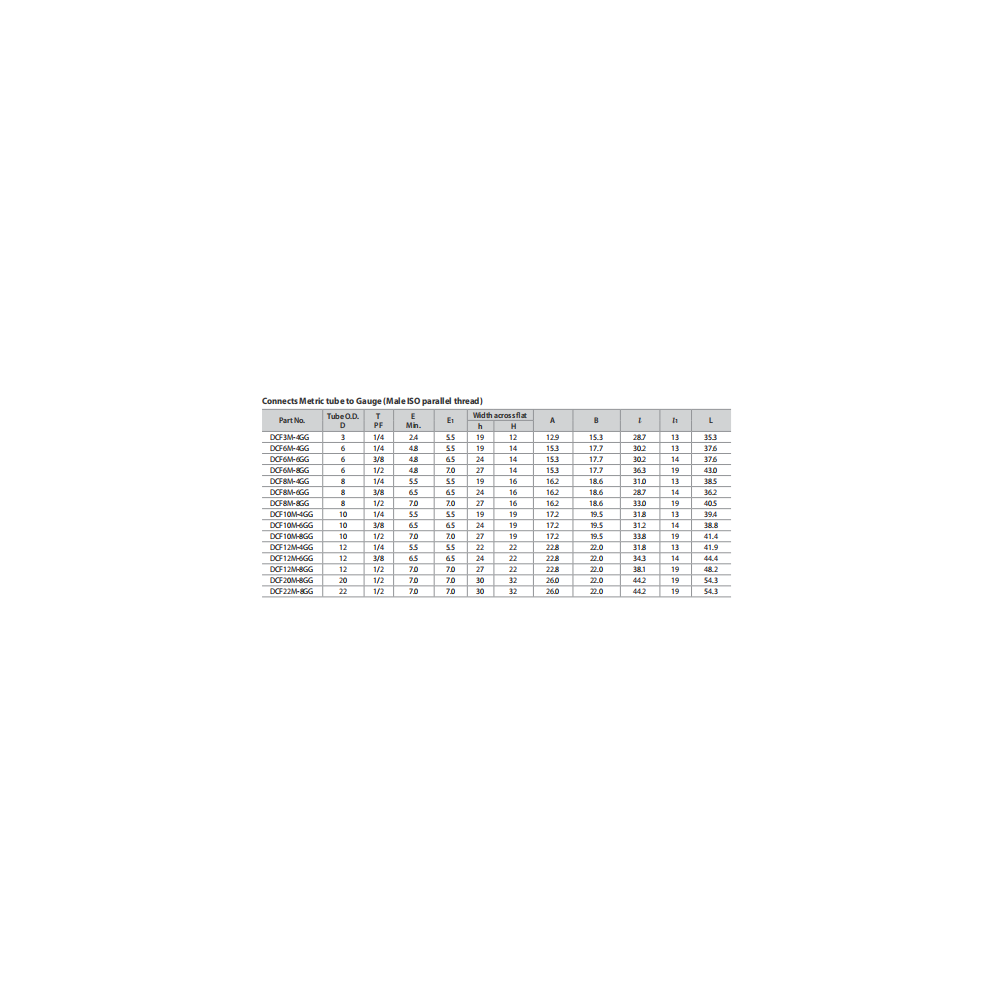

Part No
|
Tube O.D.
D (mm)
|
T
PT
|
|
DCF3M-4GG |
3 |
1/4 |
|
DCF6M-4GG |
6 |
1/4 |
|
DCF6M-6GG |
6 |
3/8 |
|
DCF6M-8GG |
6 |
1/2 |
|
DCF8M-4GG |
8 |
1/4 |
|
DCF8M-6GG |
8 |
3/8 |
|
DCF8M-8GG |
8 |
1/2 |
|
DCF10M-4GG |
10 |
1/4 |
|
DCF10M-6GG |
10 |
3/8 |
|
DCF10M-8GG |
10 |
1/2 |
|
DCF12M-4GG |
12 |
1/4 |
|
DCF12M-6GG |
12 |
3/8 |
|
DCF12M-8GG |
12 |
1/2 |
|
DCF20M-8GG |
20 |
1/2 |
|
DCF22M-8GG |
20 |
1/2 |
