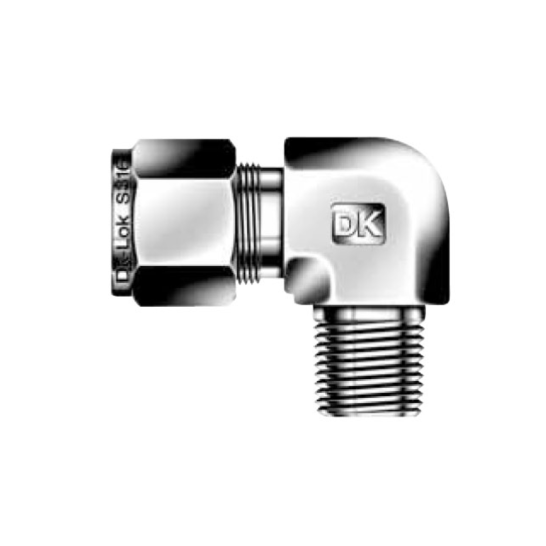

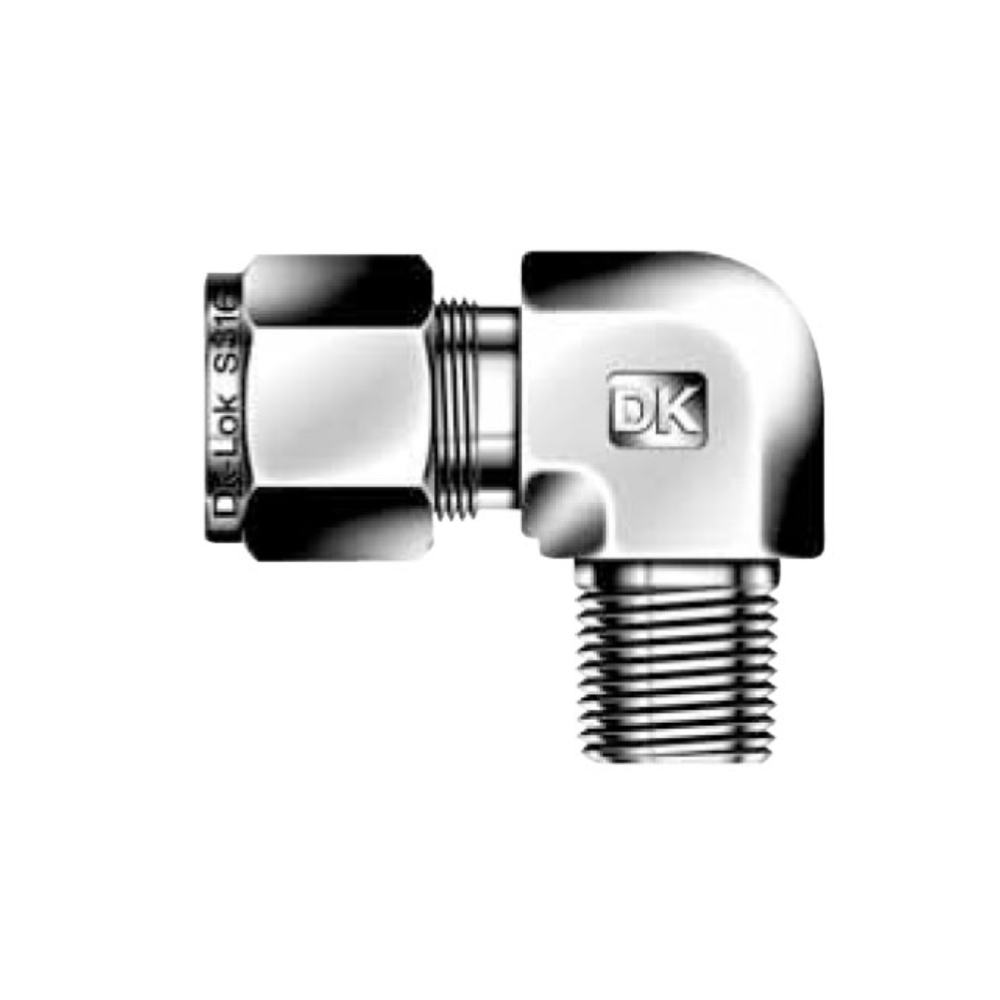

DK-LOK SS316 Male Elbow DLM-N Series
Tube to Male Pipe
Model No.
DLMX-XN-SS
DK-Lok DLM-N male elbows are designed to connect individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

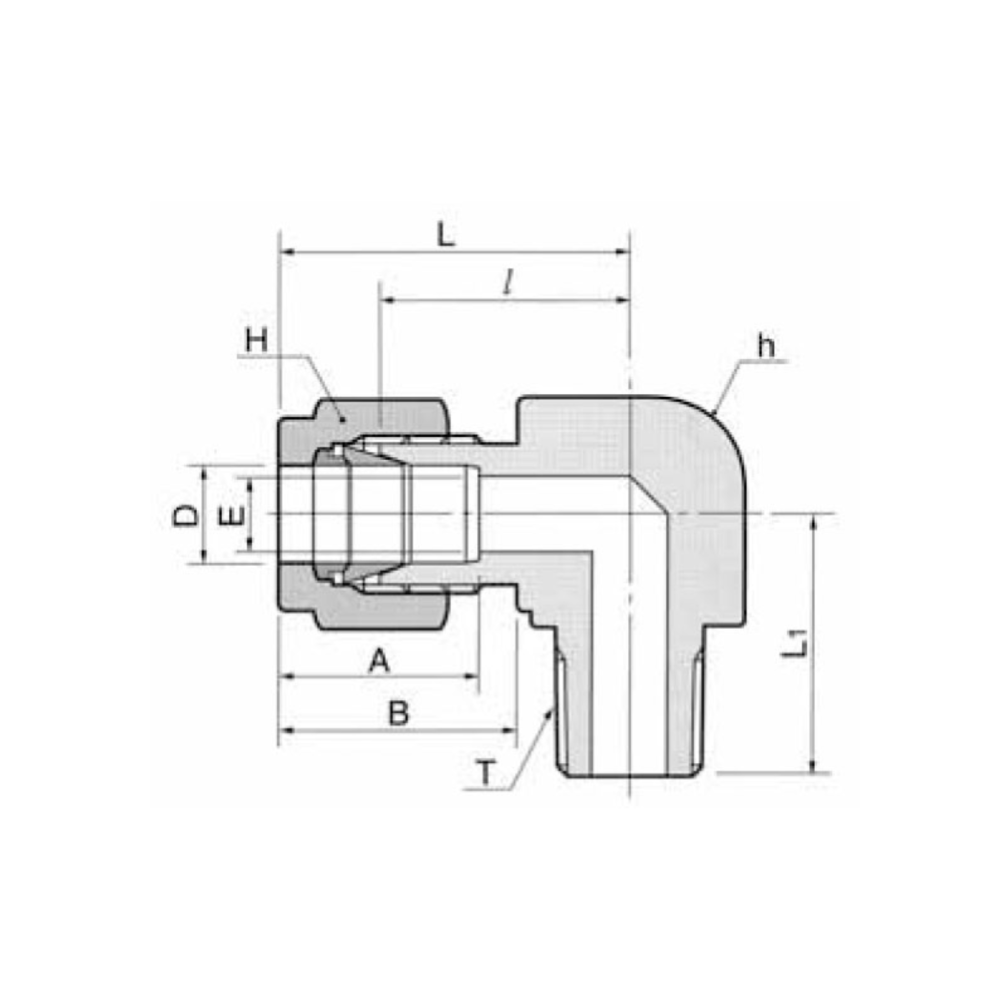

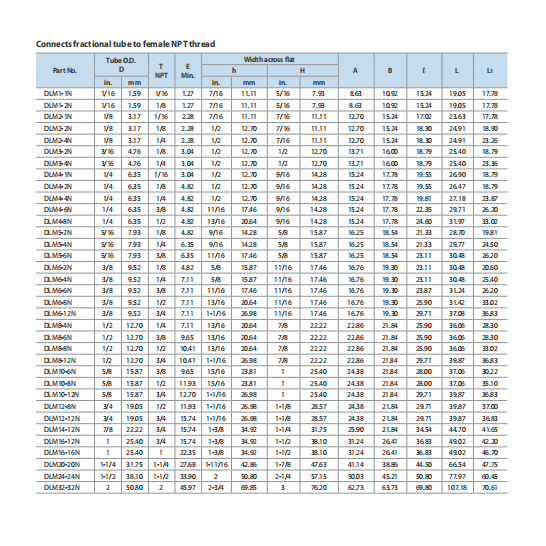

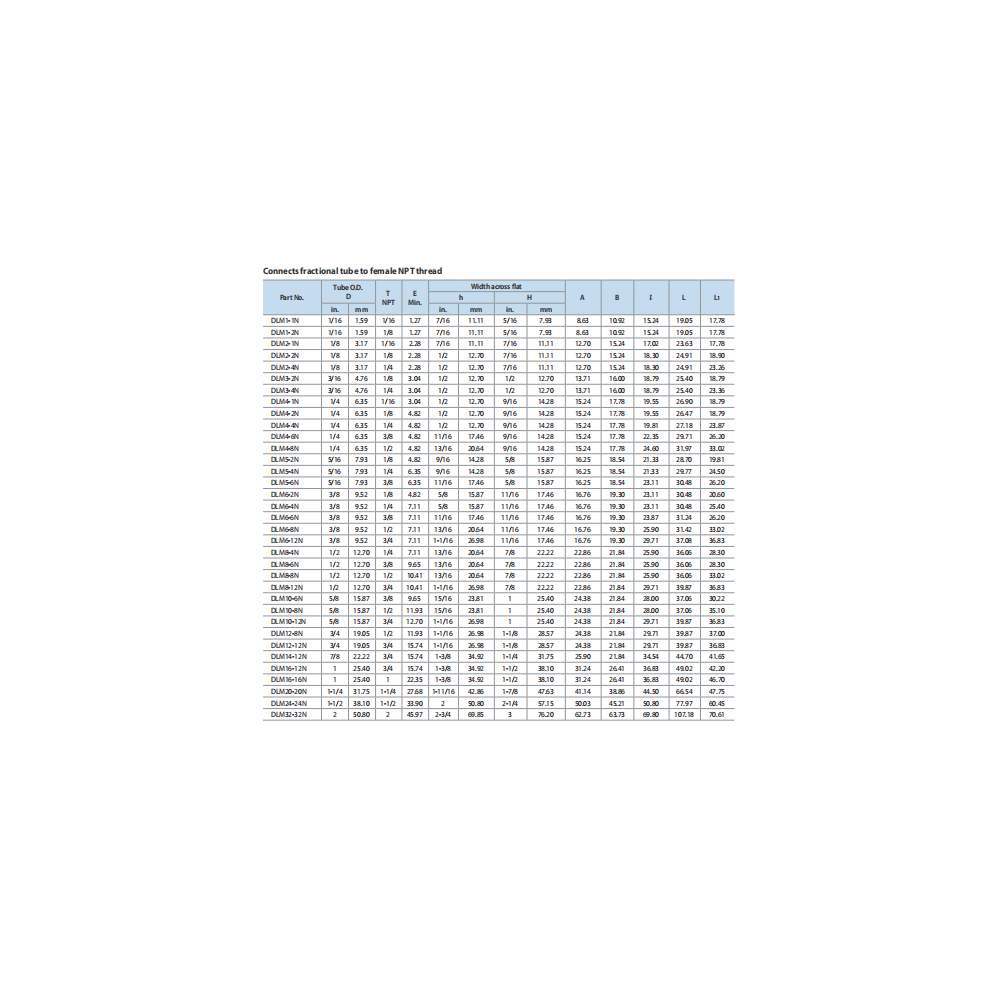

Part No |
Tube O.D. D (inches) |
T NPT |
|
DLM1-1N |
1/16 |
1/16 |
|
DLM1-2N |
1/16 |
1/8 |
|
DLM2-1N |
1/8 |
1/16 |
|
DLM2-2N |
1/8 |
1/8 |
|
DLM2-4N |
1/8 |
1/4 |
|
DLM3-2N |
3/16 |
1/8 |
|
DLM3-4N |
3/16 |
1/4 |
|
DLM4-1N |
1/4 |
1/16 |
|
DLM4-2N |
1/4 |
1/8 |
|
DLM4-4N |
1/4 |
1/4 |
|
DLM4-6N |
1/4 |
3/8 |
|
DLM4-8N |
1/4 |
1/2 |
|
DLM5-2N |
5/16 |
1/8 |
|
DLM5-4N |
5/16 |
1/4 |
|
DLM5-6N |
5/16 |
3/8 |
|
DLM6-2N |
3/8 |
1/8 |
|
DLM6-4N |
3/8 |
1/4 |
|
DLM6-6N |
3/8 |
3/8 |
|
DLM6-8N |
3/8 |
1/2 |
|
DLM6-12N |
3/8 |
3/4 |
|
DLM8-4N |
1/2 |
1/4 |
|
DLM8-6N |
1/2 |
3/8 |
|
DLM8-8N |
1/2 |
1/2 |
|
DLM8-12N |
1/2 |
3/4 |
|
DLM10-6N |
5/8 |
3/8 |
|
DLM10-8N |
5/8 |
1/2 |
|
DLM10-12N |
5/8 |
3/4 |
|
DLM12-8N |
3/4 |
1/2 |
|
DLM12-12N |
3/4 |
3/4 |
|
DLM14-12N |
7/8 |
3/4 |
|
DLM16-12N |
1 |
3/4 |
|
DLM16-16N |
1 |
1 |
|
DLM20-20N |
1-1/4 |
1-1/4 |
|
DLM24-24N |
1-1/2 |
1-1/2 |
|
DLM32-32N |
2 |
2 |
