Brand:
DK-LOK

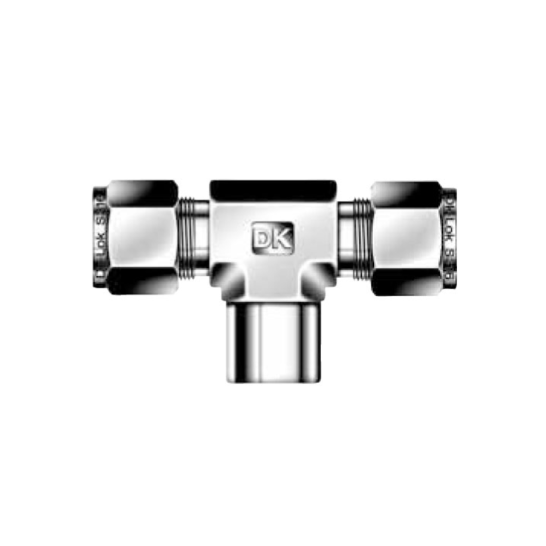

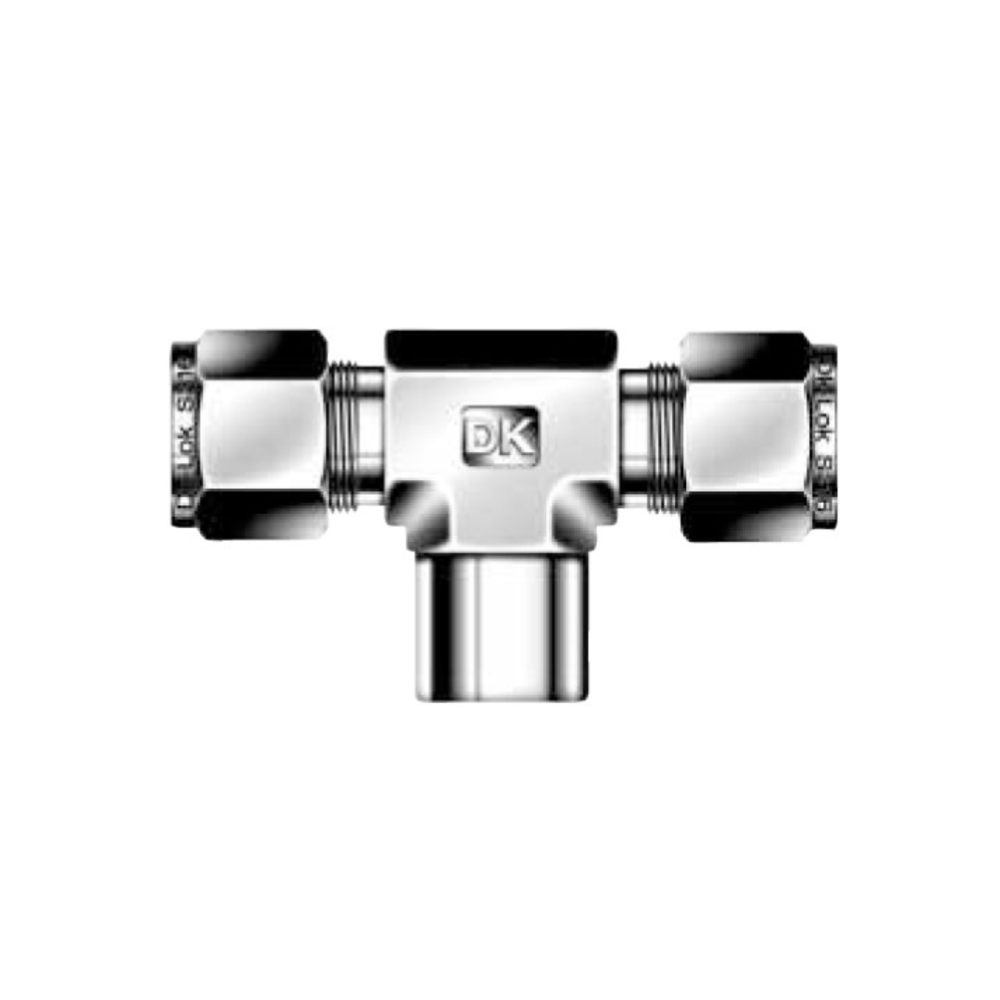

DK-LOK SS316 Female Branch Tee DTBF-N Series

Tube to Female Pipe

Read moreShow less
Model No.
DTBFX-XN-SS
Get a quote
Like0
Share
Description
DK-Lok DTFF-N female branch tees are designed to connect two fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.

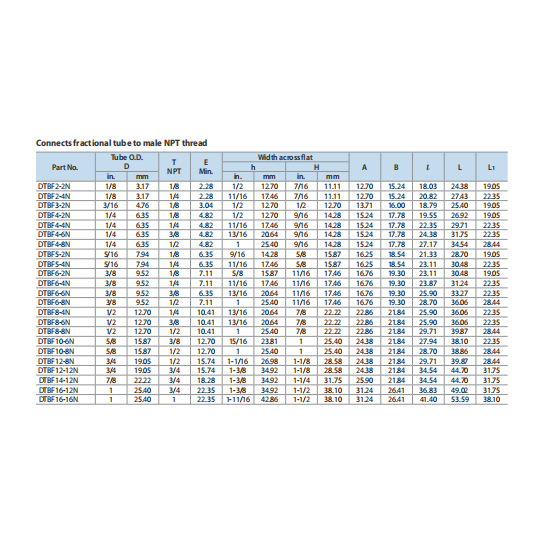

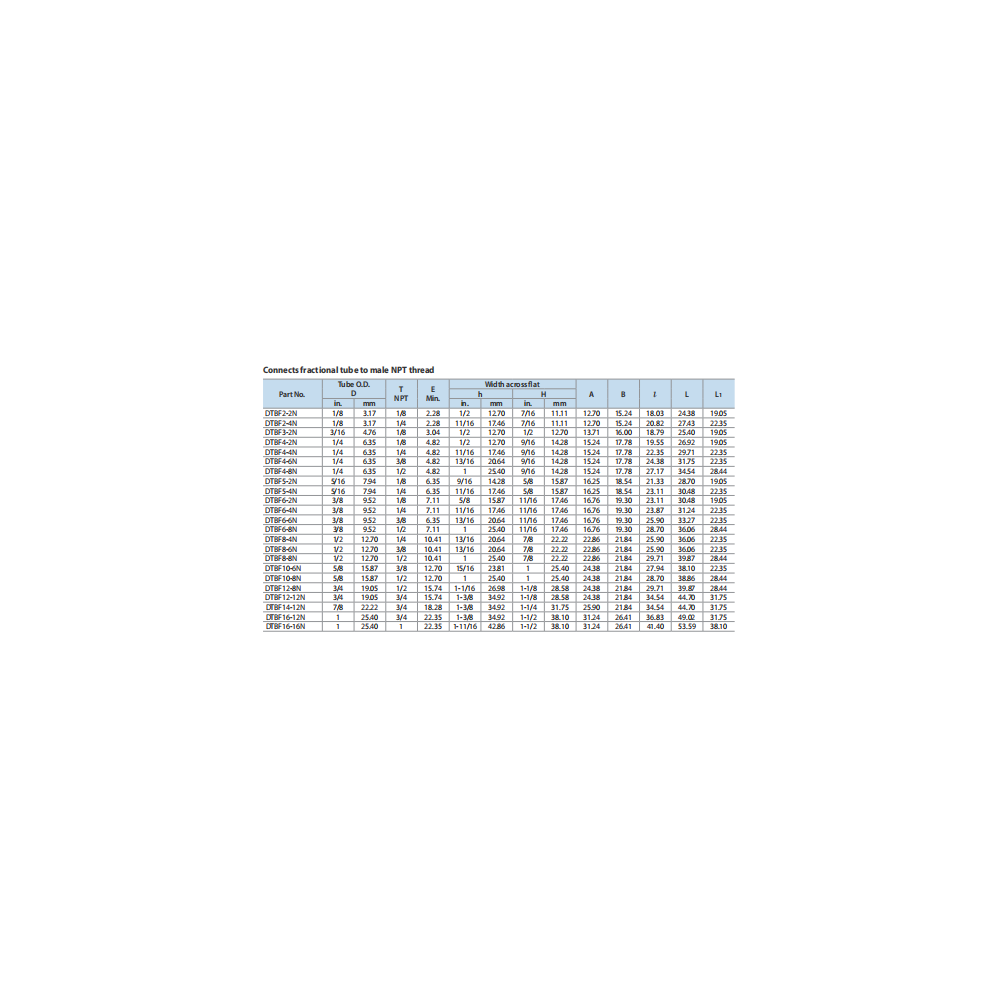

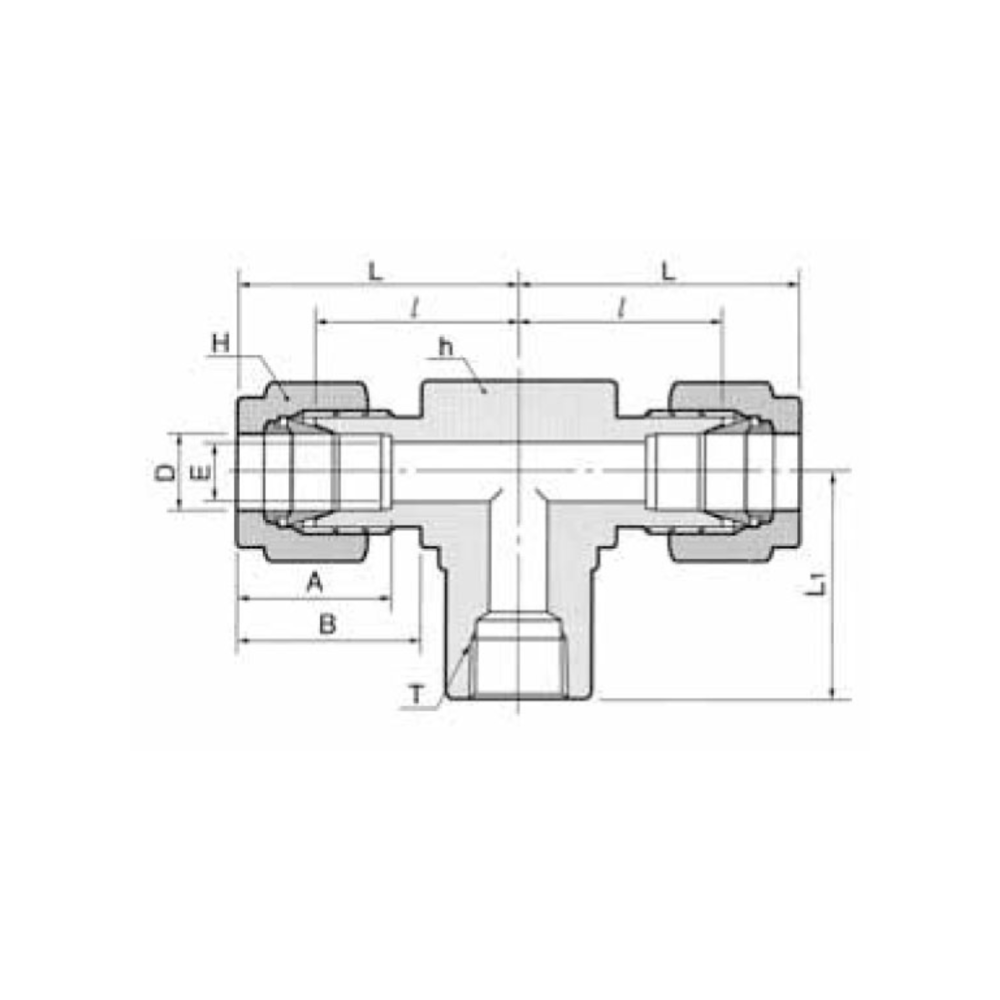

Part No

Tube O.D.

D (inches)

T

NPT

DTBF2-2N

1/8

1/8

DTBF2-4N

1/8

1/4

DTBF3-2N

3/16

1/8

DTBF4-2N

1/4

1/8

DTBF4-4N

1/4

1/4

DTBF4-6N

1/4

3/8

DTBF4-8N

1/4

1/2

DTBF5-2N

5/16

1/8

DTBF5-4N

5/16

1/4

DTBF6-2N

3/8

1/8

DTBF6-4N

3/8

1/4

DTBF6-6N

3/8

3/8

DTBF6-8N

3/8

1/2

DTBF8-4N

1/2

1/4

DTBF8-6N

1/2

3/8

DTBF8-8N

1/2

1/2

DTBF10-6N

5/8

3/8

DTBF10-8N

5/8

1/2

DTBF12-8N

3/4

1/2

DTBF12-12N

3/4

3/4

DTBF14-12N

7/8

3/4

DTBF16-12N

1

3/4

DTBF16-16N

1

1


Read moreShow less
Specifications
DTBFX-XN-SS

Data sheet

Z Series Ferrule
No
Moly Coating
None
