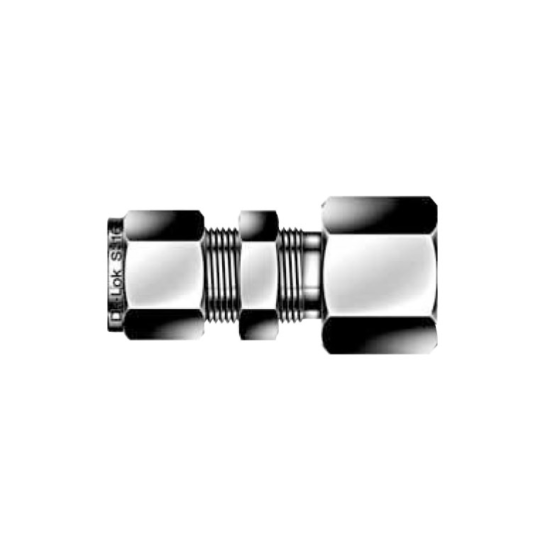

DK-LOK SS316 Bulkhead Female Connector DCBF-N Series
DK-LOK SS316 Bulkhead Female Connector DCBF-N Series
DK-LOK SS316 Bulkhead Female Connector DCBF-N Series
DK-LOK SS316 Bulkhead Female Connector DCBF-N Series
DK-LOK SS316 Bulkhead Female Connector DCBF-N Series
DK-LOK SS316 Bulkhead Female Connector DCBF-N Series
Brand:
DK-LOK

DK-LOK SS316 Bulkhead Female Connector DCBF-N Series

Tube to Female Pipe

Read moreShow less
Model No.
DCBFX-XN-SS
Get a quote
Like0
Share
Description
DK-Lok DCBF-N bulkhead female connectors are designed to connect individual fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.

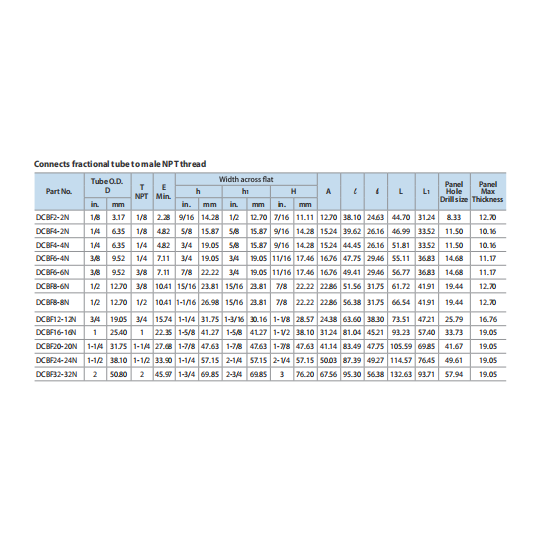

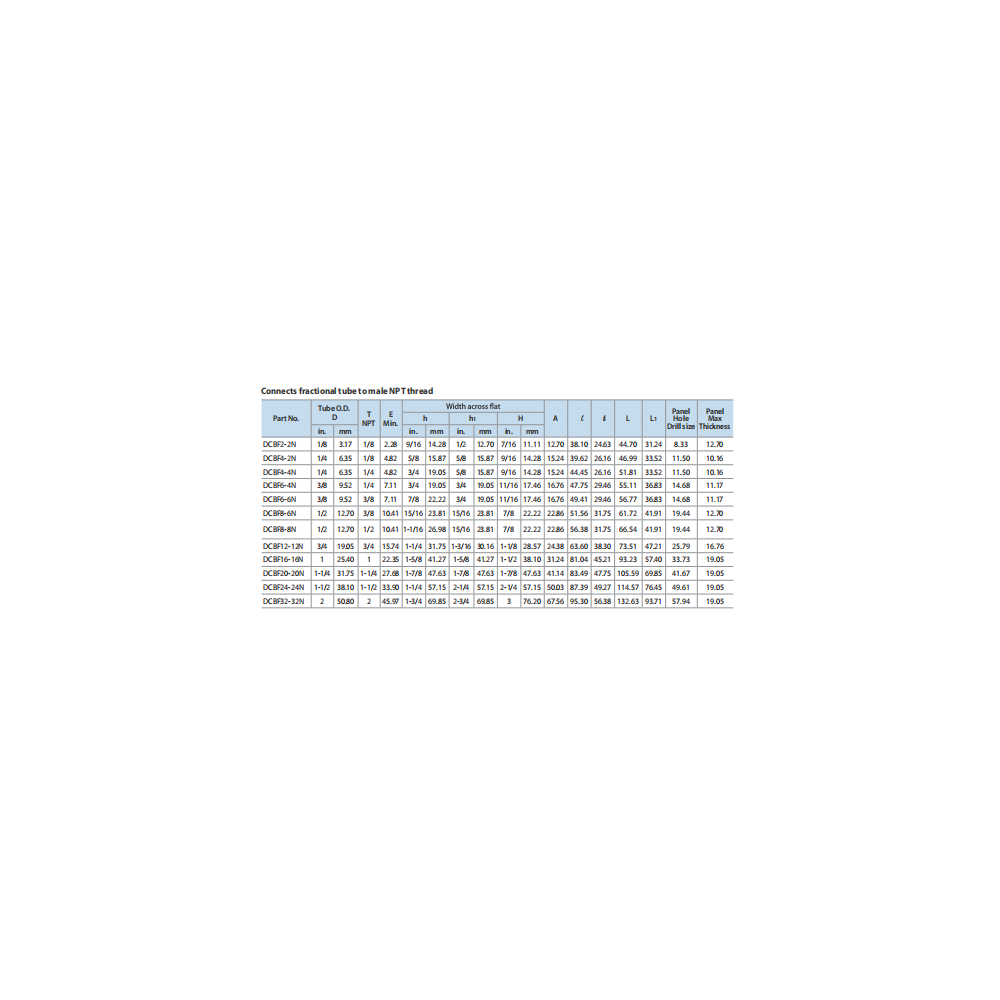

Part No

Tube O.D.

D (inches)

T

NPT

DCBF2-2N

1/8

1/8

DCBF4-2N

1/4

1/8

DCBF4-4N

1/4

1/4

DCBF6-4N

3/8

1/4

DCBF6-6N

3/8

3/8

DCBF8-6N

1/2

3/8

DCBF8-8N

1/2

1/2

DCBF12-12N

3/4

3/4

DCBF16-16N

1

1

DCBF20-20N

1-1/4

1-1/4

DCBF24-24N

1-1/2

1-1/2

DCBF32-32N

2

2

Read moreShow less
Specifications
DCBFX-XN-SS

Data sheet

Z Series Ferrule
No
Moly Coating
None
