DK-LOK
Fixed cracking pressure valves
Brand:
DK-LOK SS316 Fuse Plug DFA Series
Additional Products
Model No.
DFA-X-X-SS

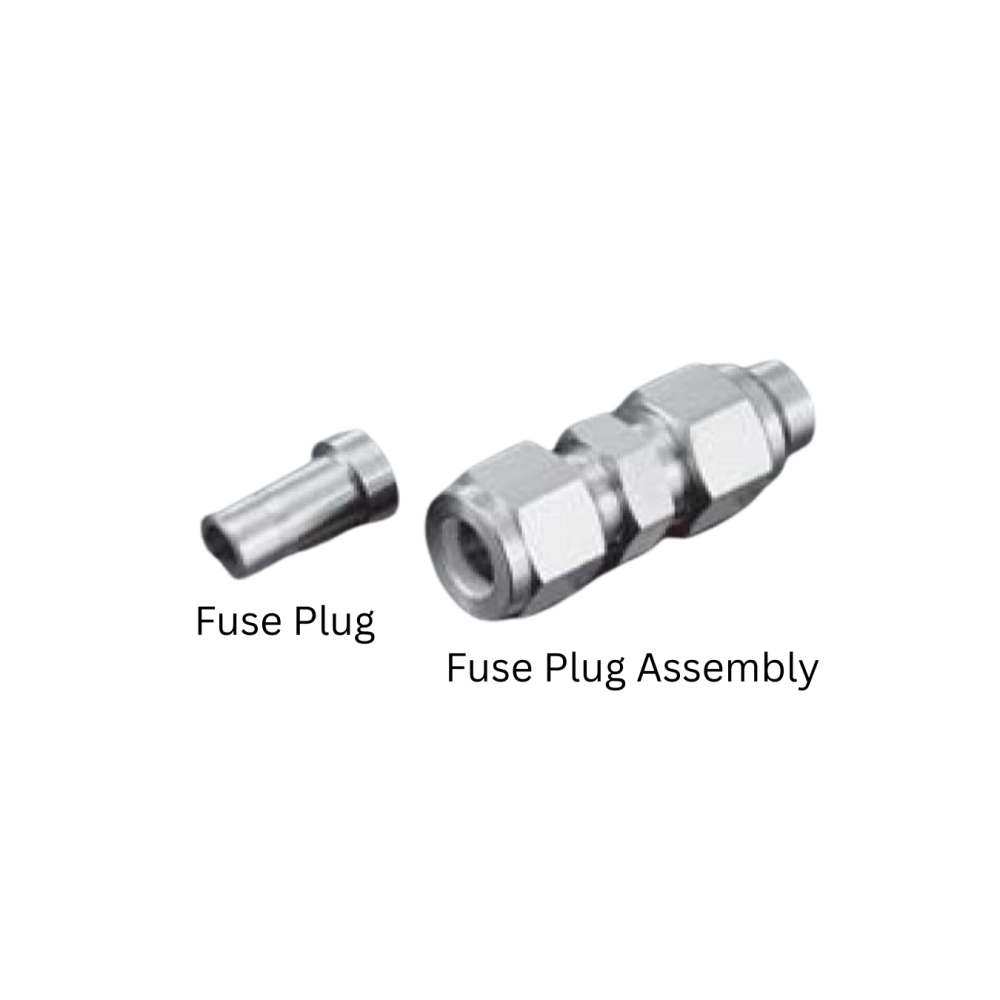

Fuse plug is applicable where heat could initiate fire or an explosive chemical reaction. Fuse plug alloy metal melts or yields at the rated temperature. This is designed to use with port 3/8 in. OD.
- Maximum applicable instrument pressure: 10 bar (145 psig)
|

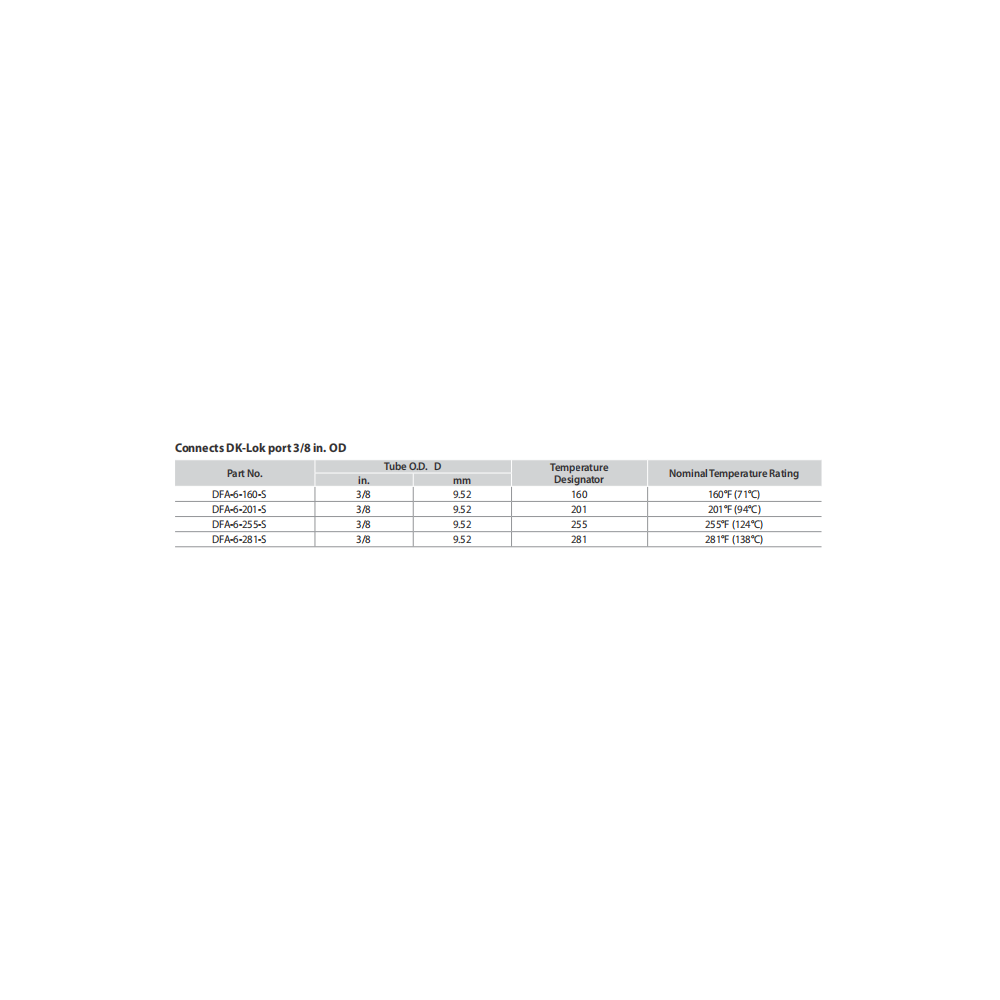

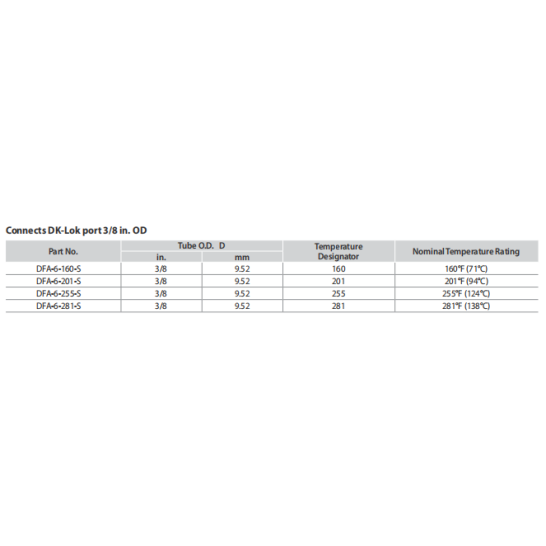

Part No
|

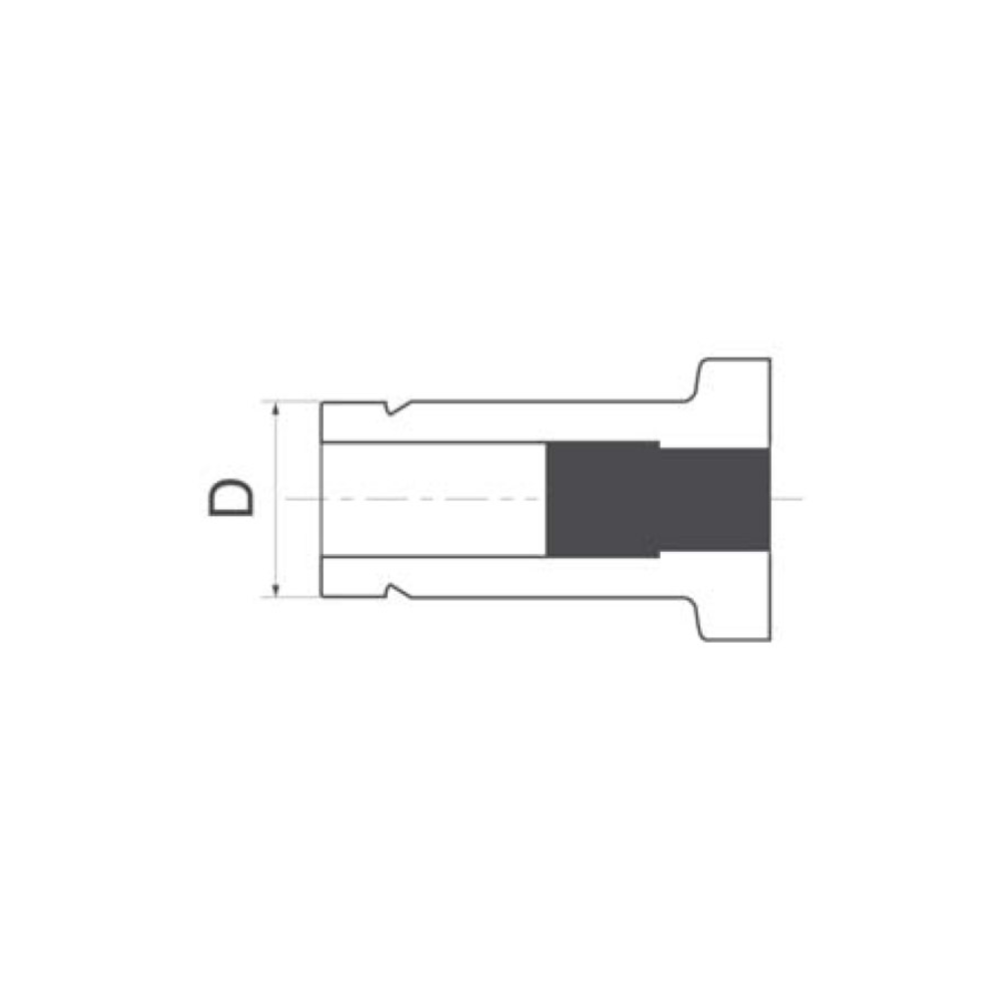

Tube O.D. D
|
Temperature
Designator
|
Nominal Temperature Rating
|
|
|
|
In.
|
mm
|
|
|
|
DFA-6-160-S |
3/8 |
9.52 |
160 |
160°F (71°C) |
|
DFA-6-201-S |
3/8 |
9.52 |
201 |
201°F (94°C) |
|
DFA-6-255-S |
3/8 |
9.52 |
255 |
255°F (124°C) |
|
DFA-6-281-S |
3/8 |
9.52 |
281 |
281°F (138°C) |
