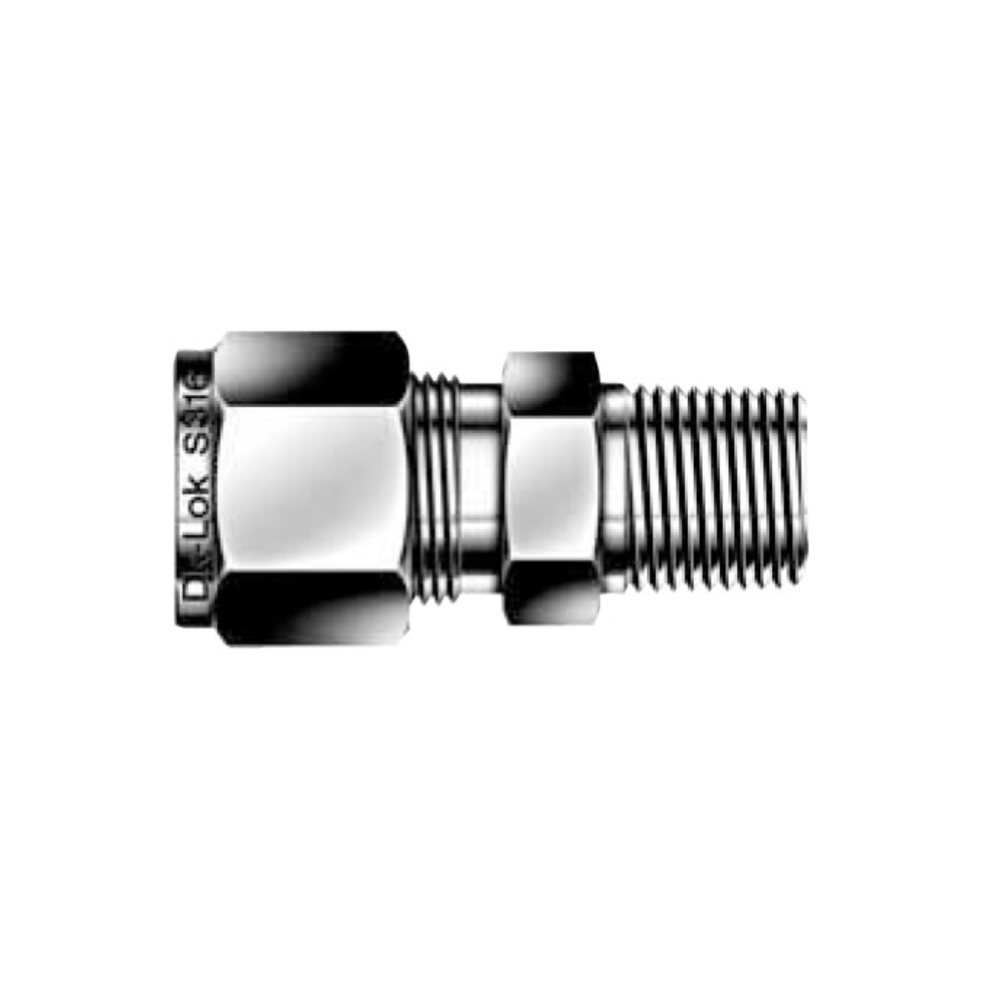

DK-LOK BRASS Male Connector DMC-R Metric Series
Tube to Male Pipe
DK-Lok DMC-R male connectors are designed to connect individual fractional or metric tube lines to a female British Standard Pipe Tapered thread (BSPT) port in both single ferrule and double ferrule designs.
|

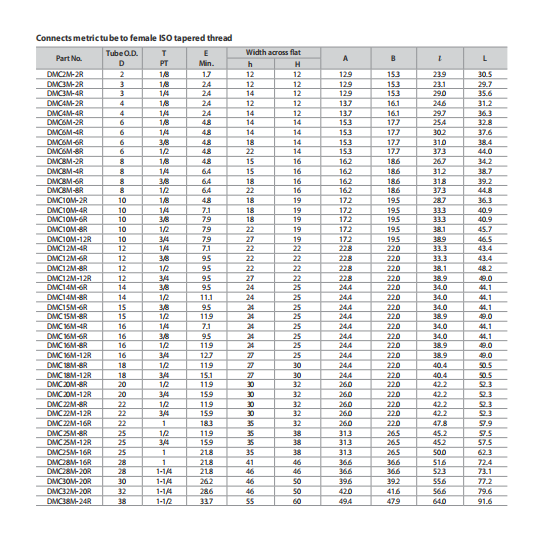

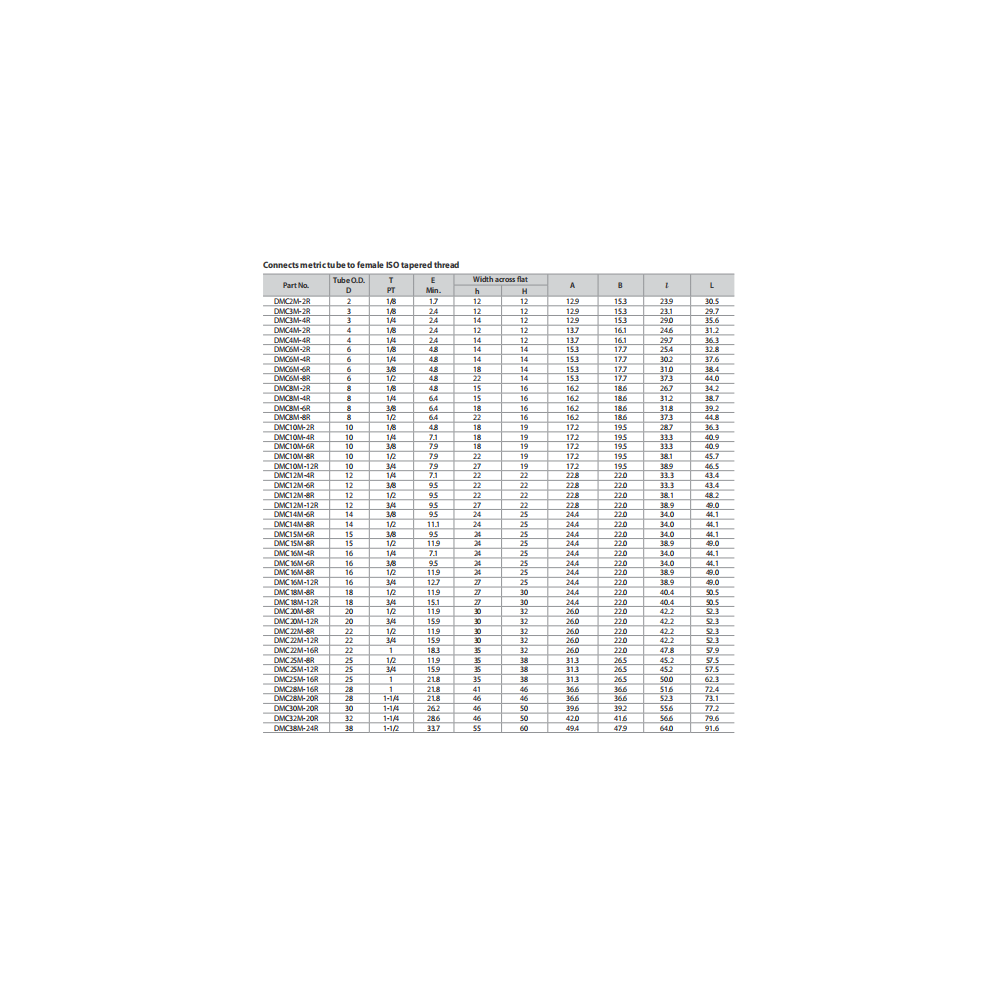

Part No |
Tube O.D D (mm) |
T PT |
|
DMC2M-2R |
2 |
1/8 |
|
DMC3M-2R |
3 |
1/8 |
|
DMC3M-4R |
3 |
1/4 |
|
DMC4M-2R |
4 |
1/8 |
|
DMC4M-4R |
4 |
1/4 |
|
DMC6M-2R |
6 |
1/8 |
|
DMC6M-4R |
6 |
1/4 |
|
DMC6M-6R |
6 |
3/8 |
|
DMC6M-8R |
6 |
1/2 |
|
DMC8M-2R |
8 |
1/8 |
|
DMC8M-4R |
8 |
1/4 |
|
DMC8M-6R |
8 |
3/8 |
|
DMC8M-8R |
8 |
1/2 |
|
DMC10M-2R |
10 |
1/8 |
|
DMC10M-4R |
10 |
1/4 |
|
DMC10M-6R |
10 |
3/8 |
|
DMC10M-8R |
10 |
1/2 |
|
DMC10M-12R |
10 |
3/4 |
|
DMC12M-4R |
12 |
1/4 |
|
DMC12M-6R |
12 |
3/8 |
|
DMC12M-8R |
12 |
1/2 |
|
DMC12M-12R |
12 |
3/4 |
|
DMC14M-6R |
14 |
3/8 |
|
DMC14M-8R |
14 |
1/2 |
|
DCM15M-6R |
15 |
3/8 |
|
DMC15M-8R |
15 |
1/2 |
|
DMC16M-4R |
16 |
1/4 |
|
DMC16M-6R |
16 |
3/8 |
|
DMC16M-8R |
16 |
1/2 |
|
DMC16M-12R |
16 |
3/4 |
|
DMC18M-8R |
18 |
1/2 |
|
DMC18M-12R |
18 |
3/4 |
|
DMC20M-8R |
20 |
1/2 |
|
DMC20M-12R |
20 |
3/4 |
|
DMC22M-8R |
22 |
1/2 |
|
DMC22M-12R |
22 |
3/4 |
|
DMC22M-16R |
22 |
1 |
|
DMC25M-8R |
25 |
1/2 |
|
DMC25M-12R |
25 |
3/4 |
|
DMC25M-16R |
25 |
1 |
|
DMC28M-16R |
28 |
1 |
|
DMC28M-20R |
28 |
1-1/4 |
|
DMC30M-20R |
30 |
1-1/4 |
|
DMC32M-20R |
32 |
1-1/4 |
|
DMC38M-24R |
38 |
1-1/2 |
