DK-LOK
Tube to Female Pipe
Brand:

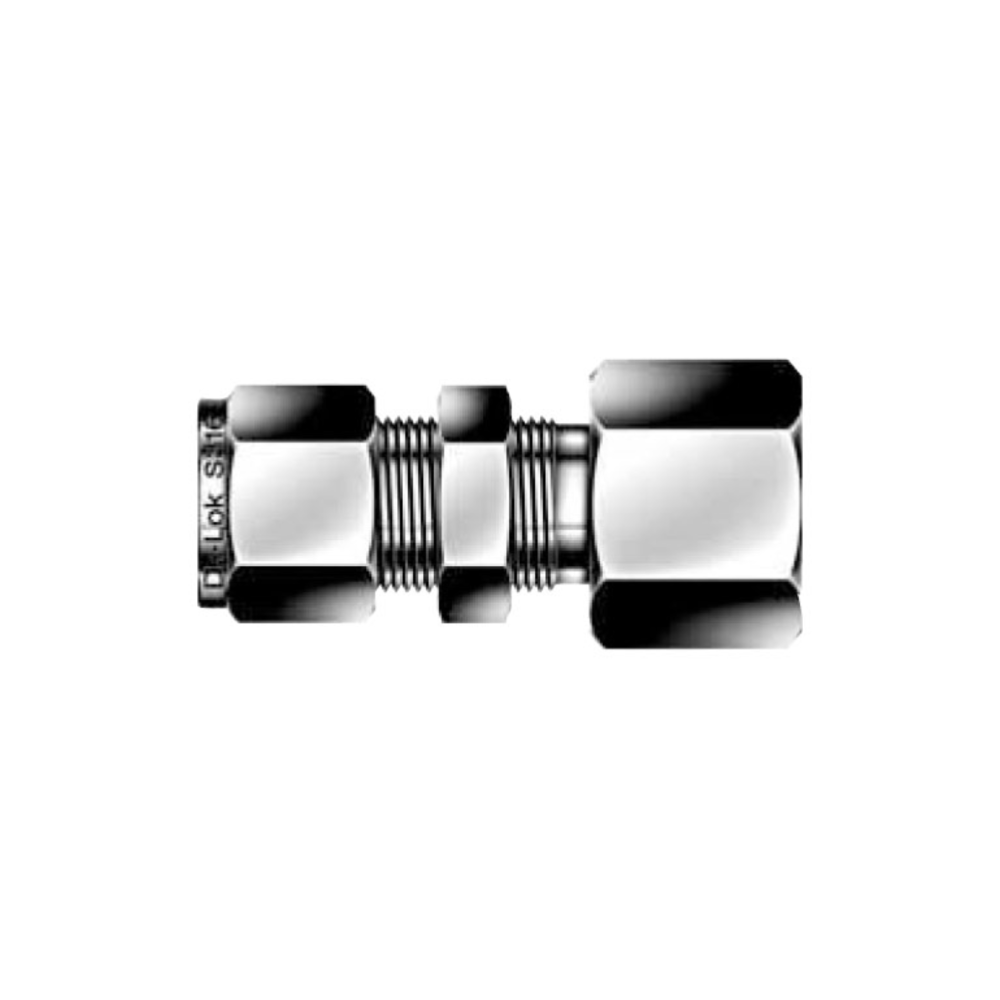

DK-LOK BRASS Bulkhead Female Connector DCBF-N Metric Series
Tube to Female Pipe
Model No.
DCBFXM-XN-B
DK-Lok DCBF-N bulkhead female connectors are designed to connect individual fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

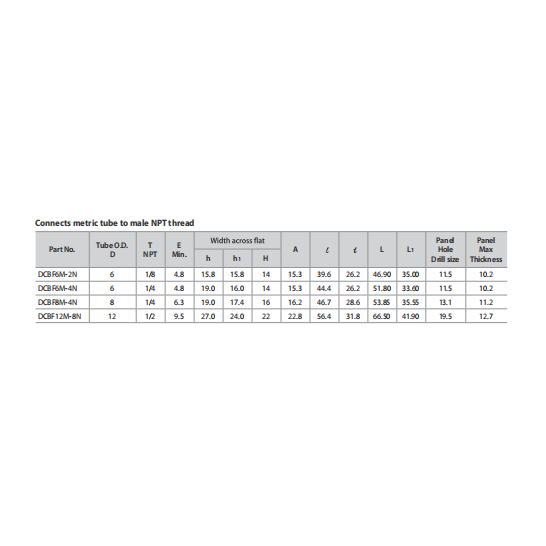

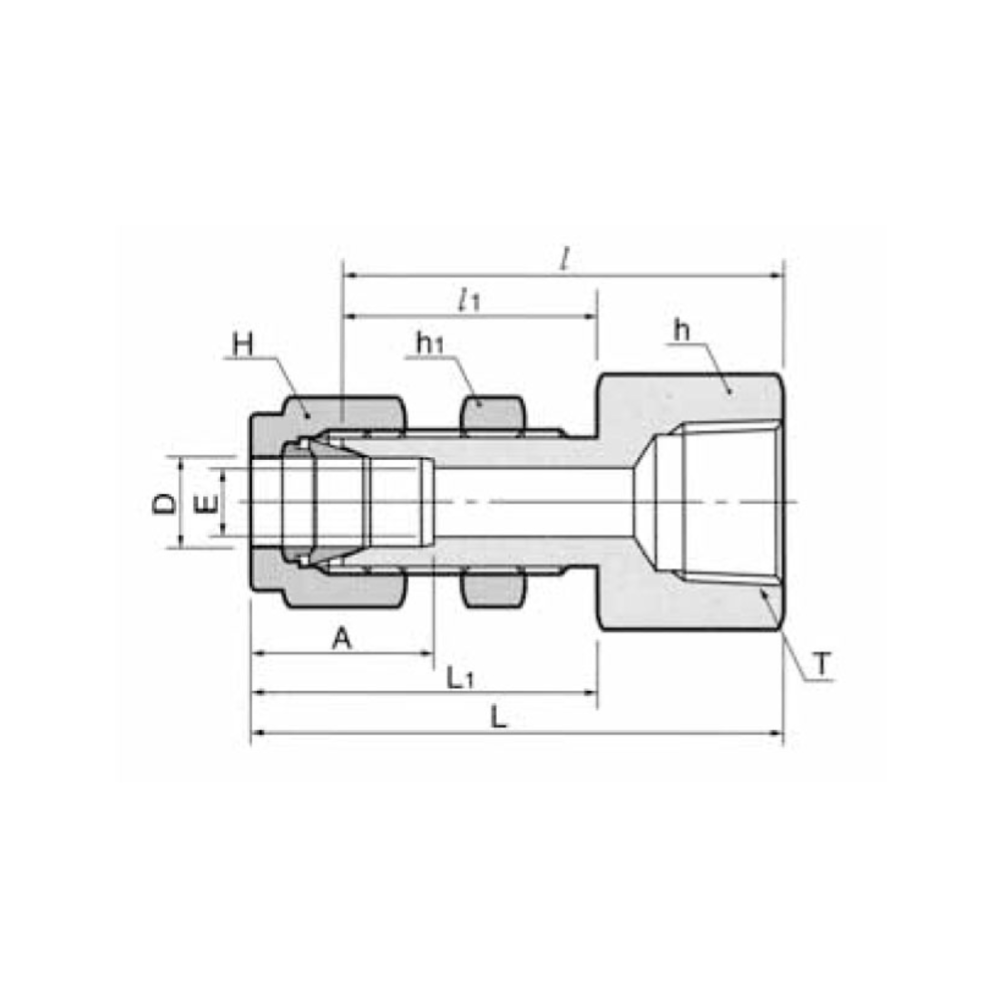

Part No
|
Tube O.D.
D (mm)
|
T
NPT
|
|
DCBF6M-2N |
6 |
1/8 |
|
DCBF6M-4N |
6 |
1/4 |
|
DCBF8M-4N |
8 |
1/4 |
|
DCBF12M-8N |
12 |
1/2 |
