Brand:
DK-LOK SS316 Relief Valves 1/2" MNPT x 1/2" FNPT
Model No.
V66-MF-8N-S
V66-MF-8N-S
Data sheet
- Valve Series
- V66 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Male NPT, Female NPT
- Size Inlet x Outlet
- 1/2" Male NPT x 1/2" Female NPT
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 50
- CE Certified
- None
- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.41

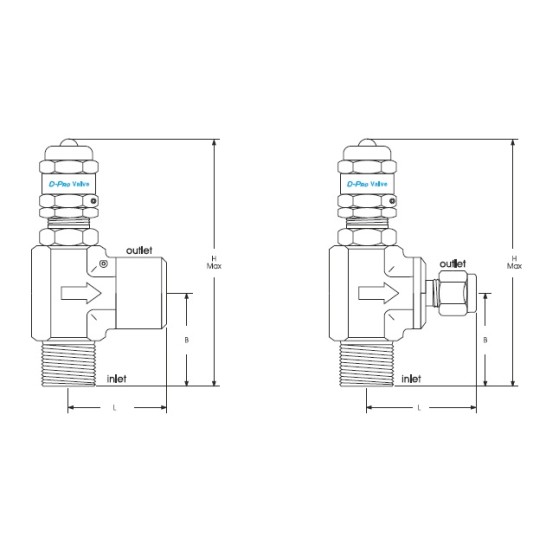

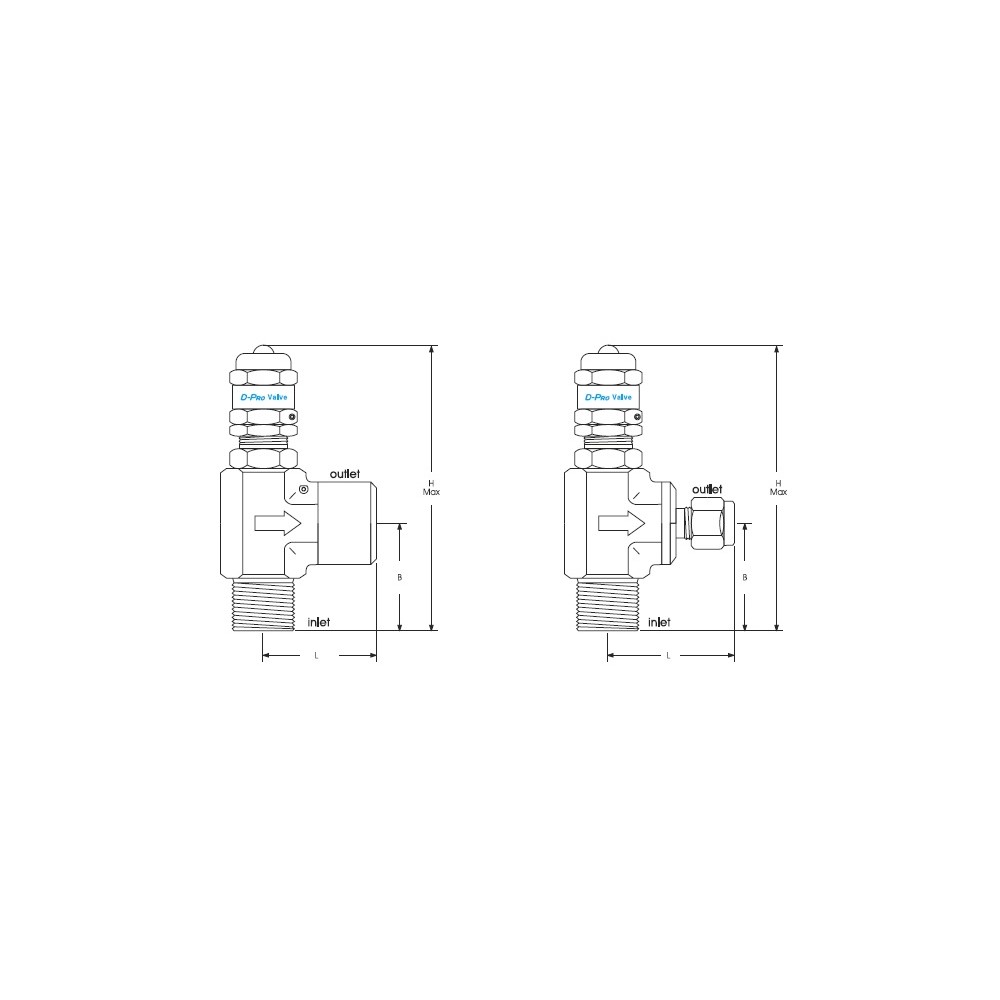

- Dimension (H)
- 98.0 mm
- Dimension (B)
- 36.0 mm
- Dimension (L)
- 38.0 mm
- Cracking Pressure (bar)
- 3.4
