Brand:

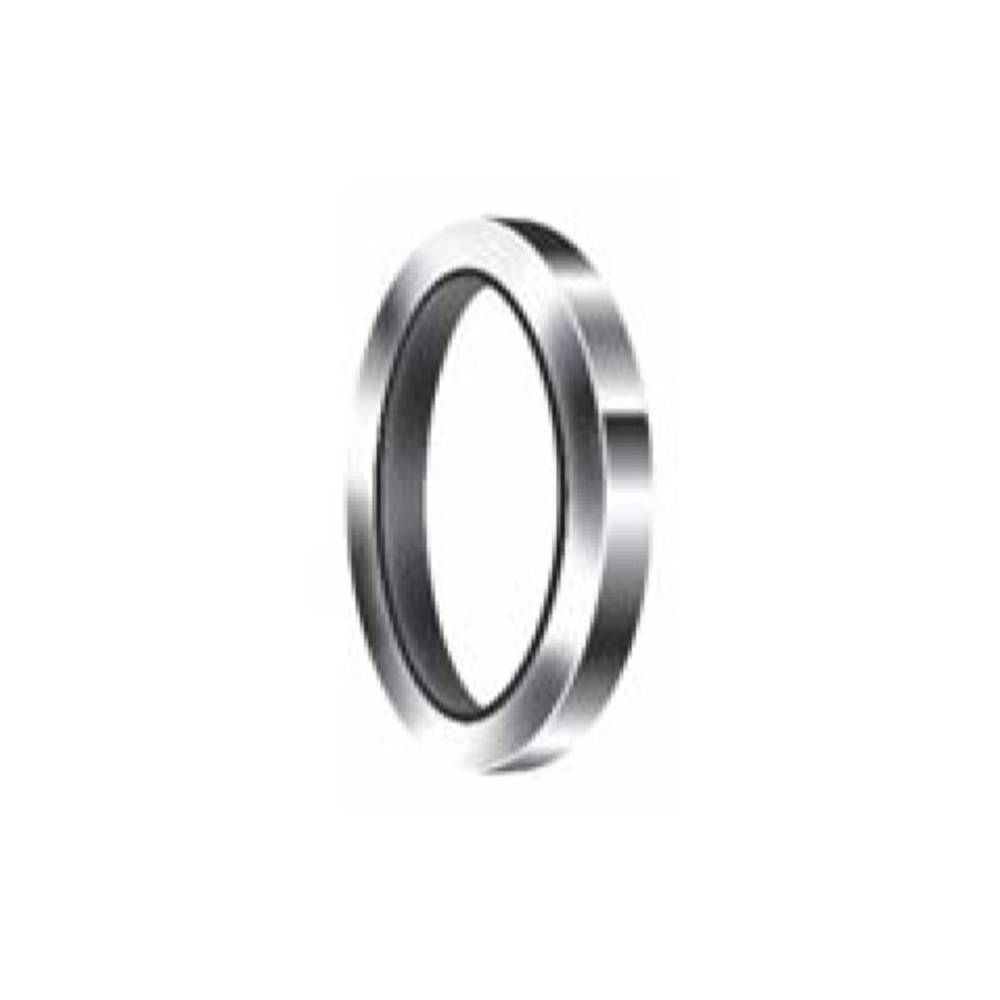

DK-LOK SS316 Viton Gasket DGV Series
Spare Parts
Model No.
DGV-X-SS
A self-centering taper is constructed at male thread end. This taper centers a bonded gasket to seal up on the face of the female threaded component.
DGB: NBR inner ring bonded to carbon steel outer ring.
DGV: FKM inner ring bonded to stainless steel outer ring.
|

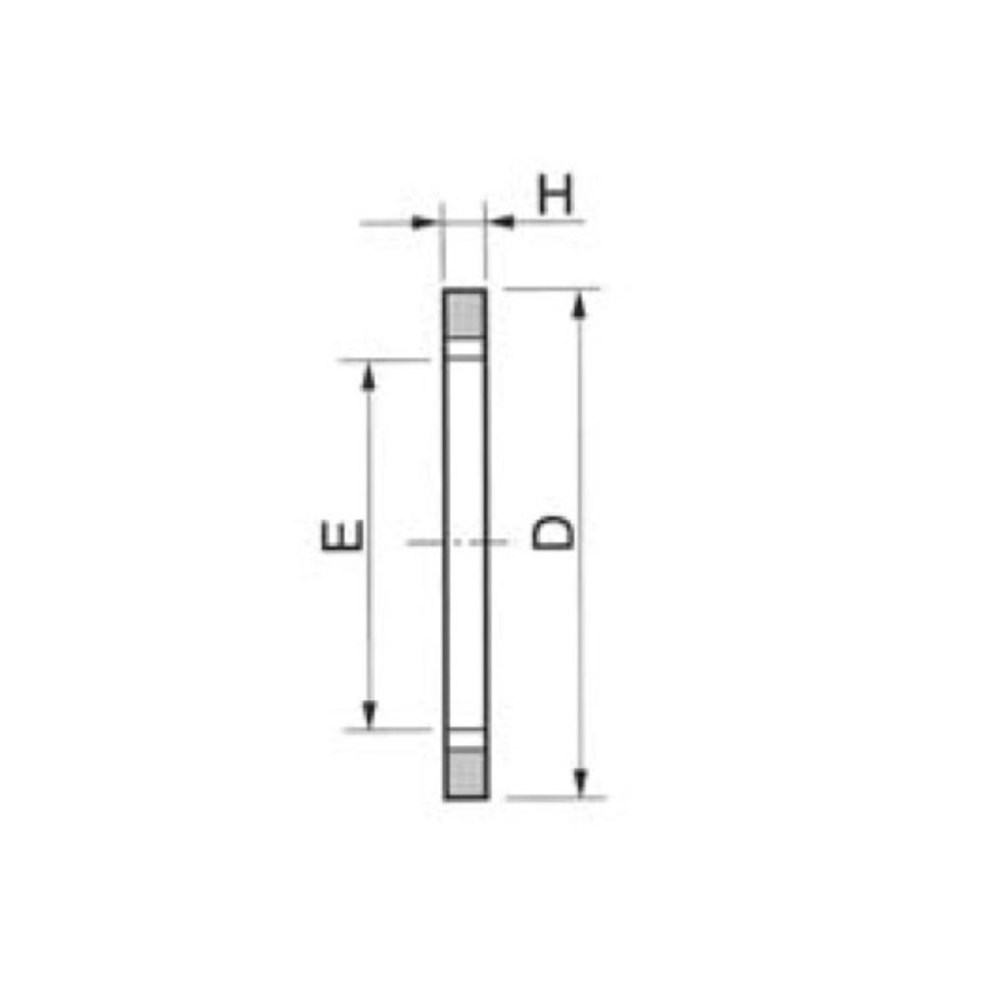

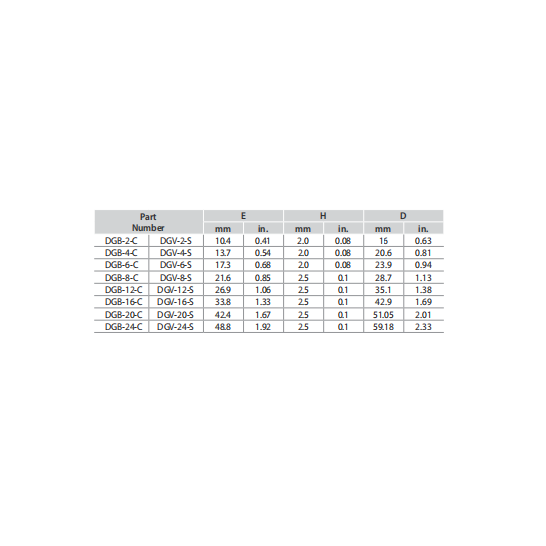

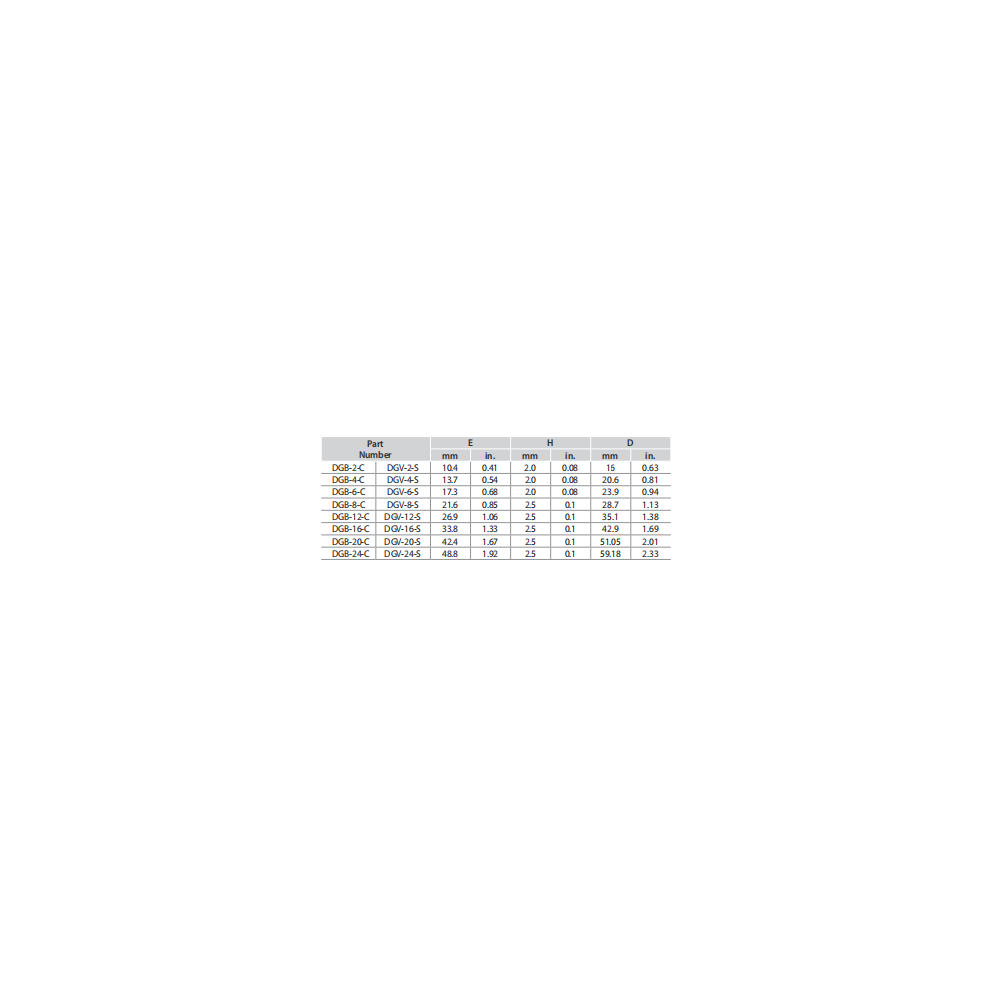

Part Number
|
H (mm)
|
D (mm)
|
|
DGV-2 |
2.0 |
16 |
|
DGV-4 |
2.0 |
20.6 |
|
DGV-6 |
2.0 |
23.9 |
|
DGV-8 |
2.5 |
28.7 |
|
DGV-12 |
2.5 |
35.1 |
|
DGV-16 |
2.5 |
42.9 |
|
DGV-20 |
2.5 |
51.05 |
|
DGV-24 |
2.5 |
59.18 |
