DK-LOK
Tube to Positionable Straight Thread
Brand:

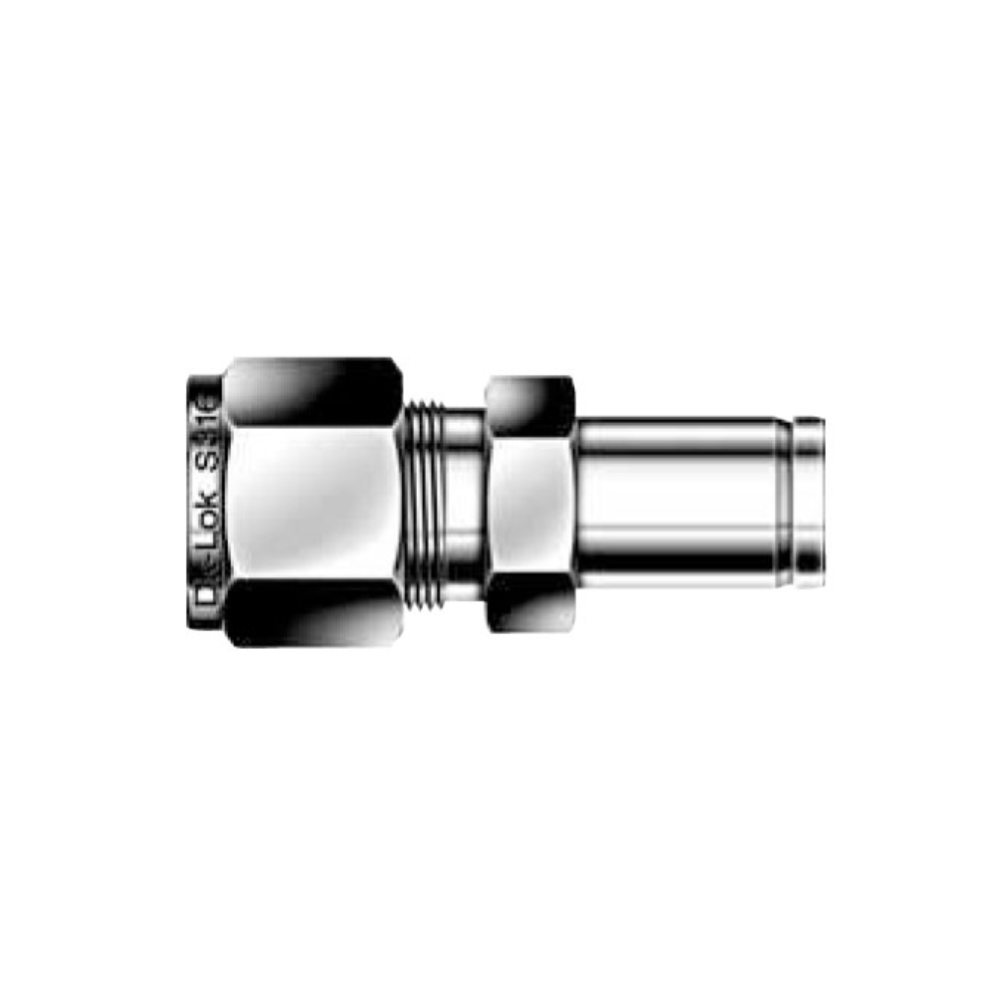

DK-LOK SS316 Reducer DR Metric Series
Tube Stub Connector
Model No.
DRXM-X-SS
DK-Lok reducer tube fittings incorporate a tube stub end that allows a designer/fabricator the ability to upsize or downsize a tube connection within a tube system in both the single and double ferrule designs.
|

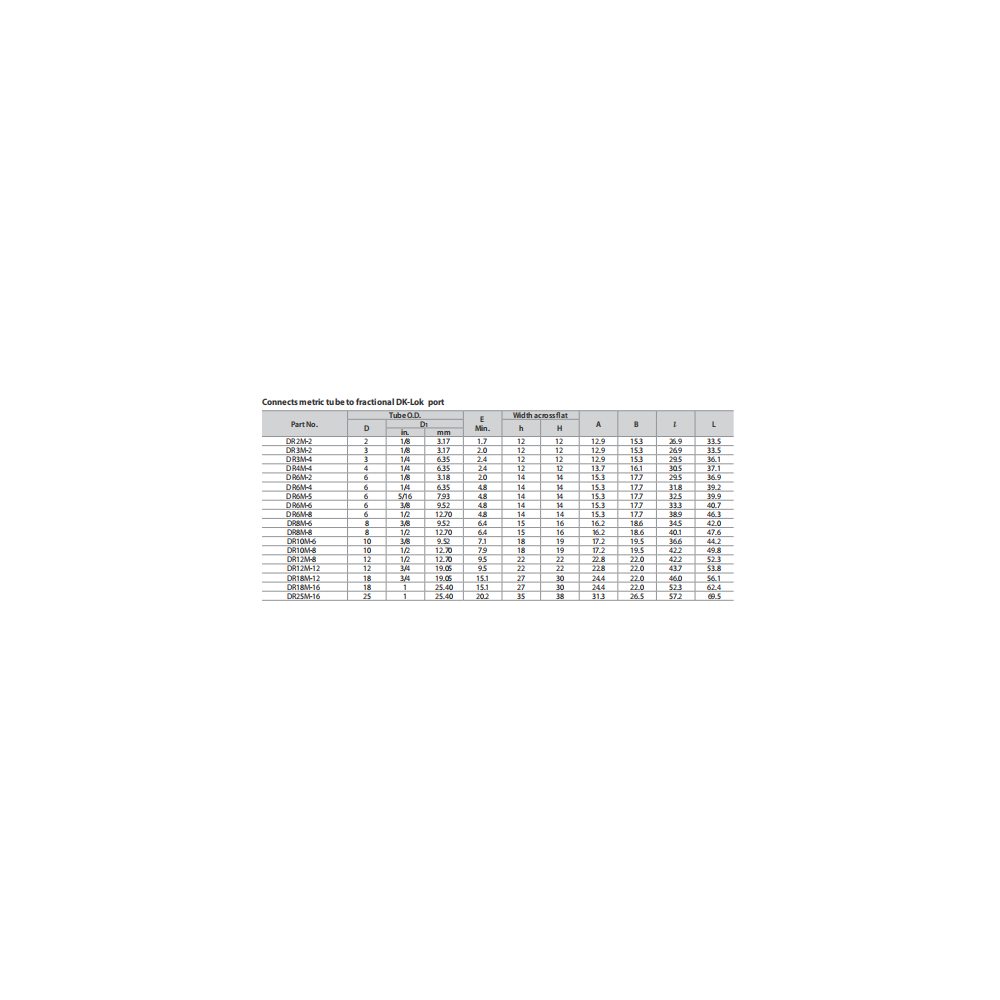

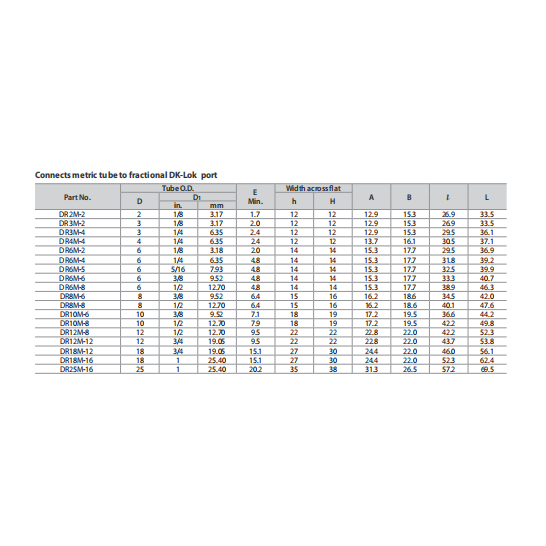

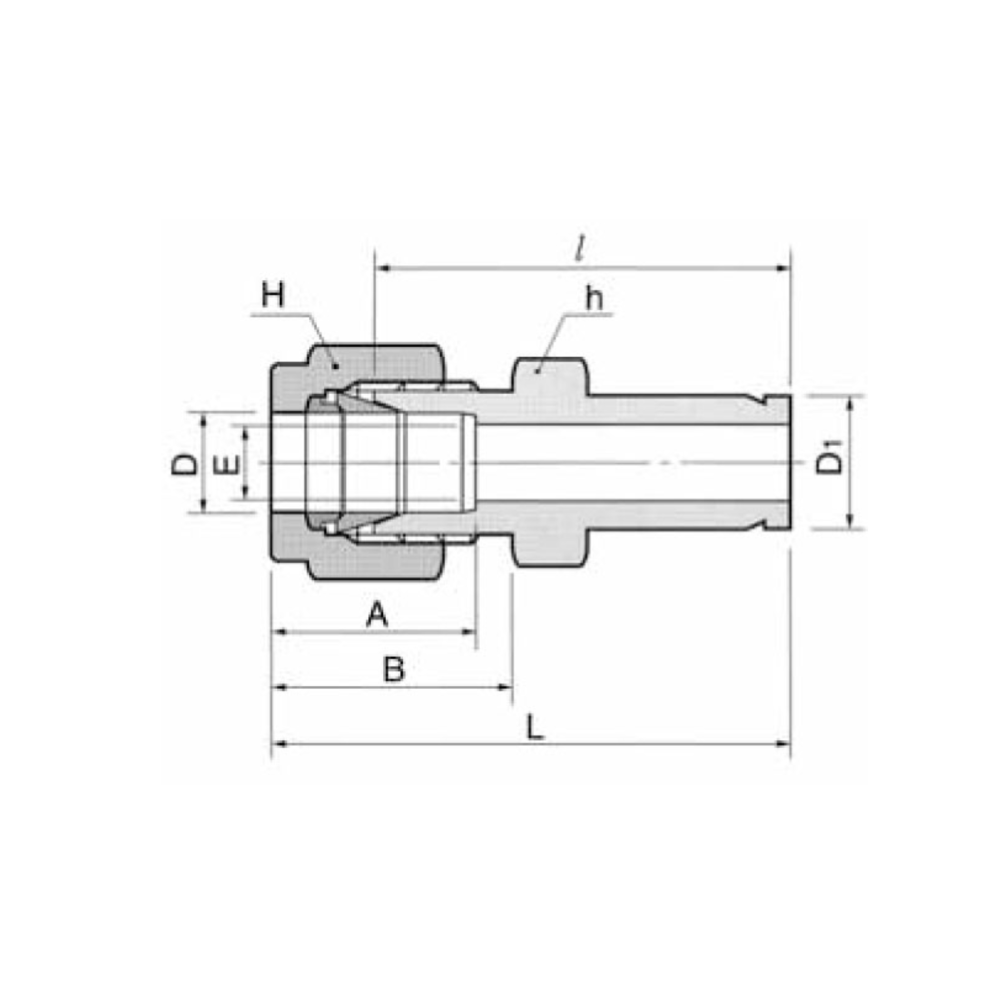

Part No
|
Tube O.D.
|
|
|
|
D (mm)
|
D1 (inches)
|
|
DR2M-2 |
2 |
1/8 |
|
DR3M-2 |
3 |
1/8 |
|
DR3M-4 |
3 |
1/4 |
|
DR4M-4 |
4 |
1/4 |
|
DR6M-2 |
6 |
1/8 |
|
DR6M-4 |
6 |
1/4 |
|
DR6M-5 |
6 |
5/16 |
|
DR6M-6 |
6 |
3/8 |
|
DR6M-8 |
6 |
1/2 |
|
DR8M-6 |
8 |
3/8 |
|
DR8M-8 |
8 |
1/2 |
|
DR10M-6 |
10 |
3/8 |
|
DR10M-8 |
10 |
1/2 |
|
DR12M-8 |
12 |
1/2 |
|
DR12M-12 |
12 |
3/4 |
|
DR18M-12 |
18 |
3/4 |
|
DR18M-16 |
18 |
1 |
|
DR25M-16 |
25 |
1 |
