DK-LOK
Fixed cracking pressure valves
Brand:

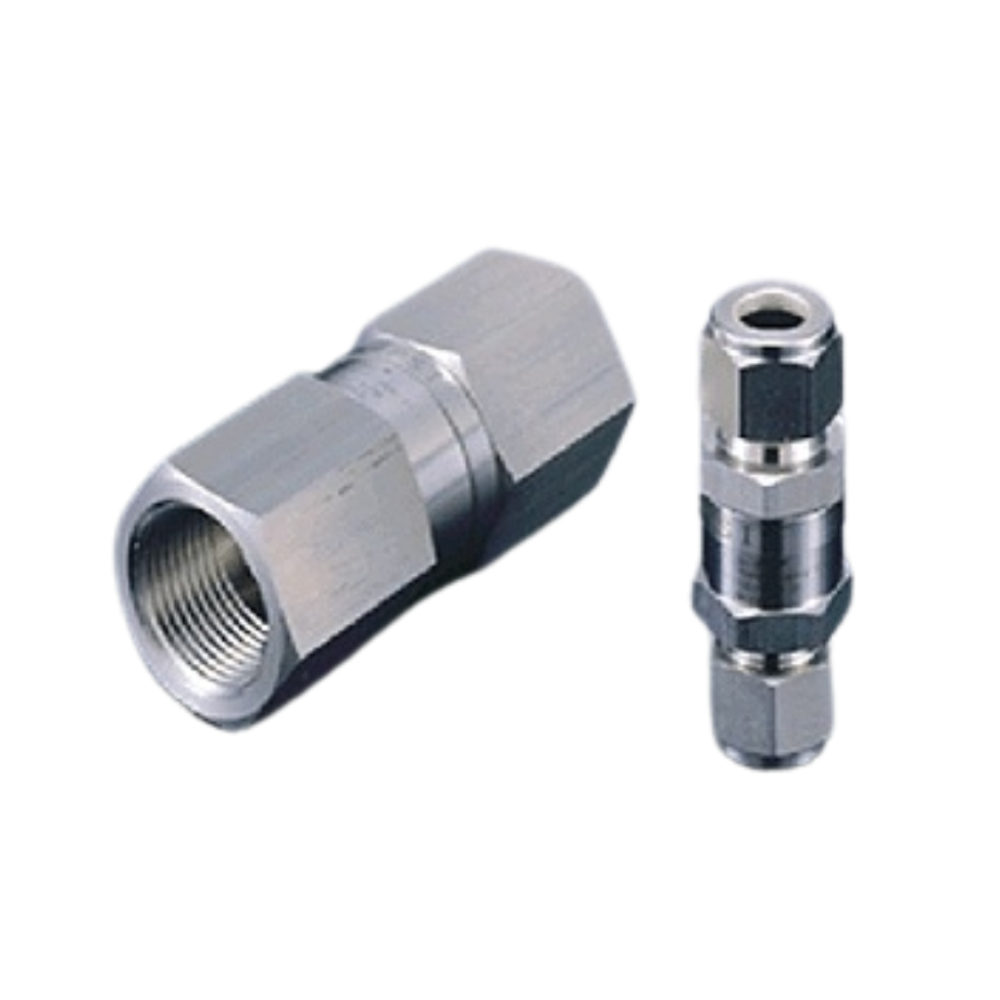

DK-LOK SS316 High Pressure Check Valve (1/4" FNPT 1PSI) VH36A Series
Compact Check Valves
Model No.
VH36A-F-4N-1-SS
Features
- Fixed and adjustable cracking pressure.
- Reliable DK-LOK Tube Fitting, NPT and ISO pipe end connections.
- Stainless and Brass material construction.
- High pressure 6,000 psig (413 bar)
- Seal blow-out proof design with the bonded seal on poppet.

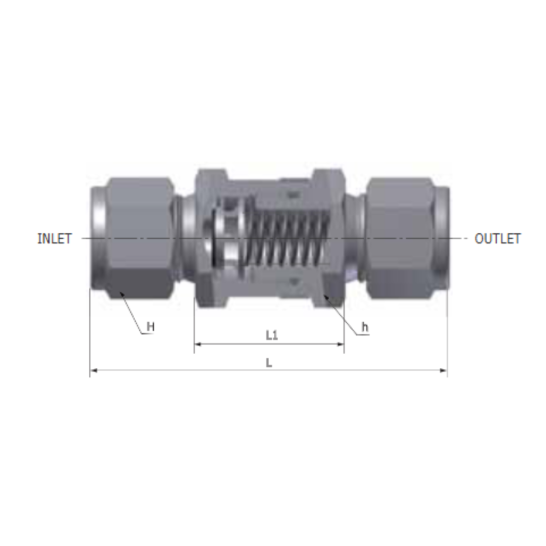

| Size | CV | L (in.) | L1(in.) | H(in.) | h(in.) | Pressure Rating psig(bar) |
| 1/4 in. Female NPT | 0.67 | 54.1(2.13) | - | - | 11/16 | 6000(413) |
