DK-LOK SS316 Adapter (Male ISO parallel to Female NPT) GADMF Series
SS316 Adapter (Male ISO parallel to Female NPT)
Model No.
GADMF-GN-SS
Green Instrument thread Fittings have been developed based on ASME B31.3 for instrumentation and process control in sizes 1/8" to 2". Green Thread and weld fittings have a wrench flat allowing standard Hex wrench assembly. This is one of the Green Pipe fitting benefits.

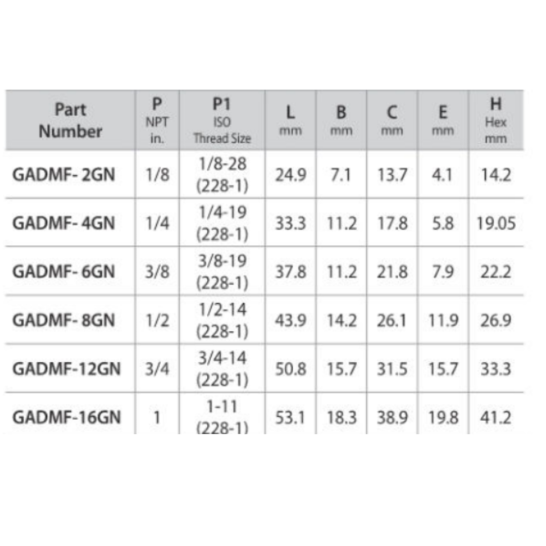

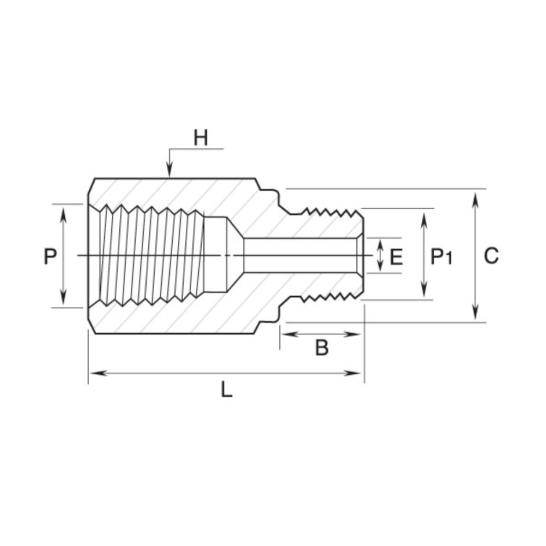

| Part number | P (NPT in.) | P1 (ISO Thread Size) | L (mm) | B(mm) | C(mm) | E(mm) | H(Hex mm) |
| GADMF-2GN-SS | 1/8 | 1/8-28(228-1) | 24.9 | 7.1 | 13.7 | 4.1 | 14.2 |
| GADMF-4GN-SS | 1/4 | 1/4-19(228-1) | 33.3 | 11.2 | 17.8 | 5.8 | 19.05 |
| GADMF-6GN-SS | 3/8 | 3/8-19(228-1) | 37.8 | 11.2 | 21.8 | 7.9 | 22.2 |
| GADMF-8GN-SS | 1/2 | 1/2-14(228-1) | 43.9 | 14.2 | 26.1 | 11.9 | 26.9 |
| GADMF-12GN-SS | 3/4 | 3/4-14(228-1) | 50.8 | 15.7 | 31.5 | 15.7 | 33.3 |
| GADMF-16GN-SS | 1 | 1-11(228-1) | 53.1 | 18.3 | 38.9 | 19.8 | 41.2 |
- Wrench flat body design allowing standard Hex. wrench assembly.
- Attractive finishes to suit precision equipment.
- Much less-weight design compared to Class 3000 pipe fittings.
