DK-LOK
Fixed cracking pressure valves
Brand:

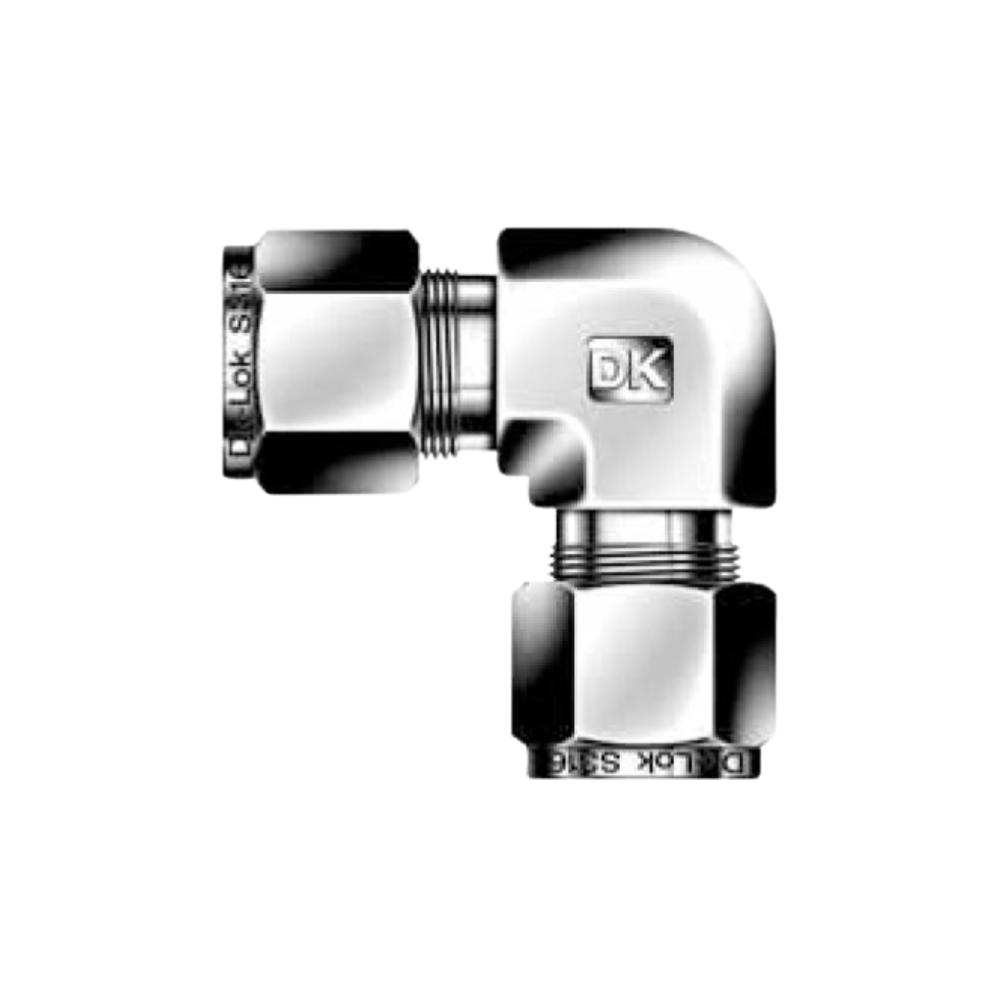

DK-LOK SS316 Union Elbow DL Metric Series
Tube to Tube Union
Model No.
DL-M-SS
DK-Lok union elbows are designed to connect two individual lines of the same outside diameter size together in either fractional or metric in both single ferrule and double ferrule designs.
|

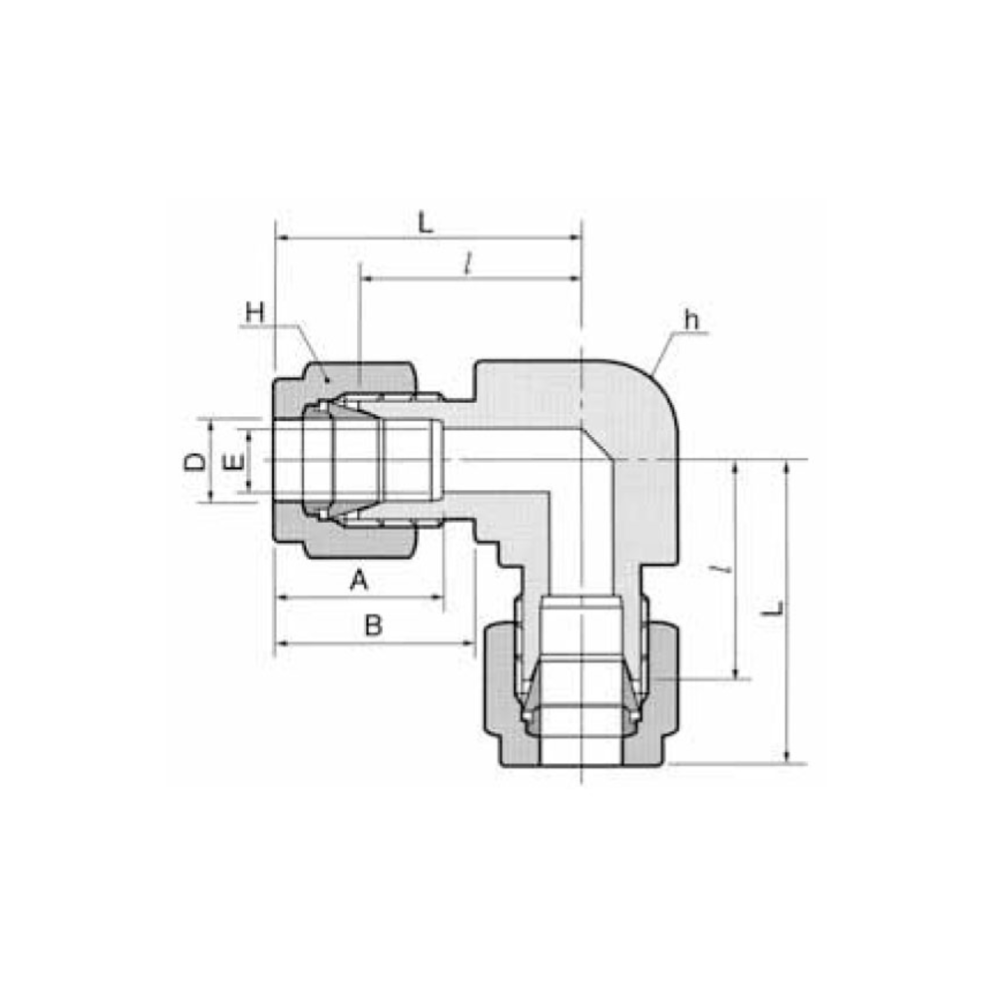

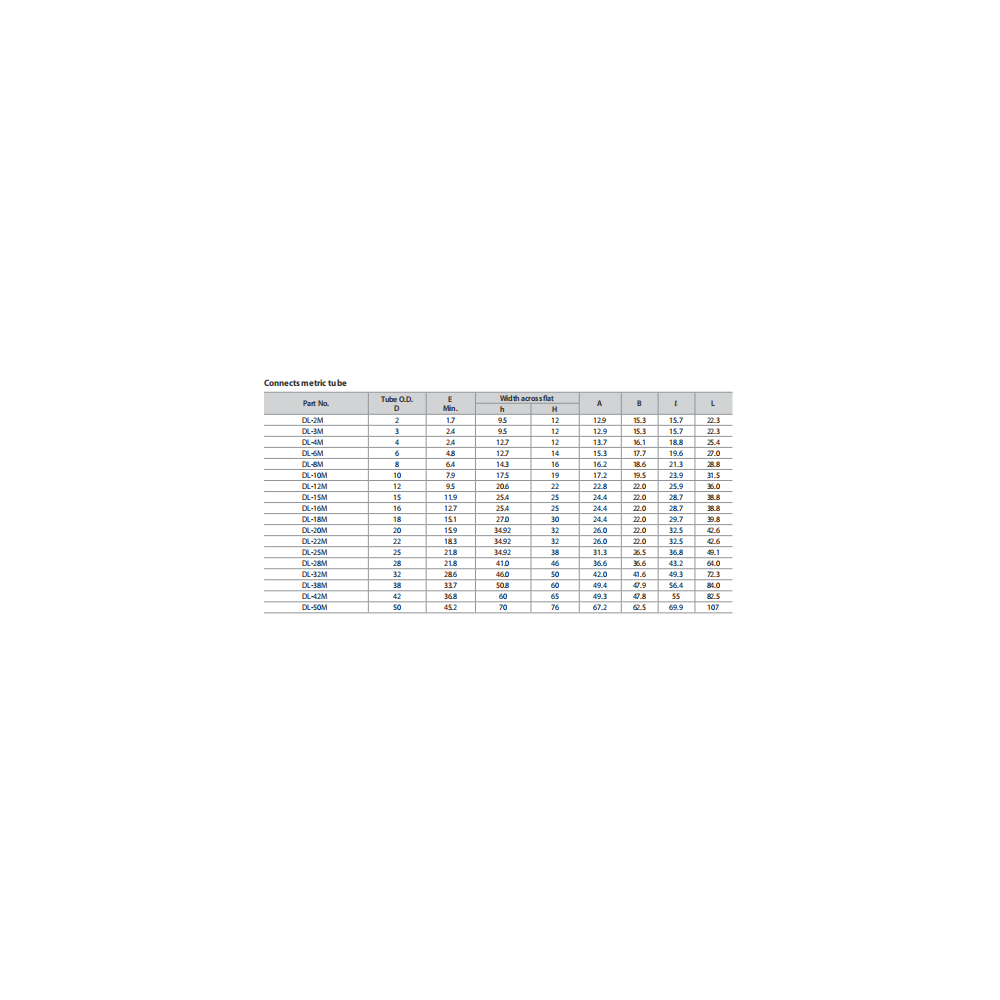

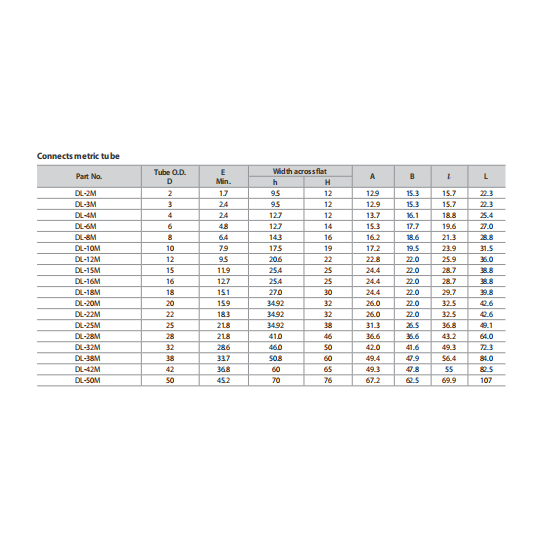

Part No |
Tube O.D. D (mm) |
|
DL-2M |
2 |
|
DL-3M |
3 |
|
DL-4M |
4 |
|
DL-6M |
6 |
|
DL-8M |
8 |
|
DL-10M |
10 |
|
DL-12M |
12 |
|
DL-15M |
15 |
|
DL-16M |
16 |
|
DL-18M |
18 |
|
DL-20M |
20 |
|
DL-22M |
22 |
|
DL-25M |
25 |
|
DL-28M |
28 |
|
DL-32M |
32 |
|
DL-38M |
38 |
|
DL-42M |
42 |
|
DL-50M |
50 |
