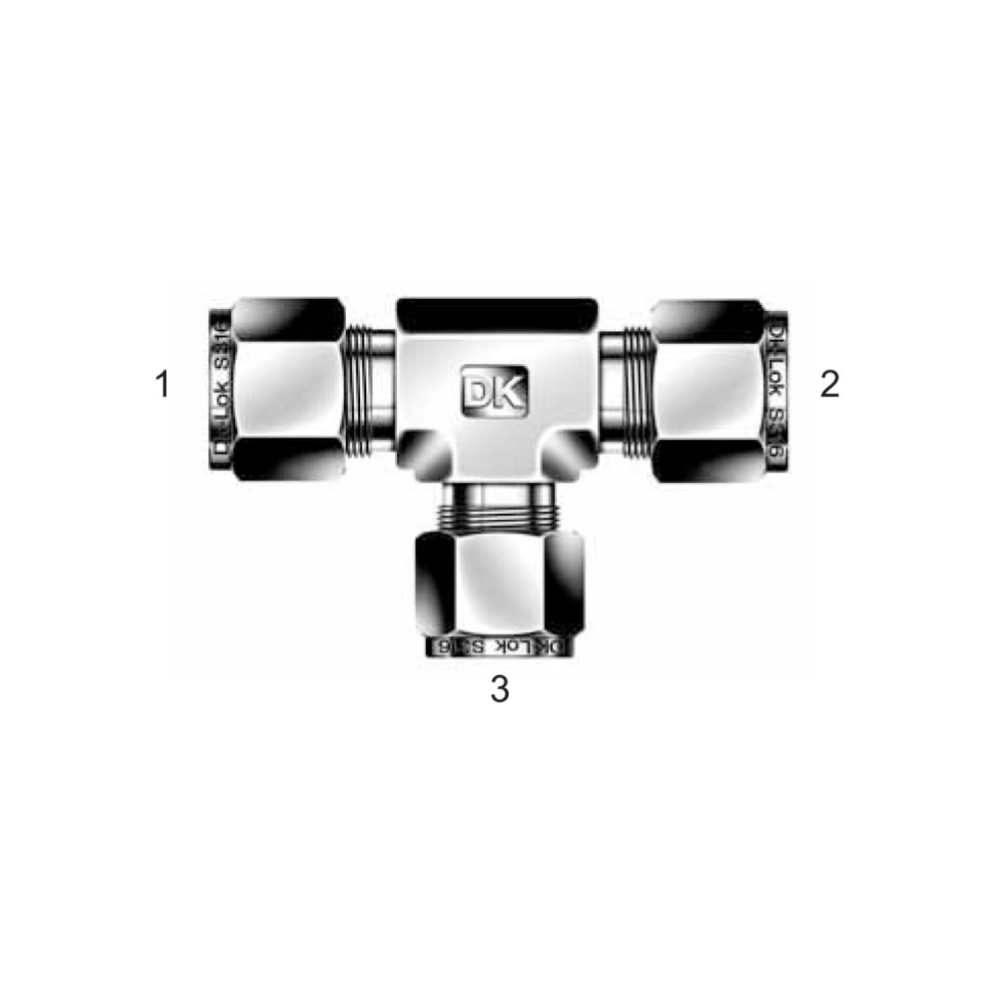

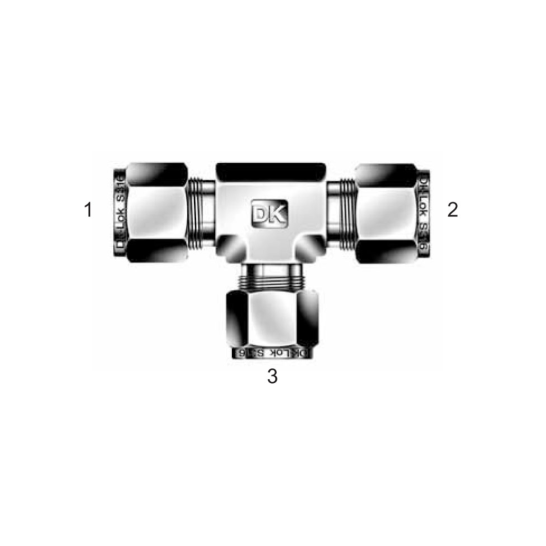

DK-LOK BRASS Reducing Union Tee DTR Series

Part No

Port 1

D (in.)

Port 2

D₁ (in.)

Port 3

D₂ (in.)

DTR4-4-2

1/4

1/4

1/8

DTR4-4-6

1/4

1/4

3/8

DTR4-8-8

1/4

1/2

1/2

DTR6-4-6

3/8

1/4

3/8

DTR6-6-4

3/8

3/8

1/4

DTR6-6-8

3/8

3/8

1/2

DTR8-4-6

1/2

1/4

3/8

DTR8-4-8

1/2

1/4

1/2

DTR8-6-6

1/2

3/8

3/8

DTR8-8-4

1/2

1/2

1/4

DTR8-8-6

1/2

1/2

3/8

DTR10-10-6

5/8

5/8

3/8

DTR12-8-12

3/4

1/2

3/4

DTR12-12-4

3/4

3/4

1/4

DTR12-12-6

3/4

3/4

3/8

DTR12-12-8

3/4

3/4

1/2

DTR12-12-16

3/4

3/4

1

DTR12-12-20

3/4

3/4

1-1/4

DTR14-14-8

7/8

7/8

1/2

DTR16-12-12

1

3/4

3/4

DTR16-16-4

1

1

1/4

DTR16-16-6

1

1

3/8

DTR16-16-8

1

1

1/2

DTR16-16-12

1

1

3/4

DTR20-12-12

11/4

3/4

3/4

DTR20-20-12

11/4

11/4

3/4

DTR24-20-20

11/2

11/4

11/4

DTR24-24-8

11/2

11/2

1/2

DTR24-24-12

11/2

11/2

3/4

DTR24-24-16

11/2

11/2

1
