Brand:

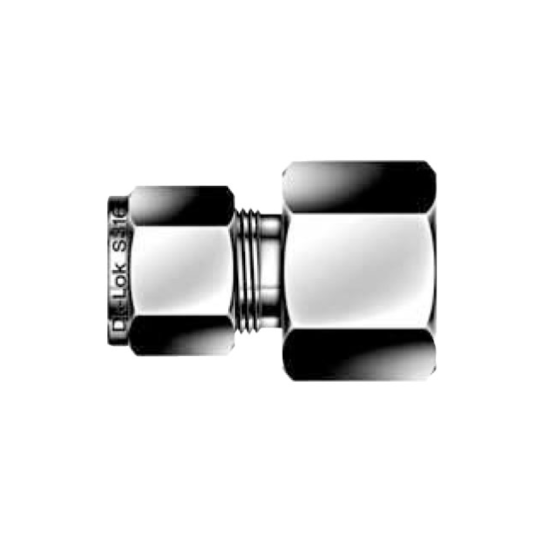

DK-LOK SS316 Female Connector DCF-R Series
Tube to Female Pipe
Model No.
DCFX-XR-SS
DK-Lok DCF-R female connectors are designed to connect individual fractional or metric tube lines to a male British Standard Pipe Tapered Thread (BSPT) in both single ferrule and double ferrule designs.
|

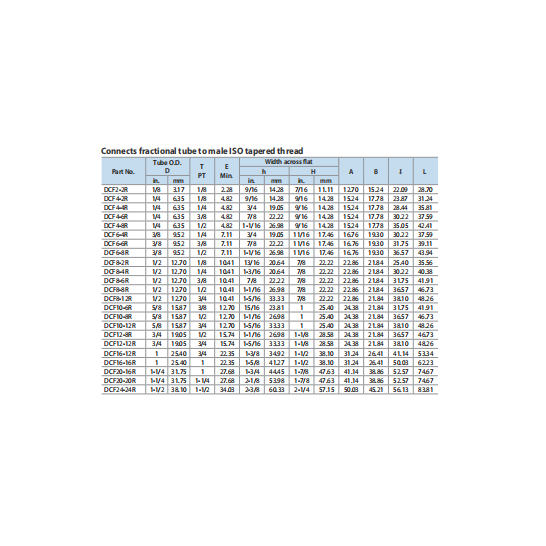

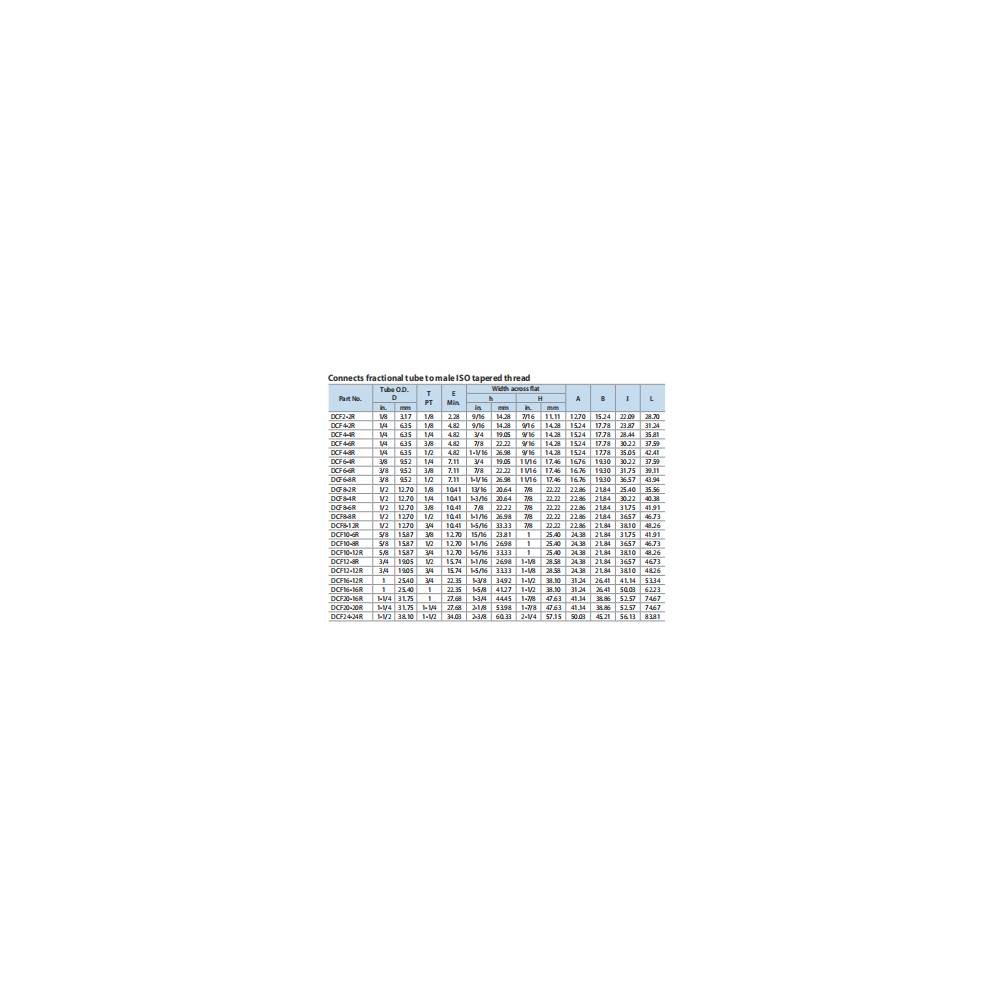

Part No
|
Tube O.D.
D (inches)
|
T
PT
|
|
DCF2-2R |
1/8 |
1/8 |
|
DCF4-2R |
1/4 |
1/8 |
|
DCF4-4R |
1/4 |
1/4 |
|
DCF4-6R |
1/4 |
3/8 |
|
DCF4-8R |
1/4 |
1/2 |
|
DCF6-4R |
3/8 |
1/4 |
|
DCF6-6R |
3/8 |
3/8 |
|
DCF6-8R |
3/8 |
1/2 |
|
DCF8-2R |
1/2 |
1/8 |
|
DCF8-4R |
1/2 |
1/4 |
|
DCF8-6R |
1/2 |
3/8 |
|
DCF8-8R |
1/2 |
1/2 |
|
DCF8-12R |
1/2 |
3/4 |
|
DCF10-6R |
5/8 |
3/8 |
|
DCF10-8R |
5/8 |
1/2 |
|
DCF10-12R |
5/8 |
3/4 |
|
DCF12-8R |
3/4 |
1/2 |
|
DCF12-12R |
3/4 |
3/4 |
|
DCF16-12R |
1 |
3/4 |
|
DCF16-16R |
1 |
1 |
|
DCF20-16R |
1-1/4 |
1 |
|
DCF20-20R |
1-1/4 |
1-1/4 |
|
DCF24-24R |
1-1/2 |
1-1/2 |
