Brand:

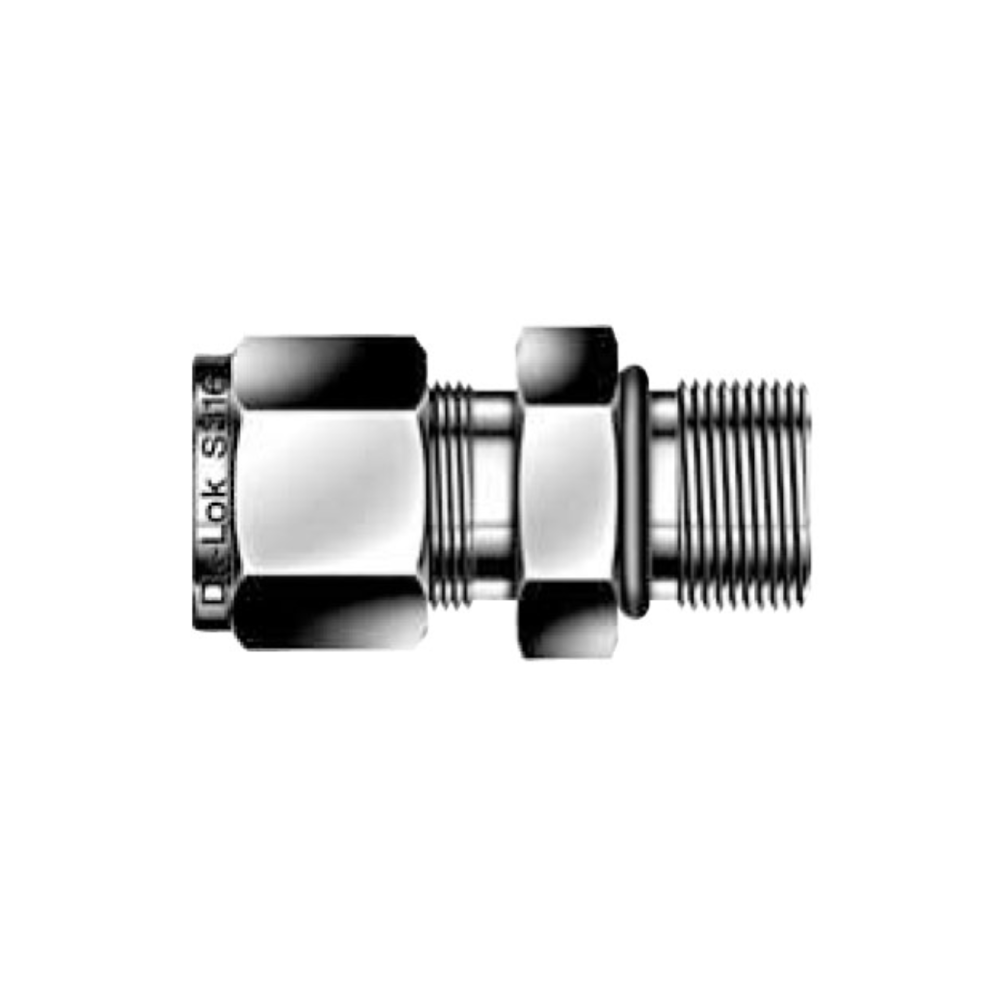

DK-LOK SS316 Non-Positionable SAE Male Connector DMCS-U Metric Series
Tube to none-Positionable O-Seal
Model No.
DMCSXM-XU-SS

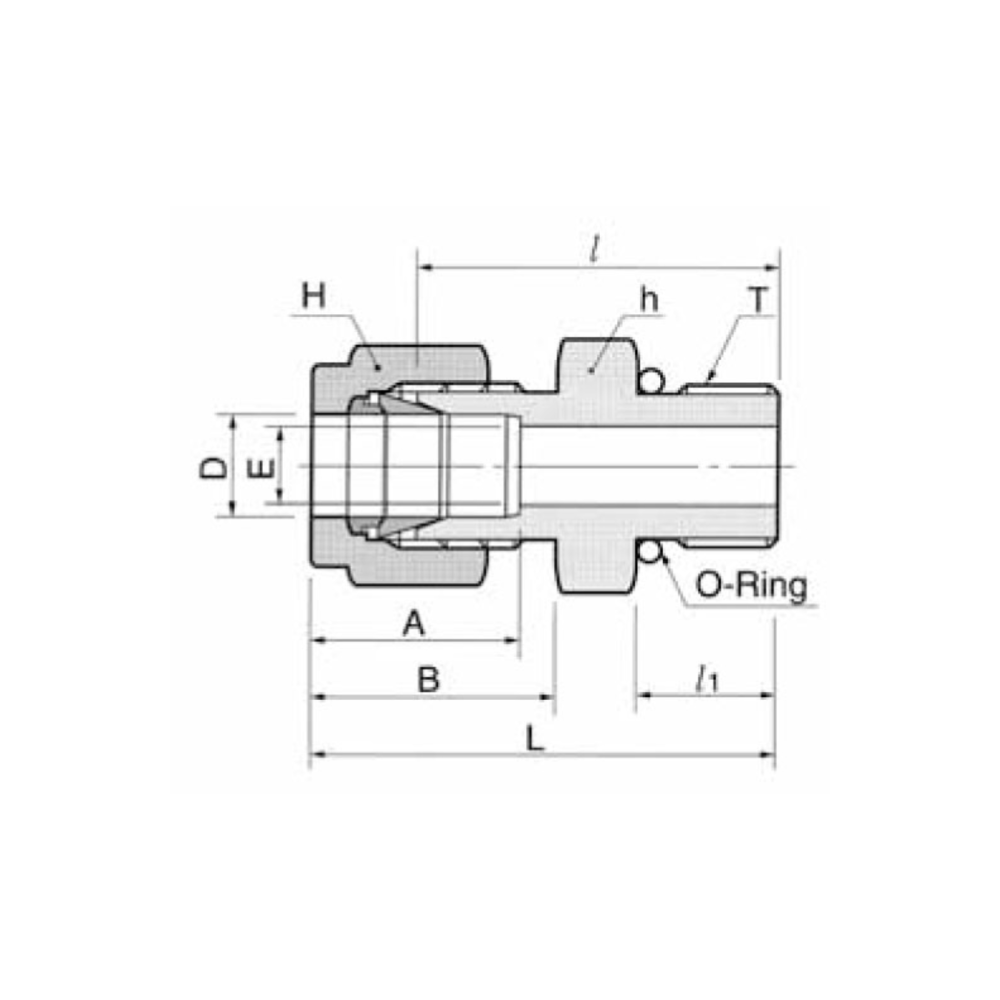

Tube to non-positionable connectors are designed to connect individual tube lines to female threaded ports requiring an elastomer seal at the face of the female threaded port; in both single ferrule and double ferrule designs.
|

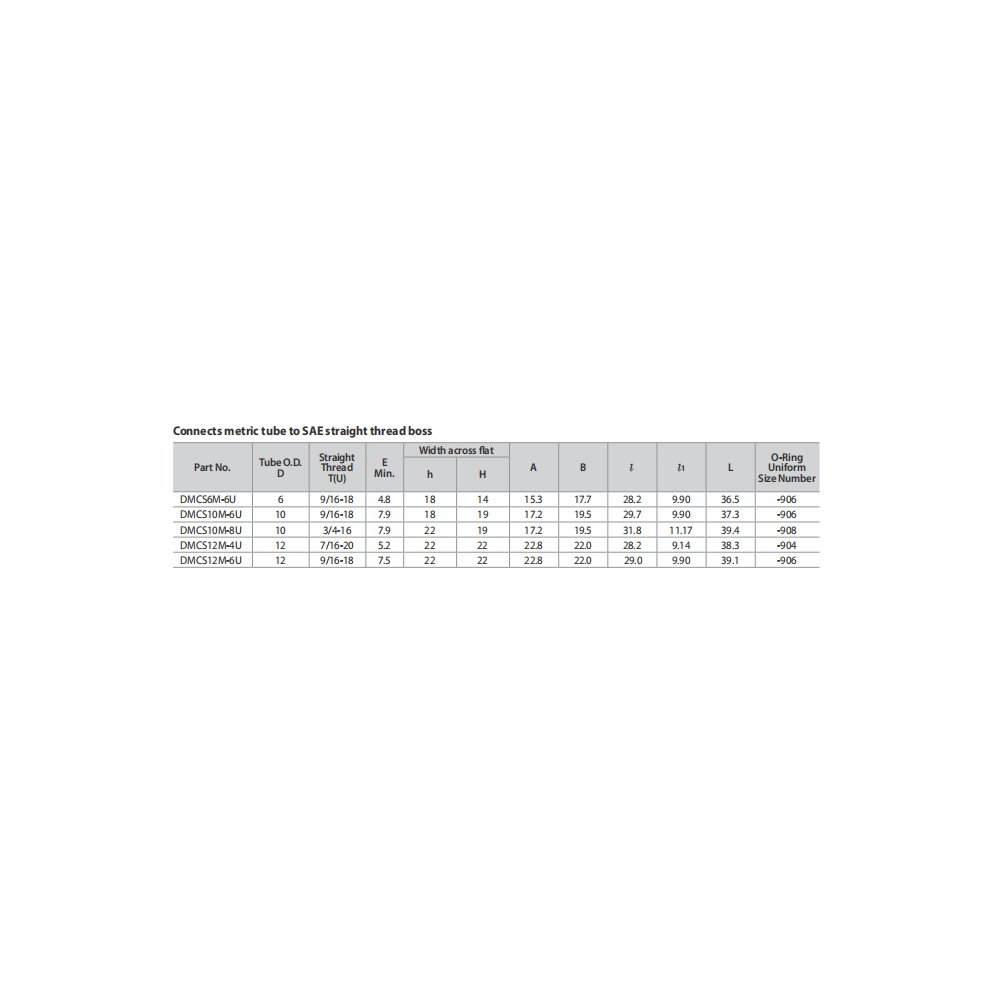

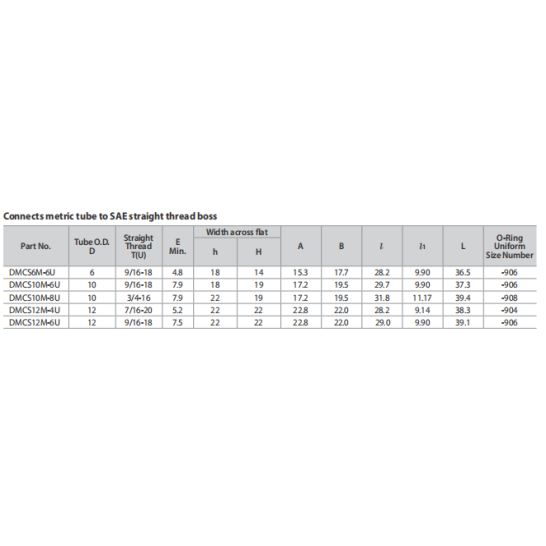

Part No
|
Tube O.D.
D (mm)
|
Straight Thread
T (U)
|
|
DMCS6M-6U |
6 |
9/16-18 |
|
DMCS10M-6U |
10 |
9/16-18 |
|
DMCS10M-8U |
10 |
3/4-16 |
|
DMCS12M-4U |
12 |
7/16-20 |
|
DMCS12M-6U |
12 |
9/16-18 |
