Brand:
DK-LOK

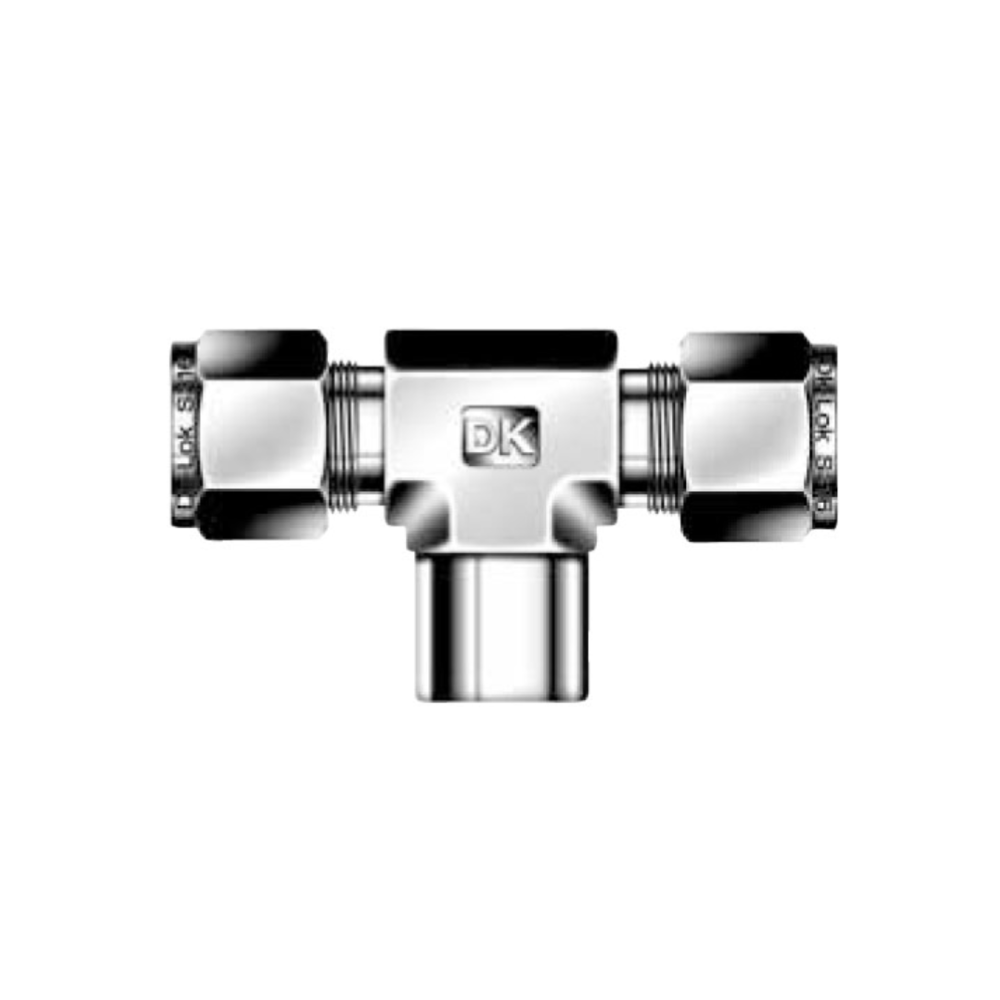

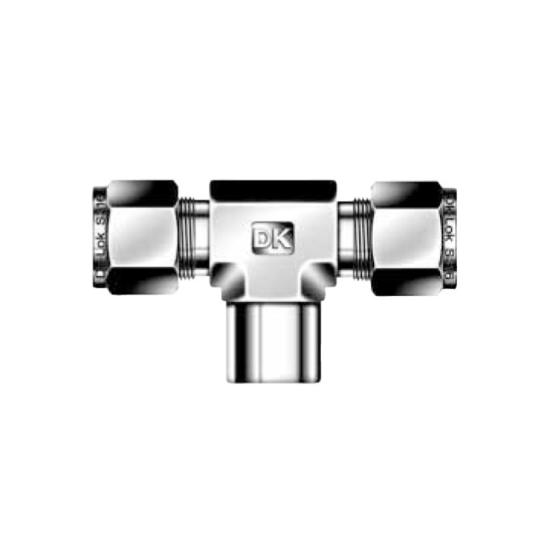

DK-LOK SS316 Female Branch Tee DTBF-N Metric Series

Tube to Female Pipe

Read moreShow less
Model No.
DTBFXM-XN-SS
Get a quote
Like0
Share
Description
DK-Lok DTFF-N female branch tees are designed to connect two fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.

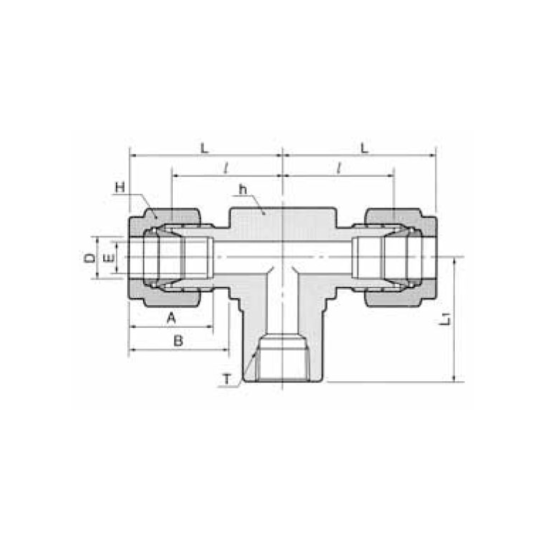

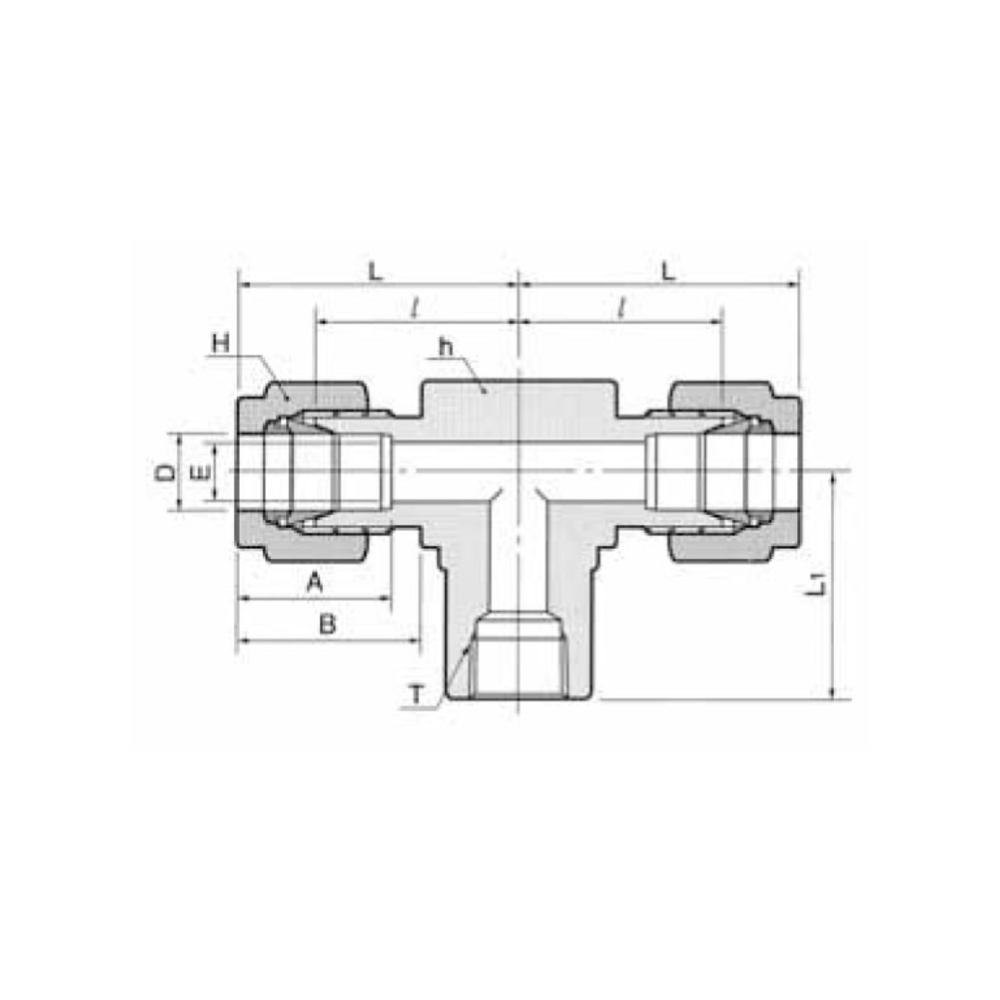

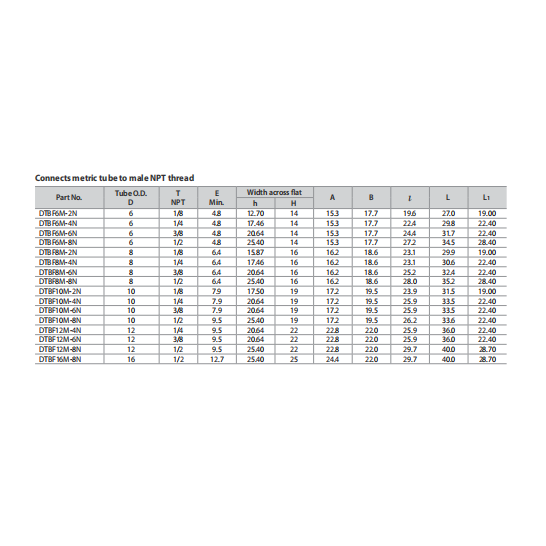

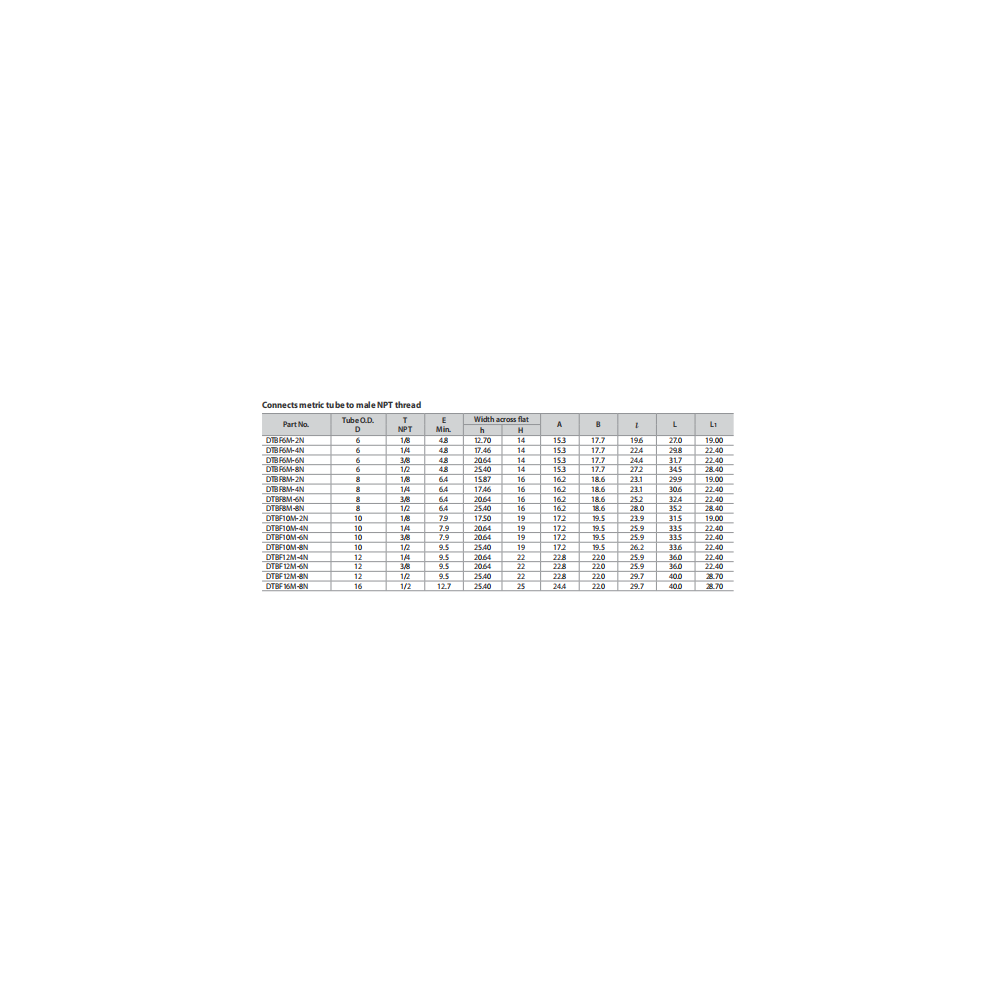

Part No

Tube O.D.

D (mm)

T

NPT

DTBF6M-2N

6

1/8

DTBF6M-4N

6

1/4

DTBF6M-6N

6

3/8

DTBF6M-8N

6

1/2

DTBF8M-2N

8

1/8

DTBF8M-4N

8

1/4

DTBF8M-6N

8

3/8

DTBF8M-8N

8

1/2

DTBF10M-2N

10

1/8

DTBF10M-4N

10

1/4

DTBF10M-6N

10

3/8

DTBF10M-8N

10

1/2

DTBF12M-4N

12

1/4

DTBF12M-6N

12

3/8

DTBF12M-8N

12

1/2

DTBF16M-8N

16

1/2
Read moreShow less
Specifications
DTBFXM-XN-SS

Data sheet

Z Series Ferrule
No
Moly Coating
None
