DK-LOK
One-piece adjustable check valves
Brand:

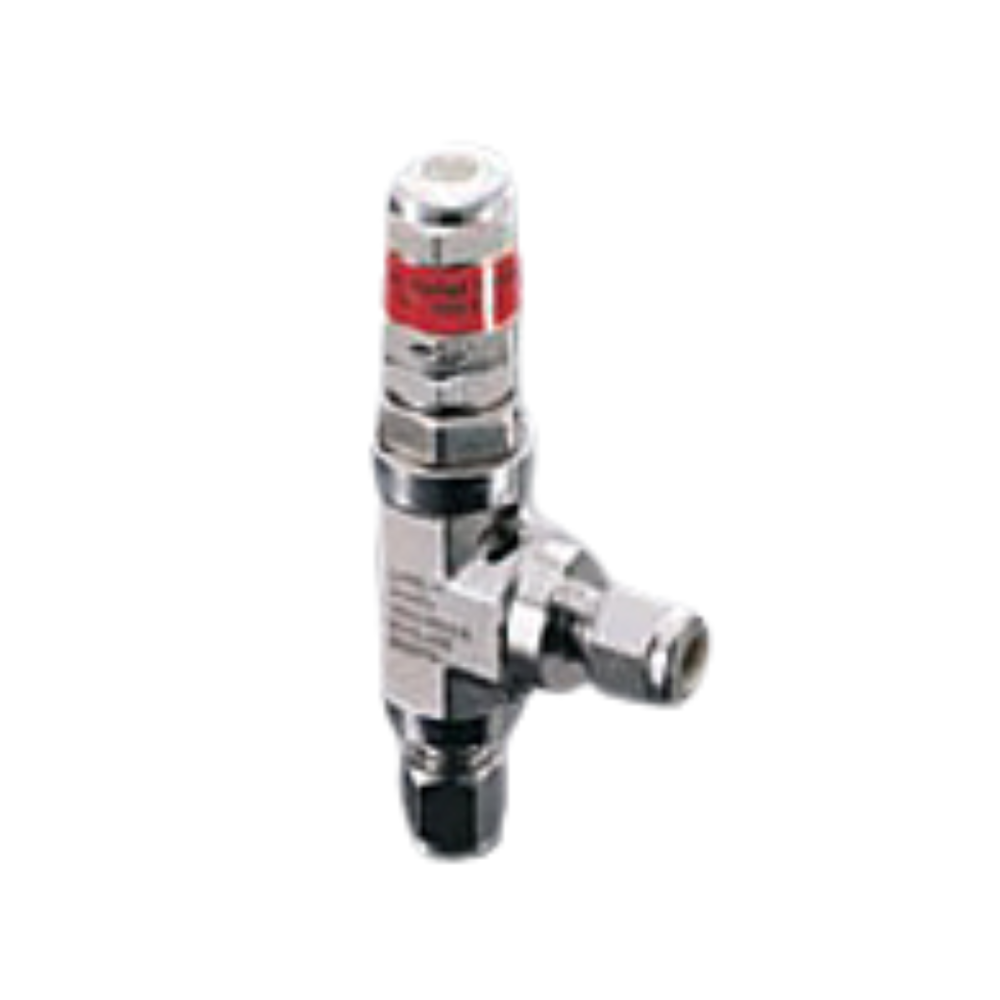

DK-LOK SS316 Relief Valves 1/4" x 1/4" Tube
Model No.
V66-D-4T-S
V66-D-4T-S
Data sheet
- Valve Series
- V66 Series
- Orifice Series
- 4.8 mm Orifice
- End Connection
- Dk-Lok
- Size Inlet x Outlet
- 1/4" Dk-Lok x 1/4" Dk-Lok
- Seal Material
- Viton
- Spring Specify
- Factory Pressure Set Valve (psi)
- Cracking Pressure (psi)
- 50
- CE Certified
- None

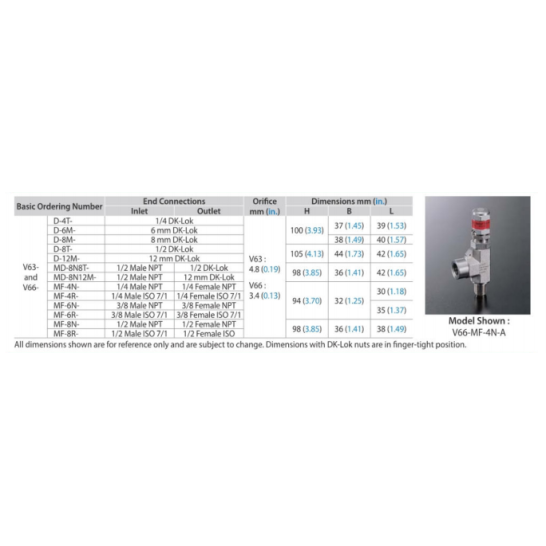

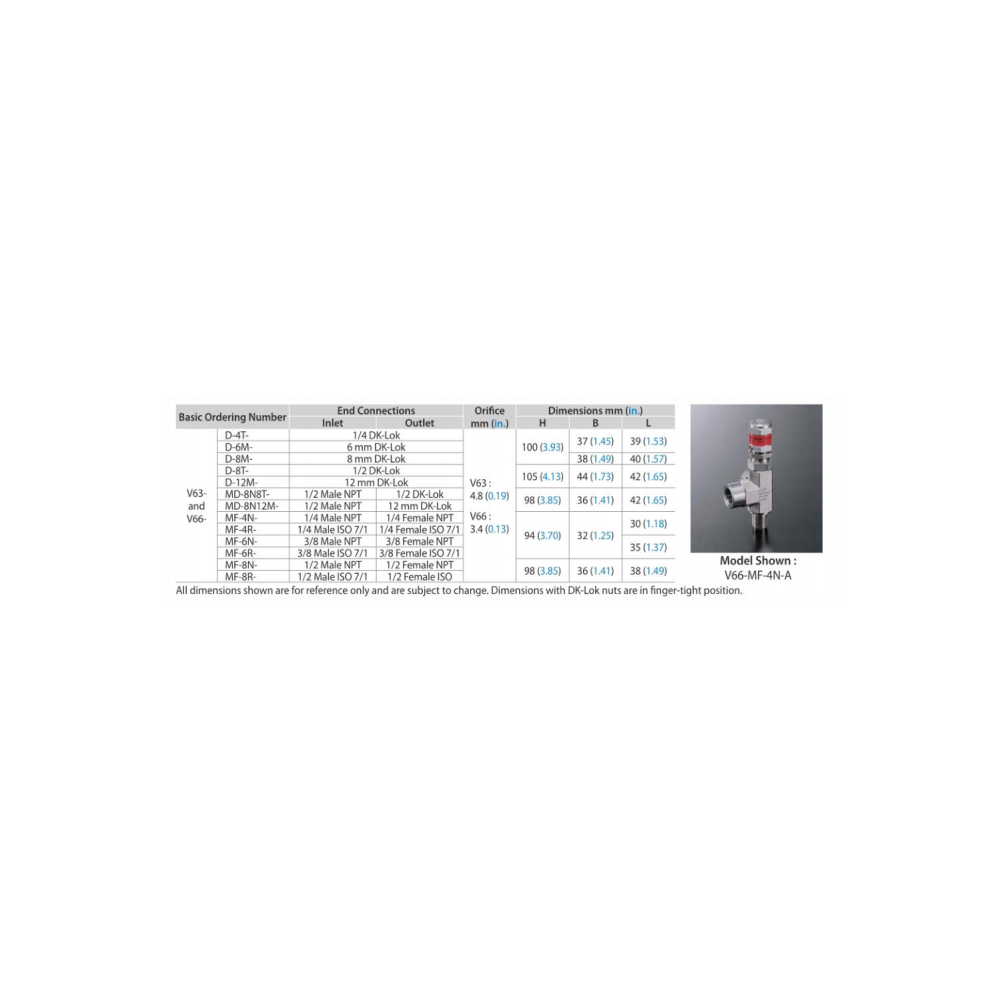

- Dimensions (Orifice)
- 4.8 mm
- Dimension (Cv)
- 0.41

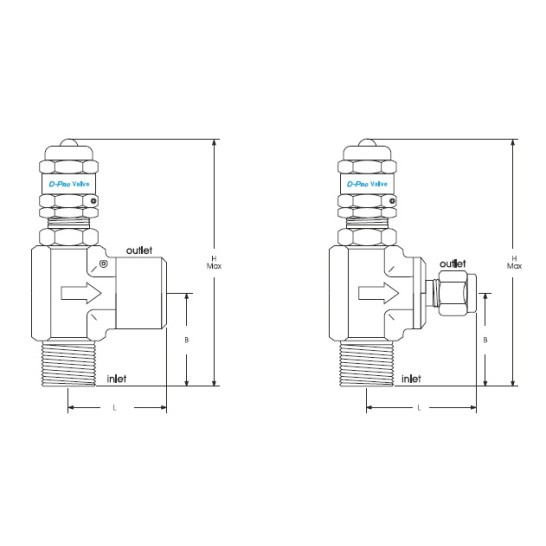

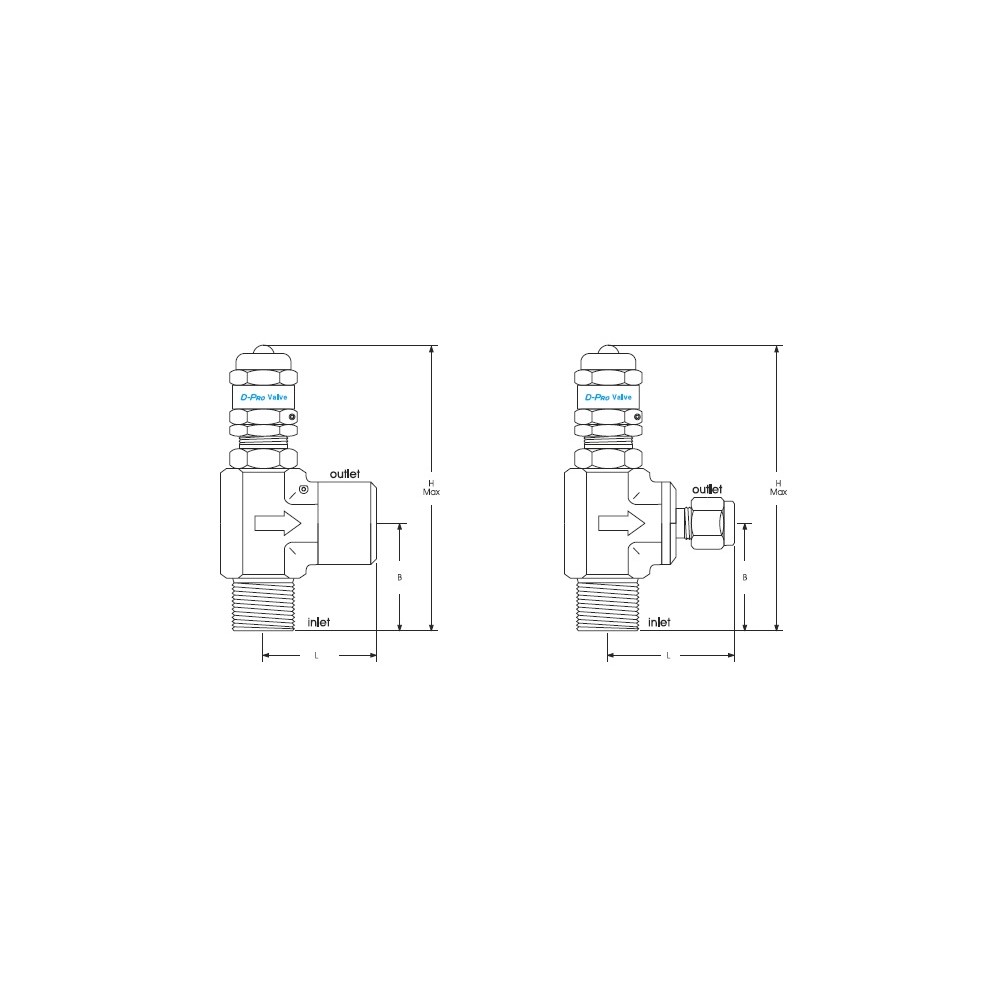

- Dimension (H)
- 100.0 mm
- Dimension (B)
- 37.0 mm
- Dimension (L)
- 39.0 mm
- Cracking Pressure (bar)
- 204.8
