Brand:

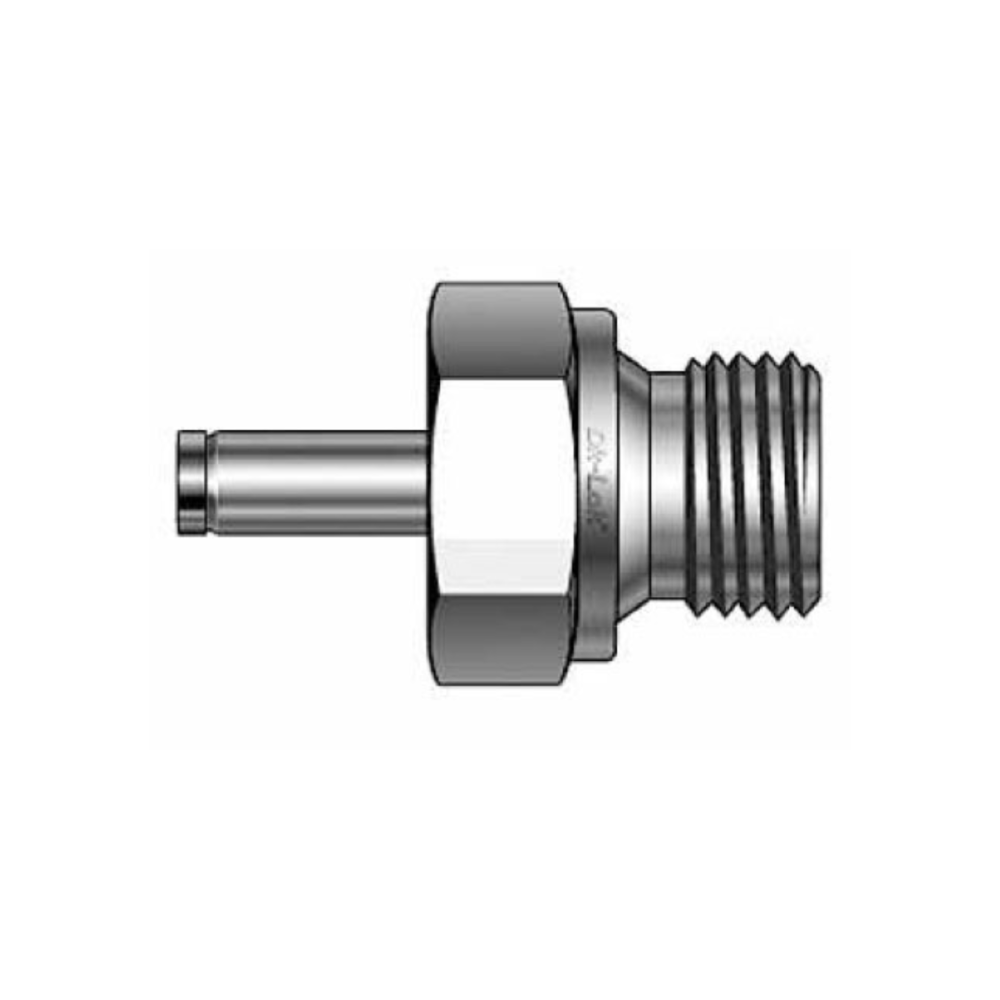

DK-LOK BRASS Male Adapter DAM-G Series
Tube Stub Connector
Model No.
DAMX-XG-B
DK-Lok DAM-G adapter tube fittings provide a connection to a female British Standard Pipe Parallel Thread port leaving a tube stub connection typically to address alignment issues.
|

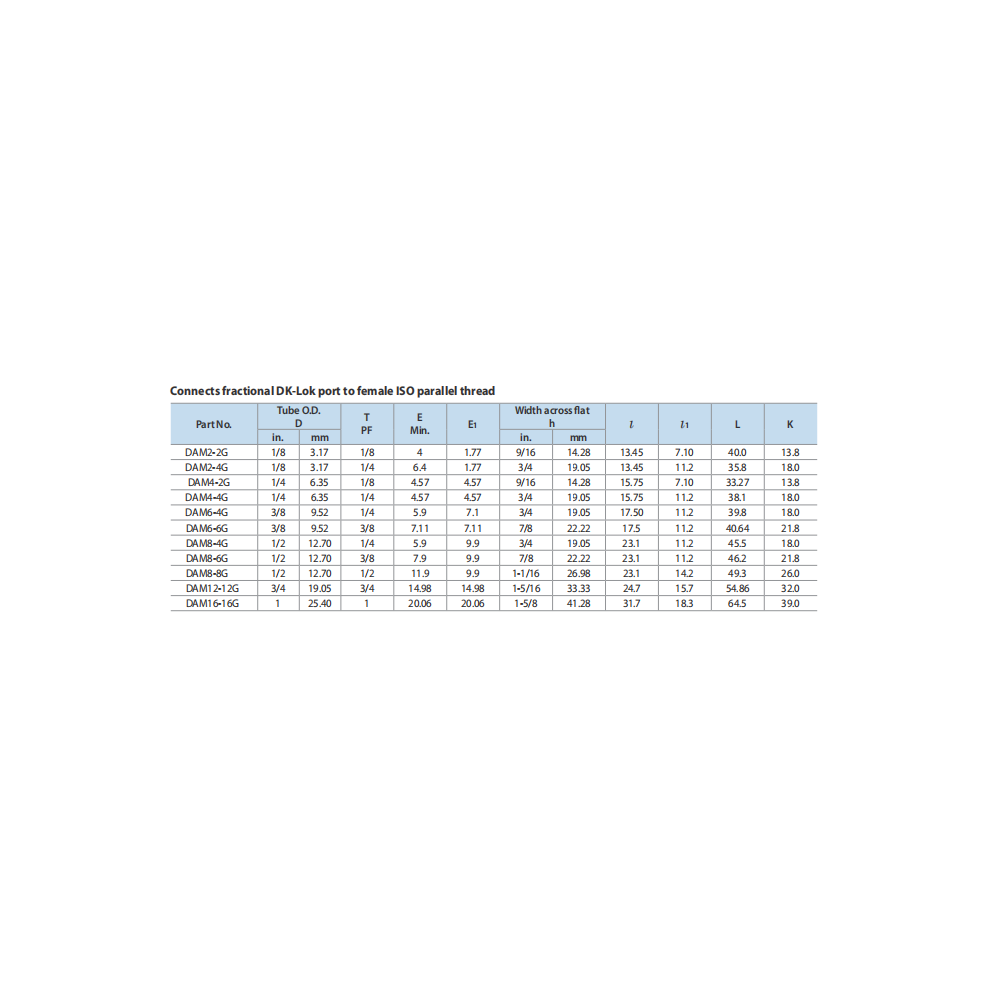

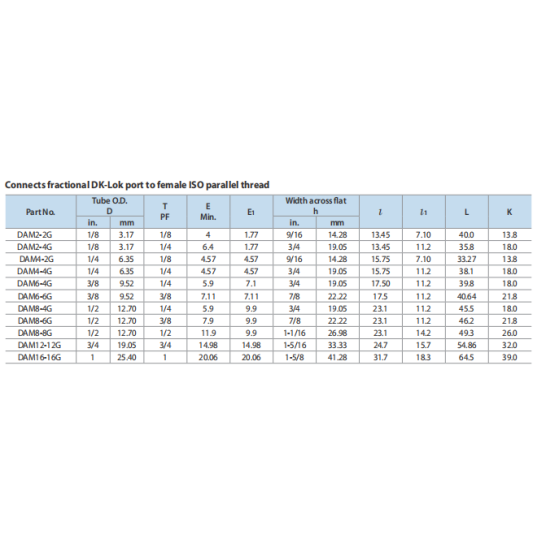

Part No
|
Tube O.D.
D (inches)
|
T
PT
|
|
DAM2-2G |
1/8 |
1/8 |
|
DAM2-4G |
1/8 |
1/4 |
|
DAM4-2G |
1/4 |
1/8 |
|
DAM4-4G |
1/4 |
1/4 |
|
DAM6-4G |
3/8 |
1/4 |
|
DAM6-6G |
3/8 |
3/8 |
|
DAM8-4G |
1/2 |
1/4 |
|
DAM8-6G |
1/2 |
3/8 |
|
DAM8-8G |
1/2 |
1/2 |
|
DAM12-12G |
3/4 |
3/4 |
|
DAM16-16G |
1 |
1 |
