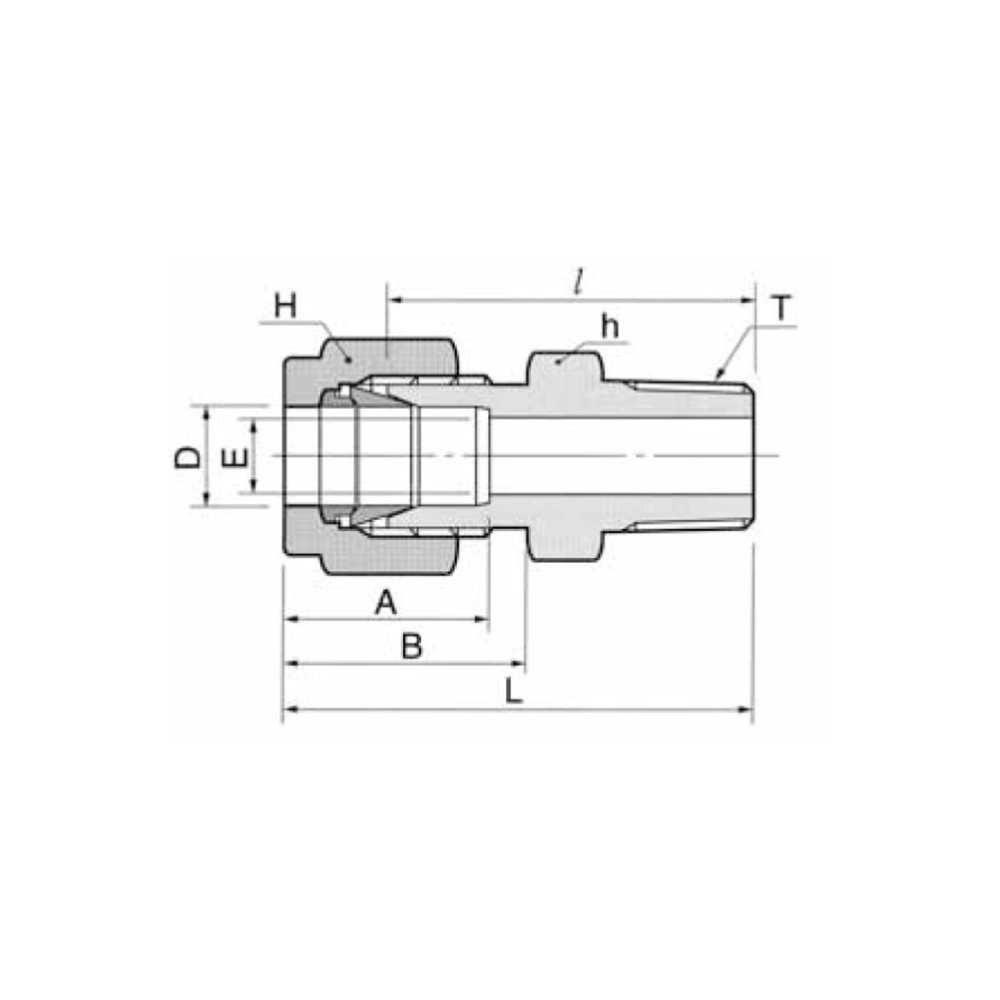

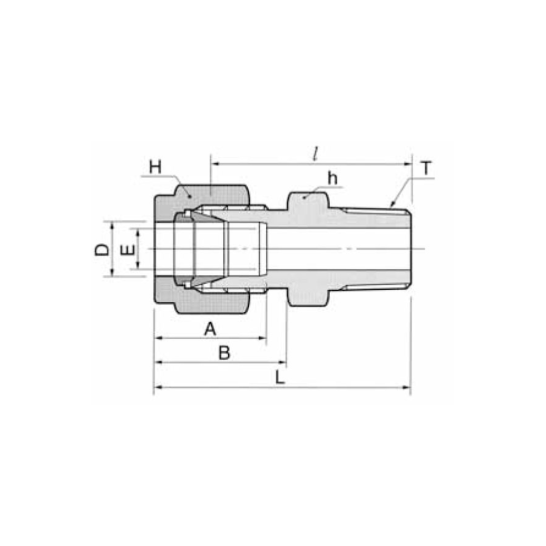

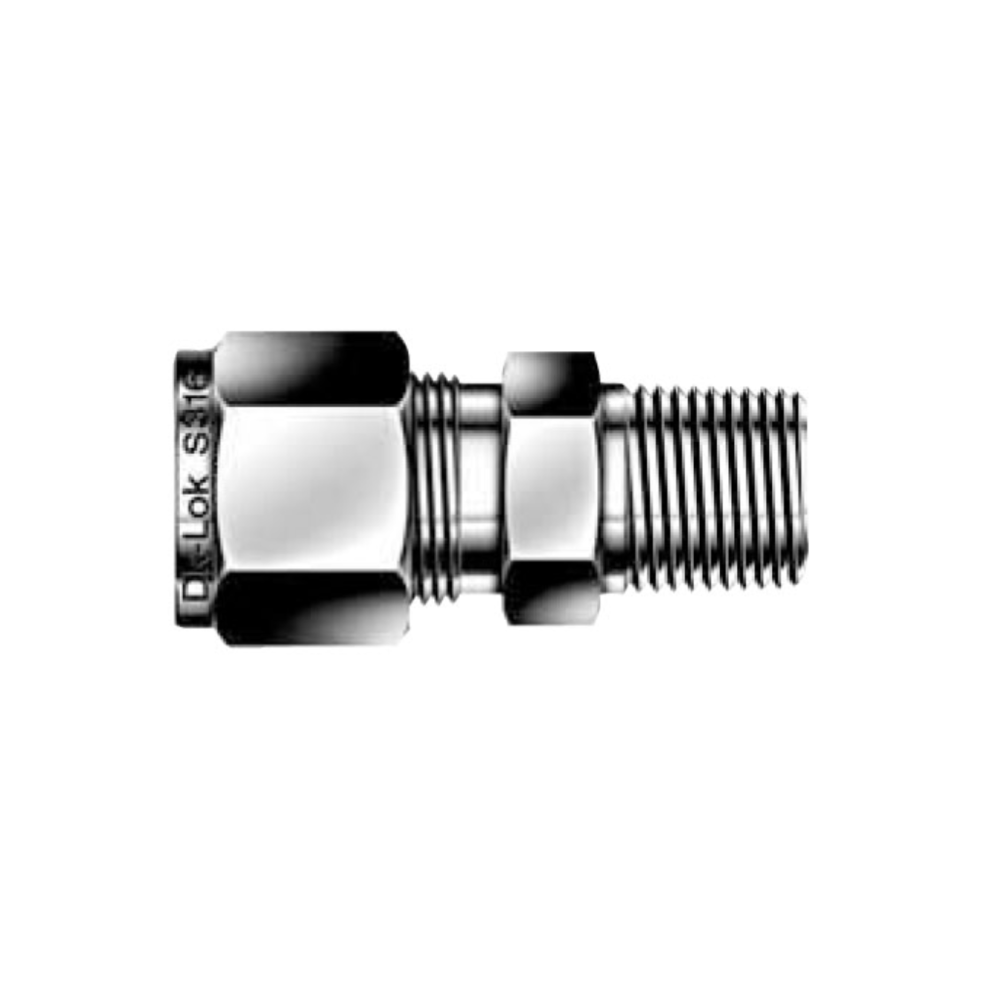

DK-LOK BRASS Male Connector For Bonded Gasket Seal DMC-G Series
Tube to Male Pipe
Model No.
DMCX-XG-B
DK-Lok DMC-G male connectors are designed to connect individual fractional or metric tube lines to a female British Standard Parallel Pipe Thread (BSPP) port with the aid of a bonded gasket in both single ferrule and double ferrule designs.
|

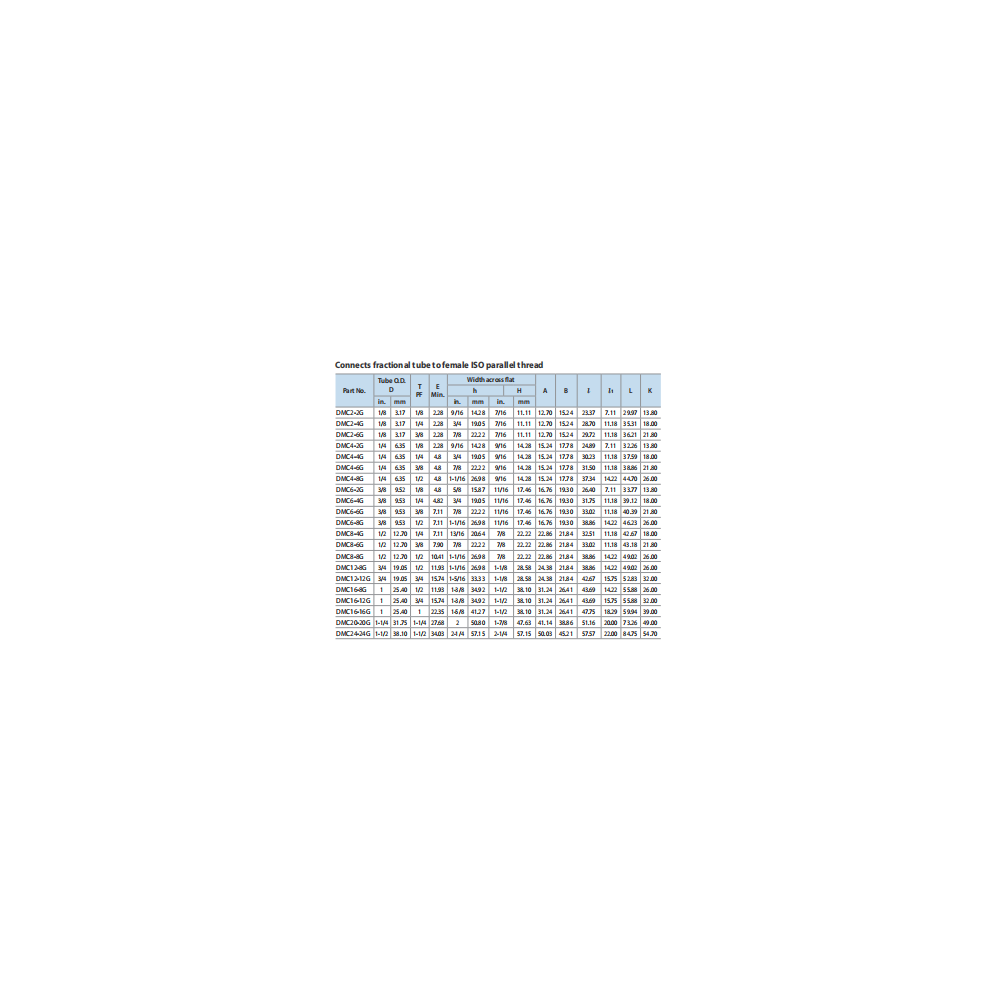

Part No |
Tube O.D. D (inches) |
T PF |
|
DMC2-2G |
1/8 |
1/8 |
|
DMC2-4G |
1/8 |
1/4 |
|
DMC2-6G |
1/8 |
3/8 |
|
DMC4-2G |
1/4 |
1/8 |
|
DMC4-4G |
1/4 |
1/4 |
|
DMC4-6G |
1/4 |
3/8 |
|
DMC4-8G |
1/4 |
1/2 |
|
DMC6-2G |
3/8 |
1/8 |
|
DMC6-4G |
3/8 |
1/4 |
|
DMC6-6G |
3/8 |
3/8 |
|
DMC6-8G |
3/8 |
1/2 |
|
DMC8-4G |
1/2 |
1/4 |
|
DMC8-6G |
1/2 |
3/8 |
|
DMC8-8G |
1/2 |
1/2 |
|
DMC12-8G |
3/4 |
1/2 |
|
DMC12-12G |
3/4 |
3/4 |
|
DMC16-8G |
1 |
1/2 |
|
DMC16-12G |
1 |
3/4 |
|
DMC16-16G |
1 |
1 |
|
DMC20-20G |
1-1/4 |
1-1/4 |
|
DMC24-24G |
1-1/2 |
1-1/2 |
