DK-LOK
Compact Check Valves
Brand:

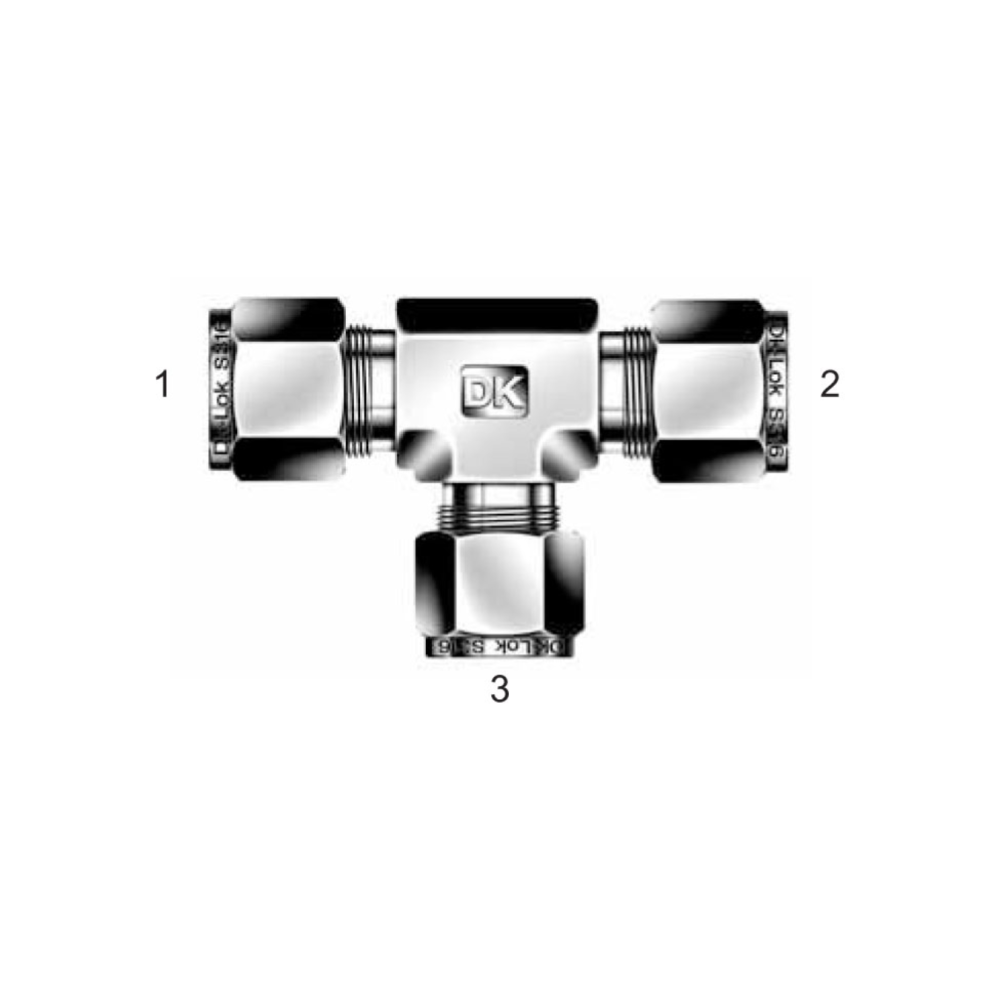

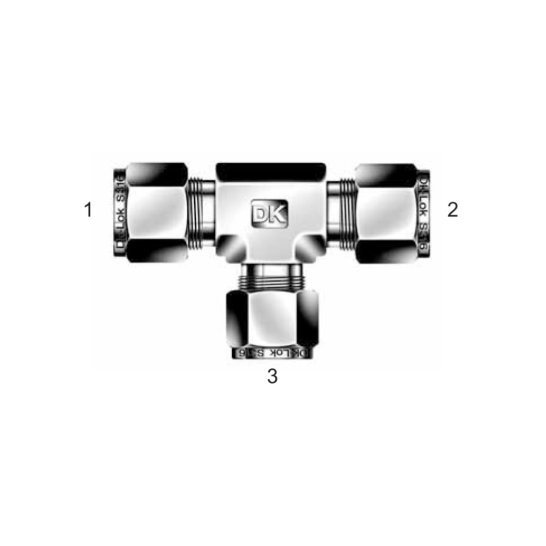

DK-LOK SS316 Reducing Union Tee DTR Metric Series
Tube to Tube Union
Model No.
DTRXM-XM-XM-SS
DK-Lok reducing union tees are designed to connect three individual lines together of different outside diameter sizes in fractional, metric or fractional to metric in both single ferrule and double ferrule designs.
|

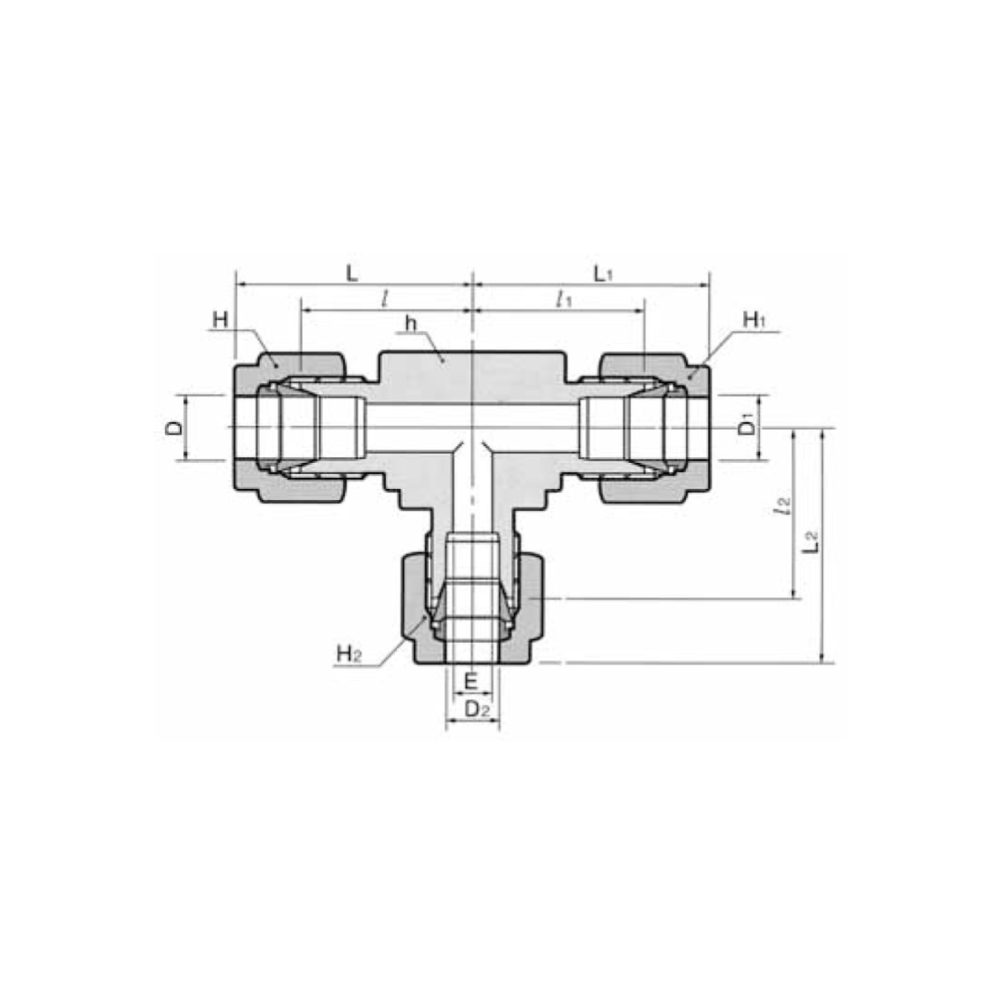

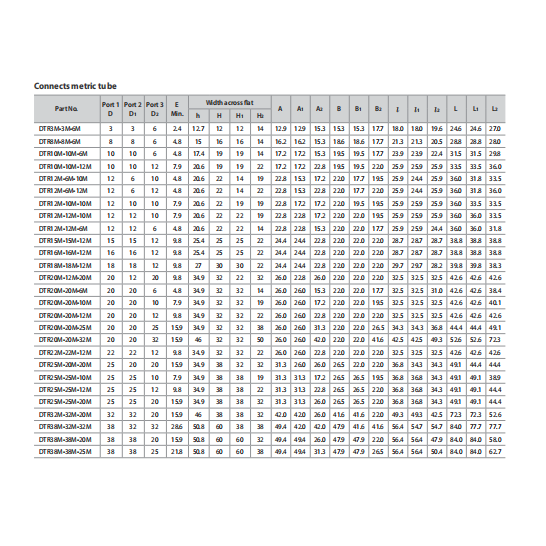

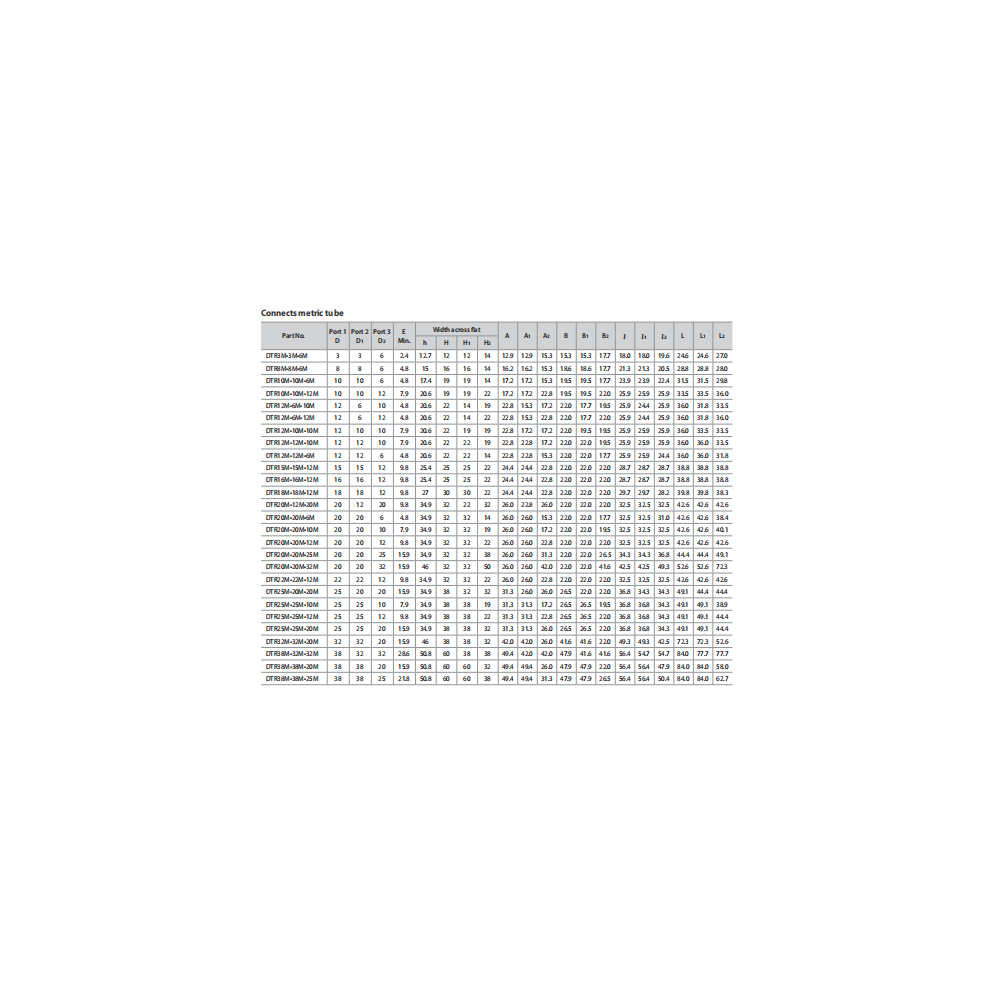

Part No
|
Port 1
D (mm)
|
Port 2
D1 (mm)
|
Port 3
D2 (mm)
|
|
DTR3M-3M-6M |
3 |
3 |
6 |
|
DTR8M-8M-6M |
8 |
8 |
6 |
|
DTR10M-10M-6M |
10 |
10 |
6 |
|
DTR10M-10M-12M |
10 |
10 |
12 |
|
DTR12M-6M-10M |
12 |
6 |
10 |
|
DTR12M-6M-12M |
12 |
6 |
12 |
|
DTR12M-10M-10M |
12 |
10 |
10 |
|
DTR12M-12M-10M |
12 |
12 |
10 |
|
DTR12M-12M-6M |
12 |
12 |
6 |
|
DTR15M-15M-12M |
15 |
15 |
12 |
|
DTR16M-16M-12M |
16 |
16 |
12 |
|
DTR18M-18M-12M |
18 |
18 |
12 |
|
DTR20M-12M-20M |
20 |
12 |
20 |
|
DTR20M-20M-6M |
20 |
20 |
6 |
|
DTR20M-20M-10M |
20 |
20 |
10 |
|
DTR20M-20M-12M |
20 |
20 |
12 |
|
DTR20M-20M-25M |
20 |
20 |
25 |
|
DTR20M-20M-32M |
20 |
20 |
32 |
|
DTR22M-22M-12M |
22 |
22 |
12 |
|
DTR25M-20M-20M |
25 |
20 |
20 |
|
DTR25M-25M-10M |
25 |
25 |
10 |
|
DTR25M-25M-12M |
25 |
25 |
12 |
|
DTR25M-25M-20M |
25 |
25 |
20 |
|
DTR32M-32M-20M |
32 |
32 |
20 |
|
DTR38M-32M-32M |
38 |
32 |
32 |
|
DTR38M-38M-20M |
38 |
38 |
20 |
|
DTR38M-38M-25M |
38 |
38 |
25 |
