DK-LOK
Tube to Positionable Straight Thread
Brand:

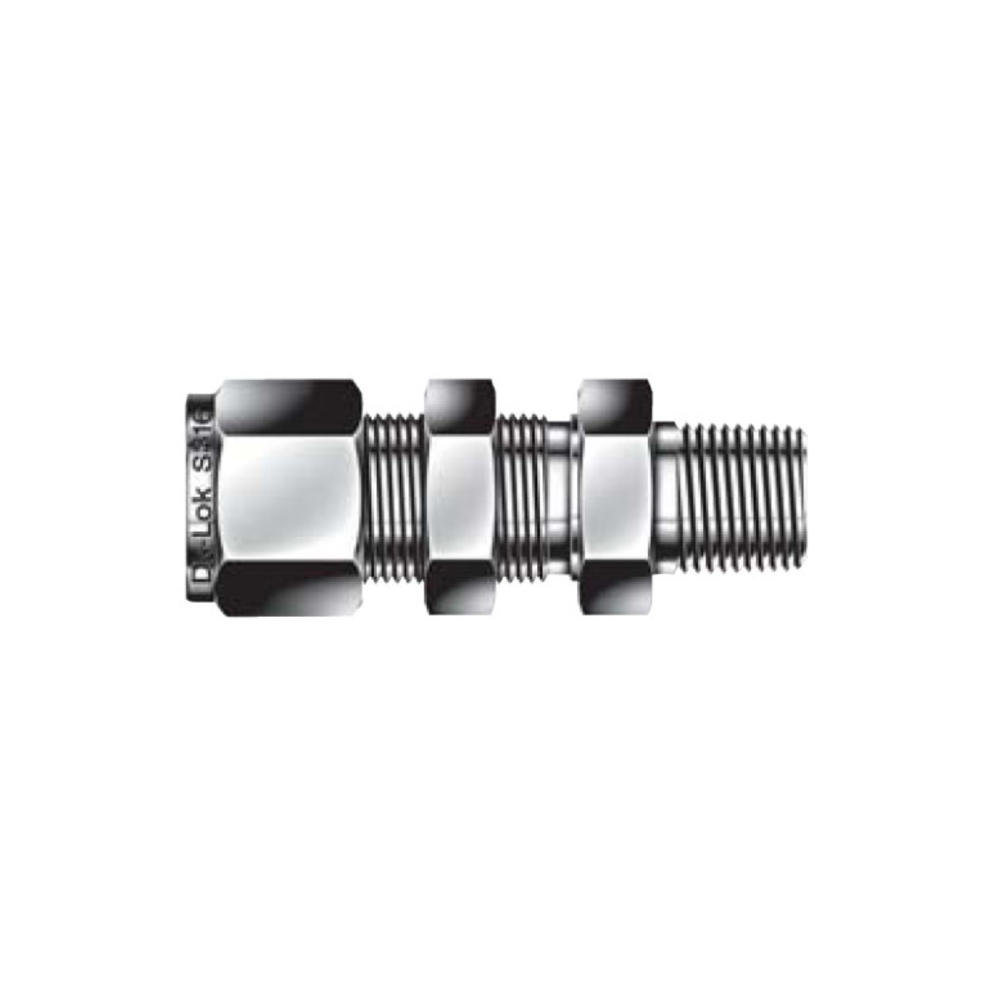

DK-LOK SS316 Bulkhead Male Connector DMCB-N Metric Series
Tube to Male Pipe
Model No.
DMCBXM-XN-SS
DK-Lok DMCB-N bulkhead male connectors are designed to connect individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

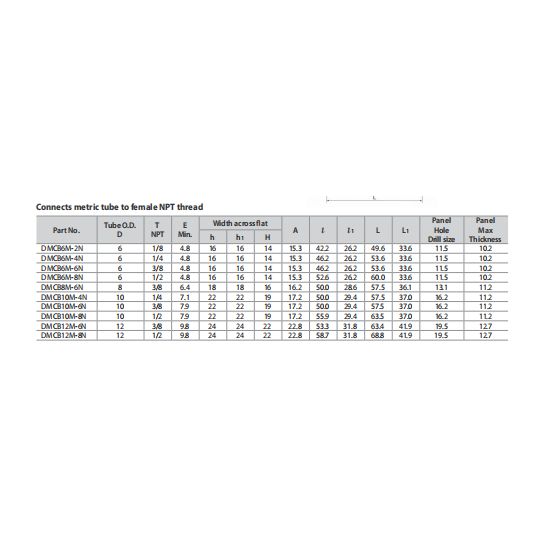

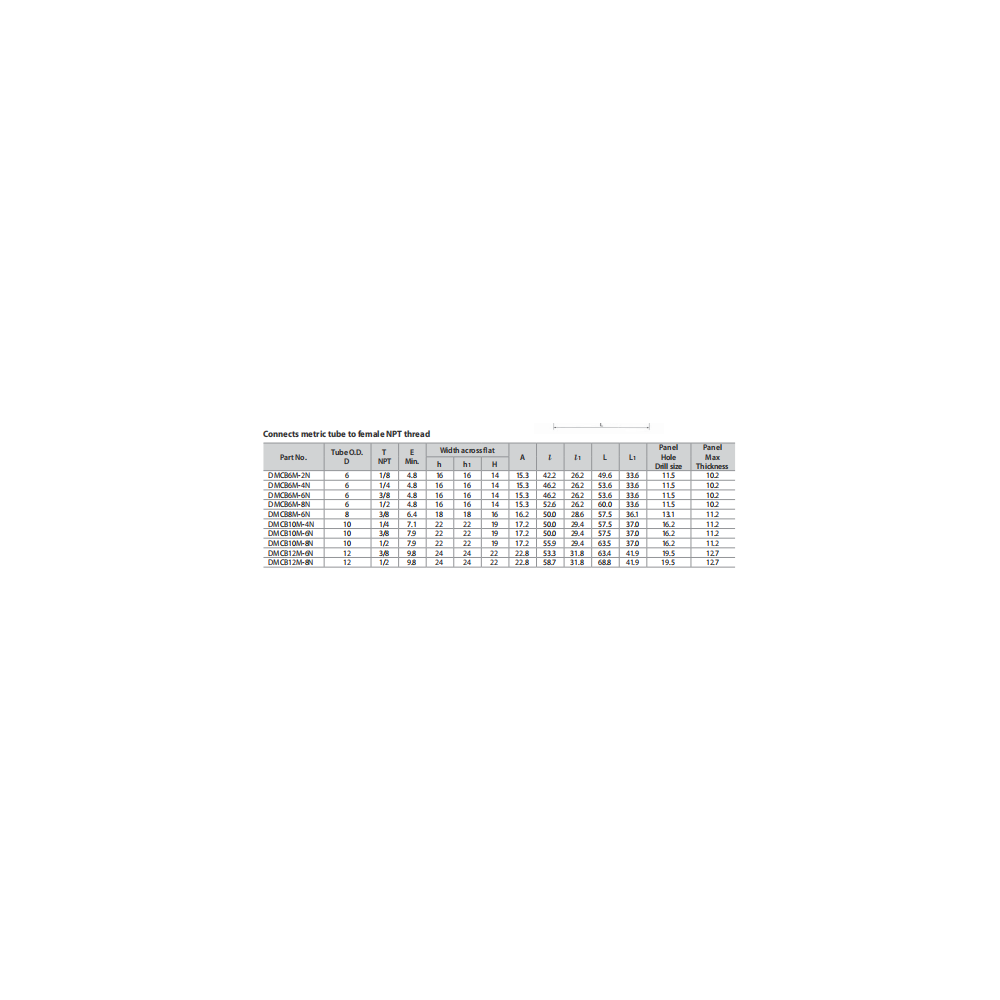

Part No |
Tube O.D. D (mm) |
T NPT |
|
DMCB6M-2N |
6 |
1/8 |
|
DMCB6M-4N |
6 |
1/4 |
|
DMCB6M-6N |
6 |
3/8 |
|
DMCB6M-8N |
6 |
1/2 |
|
DMCB8M-6N |
8 |
3/8 |
|
DMCB10M-4N |
10 |
1/4 |
|
DMCB10M-6N |
10 |
3/8 |
|
DMCB10M-8N |
10 |
1/2 |
|
DMCB12M-6N |
12 |
3/8 |
|
DMCB12M-8N |
12 |
1/2 |
