Brand:

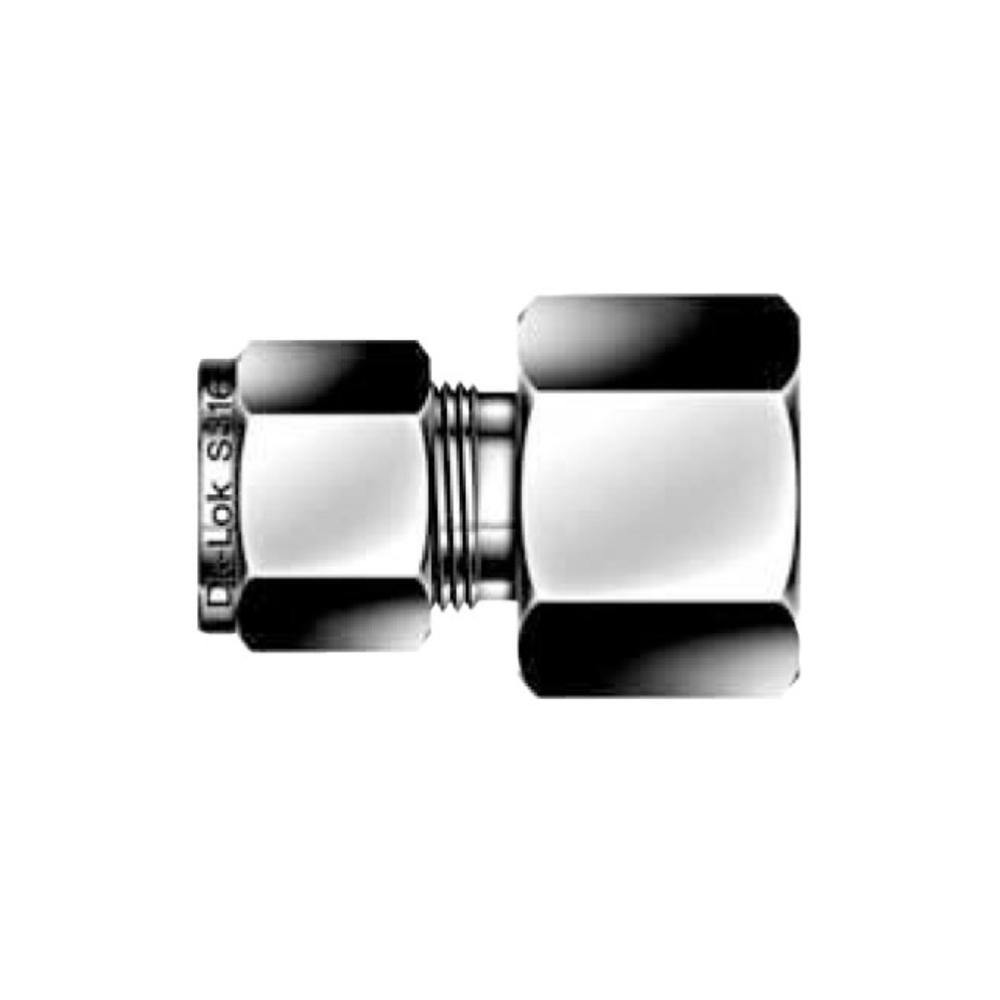

DK-LOK SS316 Female Connector DCF-N Metric Series
Tube to Female Pipe
Model No.
DCFXM-XN-SS
DK-Lok DCF-N female connectors are designed to connect individual fractional or metric tube lines to a male American Standard Pipe Thread (NPT) in both single ferrule and double ferrule designs.
|

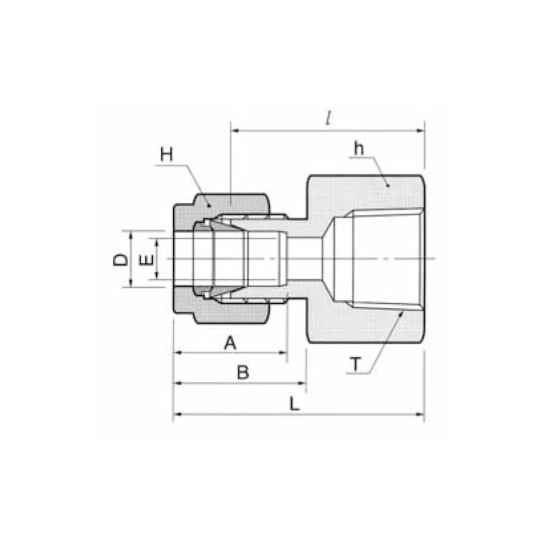

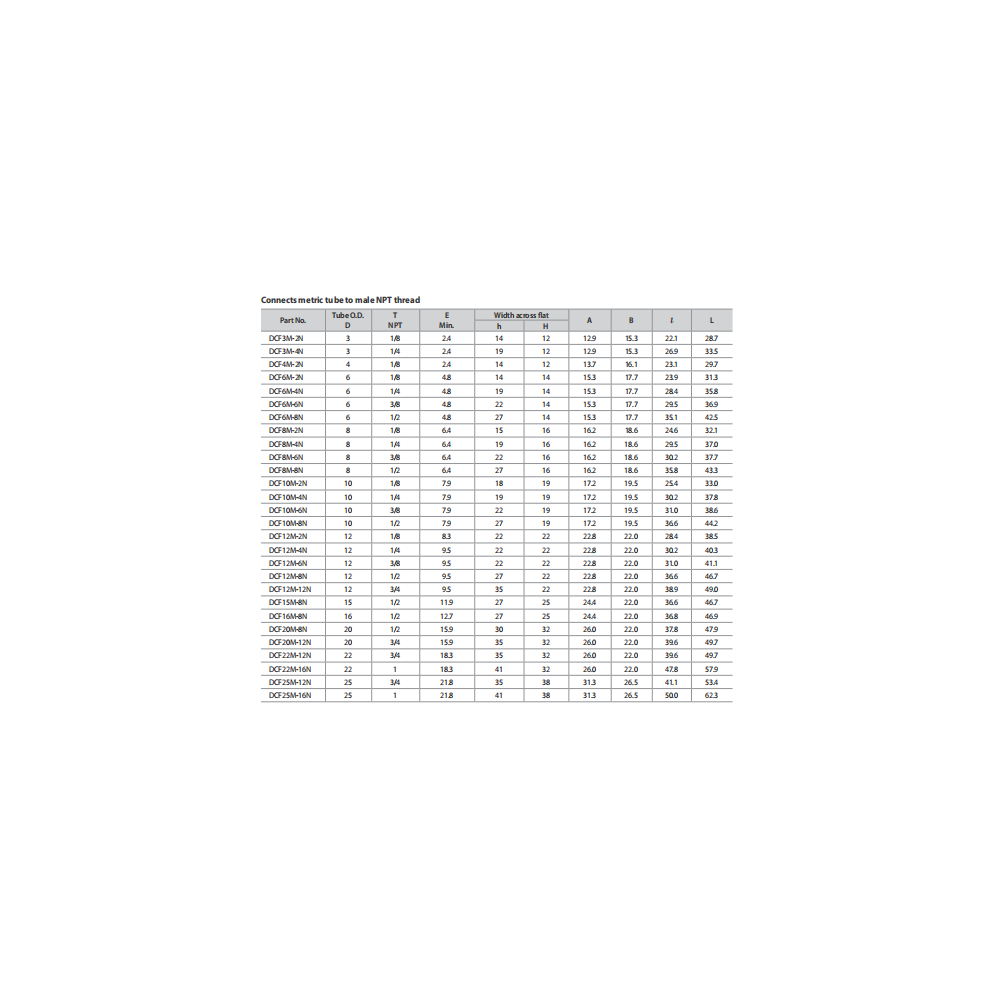

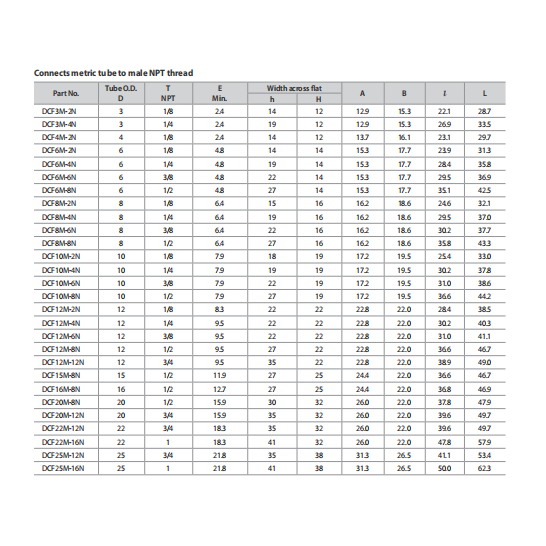

Part No
|
Tube O.D.
D (mm)
|
T
NPT
|
|
DCF3M-2N |
3 |
1/8 |
|
DCF3M-4N |
3 |
1/4 |
|
DCF4M-2N |
4 |
1/8 |
|
DCF6M-2N |
6 |
1/8 |
|
DCF6M-4N |
6 |
1/4 |
|
DCF6M-6N |
6 |
3/8 |
|
DCF6M-8N |
6 |
1/2 |
|
DCF8M-2N |
8 |
1/8 |
|
DCF8M-4N |
8 |
1/4 |
|
DCF8M-6N |
8 |
3/8 |
|
DCF8M-8N |
8 |
1/2 |
|
DCF10M-2N |
10 |
1/8 |
|
DCF10M-4N |
10 |
1/4 |
|
DCF10M-6N |
10 |
3/8 |
|
DCF10M-8N |
10 |
1/2 |
|
DCF12M-2N |
12 |
1/8 |
|
DCF12M-4N |
12 |
1/4 |
|
DCF12M-6N |
12 |
3/8 |
|
DCF12M-8N |
12 |
1/2 |
|
DCF12M-12N |
12 |
3/4 |
|
DCF15M-8N |
15 |
1/2 |
|
DCF16M-8N |
16 |
1/2 |
|
DCF20M-8N |
20 |
1/2 |
|
DCF20M-12N |
20 |
3/4 |
|
DCF22M-12N |
22 |
3/4 |
|
DCF22M-16N |
22 |
1 |
|
DCF25M-12N |
25 |
3/4 |
|
DCF25M-16N |
25 |
1 |
