Brand:

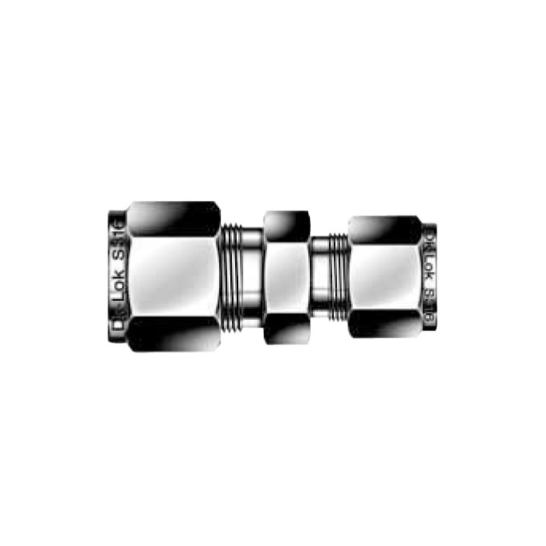

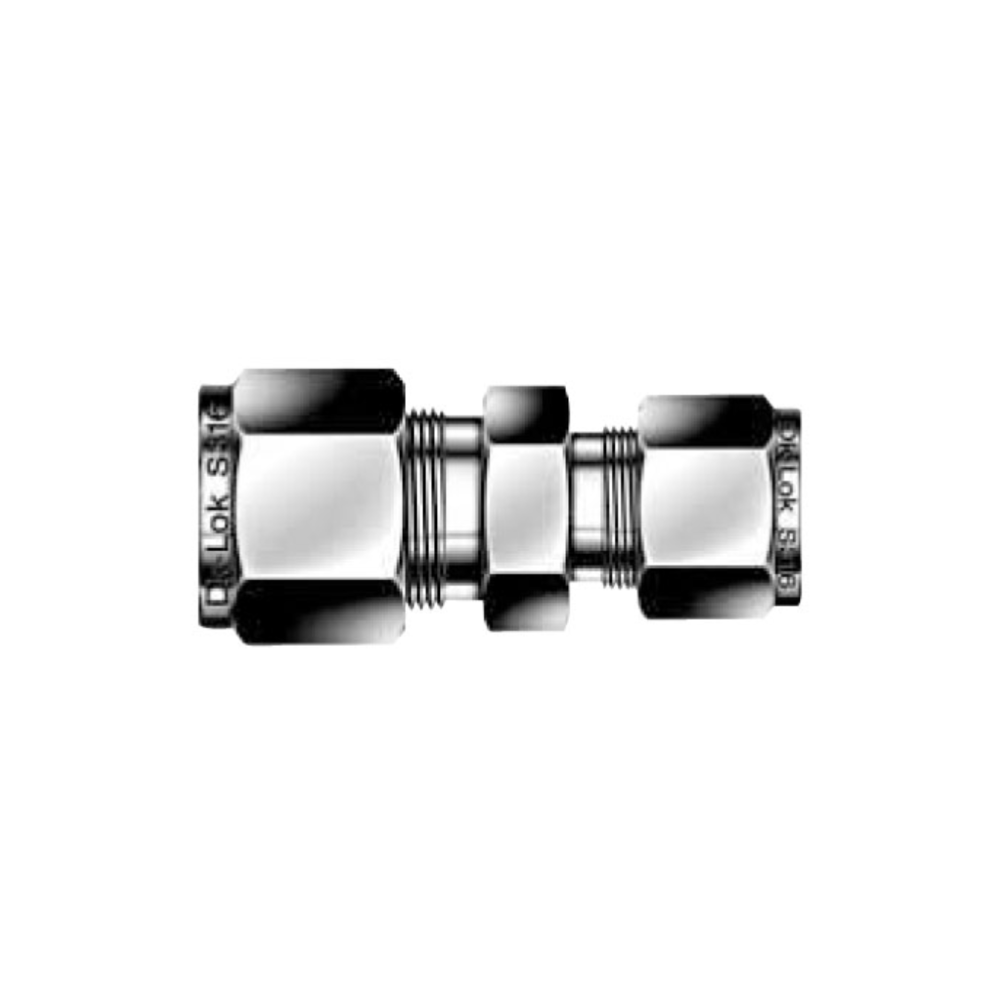

DK-LOK SS316 Reducing Union DUR Metric Series
Tube to Tube Union
Model No.
DURXM-XM-SS
DK-Lok reducing unions are designed to connect two individual lines together of different outside diameter sizes in fractional, metric or fractional to metric in both single ferrule and double ferrule designs.
|

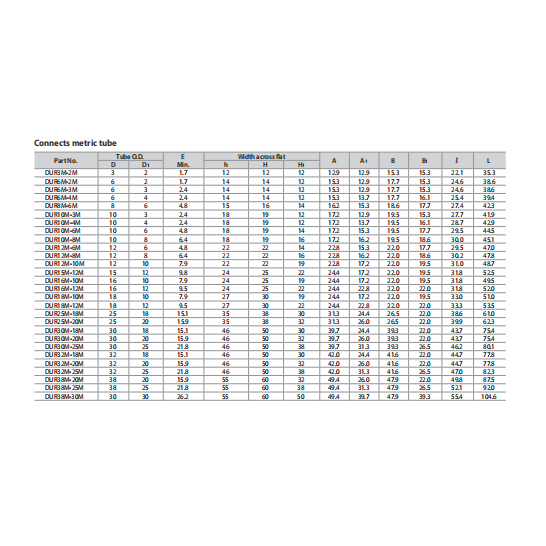

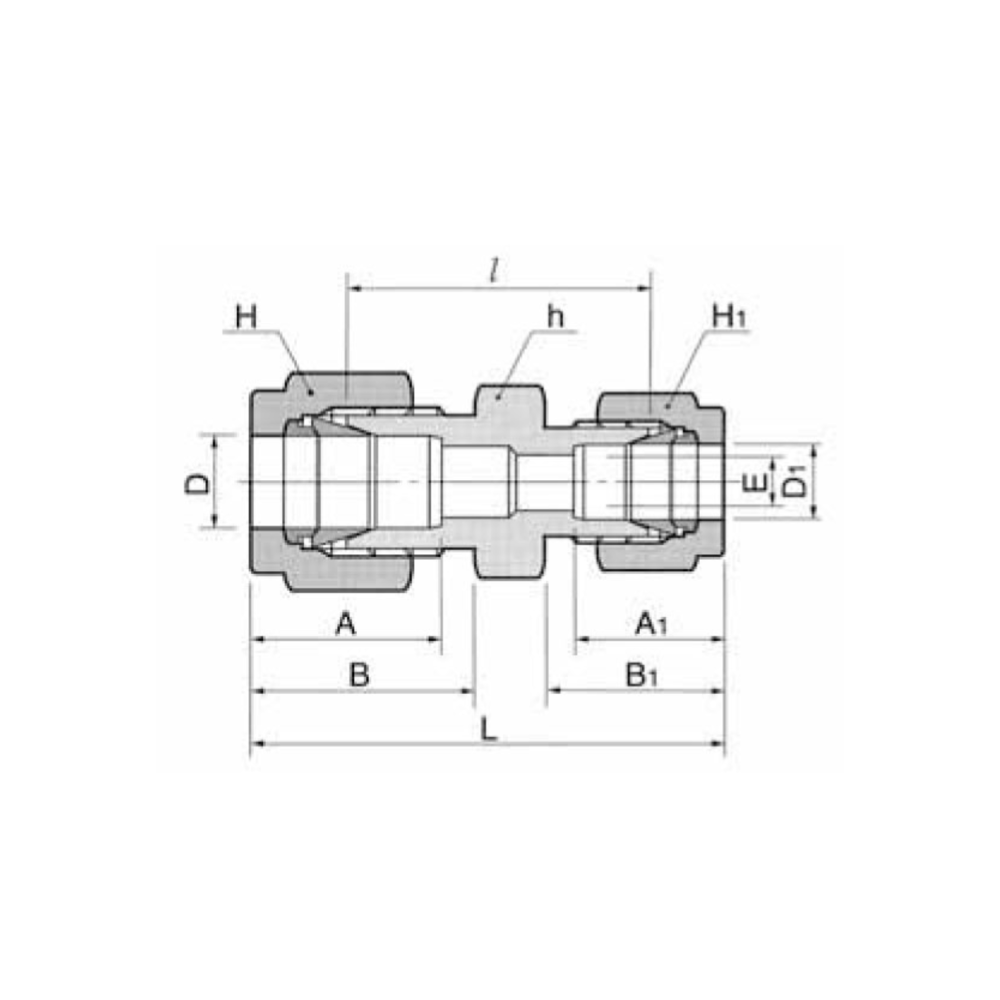

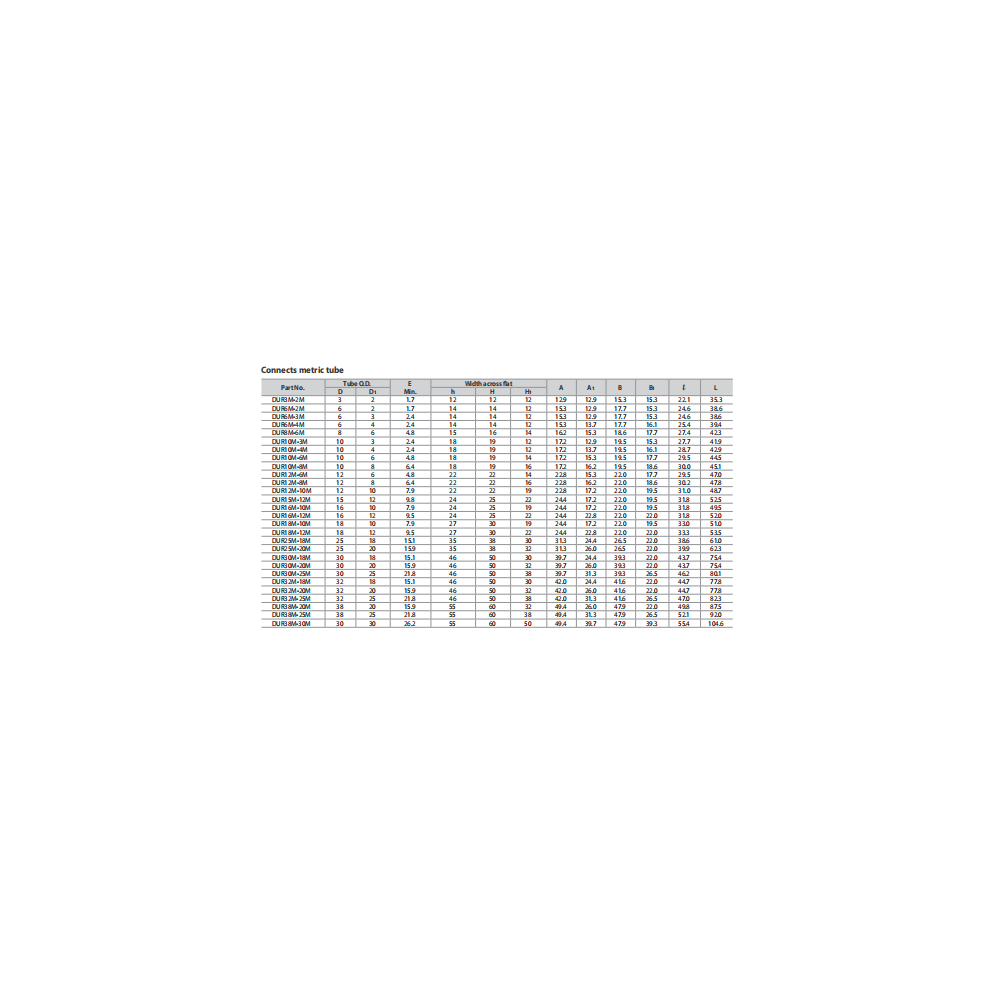

Part No
|
Tube O.D.
|
|
|
|
D (mm)
|
D1 (mm)
|
|
DUR3M-2M |
3 |
2 |
|
DUR6M-2M |
6 |
2 |
|
DUR6M-3M |
6 |
3 |
|
DUR6M-4M |
6 |
4 |
|
DUR8M-6M |
8 |
6 |
|
DUR10M-3M |
10 |
3 |
|
DUR10M-4M |
10 |
4 |
|
DUR10M-6M |
10 |
6 |
|
DUR10M-8M |
10 |
8 |
|
DUR12M-6M |
12 |
6 |
|
DUR12M-8M |
12 |
8 |
|
DUR12M-10M |
12 |
10 |
|
DUR15M-12M |
15 |
12 |
|
DUR16M-10M |
16 |
10 |
|
DUR16M-12M |
16 |
12 |
|
DUR18M-10M |
18 |
10 |
|
DUR18M-12M |
18 |
12 |
|
DUR25M-18M |
25 |
18 |
|
DUR25M-20M |
25 |
20 |
|
DUR30M-18M |
30 |
18 |
|
DUR30M-20M |
30 |
20 |
|
DUR30M-25M |
30 |
25 |
|
DUR32M-18M |
32 |
18 |
|
DUR32M-20M |
32 |
20 |
|
DUR32M-25M |
32 |
25 |
|
DUR38M-20M |
38 |
20 |
|
DUR38M-25M |
38 |
25 |
|
DUR38M-30M |
38 |
30 |
