Brand:

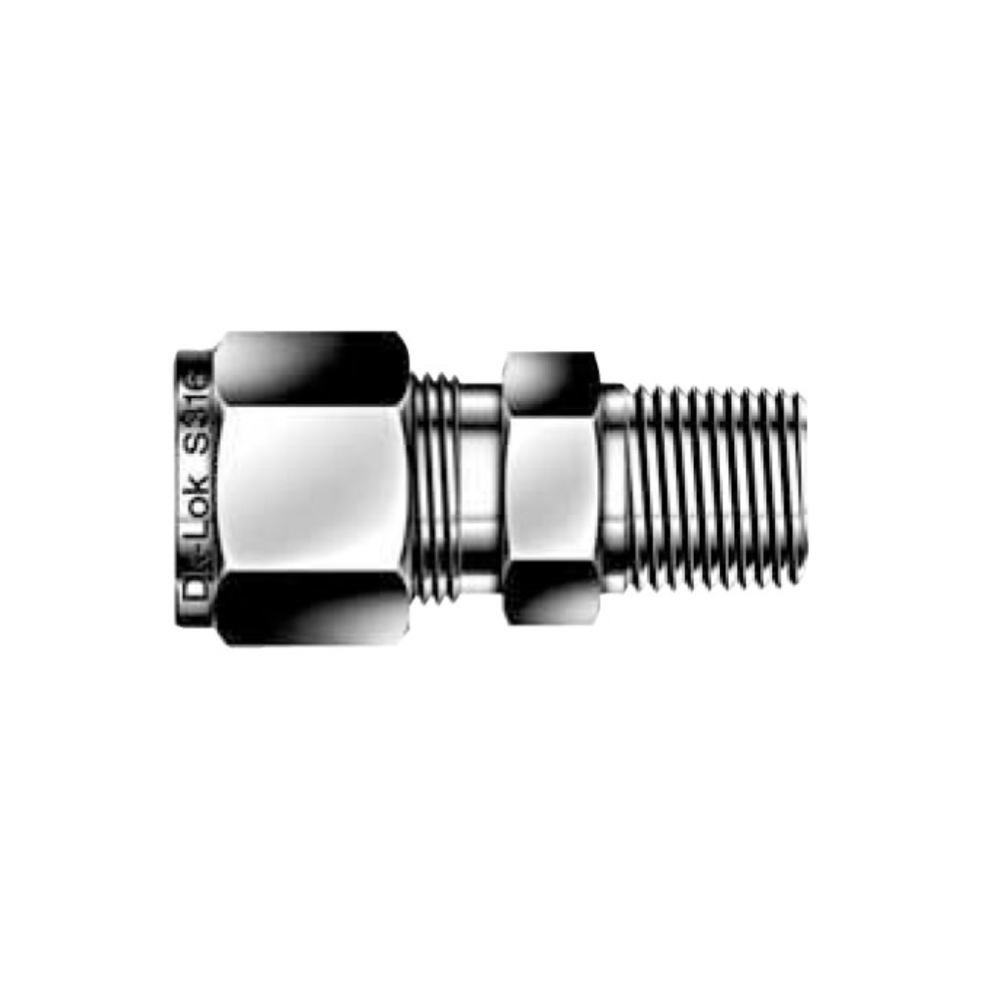

DK-LOK SS316 Male Connector DMC-N Series
Tube to Male Pipe
Model No.
DMCX-XN-SS
DK-Lok DMC-N male connectors are designed to connect individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

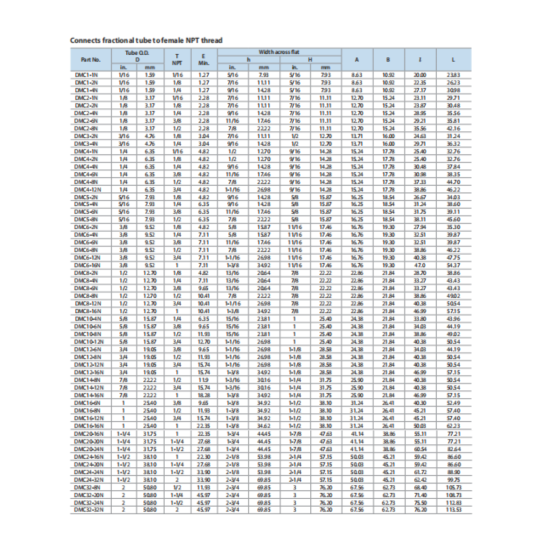

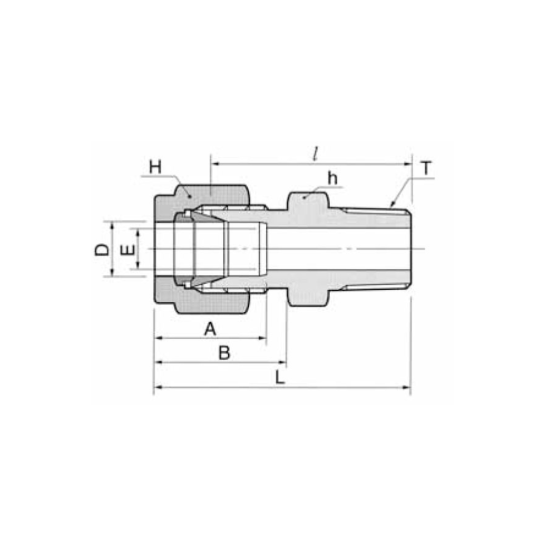

Part No |
Tube O.D D (inches) |
T NPT |
|
DMC1-1N |
1/16 |
1/16 |
|
DMC1-2N |
1/16 |
1/8 |
|
DMC1-4N |
1/16 |
1/4 |
|
DMC2-1N |
1/8 |
1/16 |
|
DMC2-2N |
1/8 |
1/8 |
|
DMC2-4N |
1/8 |
1/4 |
|
DMC2-6N |
1/8 |
3/8 |
|
DMC2-8N |
1/8 |
1/2 |
|
DMC3-2N |
3/16 |
1/8 |
|
DMC3-4N |
3/16 |
1/4 |
|
DMC4-1N |
1/4 |
1/16 |
|
DMC4-2N |
1/4 |
1/8 |
|
DMC4-4N |
1/4 |
1/4 |
|
DMC4-6N |
1/4 |
3/8 |
|
DMC4-8N |
1/4 |
1/2 |
|
DMC4-12N |
1/4 |
3/4 |
|
DMC5-2N |
5/16 |
1/8 |
|
DMC5-4N |
5/16 |
1/4 |
|
DMC5-6N |
5/16 |
3/8 |
|
DMC5-8N |
5/16 |
1/2 |
|
DMC6-2N |
3/8 |
1/8 |
|
DMC6-4N |
3/8 |
1/4 |
|
DMC6-6N |
3/8 |
3/8 |
|
DMC6-8N |
3/8 |
1/2 |
|
DMC6-12N |
3/8 |
3/4 |
|
DMC6-16N |
3/8 |
1 |
|
DMC8-2N |
1/2 |
1/8 |
|
DMC8-4N |
1/2 |
1/4 |
|
DMC8-6N |
1/2 |
3/8 |
|
DMC8-8N |
1/2 |
1/2 |
|
DMC8-12N |
1/2 |
3/4 |
|
DMC8-16N |
1/2 |
1 |
|
DMC10-4N |
5/8 |
1/4 |
|
DMC10-6N |
5/8 |
3/8 |
|
DMC10-8N |
5/8 |
1/2 |
|
DMC10-12N |
5/8 |
3/4 |
|
DMC12-6N |
3/4 |
3/8 |
|
DMC12-8N |
3/4 |
1/2 |
|
DMC12-12N |
3/4 |
3/4 |
|
DMC12-16N |
3/4 |
1 |
|
DMC14-8N |
7/8 |
1/2 |
|
DMC14-12N |
7/8 |
3/4 |
|
DMC14-16N |
7/8 |
1 |
|
DMC16-6N |
1 |
3/8 |
|
DMC16-8N |
1 |
1/2 |
|
DMC16-12N |
1 |
3/4 |
|
DMC16-16N |
1 |
1 |
|
DMC20-16N |
1-1/4 |
1 |
|
DMC20-20N |
1-1/4 |
1-1/4 |
|
DMC20-24N |
1-1/4 |
1-1/2 |
|
DMC24-16N |
1-1/2 |
1 |
|
DMC24-20N |
1-1/2 |
1-1/4 |
|
DMC24-24N |
1-1/2 |
1-1/2 |
|
DMC24-32N |
1-1/2 |
2 |
|
DMC32-8N |
2 |
1/2 |
|
DMC32-20N |
2 |
1-1/4 |
|
