Brand:

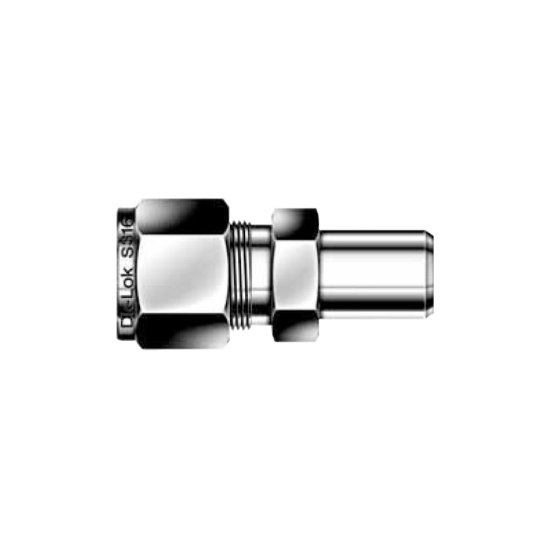

DK-LOK SS316 Male Pipe Weld Connector DCW Metric Series
Tube to Weld End
Model No.
DCWXM-XP-SS
Tube to weld connectors allow for a system designer/fabricator to connect an individual tube line via welding the other end of the fitting to another component; in both single ferrule and double ferrule designs.
|

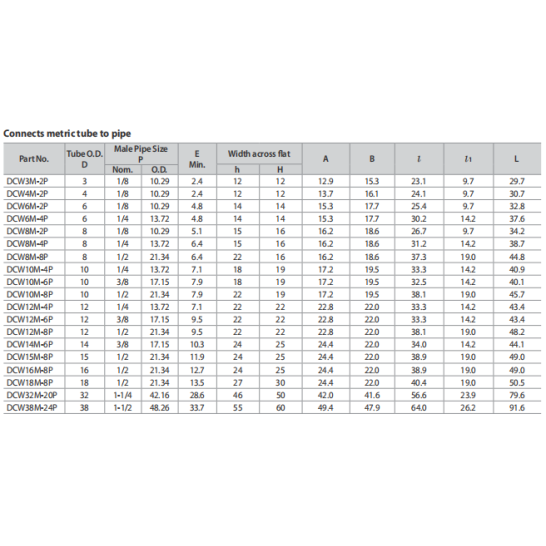

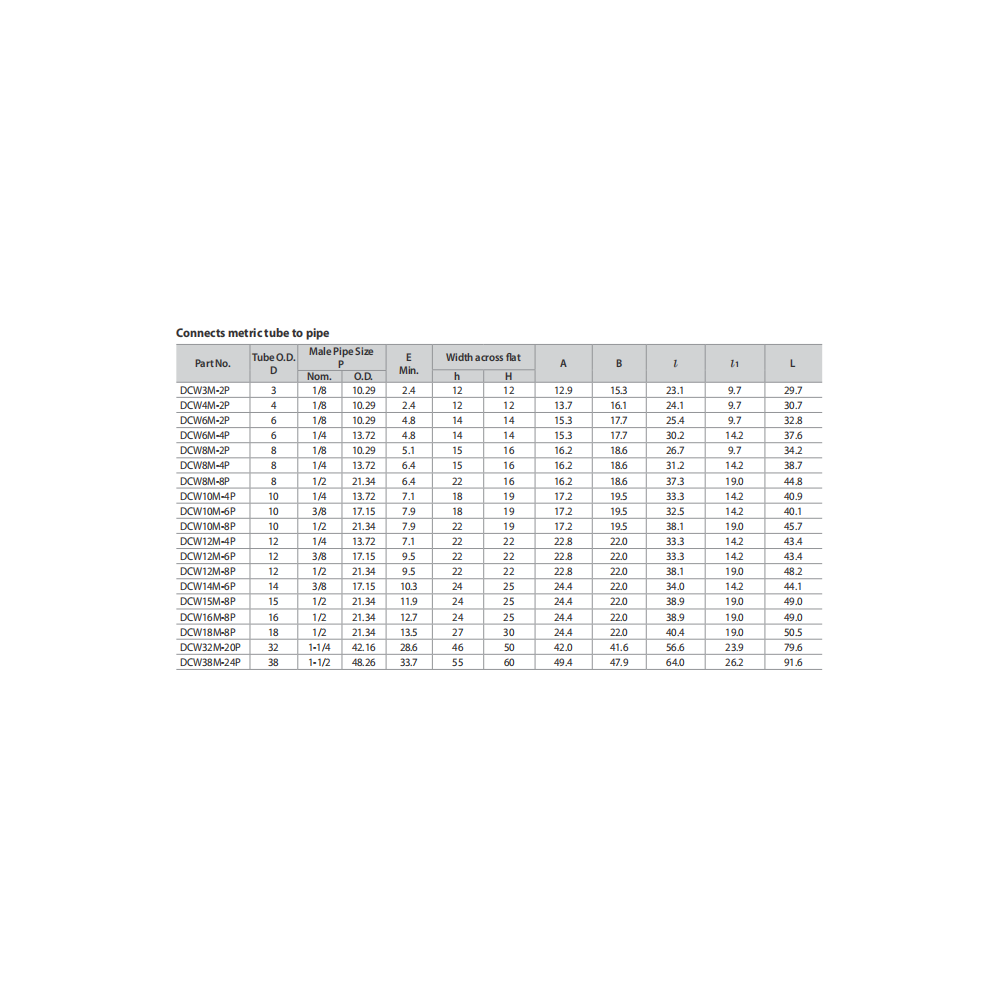

Part No
|
Tube O.D.
D (mm)
|
Male Pipe Size
P
|
|
DCW3M-2P |
3 |
1/8 |
|
DCW4M-2P |
4 |
1/8 |
|
DCW6M-2P |
6 |
1/8 |
|
DCW6M-4P |
6 |
1/4 |
|
DCW8M-2P |
8 |
1/8 |
|
DCW8M-4P |
8 |
1/4 |
|
DCW8M-8P |
8 |
1/2 |
|
DCW10M-4P |
10 |
1/4 |
|
DCW10M-6P |
10 |
3/8 |
|
DCW10M-8P |
10 |
1/2 |
|
DCW12M-4P |
12 |
1/4 |
|
DCW12M-6P |
12 |
3/8 |
|
DCW12M-8P |
12 |
1/2 |
|
DCW14M-6P |
14 |
3/8 |
|
DCW15M-8P |
15 |
1/2 |
|
DCW16M-8P |
16 |
1/2 |
|
DCW18M-8P |
18 |
1/2 |
|
DCW32M-20P |
32 |
1-1/4 |
|
DCW38M-24P |
38 |
1-1/2 |
