Brand:

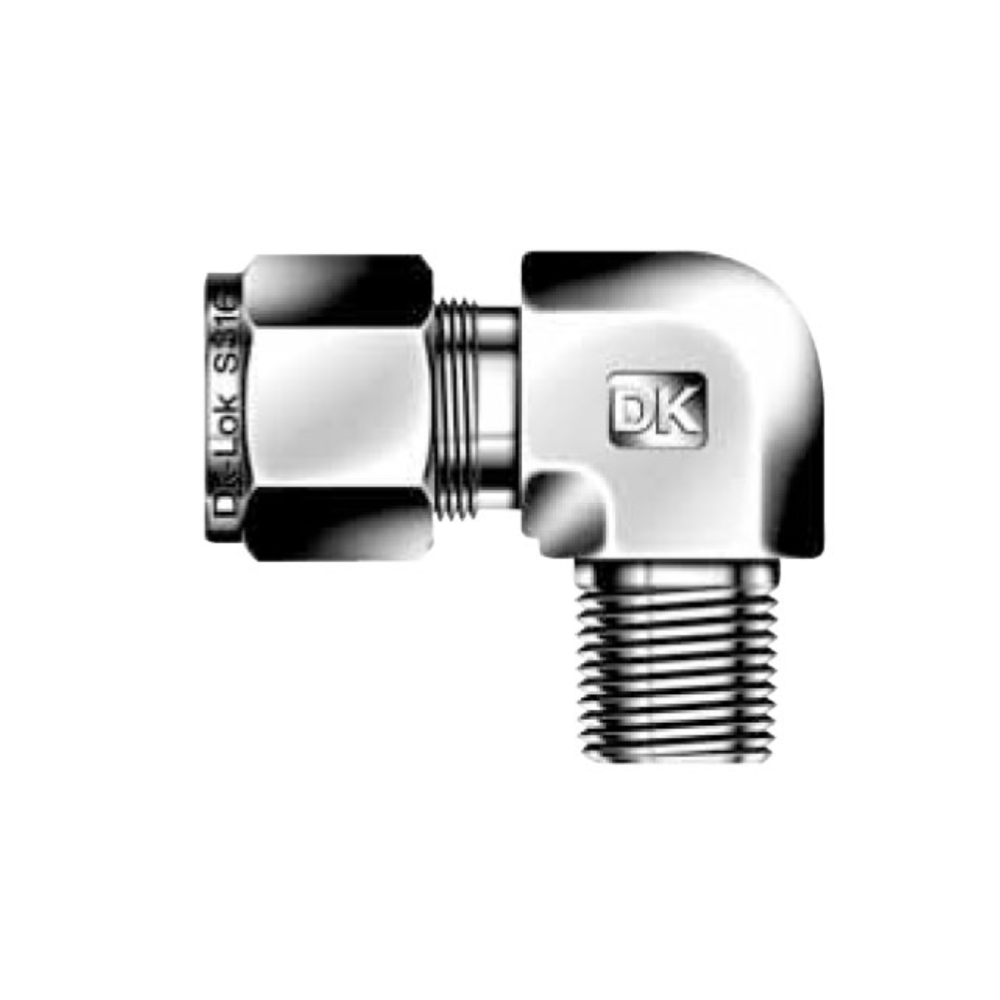

DK-LOK SS316 Male Elbow DLM-R Series
Tube to Male Pipe
Model No.
DLMX-XR-SS
DK-Lok DLM-N male elbows are designed to connect individual fractional or metric tube lines to a female British Standard Pipe Tapered (BSPT) threaded port in both single ferrule and double ferrule designs.
|

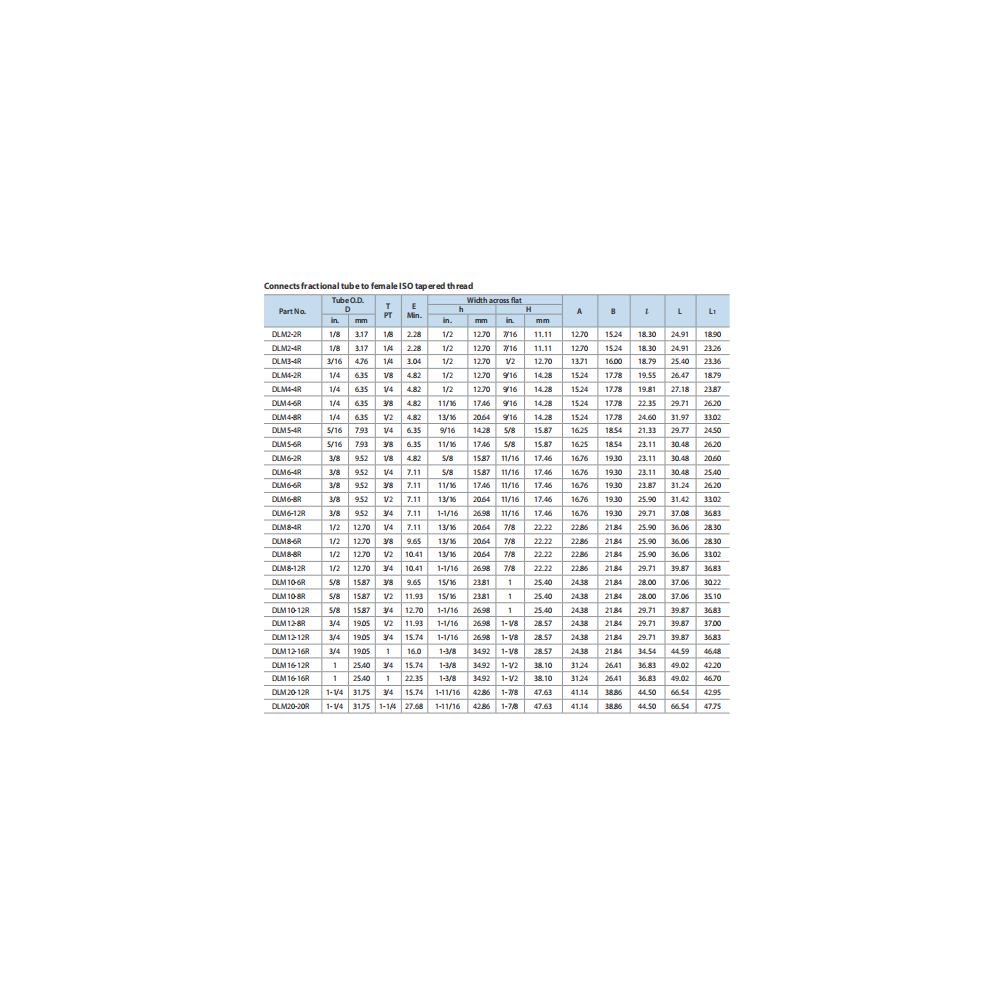

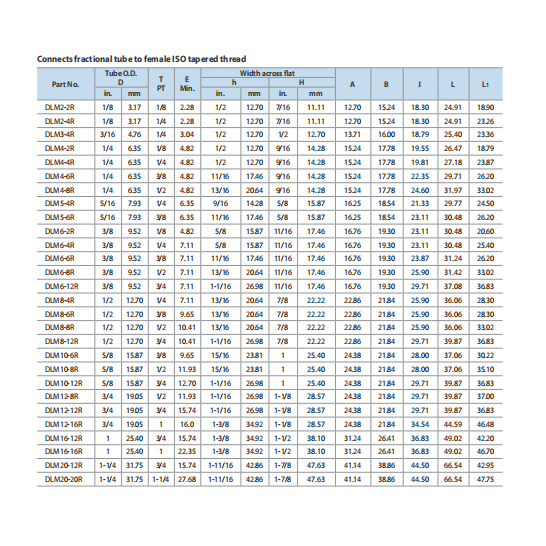

Part No |

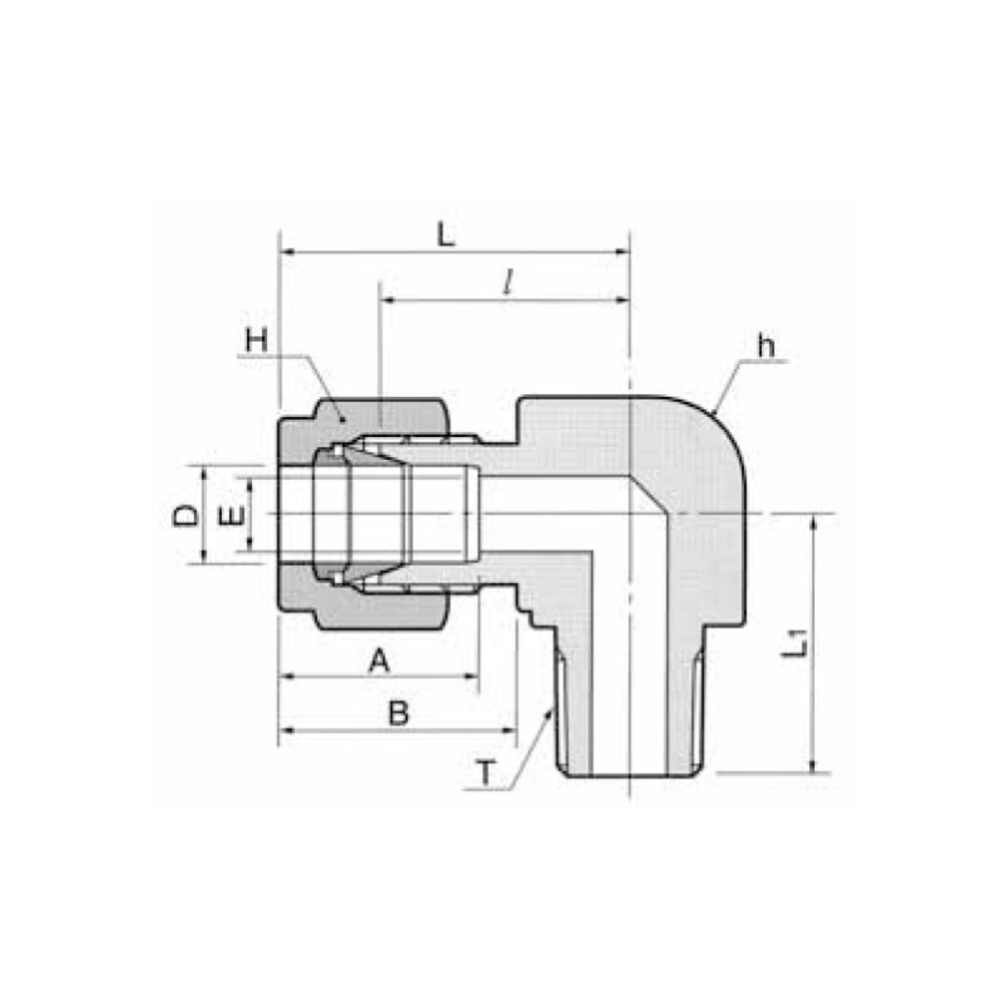

Tube O.D. D (inches) |
T PT |
|
DLM2-2R |
1/8 |
1/8 |
|
DLM2-4R |
1/8 |
1/4 |
|
DLM3-4R |
3/16 |
1/4 |
|
DLM4-2R |
1/4 |
1/8 |
|
DLM4-4R |
1/4 |
1/4 |
|
DLM4-6R |
1/4 |
3/8 |
|
DLM4-8R |
1/4 |
1/2 |
|
DLM5-4R |
5/16 |
1/4 |
|
DLM5-6R |
5/16 |
3/8 |
|
DLM6-2R |
3/8 |
1/8 |
|
DLM6-4R |
3/8 |
1/4 |
|
DLM6-6R |
3/8 |
3/8 |
|
DLM6-8R |
3/8 |
1/2 |
|
DLM6-12R |
3/8 |
3/4 |
|
DLM8-4R |
1/2 |
1/4 |
|
DLM8-6R |
1/2 |
3/8 |
|
DLM8-8R |
1/2 |
1/2 |
|
DLM8-12R |
1/2 |
3/4 |
|
DLM10-6R |
5/8 |
3/8 |
|
DLM10-8R |
5/8 |
1/2 |
|
DLM10-12R |
5/8 |
3/4 |
|
DLM12-8R |
3/4 |
1/2 |
|
DLM12-12R |
3/4 |
3/4 |
|
DLM12-16R |
3/4 |
1 |
|
DLM16-12R |
1 |
3/4 |
|
DLM16-16R |
1 |
1 |
|
DLM20-12R |
1-1/4 |
3/4 |
|
DLM20-20R |
1-1/4 |
1-1/4 |
