Brand:

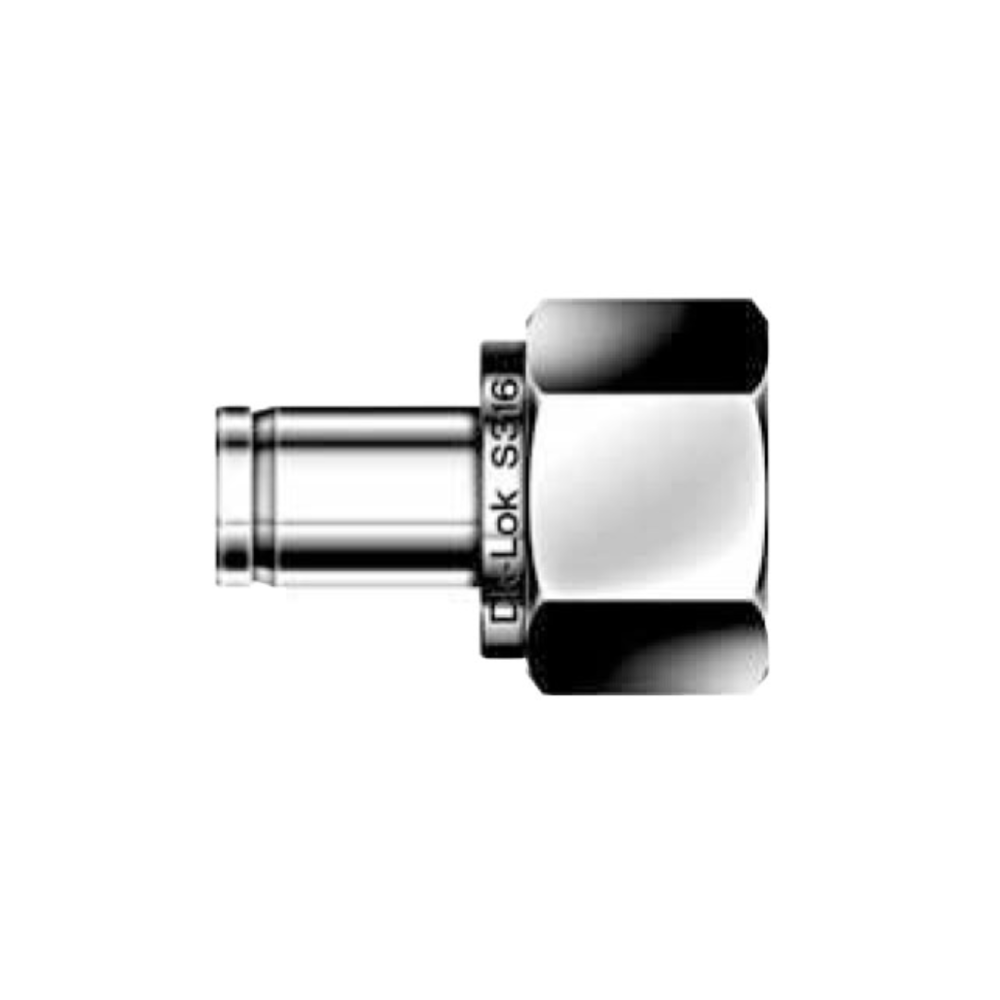

DK-LOK SS316 Female Adapter DAF-N Series
Tube Stub Connector
Model No.
DAFX-XN-SS
DK-Lok DAF-N adapter tube fittings provide a connection to a male American Standard Pipe Thread leaving a tube stub connection typically to address alignment issues.
|

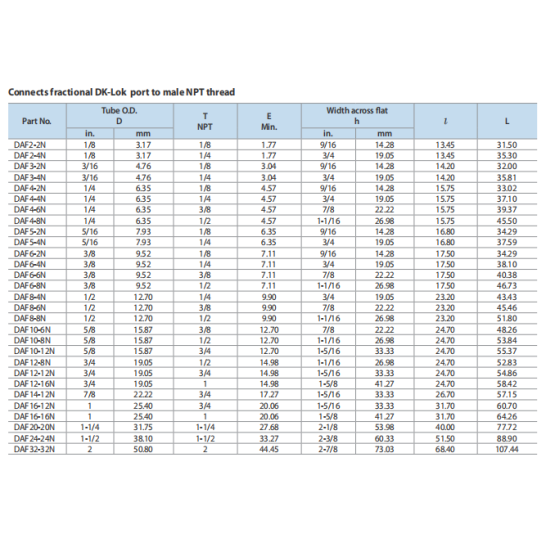

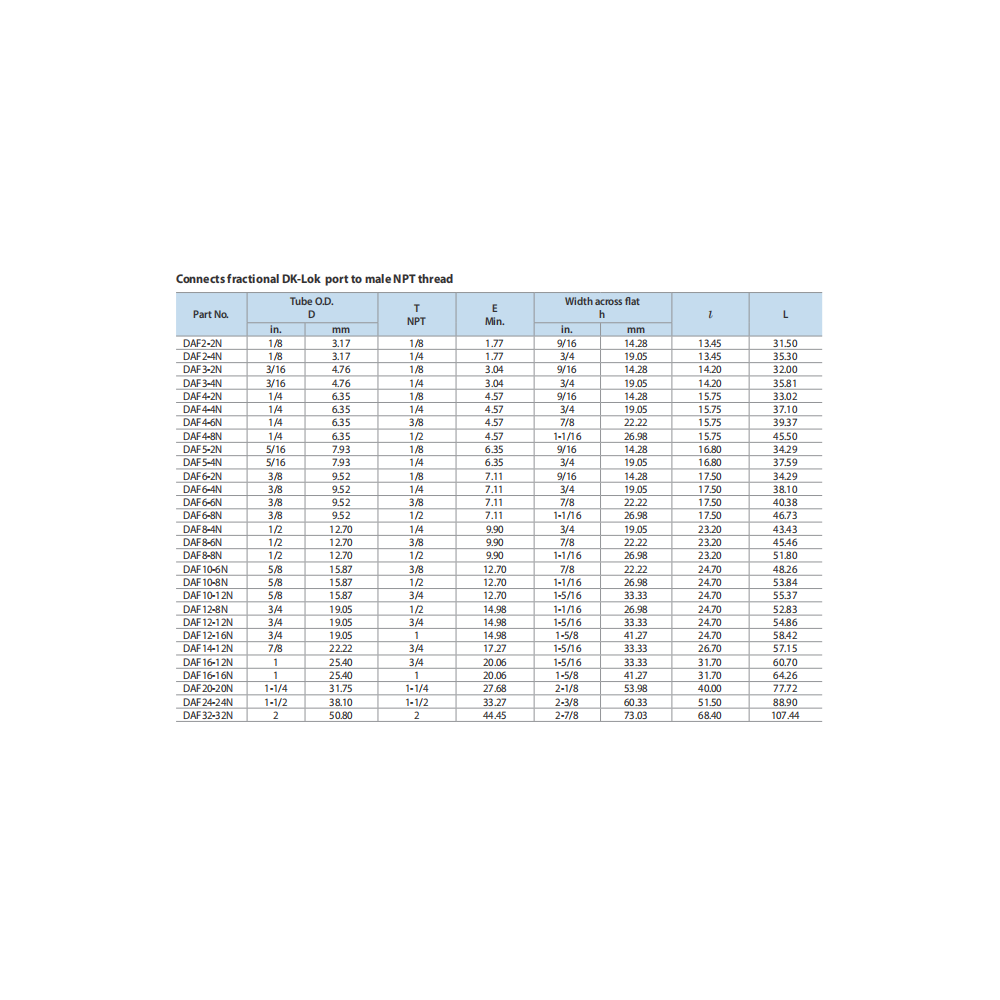

Part No
|
Tube O.D.
D (inches)
|
T
NPT
|
|
DAF2-2N |
1/8 |
1/8 |
|
DAF2-4N |
1/8 |
1/4 |
|
DAF3-2N |
3/16 |
1/8 |
|
DAF3-4N |
3/16 |
1/4 |
|
DAF4-2N |
1/4 |
1/8 |
|
DAF4-4N |
1/4 |
1/4 |
|
DAF4-6N |
1/4 |
3/8 |
|
DAF4-8N |
1/4 |
1/2 |
|
DAF5-2N |
5/16 |
1/8 |
|
DAF5-4N |
5/16 |
1/4 |
|
DAF6-2N |
3/8 |
1/8 |
|
DAF6-4N |
3/8 |
1/4 |
|
DAF6-6N |
3/8 |
3/8 |
|
DAF6-8N |
3/8 |
1/2 |
|
DAF8-4N |
1/2 |
1/4 |
|
DAF8-6N |
1/2 |
3/8 |
|
DAF8-8N |
1/2 |
1/2 |
|
DAF10-6N |
5/8 |
3/8 |
|
DAF10-8N |
5/8 |
1/2 |
|
DAF10-12N |
5/8 |
3/4 |
|
DAF12-8N |
3/4 |
1/2 |
|
DAF12-12N |
3/4 |
3/4 |
|
DAF12-16N |
3/4 |
1 |
|
DAF16-12N |
1 |
3/4 |
|
DAF16-16N |
1 |
1 |
|
DAF20-20N |
1-1/4 |
1-1/4 |
|
DAF24-24N |
1-1/2 |
1-1/2 |
|
DAF32-32N |
2 |
2 |
