Brand:
DK-LOK

DK-LOK SS316 Port Connector DCP/DCPZ Metric Series

Tube Stub Connector

Read moreShow less
Model No.
DCP-XM-SS
Get a quote
Like0
Share
Description
DK-Lok DCP port connectors are designed to connect two individual fractional or metric nut and ferrule(s) ports very close together in order to eliminate cutting very short lengths of tube to accomplish this while also addressing alignment issues.

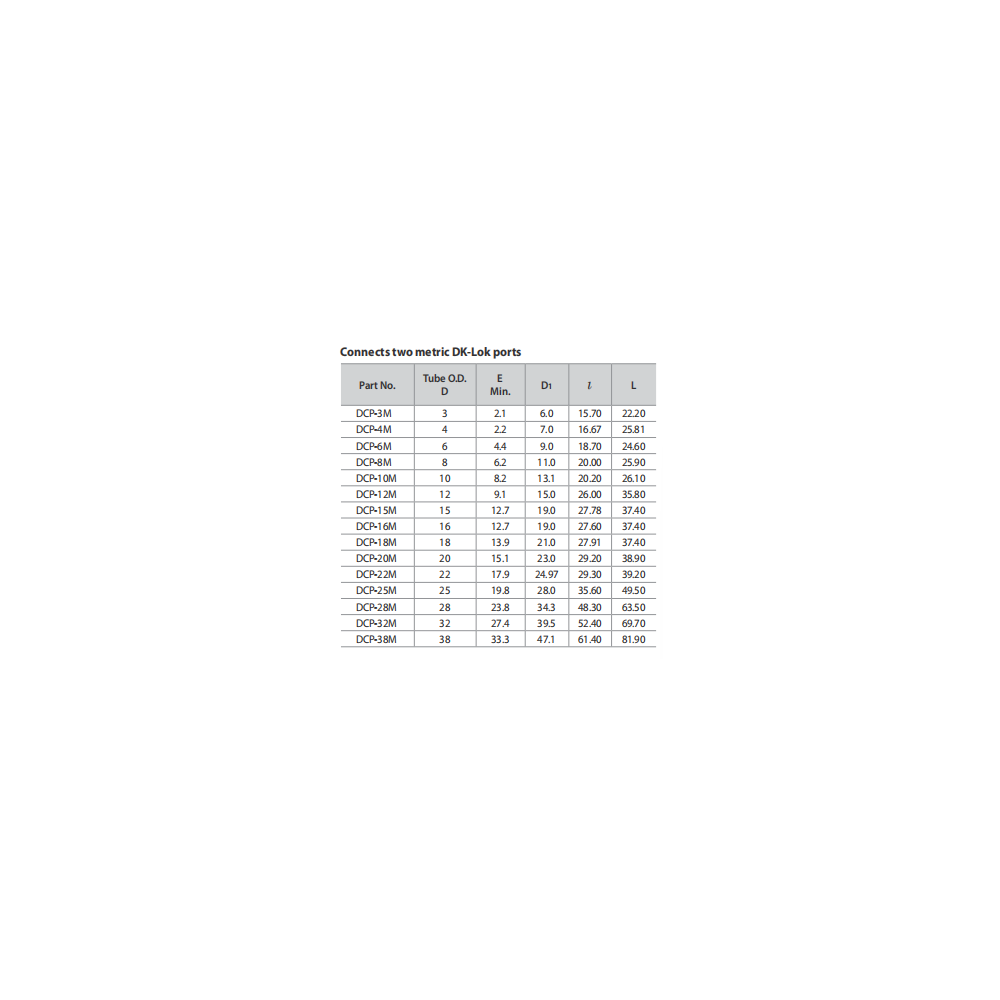

Part No

Tube O.D.

D (mm)

DCP-3M

3

DCP-4M

4

DCP-6M

6

DCP-8M

8

DCP-10M

10

DCP-12M

12

DCP-15M

15

DCP-16M

16

DCP-18M

18

DCP-20M

20

DCP-22M

22

DCP-25M

25

DCP-28M

28

DCP-32M

32

DCP-38M

38

Read moreShow less
Specifications
DCP-XM-SS

Data sheet

Z Series Ferrule
No
Moly Coating
None
