Brand:

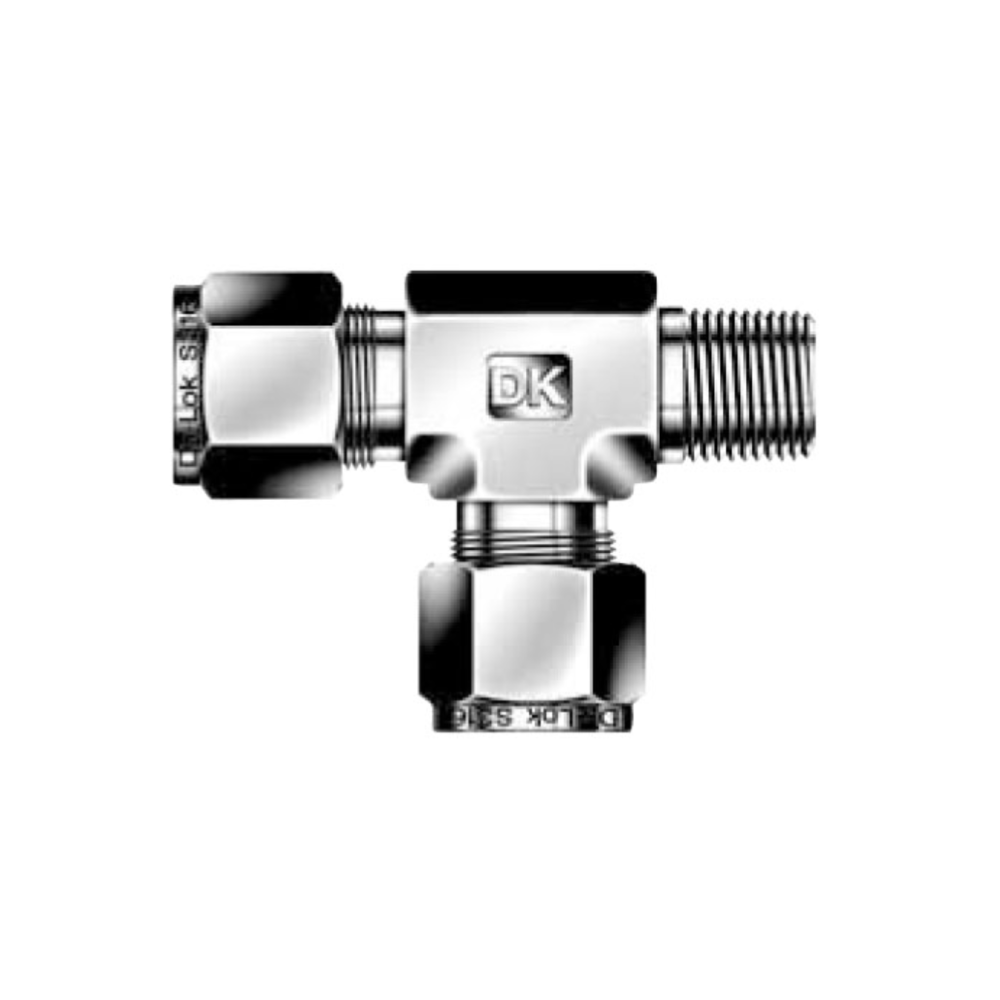

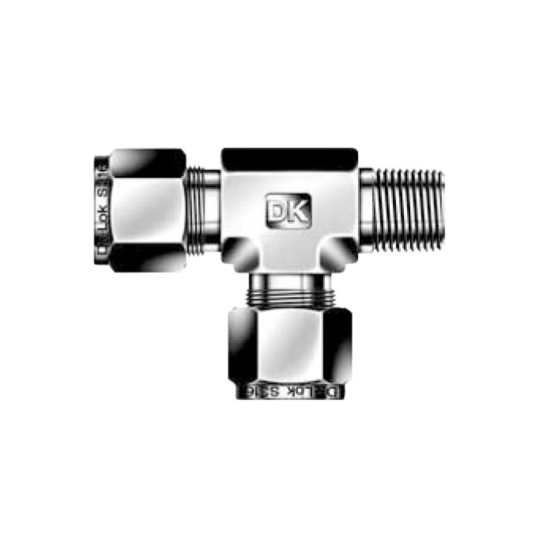

DK-LOK SS316 Male Run Tee DTRM-R Series
Tube to Male Pipe
Model No.
DTRMX-XR-SS
DK-Lok DTRM-R male run tees are designed to connect two individual fractional or metric tube lines to a female British Standard Pipe Tapered (BSPT) threaded port in both single ferrule and double ferrule designs.
|

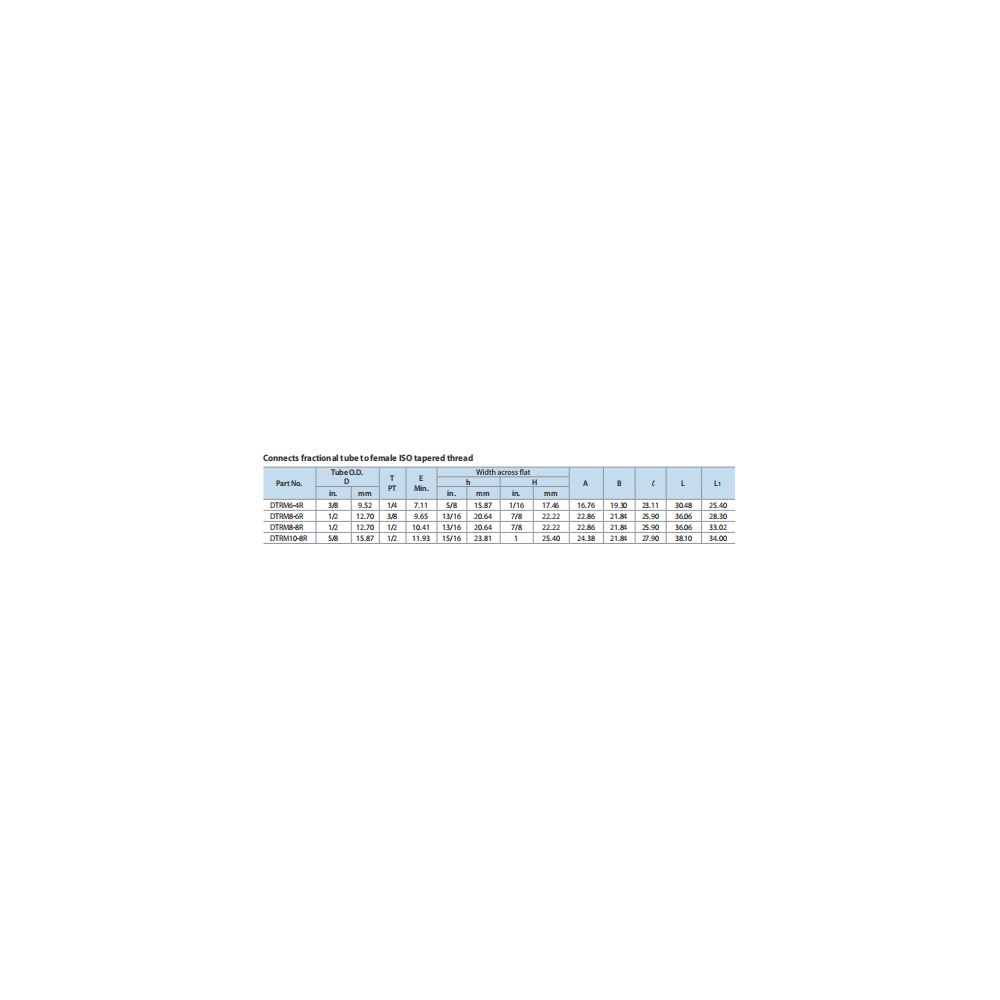

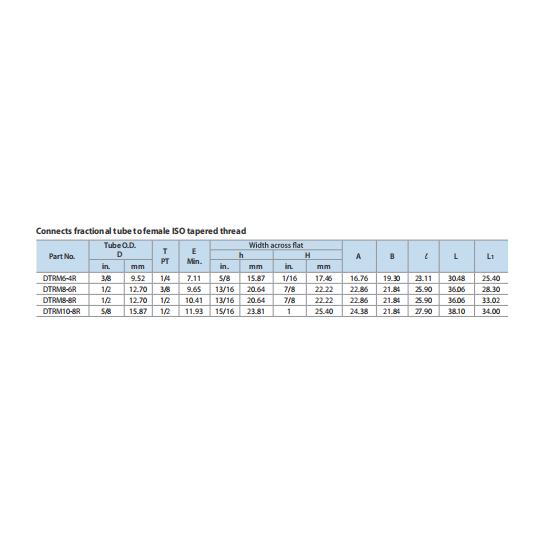

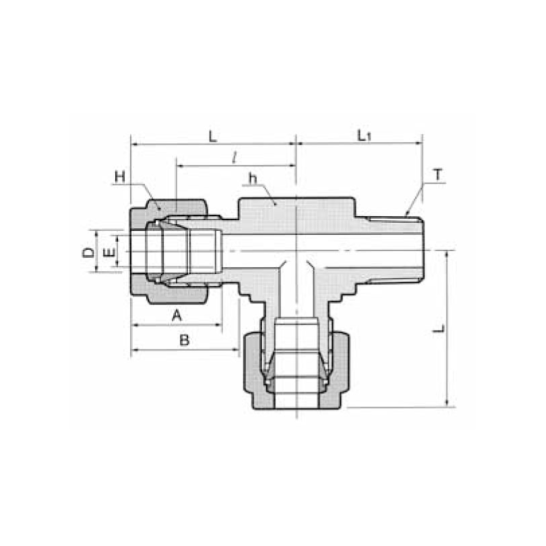

Part No |
Tube O.D. D (inches) |
T PT |
|
DTRM6-4R |
3/8 |
1/4 |
|
DTRM8-6R |
1/2 |
3/8 |
|
DTRM8-8R |
1/2 |
1/2 |
|
DTRM10-8R |
5/8 |
1/2 |
