Brand:

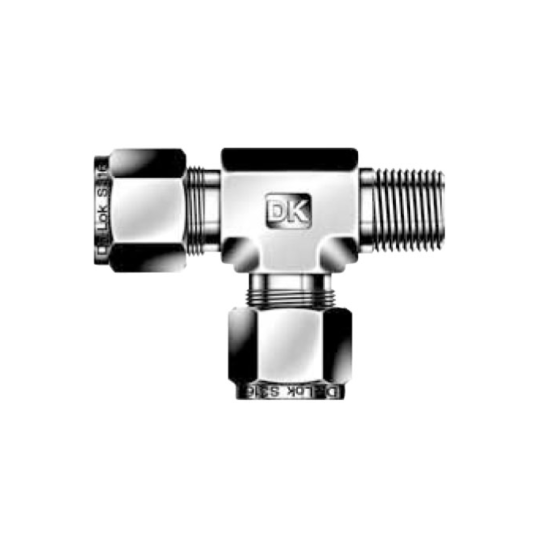

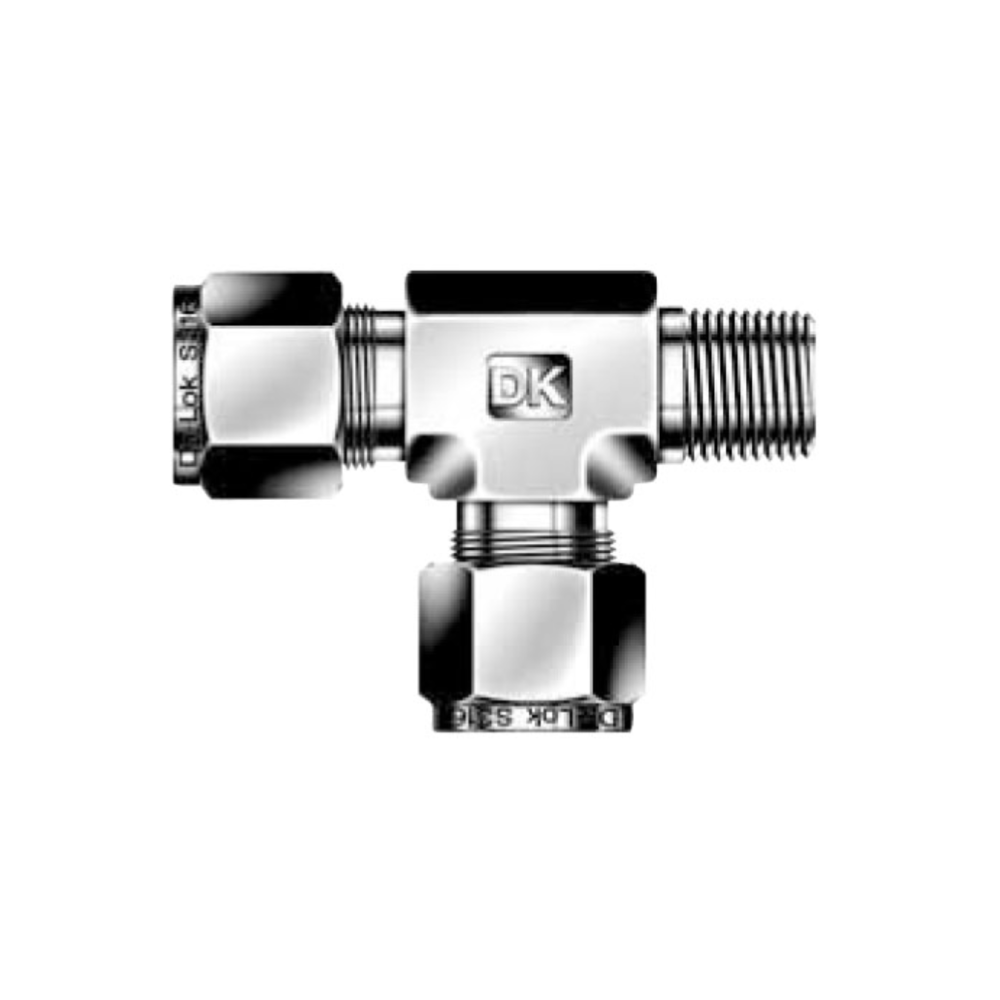

DK-LOK SS316 Male Run Tee DTRM-N Series
Tube to Male Pipe
Model No.
DTRMX-XN-SS
DK-Lok DTRM-N male run tees are designed to connect two individual fractional or metric tube lines to a female American Standard Pipe Thread (NPT) port in both single ferrule and double ferrule designs.
|

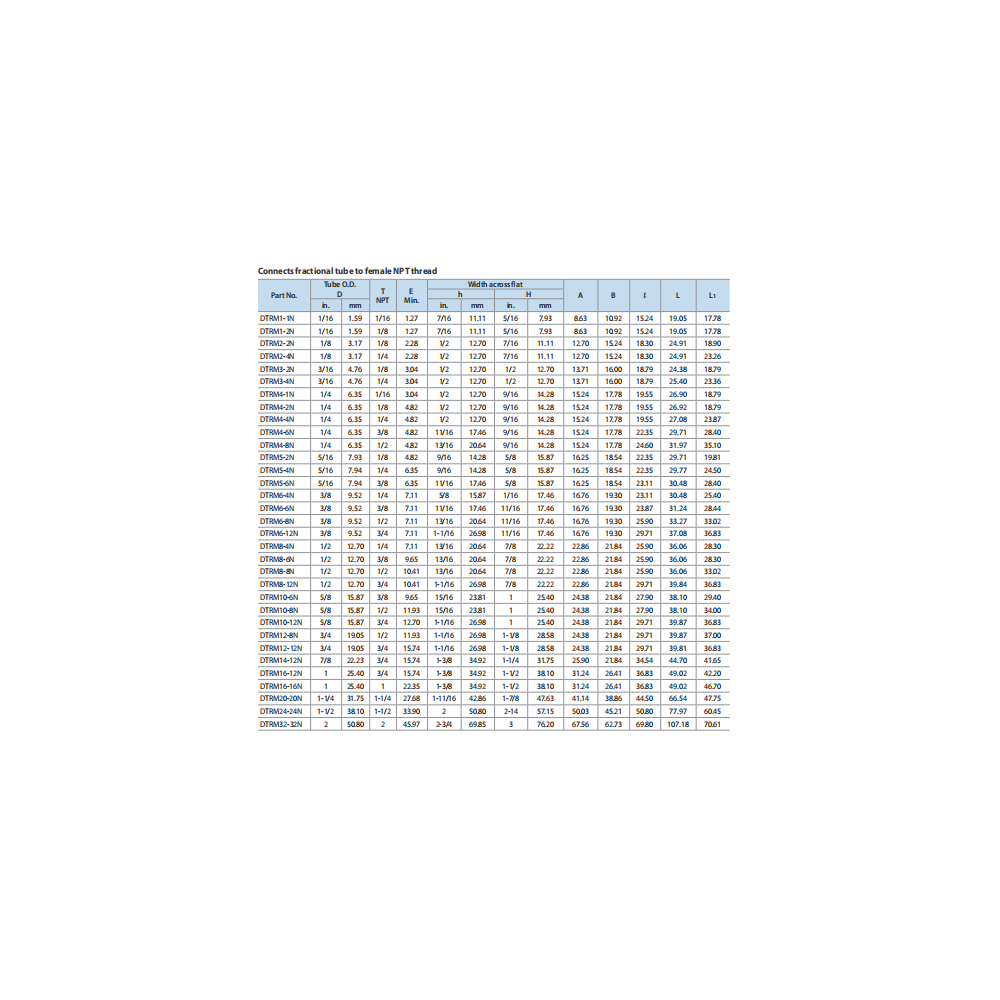

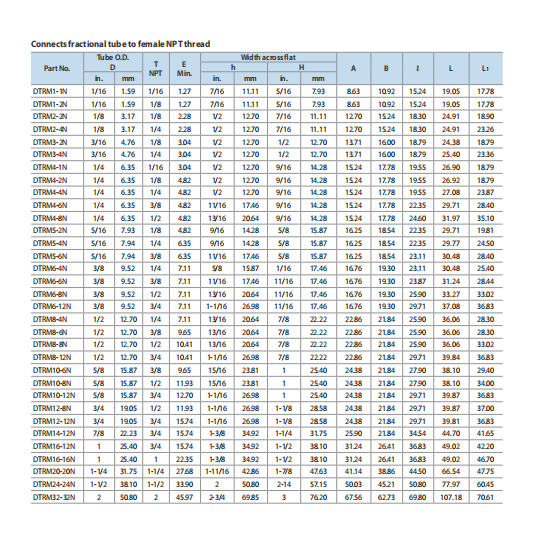

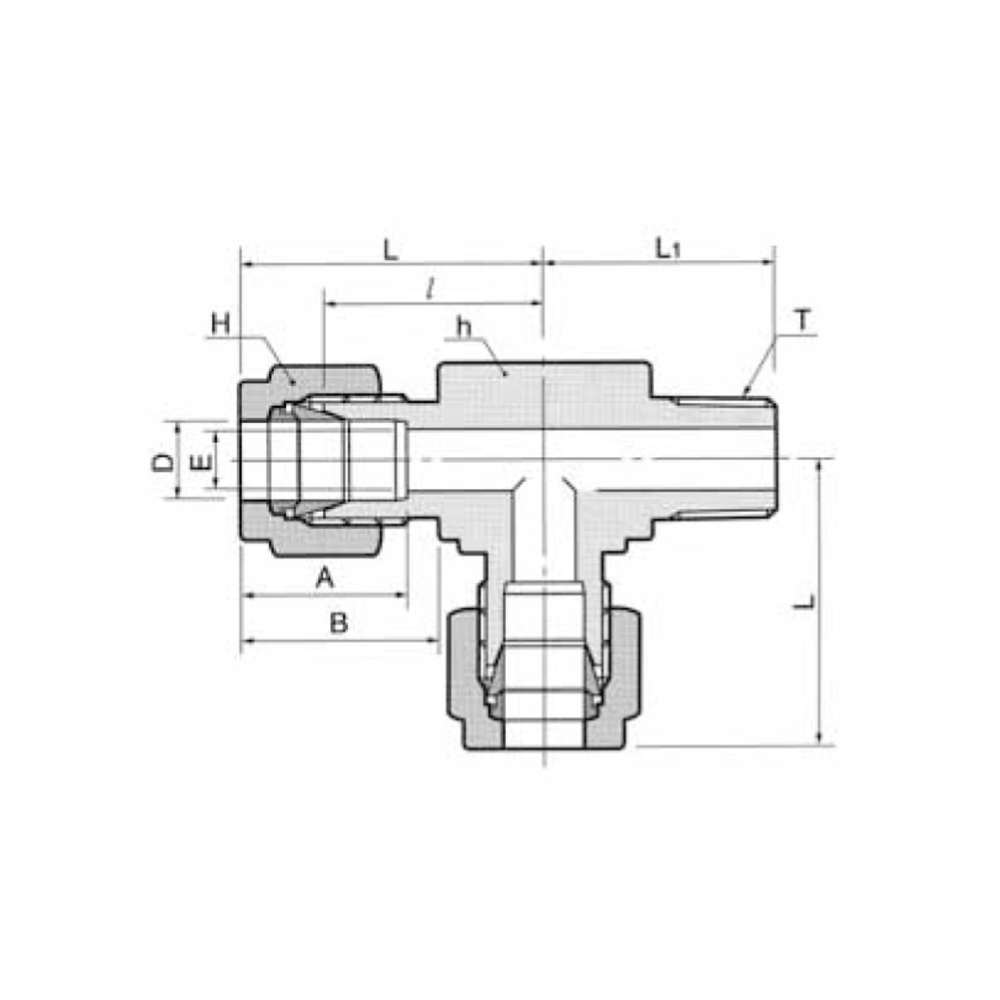

Part No |
Tube O.D. D (inches) |
T NPT |
|
DTRM1-1N |
1/16 |
1/16 |
|
DTRM1-2N |
1/16 |
1/8 |
|
DTRM2-2N |
1/8 |
1/8 |
|
DTRM2-4N |
1/8 |
1/4 |
|
DTRM3-2N |
3/16 |
1/8 |
|
DTRM3-4N |
3/16 |
1/4 |
|
DTRM4-1N |
1/4 |
1/16 |
|
DTRM4-2N |
1/4 |
1/8 |
|
DTRM4-4N |
1/4 |
1/4 |
|
DTRM4-6N |
1/4 |
3/8 |
|
DTRM4-8N |
1/4 |
1/2 |
|
DTRM5-2N |
5/16 |
1/8 |
|
DTRM5-4N |
5/16 |
1/4 |
|
DTRM5-6N |
5/16 |
3/8 |
|
DTRM6-4N |
3/8 |
1/4 |
|
DTRM6-6N |
3/8 |
3/8 |
|
DTRM6-8N |
3/8 |
1/2 |
|
DTRM6-12N |
3/8 |
3/4 |
|
DTRM8-4N |
1/2 |
1/4 |
|
DTRM8-6N |
1/2 |
3/8 |
|
DTRM8-8N |
1/2 |
1/2 |
|
DTRM8-12N |
1/2 |
3/4 |
|
DTRM10-6N |
5/8 |
3/8 |
|
DTRM10-8N |
5/8 |
1/2 |
|
DTRM10-12N |
5/8 |
3/4 |
|
DTRM12-12N |
3/4 |
3/4 |
|
DTRM14-12N |
7/8 |
3/4 |
|
DTRM16-12N |
1 |
3/4 |
|
DTRM16-16N |
1 |
1 |
|
DTRM20-20N |
1-1/4 |
1-1/4 |
|
DTRM24-24N |
1-1/2 |
1-1/2 |
|
DTRM32-32N |
2 |
2 |
