Brand:

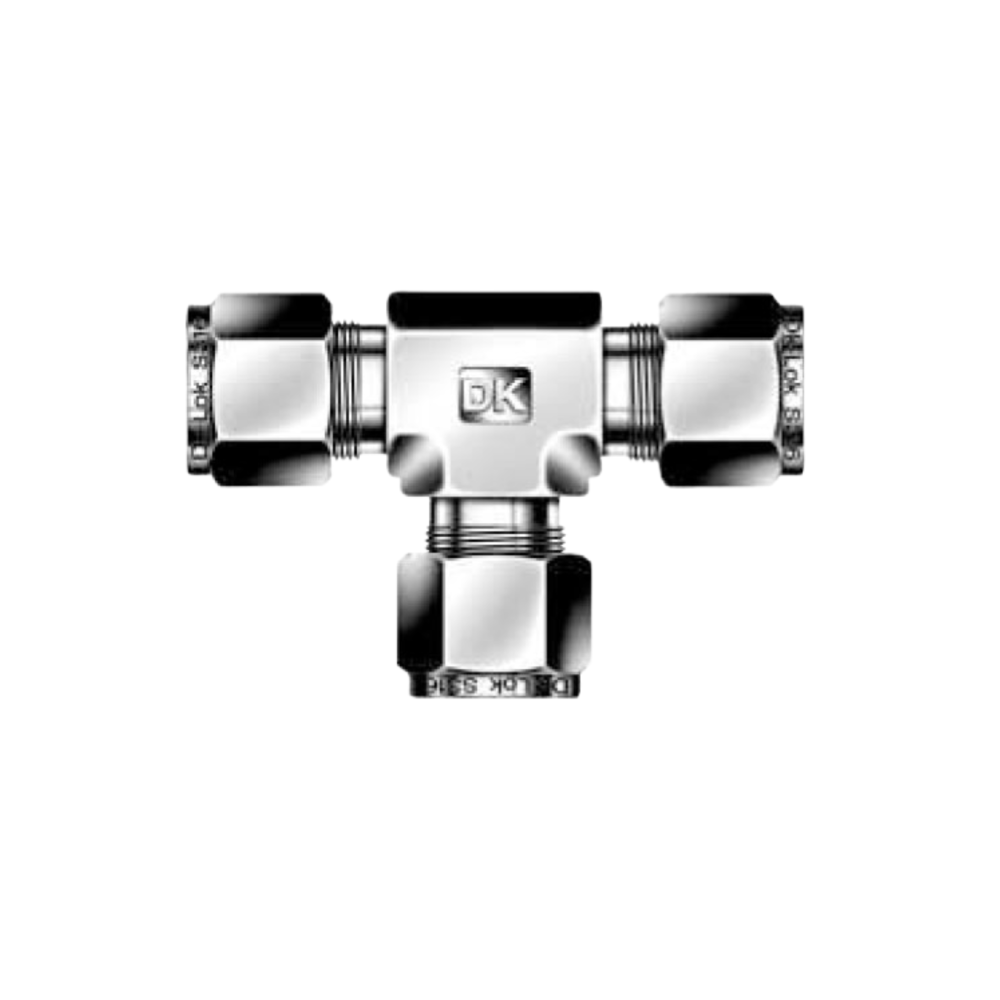

DK-LOK SS316 Union Tee DT Metric Series
Tube to Tube Union
Model No.
DT-XM-SS
DK-Lok union tees are designed to connect two individual lines of the same outside diameter size together in either fractional or metric in both single ferrule and double ferrule designs.
|

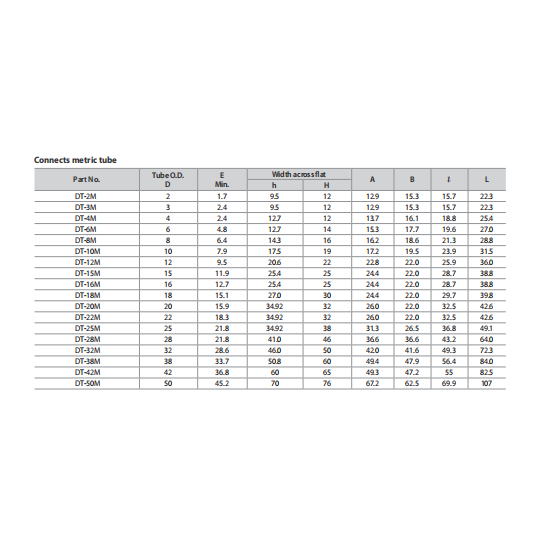

Part No |
Tube O.D. D (mm) |
|
DT-2M |
2 |
|
DT-3M |
3 |
|
DT-4M |
4 |
|
DT-6M |
6 |
|
DT-8M |
8 |
|
DT-10M |
10 |
|
DT-12M |
12 |
|
DT-15M |
15 |
|
DT-16M |
16 |
|
DT-18M |
18 |
|
DT-20M |
20 |
|
DT-22M |
22 |
|
DT-25M |
25 |
|
DT-28M |
28 |
|
DT-32M |
32 |
|
DT-38M |
38 |
|
DT-42M |
42 |
|
DT-50M |
50 |
